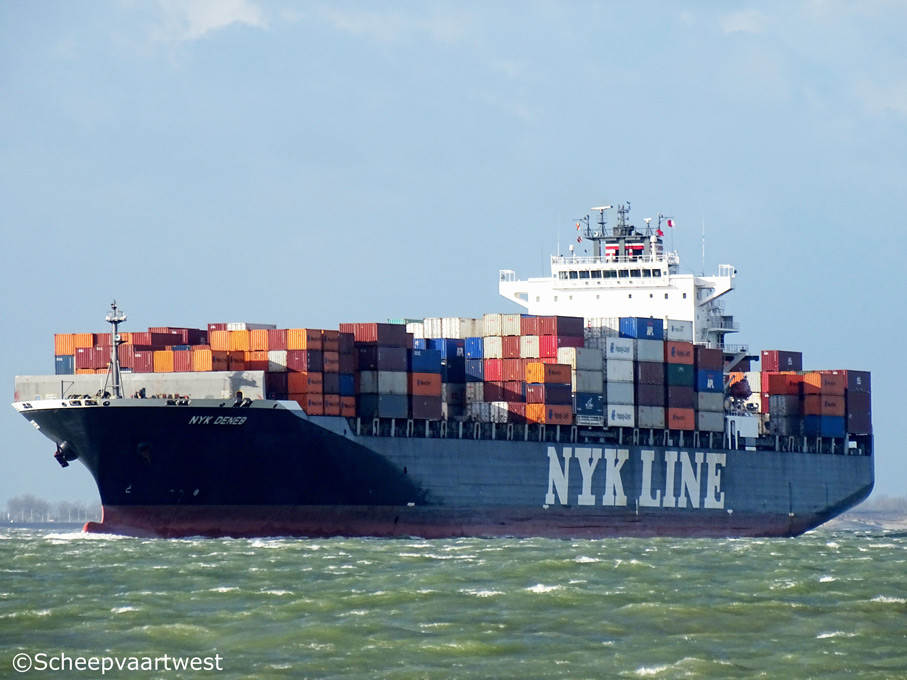

NYK Deneb 01

Westerschelde 02 March 2016

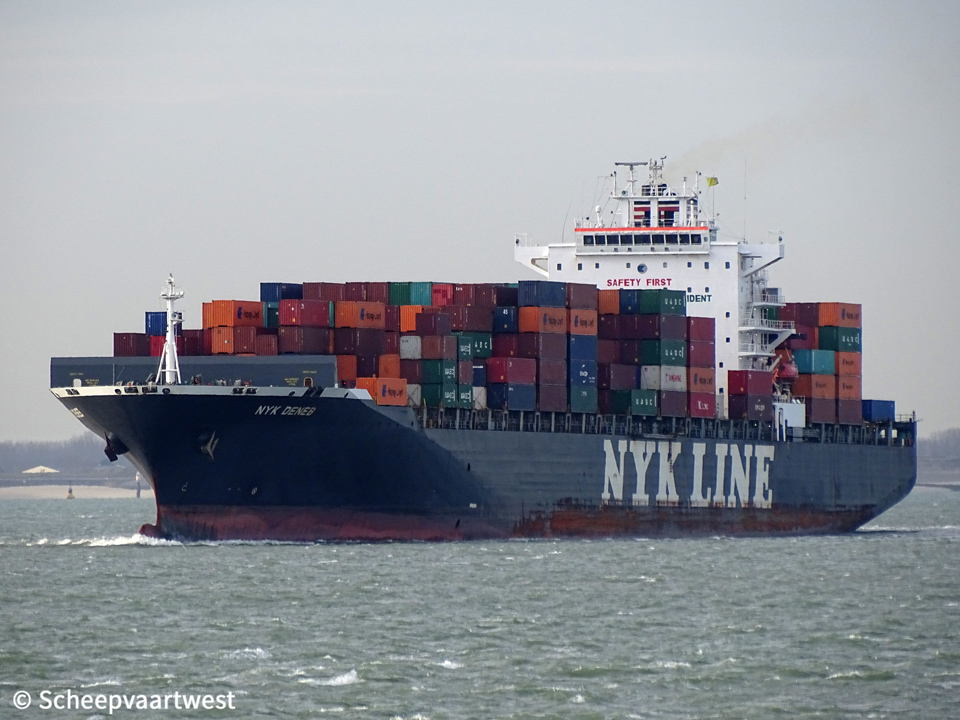

NYK Deneb 02
Westerschelde 10/12/19













Name

NYK DENEB

Type

Cellular containership

IMO-number

9337676

Call sign

D5009

Flag

Liberia

Port of registry

Monrovia

Previous flags

2007 - 2018 Republic of Panama, Panama City - Call sign: 3EOF8

GT

55.487 t registered

DWT

Summer: 65.953 t

NT

23.203 t registered

Number of 20ft containers

4.888

Number of 40ft containers

2.413

Container capacity 14t

3.280

Reefer capacity

650

Length

294,12 m overall

Breadth

32,20 m moulded

Draught

Summer: 13,52 m

Moulded L x B x D

283,20 x 32,20 x 21,80 m

Registered L x B x D

285,79 x 32,20 x 21,80 m

Freeboard

3.867 mm

Depth

21,80 m moulded

Speed

Max.: 27,7 knots

Service: 25,0 knots

Built

2007

Keel laid

20/08/2007

Launch date

02/11/2007

Date of completion

17/12/2007

Builder

Hyundai Heavy Industries Co., Ltd.

Ulsan

South Korea

Yard number

1789

Hull material

Steel

Main engine

1x MAN-B&W 9K98MC-C - 2 stroke single acting 9 cylinder 980 x 2.400 mm combustion engine 51.390 kW at 104,0 rpm

Manufacturer: Hyundai Heavy Industries Co., Ltd.

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 880 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 7,8 bar

Evaporation: 9,24 t/h

Manufacturer: Kang Rim Ind. Co.,Ltd.

Generators

5x Generators total 8.688 kVA

Tank capacities

Fuel oil: 6.999 m³

Fresh water: 456 m³

Water ballast: 17.028 m³

Cargo gear

Gearless

Manager

Eastern Pacific Shipping Pte. Ltd.

Operator

NYK Line - Nippon Yusen Kaisa Line

Registered owner

Makatel Shipping S.A.

Latest data adjustment

04 July 2020
