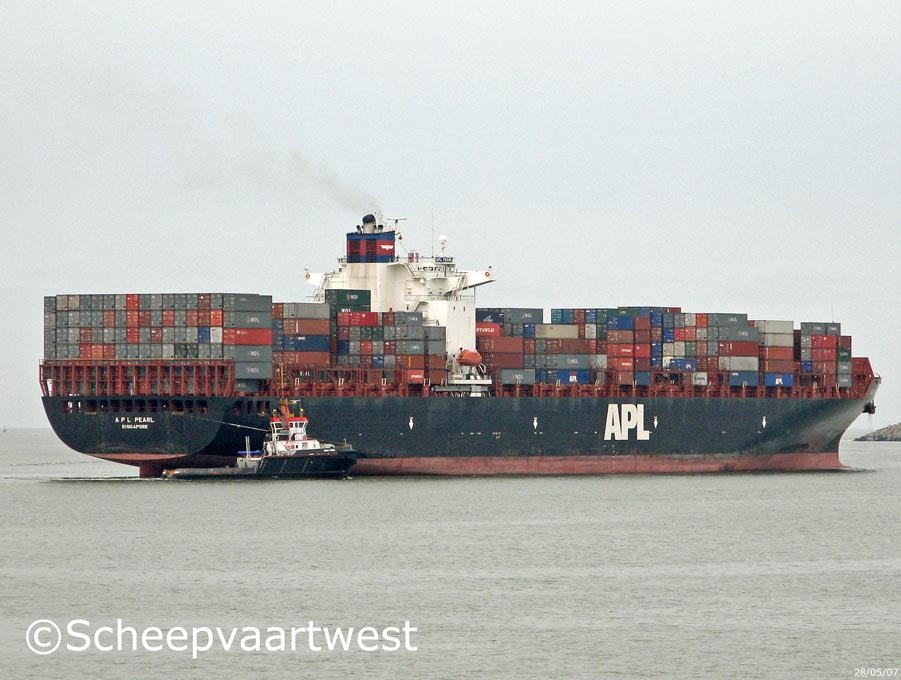

| Zeebrugge 25 May 2007 |
 |
 |
|

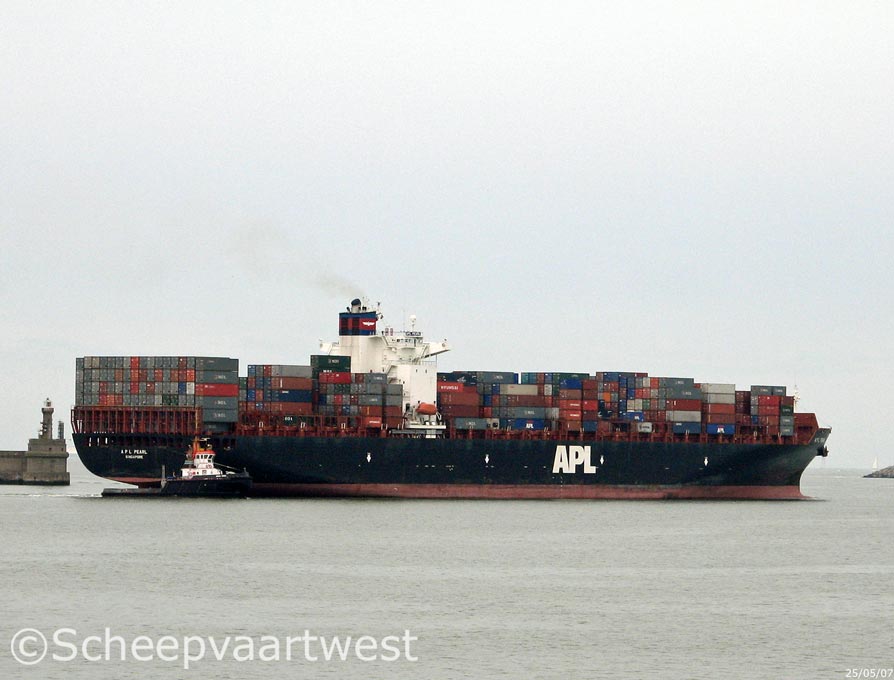

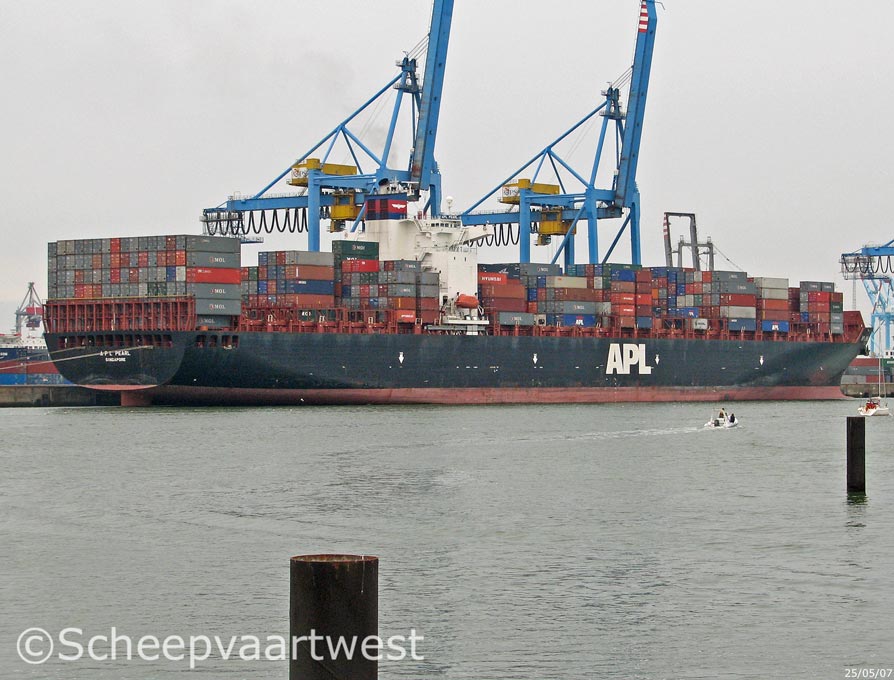

| Zeebrugge 25/05/07 | Zeebrugge 25/05/07 |
|
Name |
APL PEARL |
|
Previous name |
1998-28.05.1999 NOL Pearl |
|
Type |
Cellular Containership |
|
IMO-number |
9139737 |
|
Call sign |
S6JR |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
65.475 t registered Suez: 67.482,09 t |
|
DWT |
Summer: 64.050 t |
|
NT |
28.825 t registered Suez: 54.801,82 t |
|
Number of 20ft containers |
5.020 |
|
Container capacity at 14t |
4.386 |
|
Reefer Capacity |
350 |
|
Length |
275,20 m overall 261,20 m registered |
|
Breadth |
40,00 m overall |
|
Draught |
Summer: 13,50 m |
|
Freeboard |
10.800 mm |
|
Depth |
24,30 m moulded |
|
Speed |
24,5 knots |
|
Built |
1998 |
|
Keel laid |
28.06.1997 |
|
Delivery date |
27.02.1998 |
|
Builder |
Samsung Shipbuilding & Heavy Industries Co. Ltd, |
|
Yard number |
1205 |
|
Hull material |
Ordinary strength steel |
|
Hull type |
Single hull |
|
Bulkheads |
Water tight: 11 |
|
Main engine |
1x Sulzer 12RTA84C - 12 cylinder 840 x 2.400 mm engine - 49.325,52 kW Builder: Samsung Heavy Industries Ulsan - South Korea |
|
Number of screws |
1 |
|
Steam piping system |
Auxiliary water tube boiler Waste heat boiler |
|
Auxiliary power |
3x Main diesel generatorsets each 2.100 kW |
|
Number of tanks |
Ballast: 21 Fuel oil: 12 Lubricating oil: 11 Slop: 5 Fresh water: 5 Diesel oil: 4 Sludge: 1 Waste water: 1 |
|
Tank capacities |
Ballast: 17.847 t Fresh water: 398,86 t / 407 m³ Fuel oil: 7.316,02 t / 7.783 m³ |
|
Lifting equipment |
2x Cranes - SWL 9,0 t each |
|
Gear |
Gearless |
|
Manager |
Neptune Shipmanagement Services Pte Ltd. Singapore |
|
Operator |
APL - American President Lines |
|
Owner |
American President Line |
|
Registered owner |
APL (Bermuda) LTD. |
