Westerschelde 13 November 2015 |
|
Name |

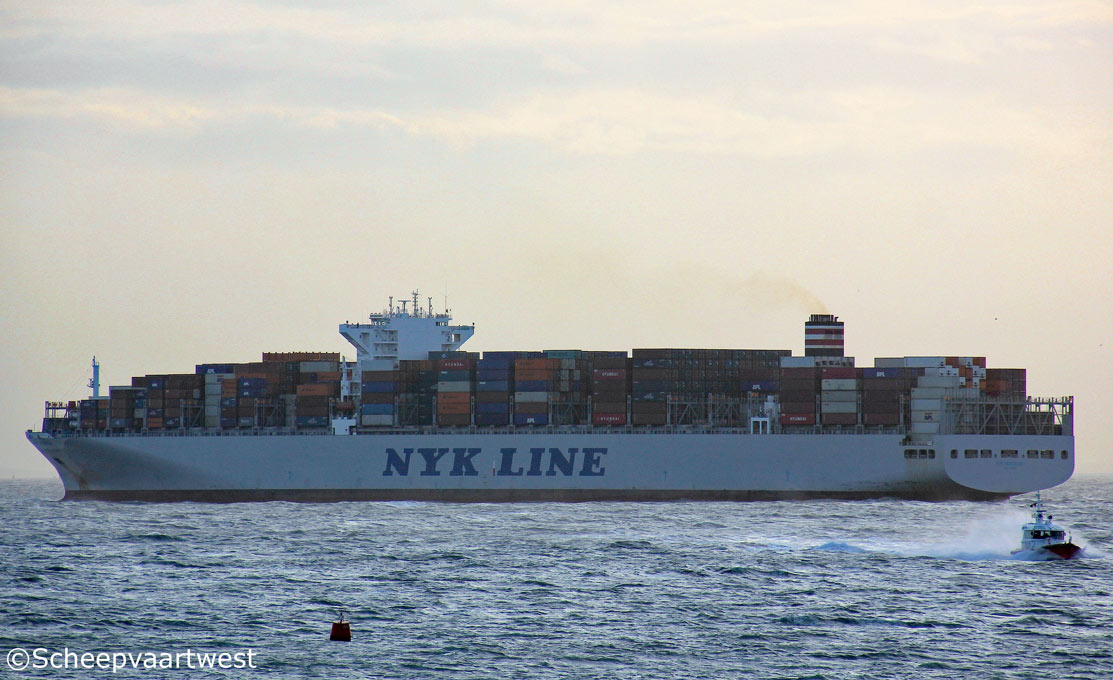

NYK HERCULES |
|
Type |
Cellular containership - Carriage of dangerous goods |
|
IMO-number |
9622617 |
|
Call sign |
VRLQ4 |
|
Flag |
Hong Kong - Special Administrative Region of the People's Republic of China |
|
Port of registry |
Hong Kong |
|
GT |
141.003 t |
|
DWT |
Summer: 144.044,1 t |
|
NT |
69.987 t Panama: 144.368 t |
|
Number of 20ft containers |
13.208 |
|
Container capacity 14t |
9.080 |
|
Reefer capacity |
1.150 |
|
Length |
366,47 m overall 350,00 m between perpendiculars |
|
Breadth |
48,20 m |
|
Draught |
15,50 m |
|
Freeboard |
7.424 mm |
|
Depth |
19,80 m moulded |
|
Speed |
22,0 knots Max.: 23,5 knots |
|
Built |
2013 |
|
Keel laid |
05.11.2012 |
|
Launch date |
123.01.2013 |
|
Delivery date |
30.04.2013 |
|
Builder |
Samsung Shipbuilding & Heavy Industries Co., Ltd. |
|
Yard number |
2005 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Watertight bulkheads |
11 |
|
Main engine |
1x MAN-B&W/Hyundai 12S90ME-C9.2 - 12 cylinder 900 x 3.260 mm diesel engine 54.200 kW / 73.691 hp at 77,2 rpm Manufacturer: Hyundai Engine Mfg.Co.,Ltd. |
|
Propellers |
1 Manufacturer: Nakashima Propeller Co., Ltd. |
|
Boilers |
1x Exhaust gas boiler 1x Auxiliary boiler Manufacturer: Kangrim Heavy Industries Co., Ltd. |
|
Shaft generator |
1x 3.300 kW Builder: Nishishiba Electric Co., Ltd. |
|
Generators |
4x Main diesel generatorset each 3.650 kW Builder: Nishishiba Electric Co., Ltd. |
|
Bow thruster |
3.600 kW |
|
Number of holds |
7 |
|
Number of tanks |
Ballast: 23 Lubricating oil: 16 Fuel oil: 12 Waste water: 7 Diesel oil: 6 Sludge5 Fresh water: 4 Chain: 2 |
|
Tank capacities |
Diesel Oil: 614,8 m³ / 541,06 t Freshwater: 870,5 m³ Fuel Oil: 10.763 m³/ 10.224,85 t Lube Oil: 599,6 m³ / 539,64 t Tank Ballast: 44.306 m³ / 45.413,65 t |
|
Lifting equipment |
2x Engine room cranes - SWL 12,5 t 1x Monorail crane - SWL 13,0 t 2x Provision crane - SWL 4,0 t Manufacture: Oriental Prec & Eng'g Co. |
|
Cargo gear |
Gearless |
|
Manager |
OOCL - Orient Overseas Container Line Ltd. |
|
Operator |
OOCL - Orient Overseas Container Line Ltd. |
|
Registered owner |
Newcontainer NO.66 (Marshall Islands) Shipping Inc. |
|
Renamed |
2016 OOCL France - Hong Kong - Call sing: VRLQ4 |
|
Latest data adjustment |
17 January 2016 |
