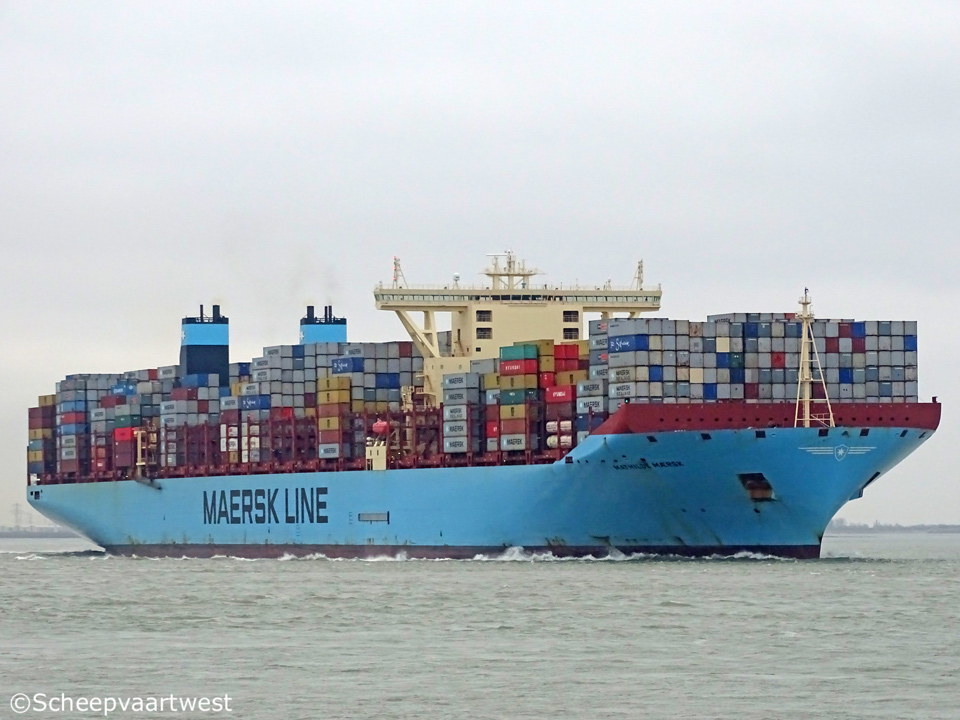

Mathilde Maersk 05

Westerschelde 23 december 2017

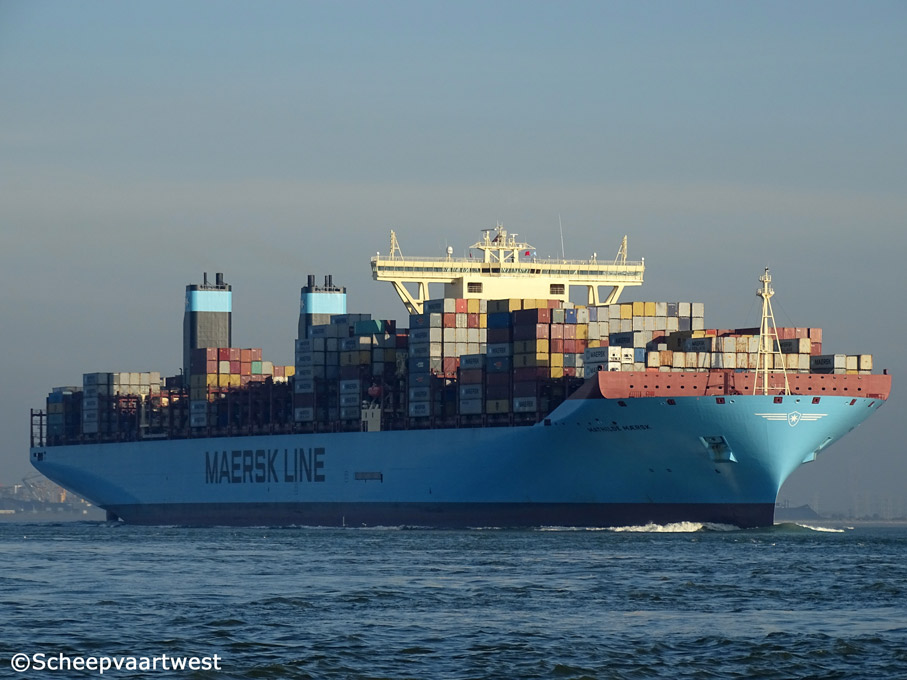

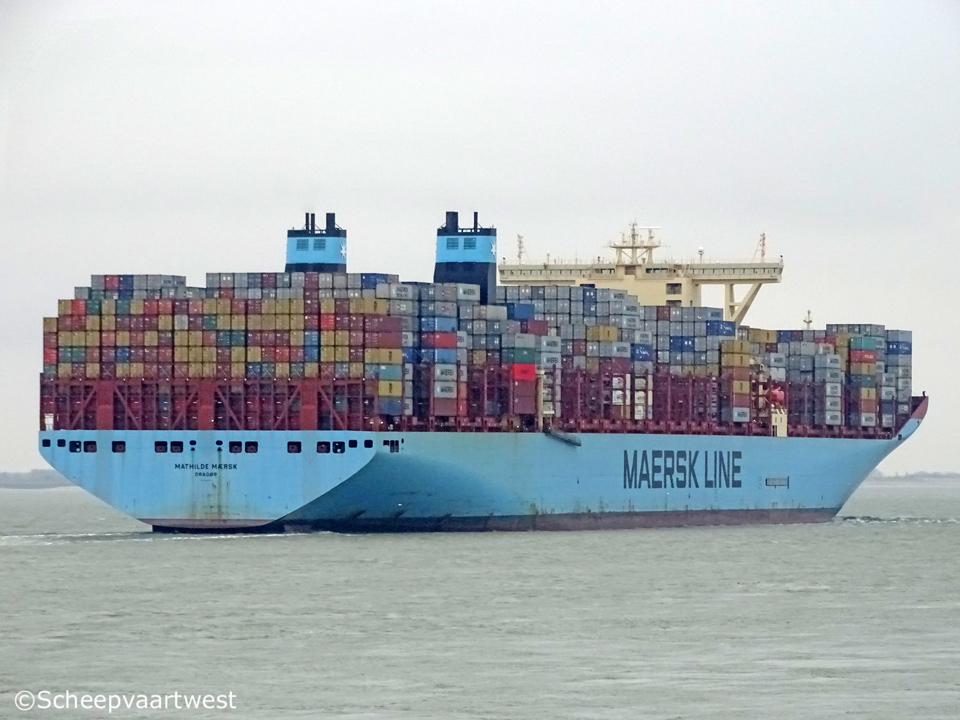

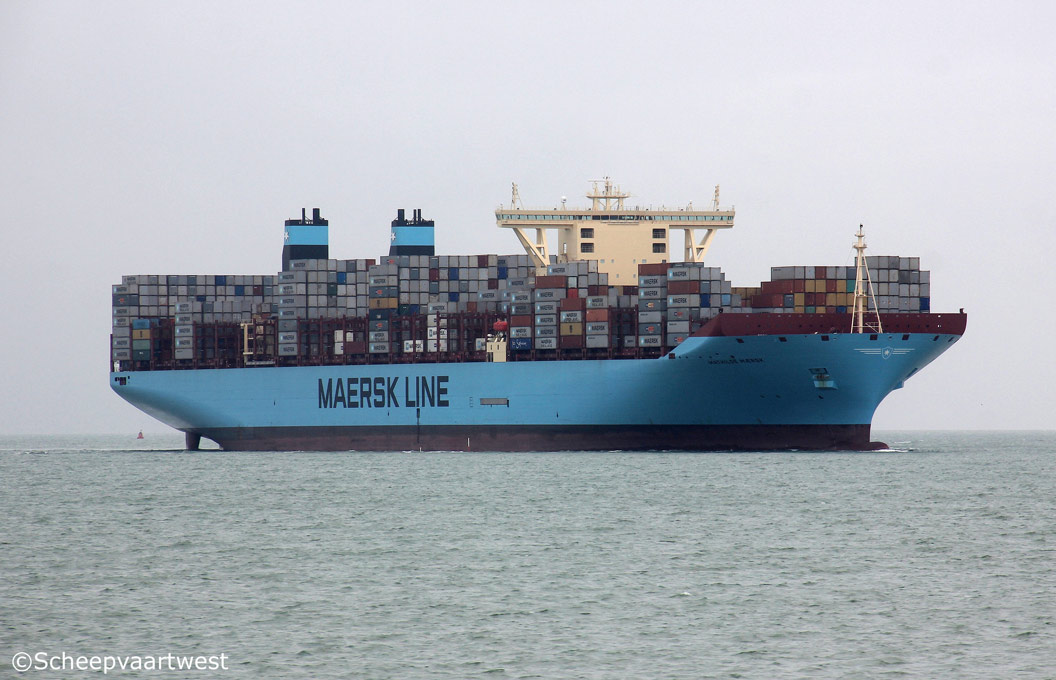

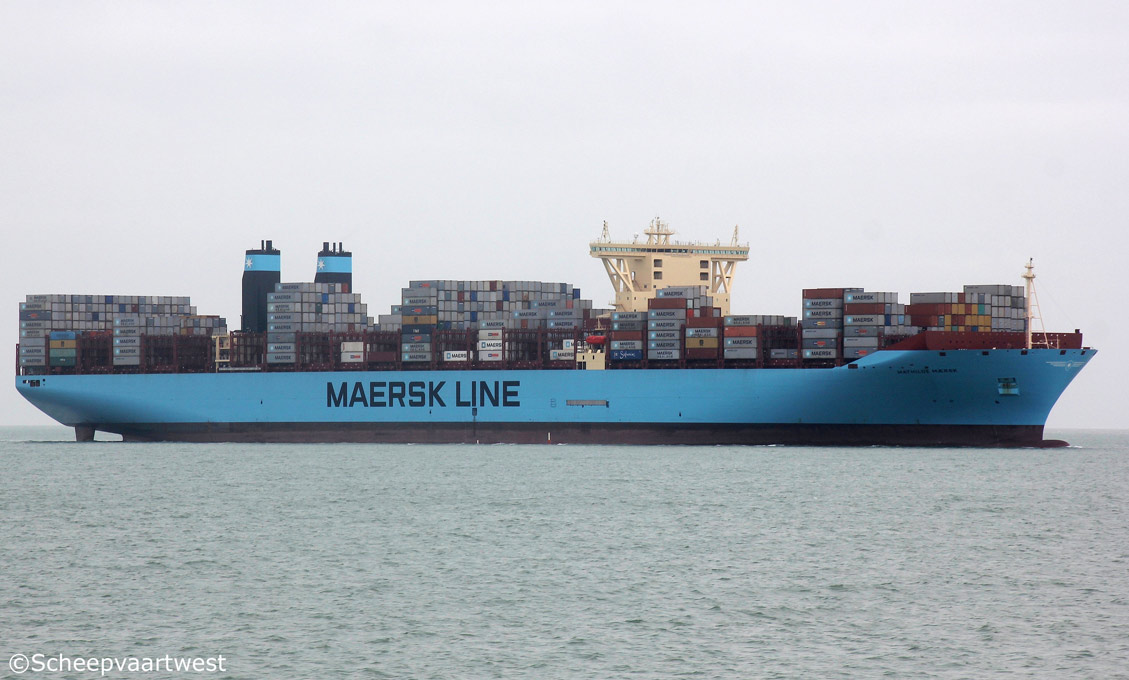

Mathilde Maersk 06   Mathilde Maersk 03   Mathilde Maersk 02   Mathilde Maersk 01
Westerschelde 23/12/17 Westerschelde 31/11/15 Westerschelde 31/11/15 Westerschelde 31/10/15

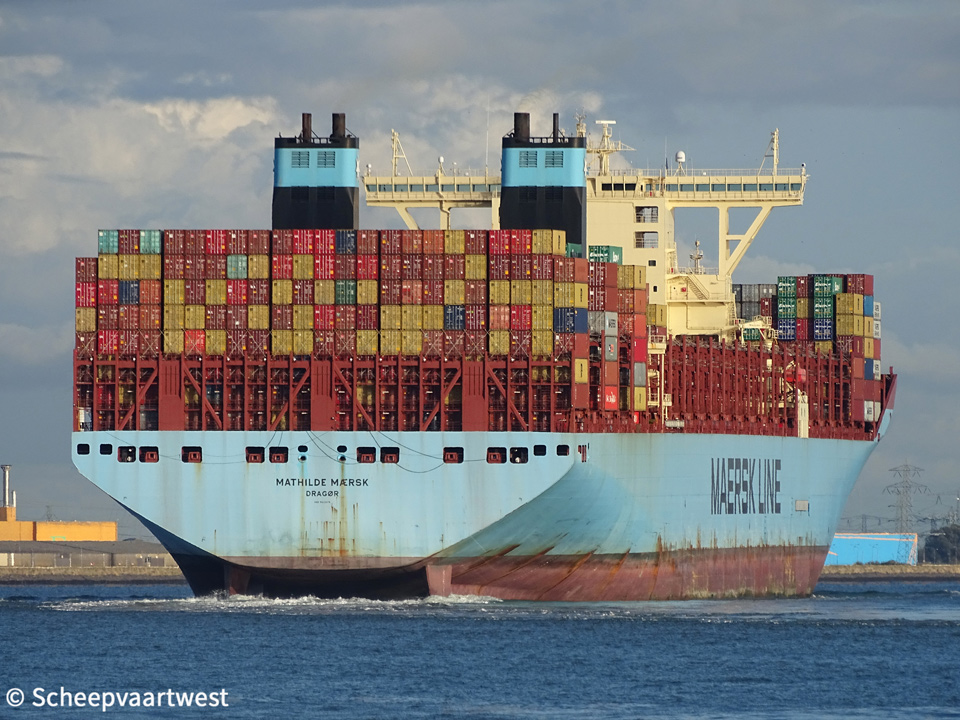

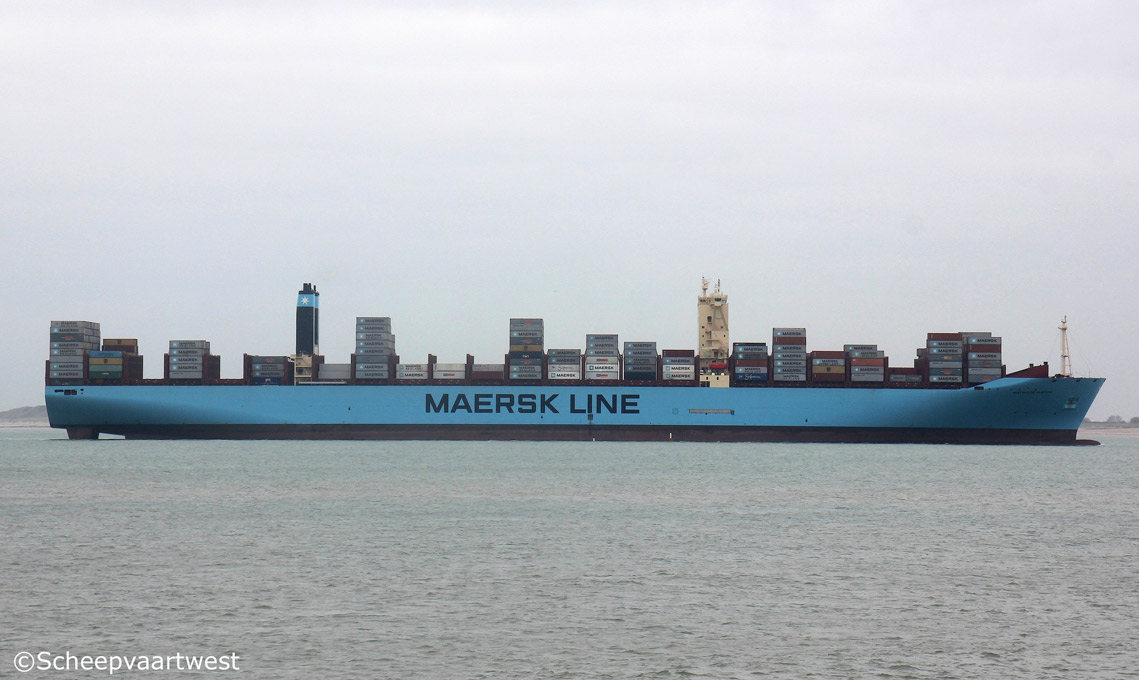

Mathilde Maersk 04   Mathilde Maersk 07
Westerschelde 31/11/15   Westerschelde 27/10/18



Name

MATHILDE MAERSK (MATHILDE MÆRSK)

Type

Cellular containership

IMO-number

9632179

Call sign

OWZW2

Flag

Denmark

Port of registry

Dragør

GT

194.849 t registered

Suez: 199.185,85 t

DWT

Summer: 194.934 t

NT

79.120 t registered

Suez: 174.365,66 t

Number of 20ft containers

18.270

Reefer capacity

1.800

Length

399,20 m overall

376,21 m between perpendiculars

Breadth

59,00 m moulded

Draught

14,50 m

Freeboard

6.845 mm

Depth

30,30 m moulded

Speed

Max.: 22,0 knots

Service: 19,0 knots

Built

2015

Keel laid

27.06.2014

Launch date

11.04.2015

Delivery date

30.06.2015

Builder

Daewoo Shipbuilding & Marine Engineering Co., Ltd.

Geoje

South Korea

Yard number

4271

Hull material

High strength steel

Watertight bulkheads

17

Main engine

2x MAN-B&W/Doosan 7S80ME-C9.4 - 2 stroke 7 cylinder 800 x 3.450 mm combustion engines each 29,300 kW at 77,7 rpm

Manufacturer: Doosan Engine Co., Ltd.

Propellers

2x Fixed pitch propeller - 4 blades - diameter 9,80 m

Manufacturer: Mecklenburger Metallguss GmbH

Steam piping system

1x H.P. Steam separator - 14,0 bar

2x H.P. Exhaust gas economizer - 14,0 bar

2x G/E Exhaust gas economizer - 12,5 bar

1x Auxiliary boiler - 9,0 bar

2x L.P. Exhaust gas economizer - 8,0 bar

1x L.P. Steam separator - 8,0 bar

Manufacturer: Alfa Laval Qingdao Ltd.

Shaft generator

2x Siemens AG I AC 222 each 3.000 kW

Generators

1x Turbo generator 6.000 kW

2x MAN-B&W 6L32/40 diesel generatorsets each 2.800 kW

1x MAN-B&W 9L32/40 diesel generatorsets each 4.300 kW

Manufacturer: HHI Electro Electric System

Bow thruster

2x 2.500 kW each

Hold capacity

384.683 m³

Number of tanks

Ballast: 38

Lubricating Oil: 15

Fuel Oil: 11

Fresh Water: 8

Waste Water: 6

Diesel Oil: 5

Sludge: 4

Chain: 2

Tank capacities

Diesel Oil: 1.661,4 m³ / 1.495,26 t

Freshwater: 1.050,3 m³

Fuel Oil: 13.579,8 m³ / 13.715,59 t

Lube Oil: 588,6 m³ / 529,74 t

Tank Ballast: 63.173,2 m³ / 64.752,53 t

Lifting equipment

2x Engine room crane - SWL 10,0 t

Monorail crane - SWL 12,5 t

1x Provision crane port - SWL 2,7 t

1x Provision crane starboard - SWL 5,0 t

Manufacture: Dongnam Marine Crane Co., Ltd.

Manager

AP Moller Maersk

Esplanaden 50

DK-1263 Copenhagen K

Denmark

Operator

Maersk Line

Registered owner

Maersk Line A/S

Latest data adjustment

23 December 2019
