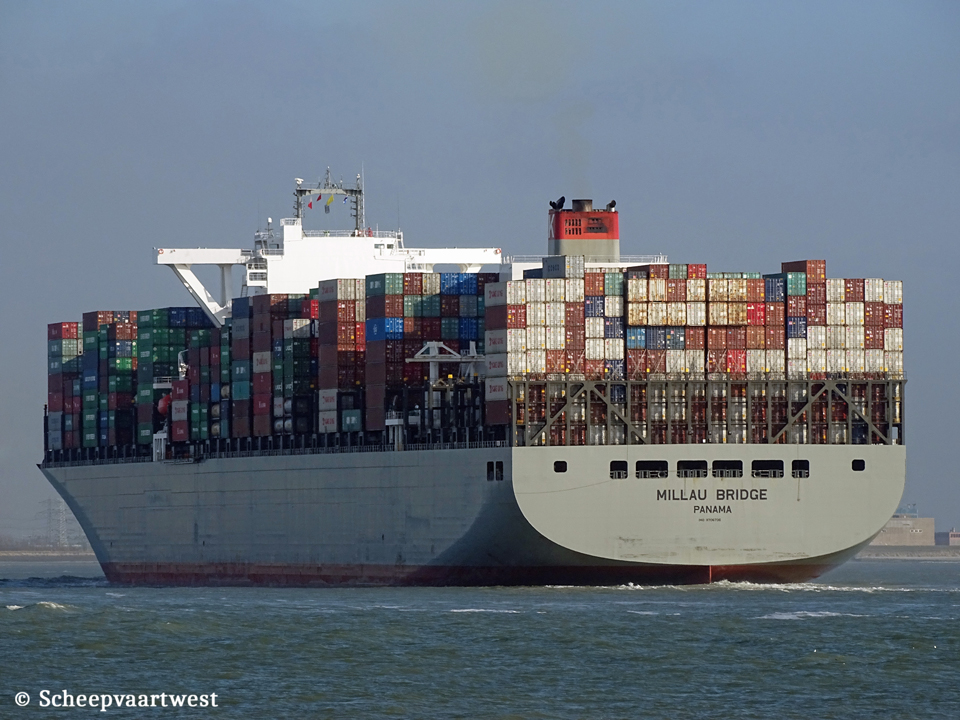

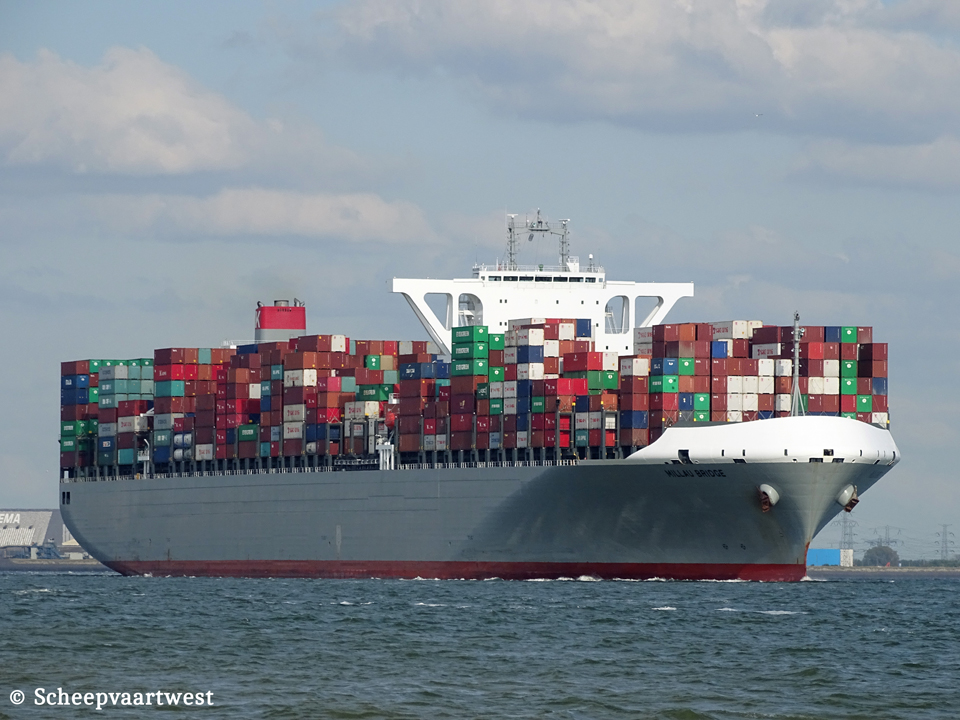

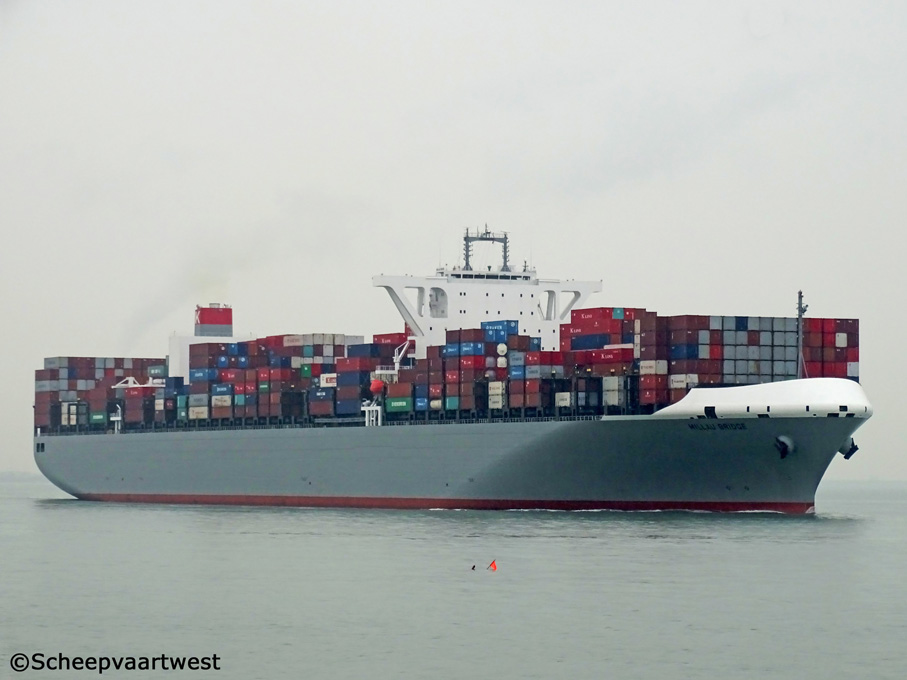

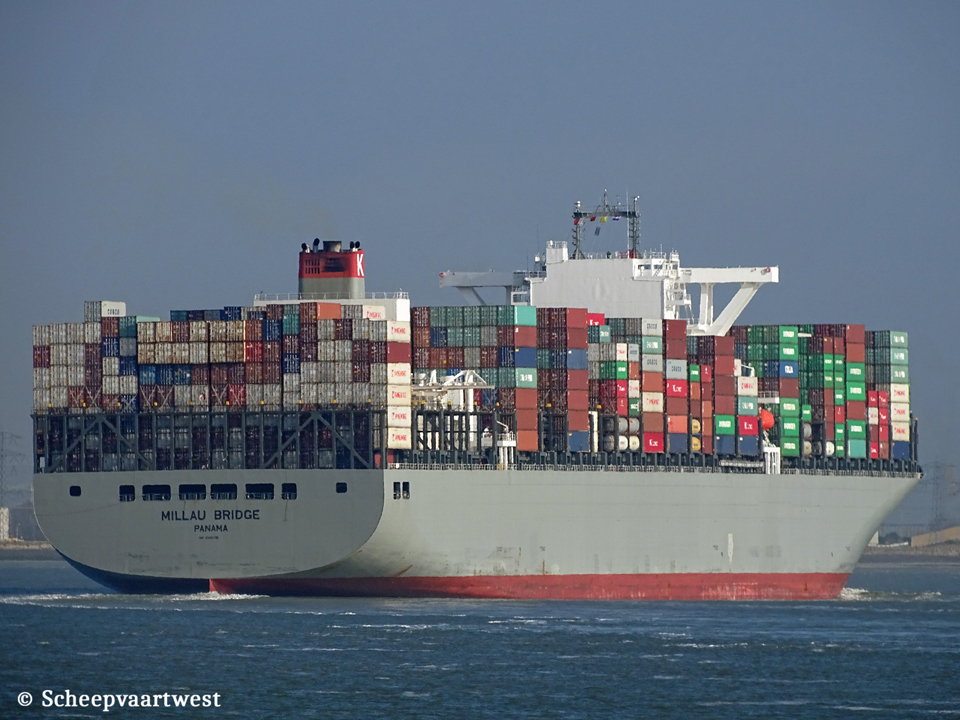

Millau Bridge - IMO 9706736

Westerschelde 15 October 2015

Name

MILLAU BRIDGE

Type

Cellular containership

IMO-number

9706736

Call sign

H9RD

Flag

Republic of Panama

Port of registry

Panama City

GRT

150.709 t

DWT

147.443 t

NRT

68.542 t

Number of 20ft containers

13.870

Reefer containers

800

Length

365,94 m overall

Breadth

51,20 m moulded

Draught

Summer: 15,52 m

Moulded L x B x D

350,00 x 51,20 x 23,20 m

Registered L x B x D

351,93 x 51,20 x 25,83 m

Freeboard

Summer: 14.460 mm

Depth

23,20 m moulded

Speed

24,0 knots

Built

2015

Keel laid

31/03/2014

Launch date

24/12/2014

Date of completion

31/03/2015

Builder

Imabari Shipbuilding Co., Ltd. Hiroshima Shipyard

Japan

Yard number

2531

Hull material

Steel - Higher tensile steel

Number of decks

1

Main engine

1x STX/MAN-B&W 11S90ME-C9 - 2 stroke single acting 11 cylinder 900 x 3.260 mm combustion engine Mcr 59.780 kW / 81.277 hp at 84,0 rpm

Builder: STX Engine Co., Ltd. - South Korea

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 1.050 mm

Propellers

1x Fixed pitch propeller - aft at 84,0 rpm

Boilers

2x Exhaust gas eEconomisers

1x Water tube auxiliary boiler

Generators

4x Daihatsu 8DC-32 - 4 stroke 8 cylinder 320 x 400 mm diesel engines each Mcr 3.650 kW connected with generators each 3.500 kW / 6.600 Volt 60 Hz

Thrusters

2x Controllable pitch thrusters each 2.040 kW / 2.774 bhp, forward

Tank capacities

Fuel oil: 10.276,61 m³

Fresh water: 343,44 m³

Water ballast: 40.443,94 m³

Cargo gear

Gearless

Manager

Shoei Kisen Kaisha Ltd.

Iino Building, 1-1, Uchisaiwai-cho 2-chome, Chiyoda-ku

Tokyo, 100-8540

Japan

Operator

K-Line - Kawasaki Kisen Kaisha Line

Tokyo

Japan

Renamed

2020 One Millau

Republic of Panama, Panama City - Call sign: H9RD

Owner: Cypress Maritime Panama SA

Manager: Shoei Kisen Kaisha Ltd.

Latest data adjustment

13 April 2023
