Westerschelde 15 October 2015 |
 |
 |
 |
 |
 |
 |
|||||
| Westerschelde 15/10/15 | Westerschelde 28/04/15 | Westerschelde 28/04/15 | Westerschelde 15/04/20 | Westerschelde 24/03/19 | Westerschelde 25/04/17 | |||||
 |
||||||||||
| Westerschelde 28/02/17 | ||||||||||
|
Name |

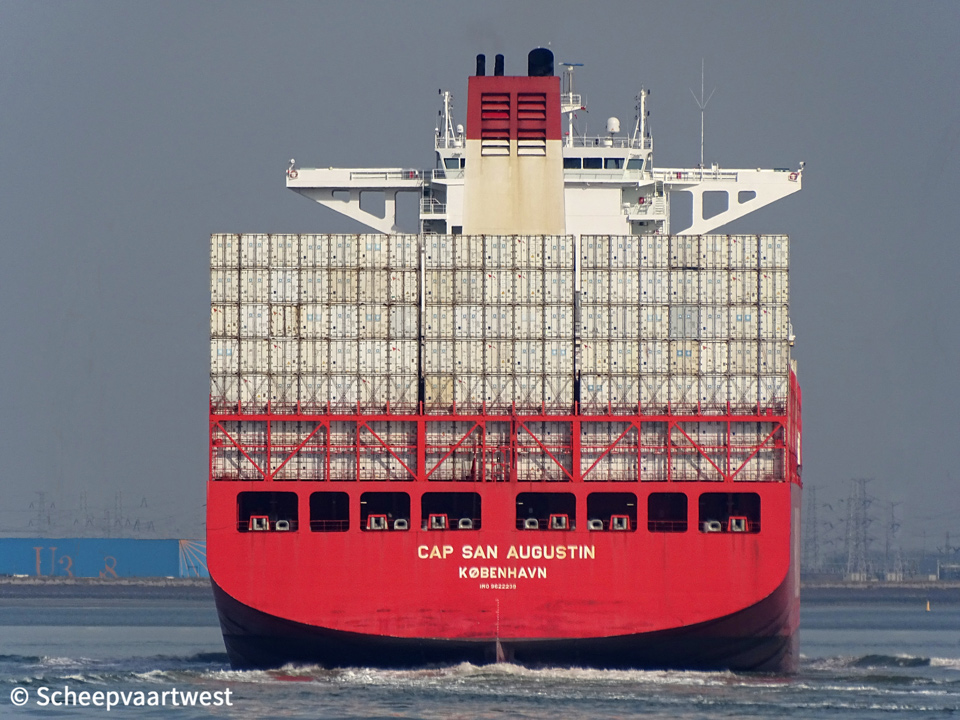

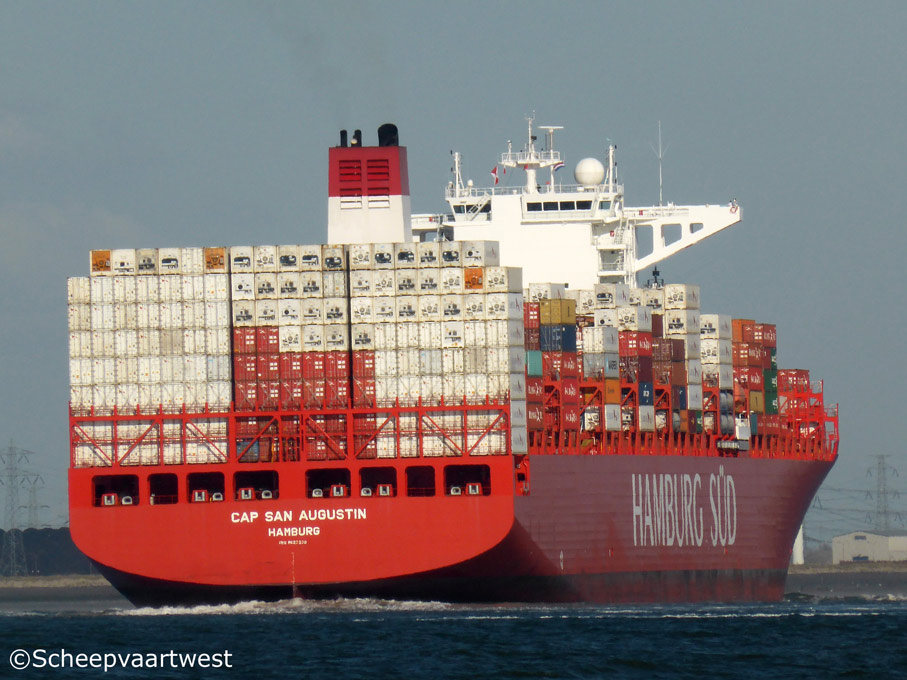

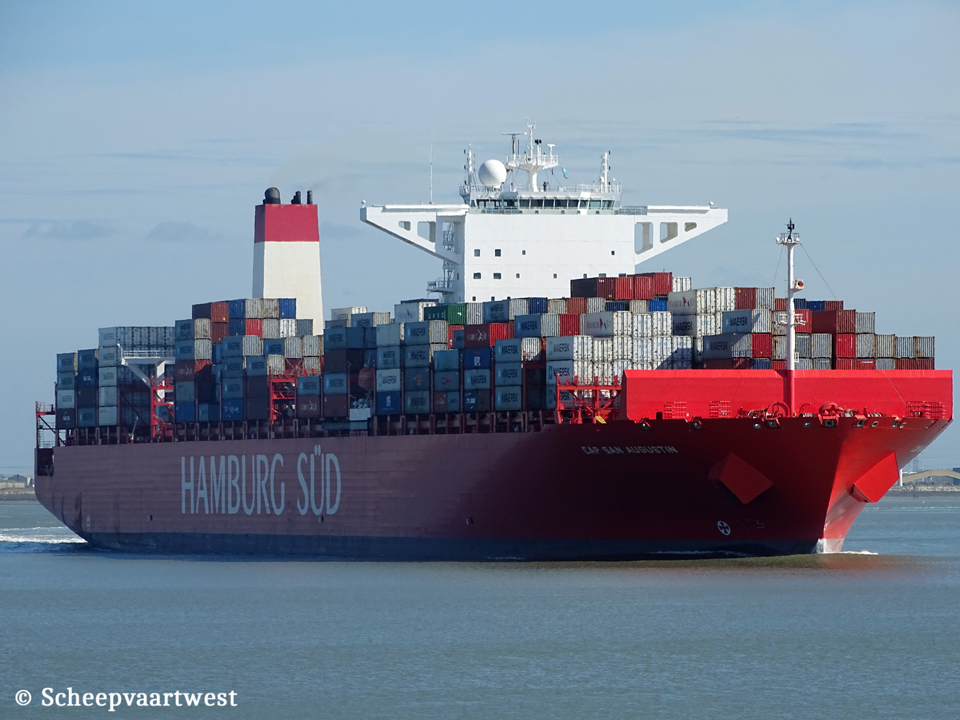

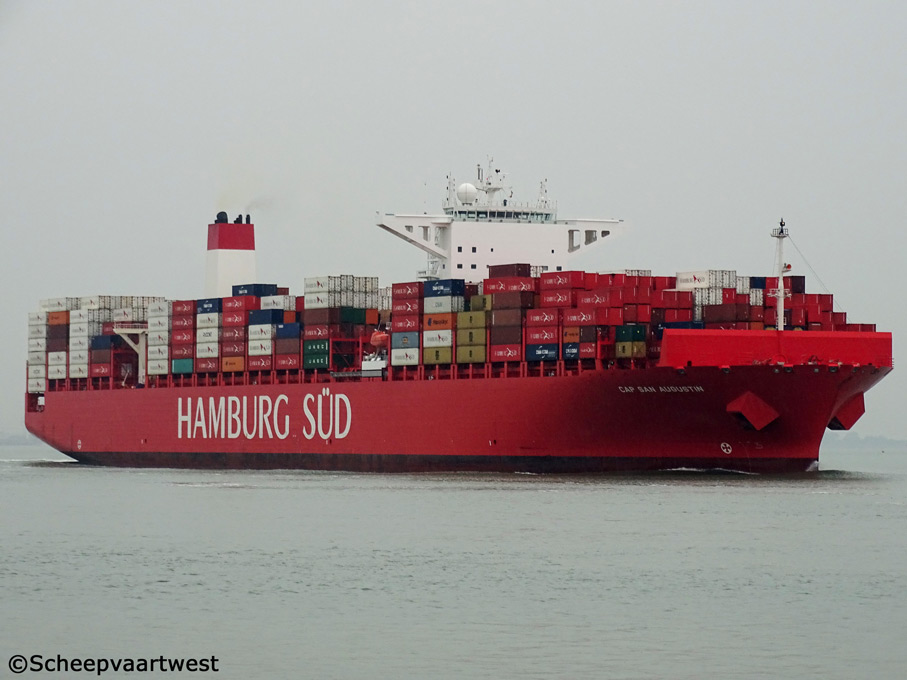

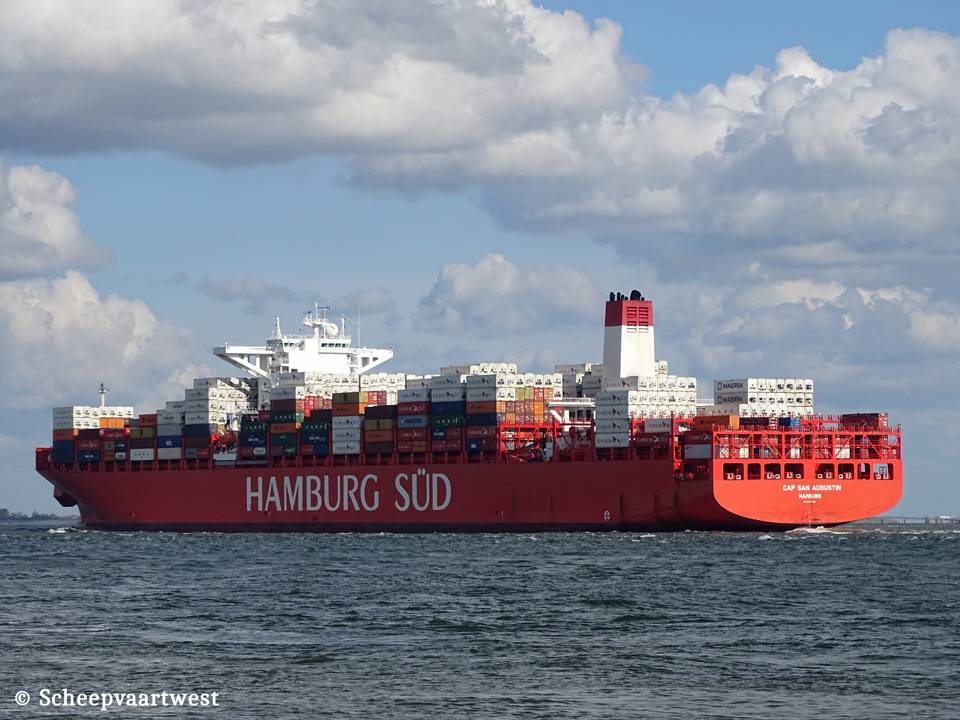

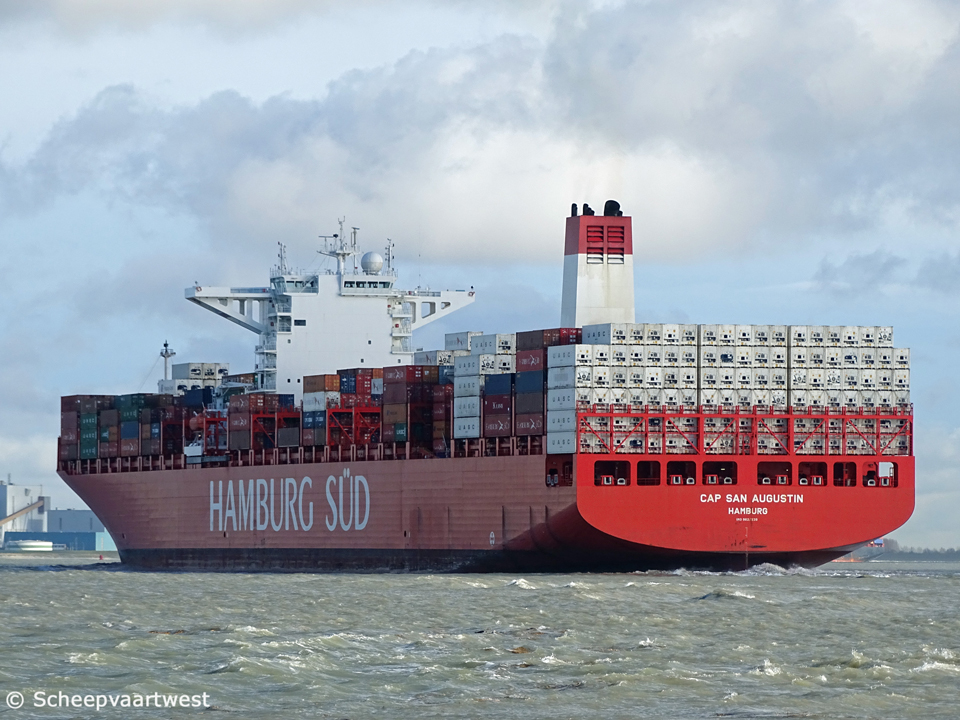

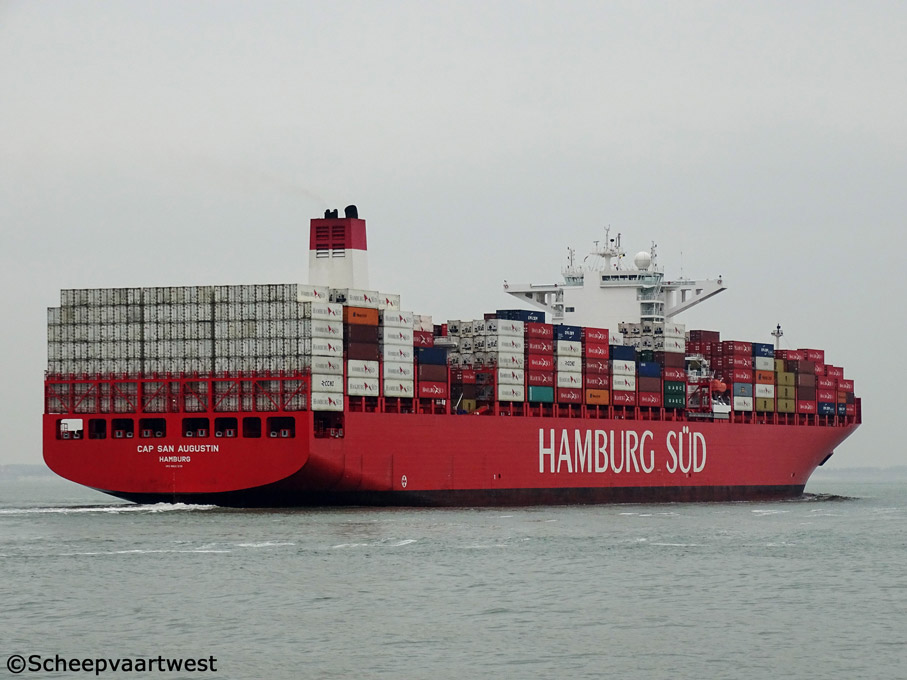

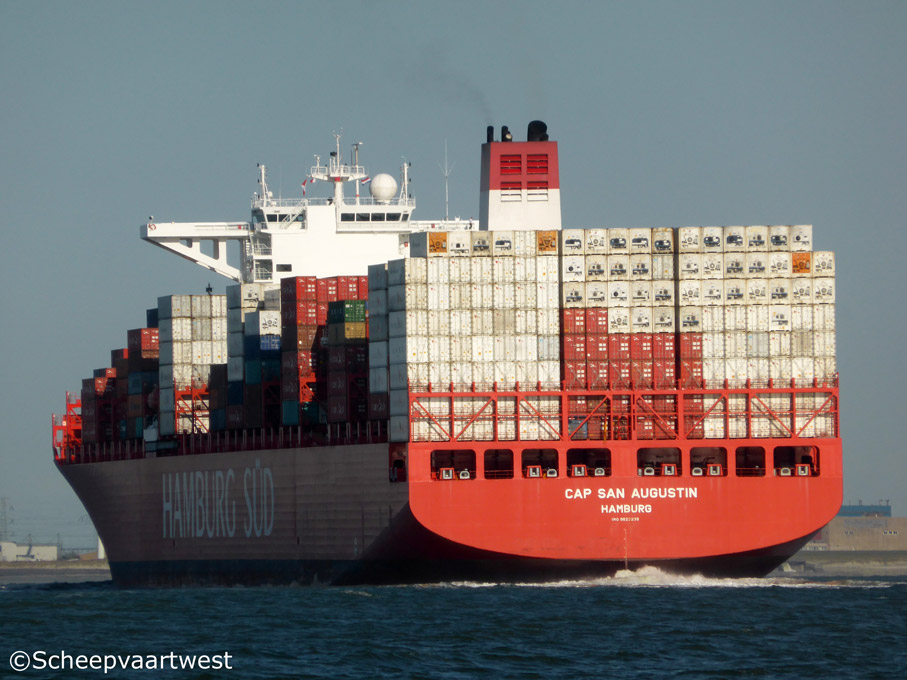

CAP SAN AUGUSTIN |
|
Type |
Cellular containership - Carriage of dangerous goods - Panamax |
|
IMO-number |
9622239 |
|
Call sign |
OXUN2 |
|
Flag |
Denmark |
|
Port of registry |
København |
|
Previous flag |
2013 - 03/2018 Germany, Hamburg - Call sign: DACG |
|
GT |
118.938 Suez: 122.237,01 |
|
DWT |
Summer: 124.470,30 t Suez: 110.193,48 t |
|
NT |
56.209 |
|
Displacement |
164.818 t |
|
Number of 20ft containers |
9.669 |
|
Container capacity 14t |
7.569 |
|
Reefer capacity |
2.100 |
|
Length |
333,20 m overall 318,00 m between perpendiculars |
|
Breadth |
48,32 m extreme 48,19 m moulded |
|
Draught |
14,00 m |
|
Freeboard |
5.582 mm |
|
Depth |
26,80 m moulded |
|
Speed |
Max.: 22,8 knots |
|
Built |
2013 |
|
Keel laid |
12/03/2013 |
|
Launch date |
16/05/2013 |
|
Delivery date |
02/09/2013 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. Offshore & Plant Engineering Division - Offshore Construction Assistance Department 1000 Bengeojinsunhwan-Doro Dong-Gu Ulsan, 44032 South Korea |
|
Yard number |
2524 |
|
Hull material |
Steel |
|
Hull type |
Single hull, double bottom |
|
Watertight bulkheads |
10 |
|
Continuous decks |
1 |
|
Main engine |
1x HHI/MAN-B&W 7S90ME-C9.2 - 2 stroke 7 cylinder 900 x 3.260 mm combustion engine Mcr 40.670 kW at 84,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler - 7,0 MPA 1x Exhaust Gas Boiler - 9,0 MPA Manufacturer: Alfa Laval Aalborg OY |
|
Generators |
5x MAN-B&W/HHI 9H32/40 diesel generatorsets each 4.930 kVA |
|
Emergency generator |
1x Doosan AD180TIS diesel generatorset |
|
Bow thruster |
1x 2.500 kW, forward 1x 1.900 kW, aft |
|
Number of cargo holds |
8 |
|
Number of tanks |
Ballast: 26 Fuel oil: 12 Lubricating oil: 7 Waste water: 3 Diesel oil: 3 Fresh water: 3 Chain: 2 Sludge: 2 |
|
Tank capacities |
Diesel Oil: 1.522,1 m³ Freshwater: 598,4 m³ Fuel Oil: .8.773,6 m³ Lube Oil: 453,8 m³ Tank Ballast: 31.327,8 m³ |
|
Anchor equipment |
Length: 770,00 m Diameter: 117 mm |
|
Lifting equipment |
1x Engine room crane 1x Provisions crane - SWL 12,5 t |
|
Cargo gear |
Gearless |
|
Crew |
25 |
|
Commercial manager |
Maersk A/S Esplanaden 50 1263 København K Denmark |
|
ISM Manager |
Columbus Shipmanagement GmbH c/o Hamburg Suedamerikanische Dampfschifffahrts-Gesellschaft KG Willy-Brandt-Str. 75 20457 Hamburg Germany |
|
Operator |
Hamburg Süd |
|
Registered owner |
Maersk A/S Esplanaden 50 1263 København K Denmark |
|
Previous owners |
2013 - 2013 Hamburg Südamerikanische Dampfschifffahrts-Gesellschaft KG 2013 - 2018 Containerschiffsreederei MS Cap San Augustin GmbH & Co. KG |
|
Renamed |
09/2023 San Augustin Mærsk Denmark, København - Call sign: OXUN2 Owner & manager: Maersk A/S, Esplanaden 50, Copenhagen K - Denmark |
|
Latest data adjustment |
19 November 2024 |
