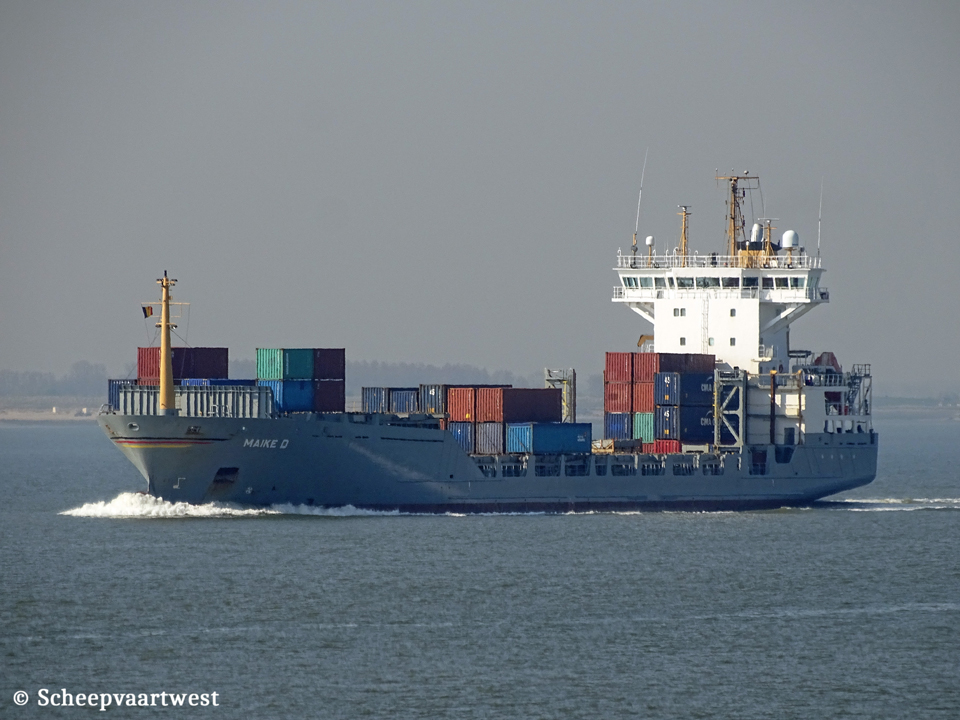

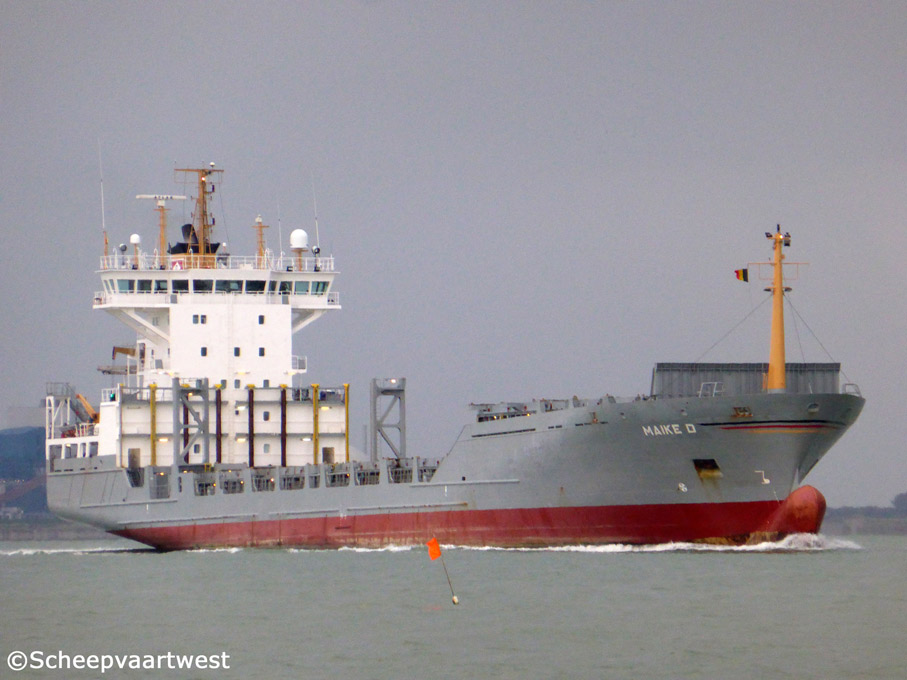

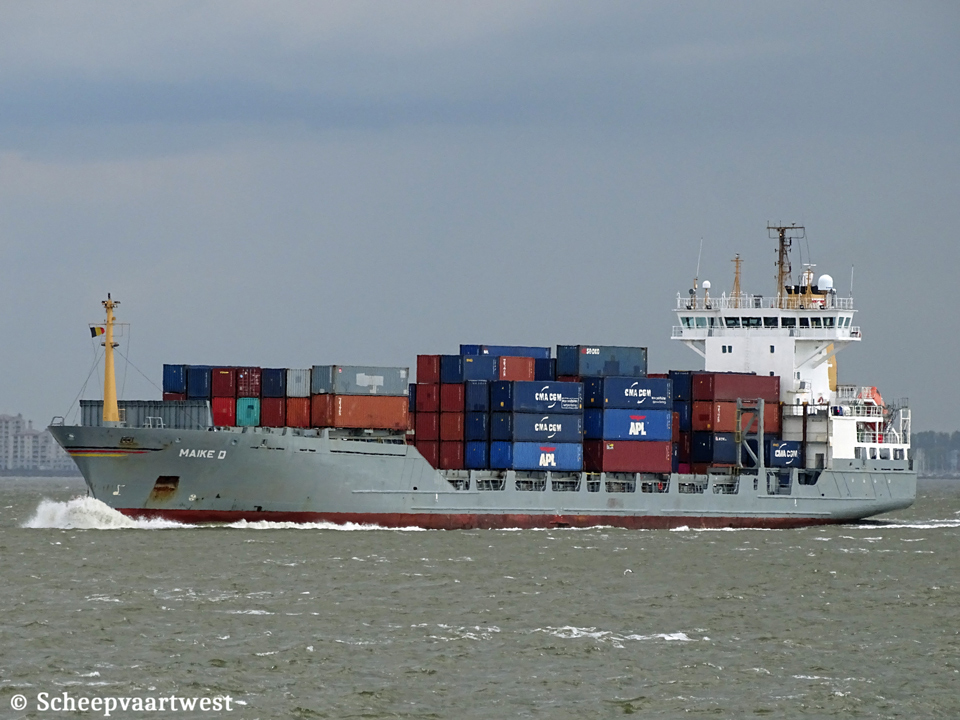

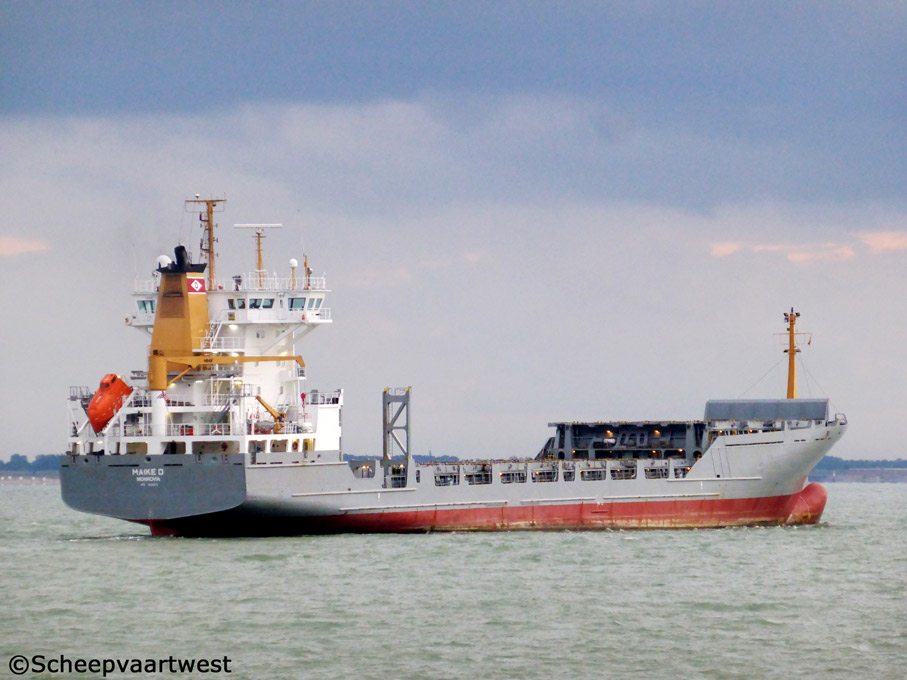

Westerschelde 24 April 2019 |
 |
 |
 |
||
| Westerschelde 03/08/15 | Westerschelde 03/08/15 | Westerschelde 18/04/19 |
|
Name |
MAIKE D |
|
Previous names |
2000 Launch as: Maike 11/2000 - 06/2002 Katherine Borchard |
|
Type |
Feeder - Cellular containership |
|
IMO-number |
9226372 |
|
Call sign |
D5IL7 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2000 - 2000 Germany 2000 - 2002 Antigua and Barbuda, St. John’s 2002 - 2011 United Kingdom - Call sign: ZIXT7 2011 - 2015 Antigua and Barbuda - Call sign: V2FO4 |
|
GT |
6.326 t |
|
DWT |
Summer: 7.944 t |
|
NT |
3.251 t |
|
Number of 20ft containers |
660 |
|
Container capacity 14t |
405 |
|
Reefer capacity |
150 |
|
Length |
133,24 m overall 125,30 m between perpendiculars |
|
Breadth |
18,70 m extreme |
|
Draught |
7,29 m |
|
Keel to mast end |
36,00 m |
|
Freeboard |
2.041 mm |
|
Depth |
9,30 m moulded |
|
Speed |
18,6 knots |
|
Built |
2000 |
|
Keel laid |
04/03/1999 |
|
Launch date |
26/09/2000 |
|
Date of completion |
01/11/2000 |
|
Builder |
J.J. Sietas KG Schiffswerft GmbH & Co. Hamburg Germany |
|
Yard number |
1151 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Single hull partly double bottom |
|
Continuous deck |
2 |
|
Watertight bulkheads |
7 |
|
Main engine |
1x MaK 8M43 - 4 stroke single acting 8 cylinder 430 x 610 mm combustion engine 6.600 kW / 8.967 hp at 514 rpm Builder: Caterpillar Motoren GmbH & Co. KG |
|
Propellers |
1x Controllable pitch propeller - aft |
|
Boilers |
1x Thermal oil heater, exhaust heated AHE 08 V35 - 10,0 bar Heating surface: 149,3 m² 1x Thermal oil heater, oil fired HE 08 V35-E - 10,0 bar Heating surface: 40,1 m² |
|
Electric installations |
1x 380/220 V - 820 kVA 1x 380 V - 1.525 kVA 1x 380 V - 50 kVA |
|
Shaft generator |
1x 1.525 kW / 1.400 kVA |
|
Generators |
2x Caterpillar 3412 DITA diesel generatorsets each 625 kVA - 500 kW - 726 hp |
|
Emergency generator |
1x Deutz BF4M1013 diesel generatorset 73 kVA - 58 kW - 91 hp |
|
Compressed air receivers |
2x Receivers each 1.000 litres - 30,0 bar |
|
Bow thruster |
1x Fixed pitch propeller Kamewa - 600 kW, forward |
|
Number of holds |
4 |
|
Cargo hold capacity |
Grain: 10.845 m³ / 382.000 ft³ Bale: 9.607 m³ / 339.000 ft³ |
|
Number of hatches |
4 Hatch 1: 12,50 x 13,20 m Hatch 2: 12,50 x 15,70 m Hatch 3+4: 25,10 x 15,70 m |
|
Tank capacities |
Fuel oil: 745 m³ / 680 t Gas oil: 165 t Fresh water: 100 t Ballast water: 3.590 m³ / 3.680 t |
|
Anchor equipment |
3x Anchors weight each 4.050 kg Length: 522,50 m Diameter: 50 mm |
|
Lifting equipment |
1x Crane - SWL 4,0 t |
|
Cargo gear |
Gearless |
|
Crew size |
19 |
|
ISM & commercial manager |
Drevin Bereederungs-GmbH & Co. KG Berenscher Heideweg 24 27476 Cuxhaven Germany |
|
Previous managers |
2000 - 2005 MS "Maike" Schiffahrts-GmbH & Co. KG 2005 - 2011 Reederei Drevin GbR |
|
Owner |
MS 'MAIKE' Schifffahrtsgesellschaft mbH & Co. KG Cuxhaven Care of Drevin Bereederungs GmbH & Co KG Berenscher Heideweg 23 27476 Cuxhaven Germany |
|
Registered owner |
MS "Maike" Schiffahrts-GmbH & Co. KG |
|
Previous owners |
2000 - 2000 MS 'NB. 1151' Schiffahrts GmbH & Co. KG 2000 - 2003 Maike Shipping Co. Ltd. |
|
Latest data adjustment |
15 March 2022 |
