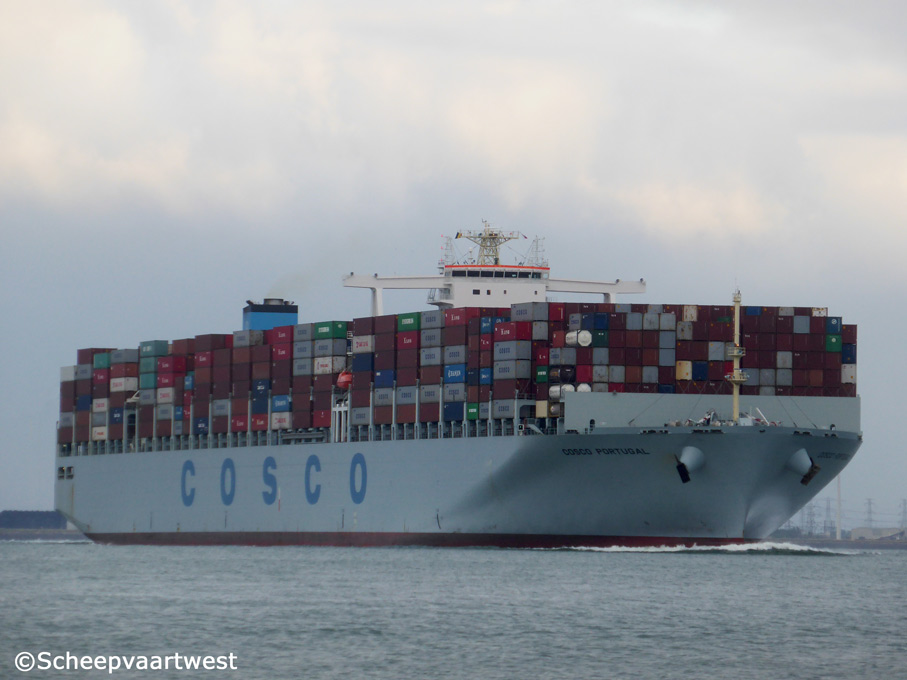

COSCO Portugal 01

Westerschelde 23 June 2015

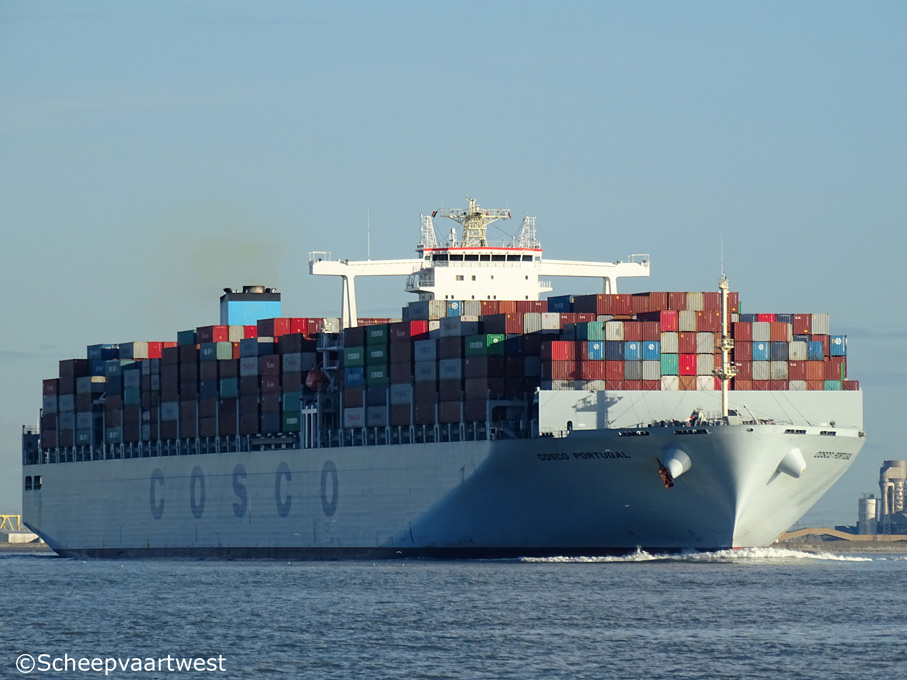

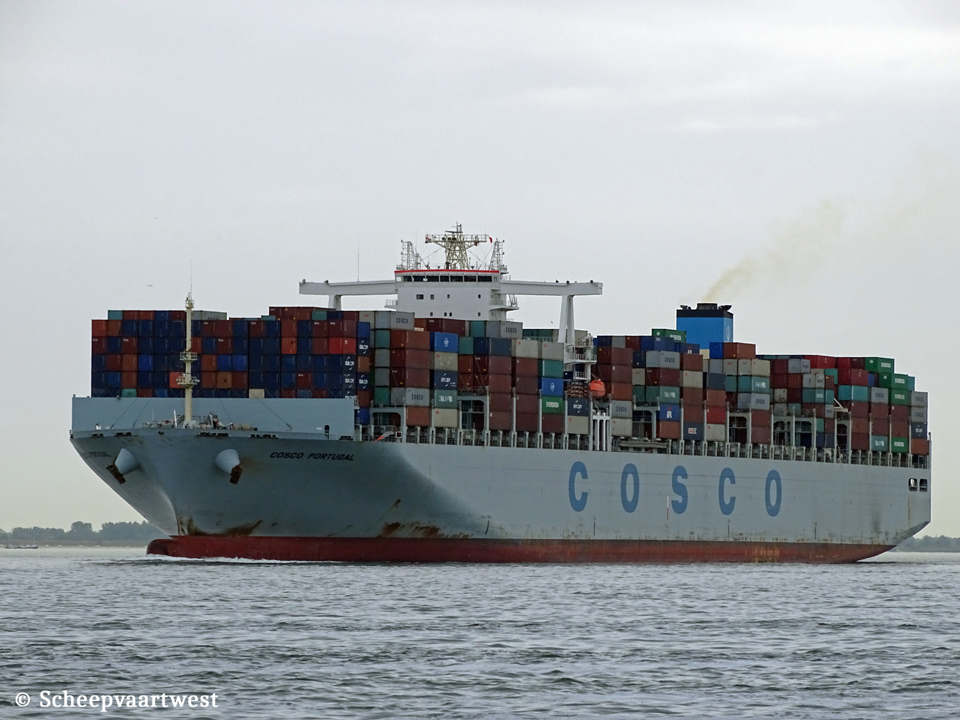

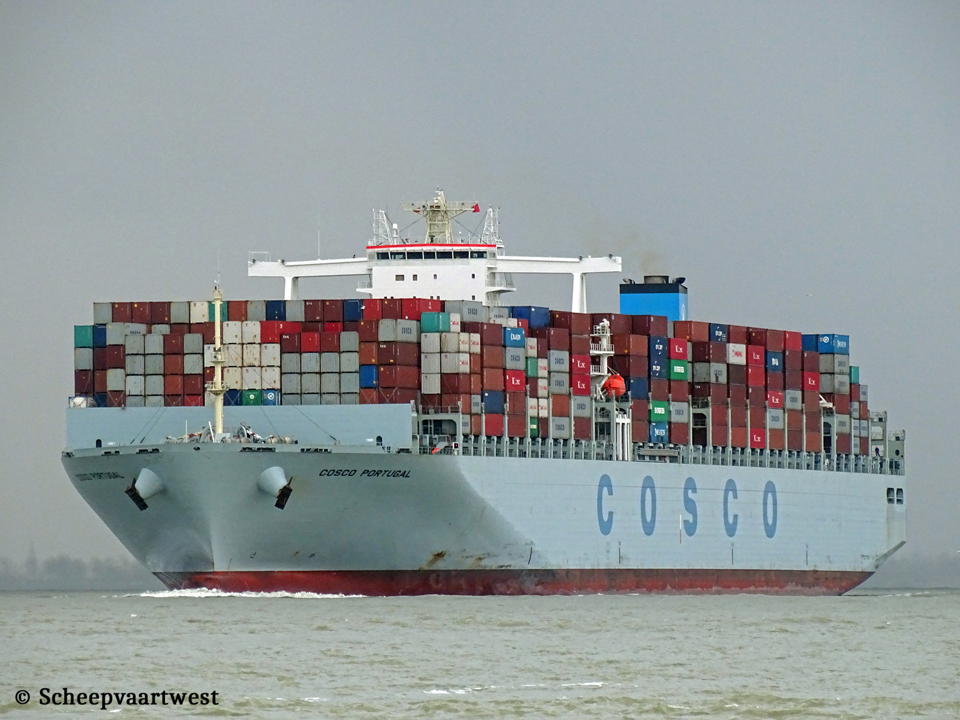

COSCO Portugal 02   COSCO Potugal IMO 9516466 04   COSCO Portugal IMO 9516466 04
Westerschelde 26/11/15 Westerschelde 15/05/17   Westerschelde 10/02/16


Name

COSCO PORTUGAL

Type

Cellular containership - Carriage of dangerous goods

IMO-number

9516466

Call sign

VRNI6

Flag

Hong Kong - People's Republic of China

Port of registry

Hong Kong

GT

153.666 t registered

Suez: 159.758,81 t

DWT

Summer: 156.605 t

NT

65.592 t registered

Suez: 144.608,76 t

Number of 20ft containers

13.386

Container capacity 14t

9.830

Reefer capacity

1.008

Length

366,00 m overall

348,00 m between perpendiculars

Breadth

51,20 m moulded

Draught

15,50 m

Freeboard

7.493 mm

Depth

29,85 m moulded

Speed

24,3 knots

Built

2014

Keel laid

02/11/2011

Launch date

24/04/2014

Date of completion

07/07/2014

Builder

Nantong COSCO KHI Ship Engineering Co., Ltd.

Nantong

China

Yard number

NE117

Hull material

High strength steel

Forged steel

Hull type

Double hull

Watertight bulkheads

12

Continuous decks

1

Main engine

1x MAN-B&W/HHI 12K98ME7 - 2 stroke single acting 12 cylinder 980 x 2.660 mm combustion engine Mcr 72.240 kW / 98.219 hp at 94,0 rpm

Manufacturer: Hyundai Heavy Industries Co Ltd - South Korea

Propellers

1x Fixed pitch propeller - aft at 94,0 rpm

Manufacturer: Nakashima Propeller Co., Ltd.

Boilers

2x Fired boiler - Mission OM 6L - 8,0 bar

1x Unfired exhaust gas boiler - Mission XS-7V - 10,0 bar

Manufacturer: Alfa Laval Qingdao Ltd.

Generators

3x Yanmar 6N330L-GW - 4 stroke 6 cylinder 330 x 380 mm diesel engines each Mcr 2.648 kW connected with generators each 2.500 kW

2x Yanmar 8N330L-GW - 4 stroke 8 cylinder 330 x 380 mm diesel engines each Mcr 3.530 kW connected with generators each 3.000 kW

Bow thruster

1x Tunnel thruster 2.700kW / 3.671 bhp, forward

Number of holds

10

Hold capacity

325.414,3 m³

Number of tanks

Ballast: 22

Sea water: 14

Fuel oil: 10

Lubricating oil: 9

Diesel oil: 3

Fresh water: 3

Chain: 2

Waste water: 2

Hydraulic oil: 1

Sludge: 1

Tank capacities

Diesel Oil: 739,8 m³

Freshwater: 700,2 m³

Fuel Oil: 12.070,1 m³

Hydraulic: 19,4 m³

Lube Oil: 819,6 m³

Tank Ballast: 28.167,2 m³

Lifting equipment

1x Provision crane DQ800 - SWL 1,5 t

1x Provision crane DQ900 - SWL 4,0 t

Manufacture: South China Marine Machinery Limited Corporation

Cargo gear

Gearless

Crew size

28

Manager

Cosco Portugal Shipping Ltd.

Room 4808, 48/F, COSCO Tower

183 Queen's Road Central

Hong Kong

China

Operator

COSCO - China Ocean Shipping Company

Registered owner

COSCO Portugal Shipping Limited

Latest data adjustment

31 August 2023
