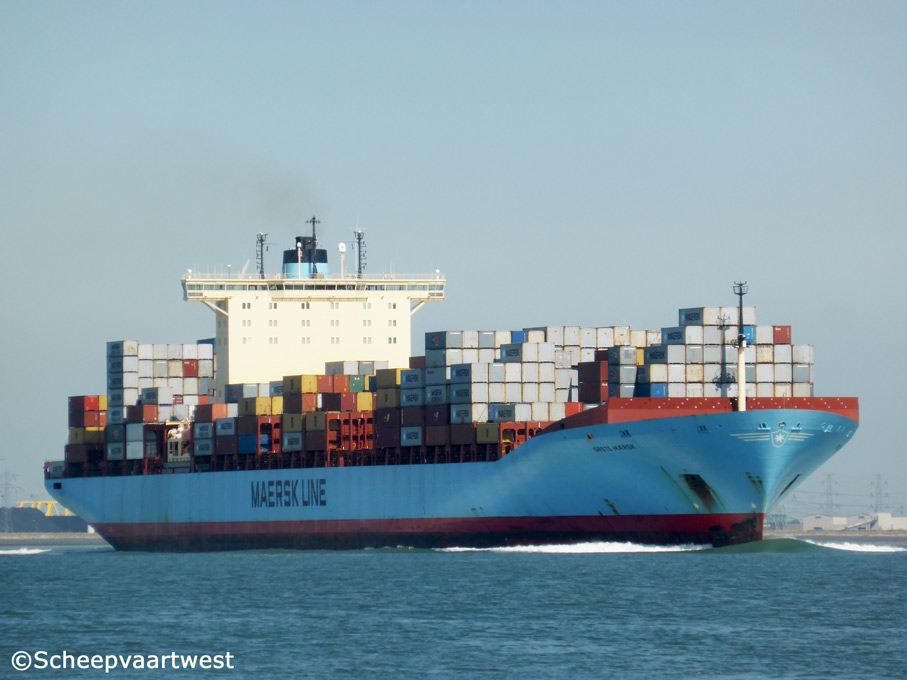

Grete Maersk 01

Westerschelde 24 May 2015

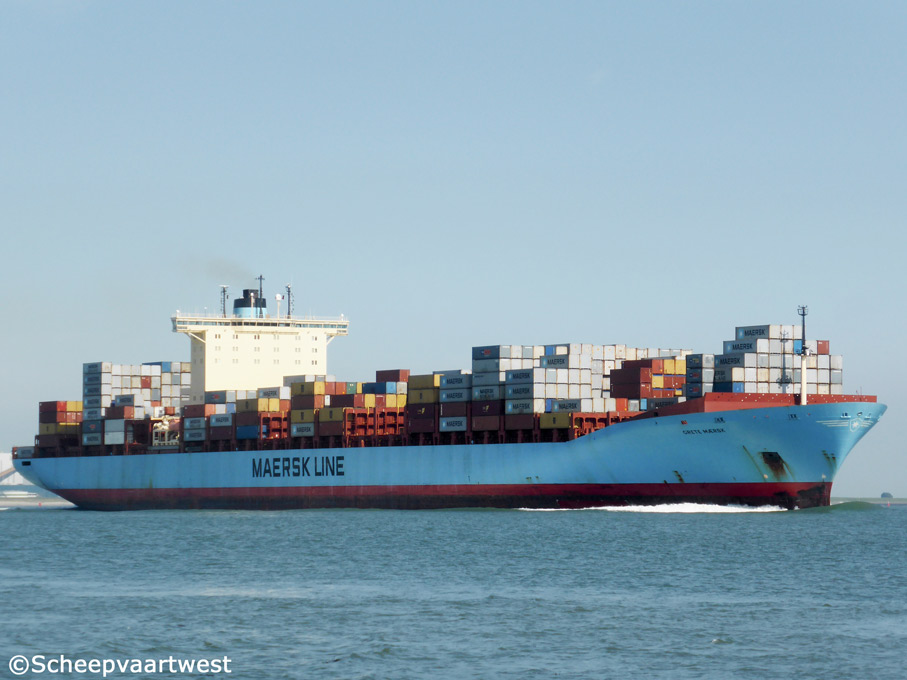

Grete Maersk 02
Westerschelde 24/05/15



Name

GRETE MAERSK

Type

Cellular containership

IMO-number

9302889

Call sign

OYCY2

Flag

Denmark

Port of registry

København

GT

97.933 t registered

Suez: 99.887,54 t

DWT

Summer: 115.700 t

NT

51.978 t registered

Suez: 87,907,05 t

Number of 20ft containers

10.150

Container capacity 14t

7.668

Reefer capacity

900

Length

367,28 m

Breadth

42,80 m

Draught

11,80 m

Freeboard

4.565 mm

Depth

24,10 m

Speed

25,0 knots

Service

AE9

Built

2005

Keel laid

05.11.2004

Launch date

12.06.2005

Delivery date

15.08.2005

Builder

Odense Steel Shipyard Ltd.
Odense
Denmark

Yard number

L198

Hull material

High strength steel

Ordinary strength steel

Bulkheads

Non tight: 8

Water tight: 14

Oil tight: 4

Main engine

1x HSD-Sulzer 12RT-FLEX96C - 12 cylinder 960 x 2.500 mm diesel engine - 61.776 kW at 98,5 rpm

Manufacturer: HSD Engine Co. Ltd.

Propellers

1x Solid bronze propeller - 6 blades

Manufacturer: Dalian Marine Propeller plant

Boilers

1x Vertical Watertube Oil Fired Auxiliary Boiler AQ-10/12W - 12,0 bar

2x Exhaust gas boiler AV-6N - 12,0 bar

Manufacturer: Aalborg Industries

Shaft generator

1x 2.000 kW

Generators

3x Wartsila 8L32 main diesel generatorsets each 5.143 kVA / 3.600 kW

1x Combo power / steam turbine generator 7.000 kVA / 6.000 kW

Manufacturer name: Sem Drasov

Number of tanks

Ballast: 38

Fuel oil: 12

Lubricating oil: 9

Sea water: 8

Fresh water: 7

Waste water: 5

Sludge: 5

Diesel oil: 5

Chain: 2

Hydraulic oil: 1

Tank capacities 100%

Diesel oil: 402,1 m³ / 361,89 t

Freshwater: 619,3 m³

Fuel oil: 12.627,3 m³ / 12.753,57 t

Hydraulic oil: 4,3 m³ / 3,87 t

Lube oil: 561,1 m³ / 504,99 t

Tank ballast: 41.827,7 m³ / 42.873,39 t

Lifting equipment

1x Monorail stores crane - SWL 11,5 t

2x Stores/bunker/ suez-mob boat pedestal crane - SWL 5,0 t

Manufacture: ACTA A/S

2x Overhead engineroom crane - SWL 12,5 t

Manufacture: Danish Crane Building A/S

Cargo gear

Gearless

Manager

AP Moller Maersk
Technical Organisation

Account Payable

Esplanaden 50

1098 København K

Denmark

Operator

Maersk Line

Owner

Maersk Line
Copenhagen
Denmark

Registered owner

Maersk Line A/S

Latest data adjustment

05 July 2015
