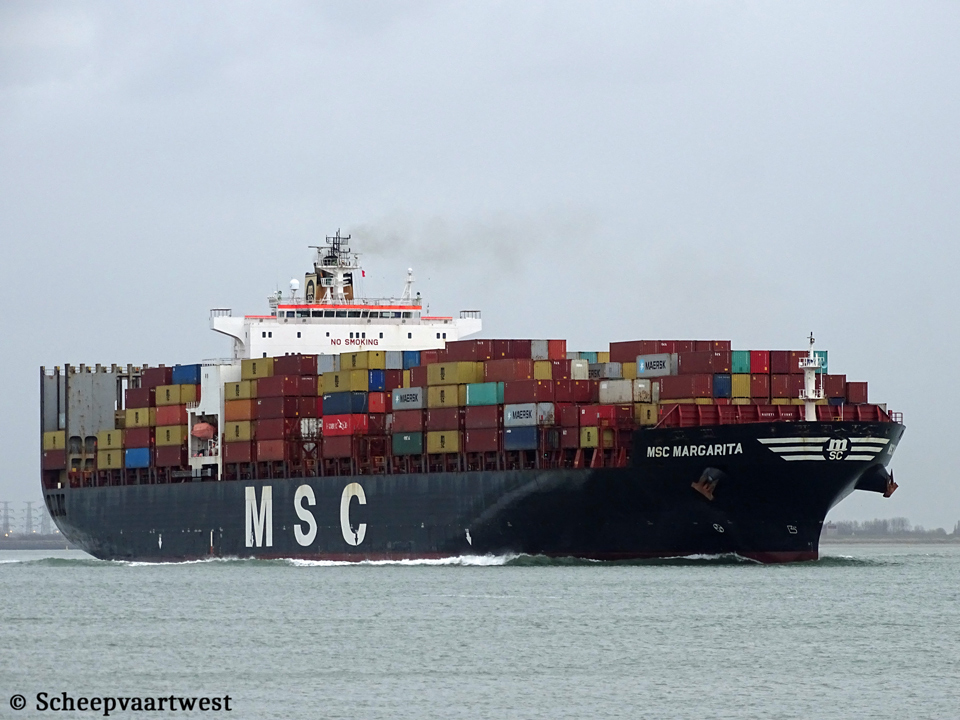

Westerschelde 02 January 2019 |
 |
 |
 |
 |
 |
||||

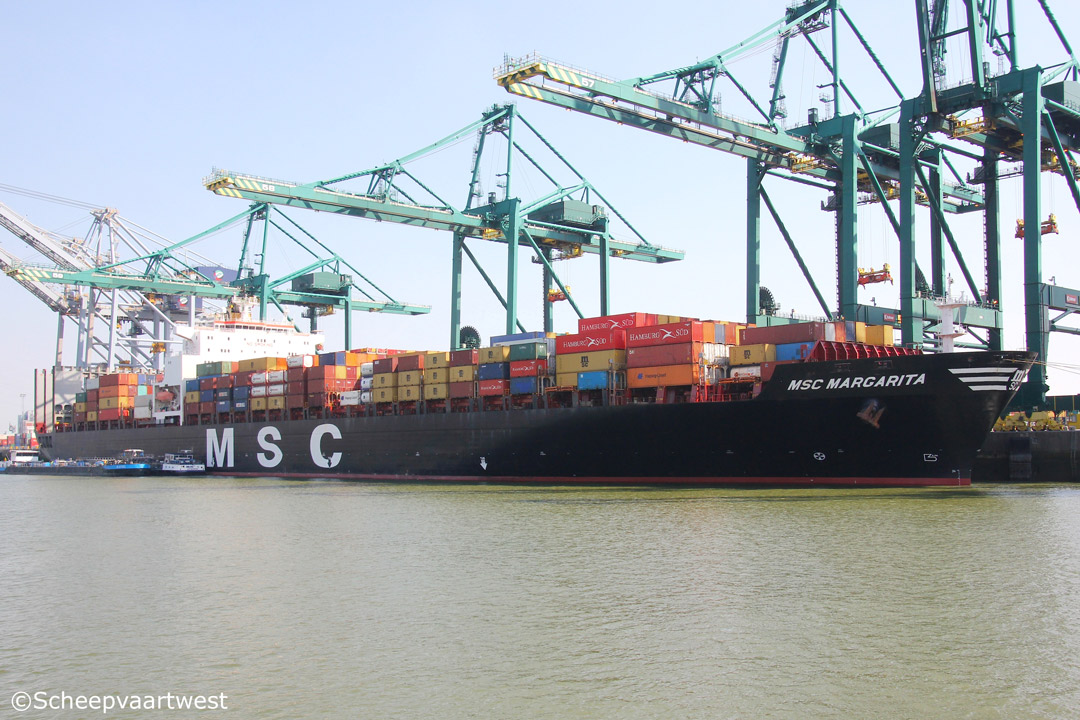

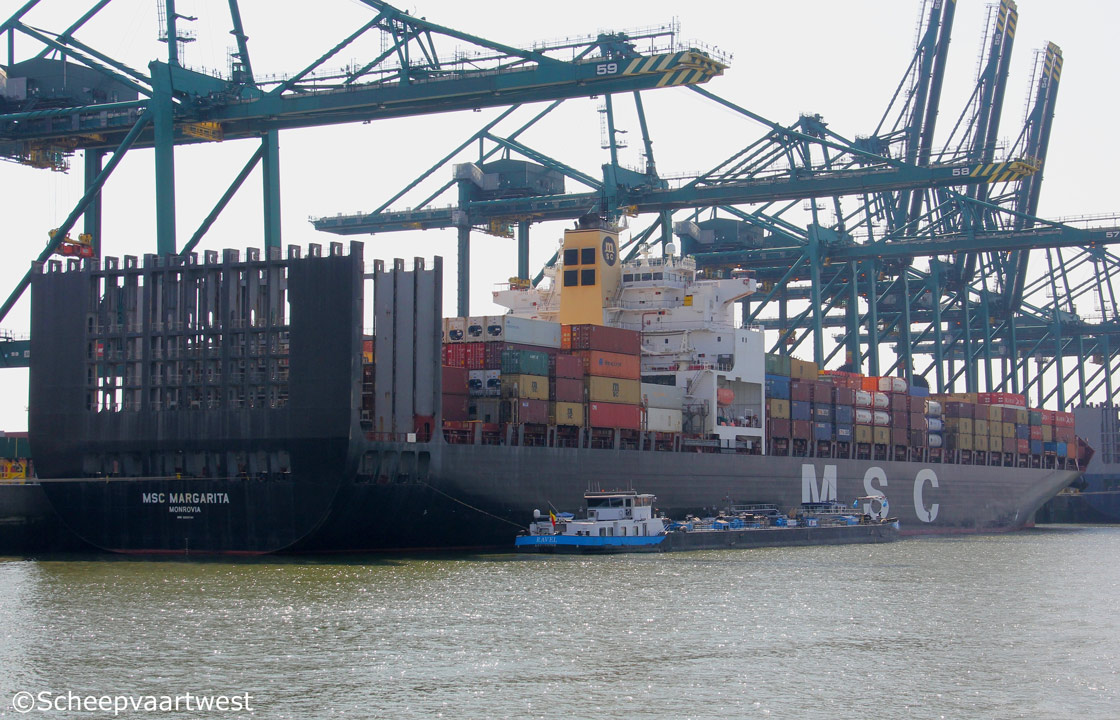

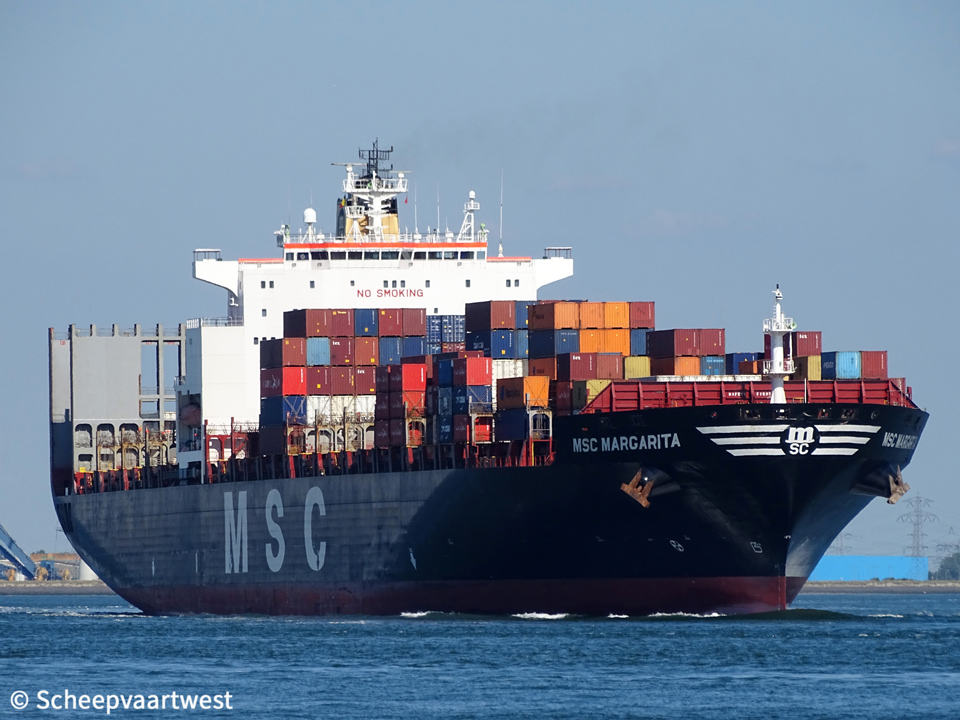

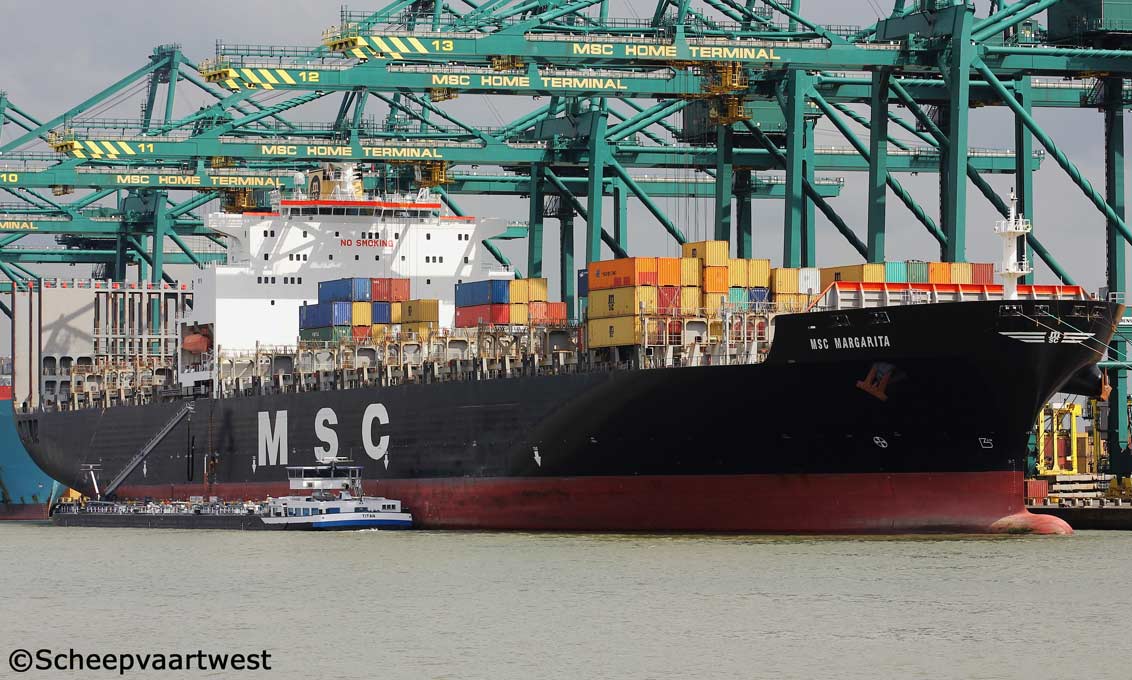

| Westerschelde 25/05/17 | Antwerpen 25/05/17 | Antwerpen 29/08/17 | Antwerpen 29/08/17 | Westerschelde 07/08/19 | ||||
|
Name |
MSC MARGARITA |
|
Previous names |
2002 - 12/2009 OOCL Thailand 12/2009 - 11/2010 Santa Virginia 11/2010 - 10/2013 Cap Verde 10/2013 - 04/2014 Santa Virginia |
|
Type |
Cellular containership |
|
IMO-number |
9238741 |
|
Call sign |
A8IX9 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
66.500 t |
|
DWT |
Summer: 67.644 t |
|
NT |
34.213 t |
|
Displacement |
24.794 t |
|
Number of 20ft containers |
5.514 |
|
Container capacity 14t |
4.180 |
|
Reefer capacity |
632 |
|
Length |
277,24 m overall 263,15 m registered |
|
Breadth |
40,03 m extreme |
|
Draught |
14,00 m |
|
Keel to mast end |
60,00 m |
|
Forecastle |
255,25 m |
|
Poop |
7,90 m |
|
Depth |
24,30 m moulded |
|
Speed |
Max.: 24,9 knots |
|
Built |
2002 |
|
Keel laid |
10/09/2001 |
|
Launch date |
23/12/2001 |
|
Date of completion |
02/2002 |
|
Builder |
Samsung Heavy Industries Co., Ltd. Geoje Shipyard 530, Jangpyeong-ri, Sinhyeon-eup Geoje Republic of Korea |
|
Yard number |
1379 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
9 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W 12K90MC - 2 stroke 12 cylinder 900 x 2.550 mm combustion engine 54.898 kW / 74.639 hp at 94,0 rpm Year of manufacture: 2001 Manufacturer: Samsung Heavy Industries Co., Ltd. Geoje Shipyard 530, Jangpyeong-ri, Sinhyeon-eup Geoje Republic of Korea |
|
Propellers |
1x Solid propeller (keyless) - aft at 94,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 10,0 bar Heating surface: 40,14 m² 1x Steam boiler, exhaust gas heated - 10,0 bar Heating surface: 1.033,0 m² Year of manufacture: 2001 Manufacturer: Alfa Laval Qingdao Ltd. 86 Guangzhou Road North Jiaozhou Qingdao People's Republic of China |
|
Electric installations |
3x Plants each 440/220 V - 3.625 kVA 1x Plant 440 V - 2.450 kVA 1x Plant 440 V - 188 kVA 2x Plants each 24 V - 200 Ah 12x Plants each 24 V - 200 Ah |
|
Shaft generator |
1x 2.110 kW / 2.450 kVA |
|
Generators |
3x MAN-B&W 7L32/40 main diesel generatorsets each 3.625 kVA |
|
Emergency generator |
1x Diesel generatorset 188 kVA |
|
Batteries |
2x Batteries for UPS radio each 200 Ah |
|
Compressed air receivers |
2x Receivers each 16.500 litres - 25,0 bar 2x Receivers each 150 litres - 25,0 bar 1x Receiver 300 litres - 7,0 bar |
|
Bow thruster |
1x Transverse thruster 2.000 kW, forward |
|
Tank capacities |
Fuel oil: 8.737 m³ Water ballast: 15.062 m³ |
|
Anchor equipment |
Length; 742,50 m Diameter: 97 mm |
|
Cargo gear |
Gearless |
|
Crew size |
30 |
|
Commercial manager |
MSC Mediterranean Shipping Co. Chemin Rieu, 12-14 1208 Geneva Switzerland |
|
ISM Manager |
MSC Shipmanagement Ltd. MSC House 8, Spyrou Kyprianou Avenue 3070 Limassol Republic of Cyprus |
|
Operator |
MSC - Mediterranean Shipping Company S.A |
|
Registered owner |
SFL Virginia Inc. Care of MSC Mediterranean Shipping Co SA Chemin Rieu, 12-14 1208 Geneva Switzerland |
|
Latest data adjustment |
08 February 2023 |
