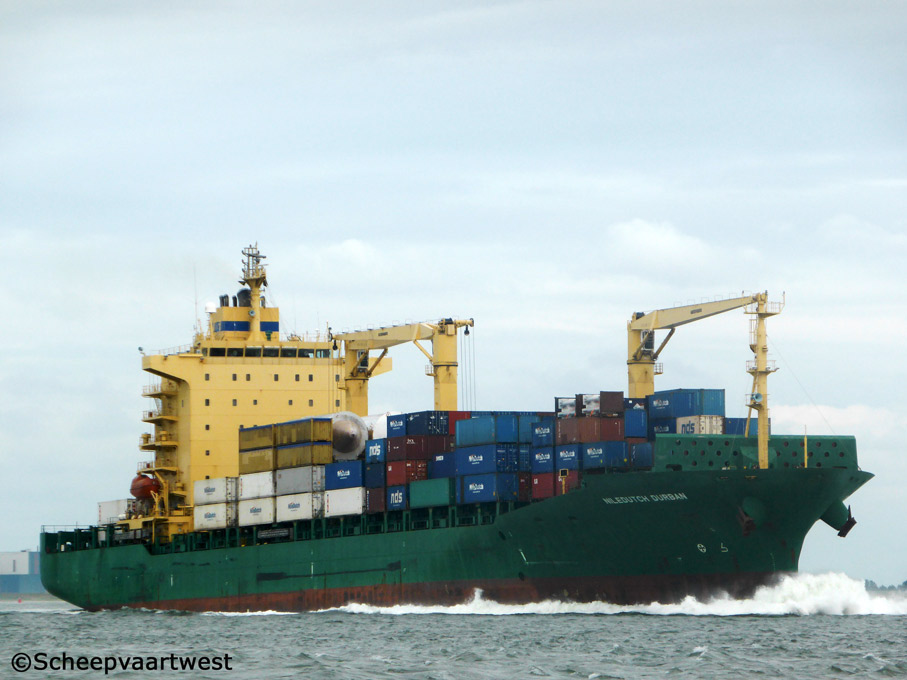

Niledutch Durban - IMO 9294513

Westerschelde 05 July 2014

Name

NILEDUTCH DURBAN

Previous names

2006 Launch as: Palatia

2006 - 06.2008 MOL Supremacy

06.2008 - 06.2008 Palatia

06.2008 - 12.2008 CMA CGM Oceano

12.2008 - 03.2011 AS Palatia

Type

Cellular containership

IMO-number

9294513

Call sign

A8IT6

Flag

Liberia

Port of registry

Monrovia

GT

27.100 t

DWT

Summer: 34.600 t

NT

12.686 t

Number of 20ft containers

2.602

Container capacity 14t

1.856

Reefer capacity

440

Length

210,00 m overall

200,36 m registered

Breadth

30,10 m registered

Draught

11,50 m

Depth

16,70 m moulded

Speed

22,1 knots

Built

2006

Keel laid

01.12.2005

Launch date

27.01.2006

Date of completion

07.04.2006

Builder

STX Offshore & Shipbuilding Co., Ltd.
100, Wonpo-dong Jinhae-gu
Changwon-si
Republic of Korea

Yard number

S1168

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

8

Continuous decks

2

Main engine

1x MAN-B&W 8S70MC-C Mk VII - 2 stroke 8 cylinder 700 x 2.800 mm diesel engine - 24.880 kW at 91,0 rpm

Year of manufacture: 2005

Manufacturer: STX Engine Co., Ltd.
36, Gongdanro474-gil Sungsan-gu
Changwon
Republic of Korea

Propellers

1x Solid propeller (Keyless) - aft at 91,0 rpm

Boilers

1x Steam boiler, oil fired - 6,9 bar

Heating Surface: 30,0 m²

1x Steam boiler, exhaust gas heated - 6,9 bar

Heating Surface: 475,6 m²

Year of manufacture: 2005

Manufacturer: KangRim Heavy Industries Co., Ltd. (1st Factory)
505, Sinpyung-dong, Saha-gu
Busan
Republic of Korea

Electric installations

4x Plants 440 V - 1.750 kVA

1x Plant 440 V - 225 kVA

1x Plant 24 V - 200 Ah

Generators

4x MAN-B&W 7L28/32H main diesel generatorsets each 1.750 kVA

Emergency generator

1x Diesel generatorset 225 kVA

Compressed air receivers

2x Receivers each 8.000 litres - 30,0 bar

1x Receiver 350 litres - 30,0 bar

1x Receiver 2.000 litres - 7,5 bar

Bow thruster

1x Bow thruster 1.000 kW, forward

Tank capacities

Fuel: 3.926 m²

Water ballast: 9.634 m³

Anchor equipment

3x Anchors weight each 9.300 kg

Chain length: 660,00 m

Cargo gear

4x Cranes - SWL 45,0 t each

Manager

Ahrenkiel Steamship GmbH & Co. KG
Palmaille 75
22767 Hamburg
Federal Republic of Germany

Registered owner

Reederei Ahrenkiel GmbH & Co. KG
An der Alster 45
20099 Hamburg
Federal Republic of Germany

Renamed

2015 AS Palatia

Latest data adjustment

21 May 2015
