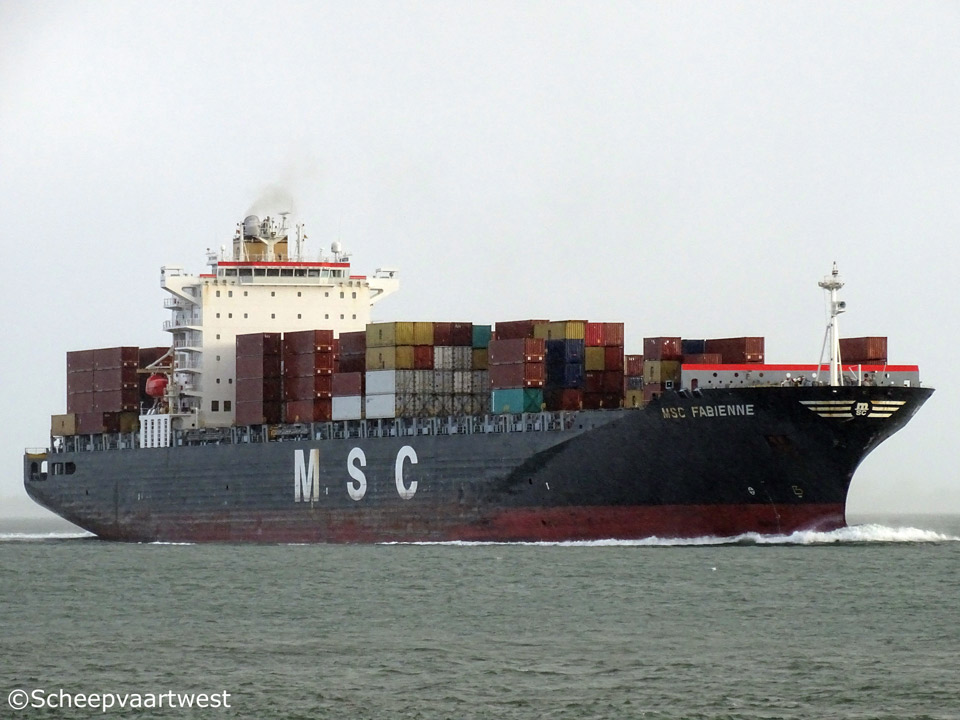

Westerschelde 14 October 2019 |
 |
 |
 |
 |
 |
 |
|||||

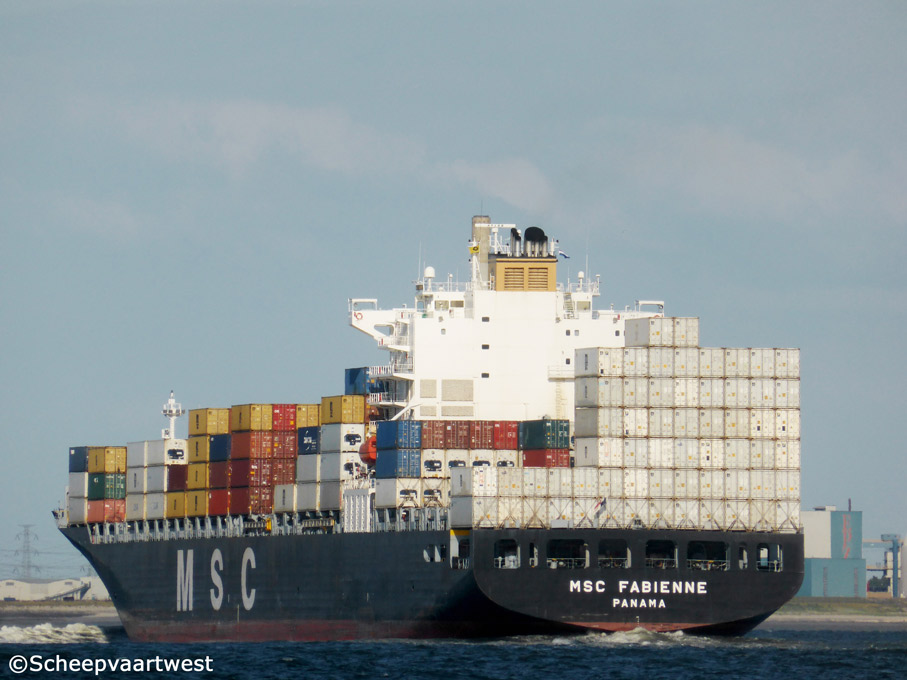

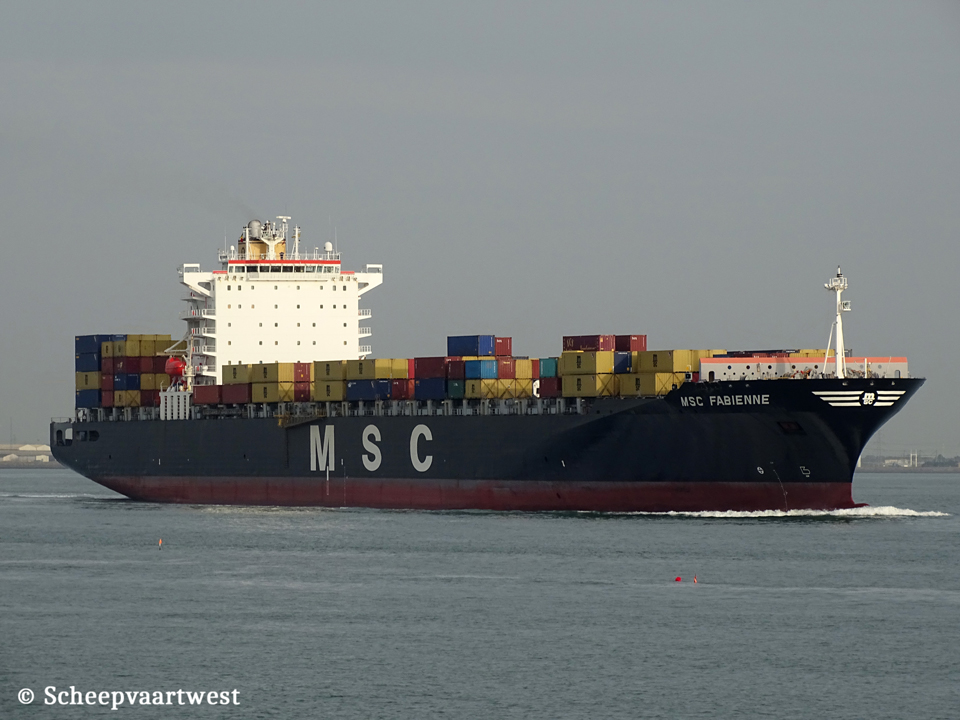

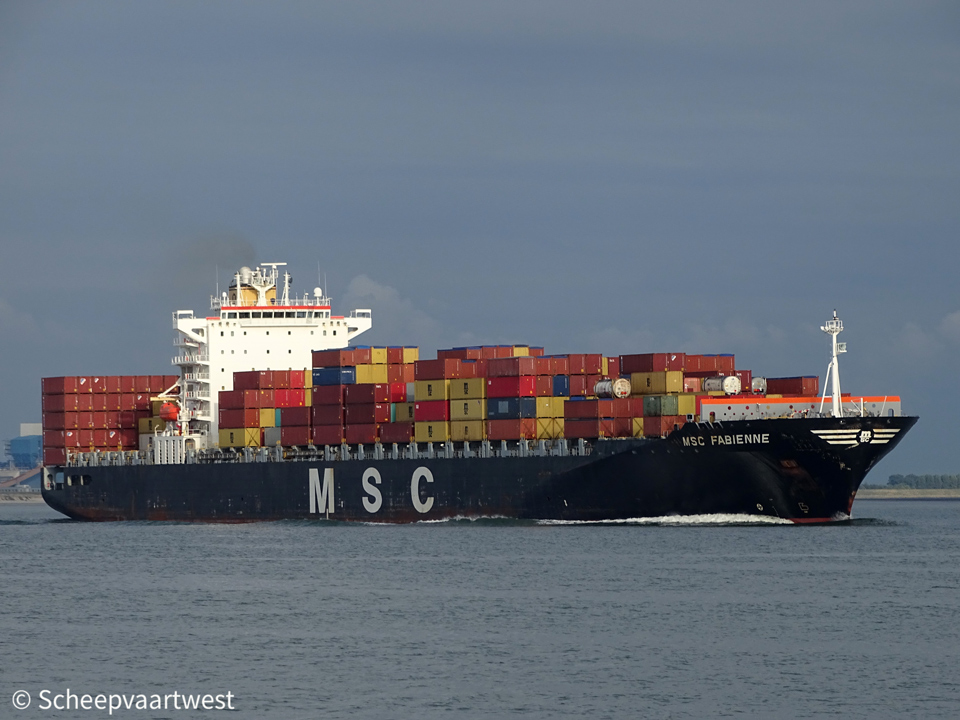

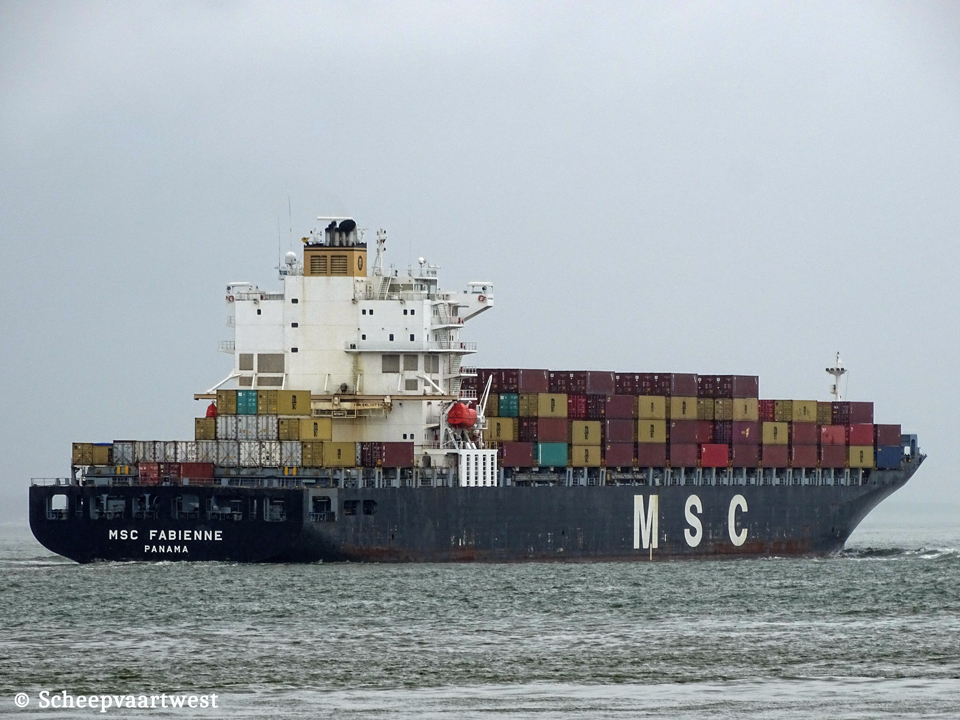

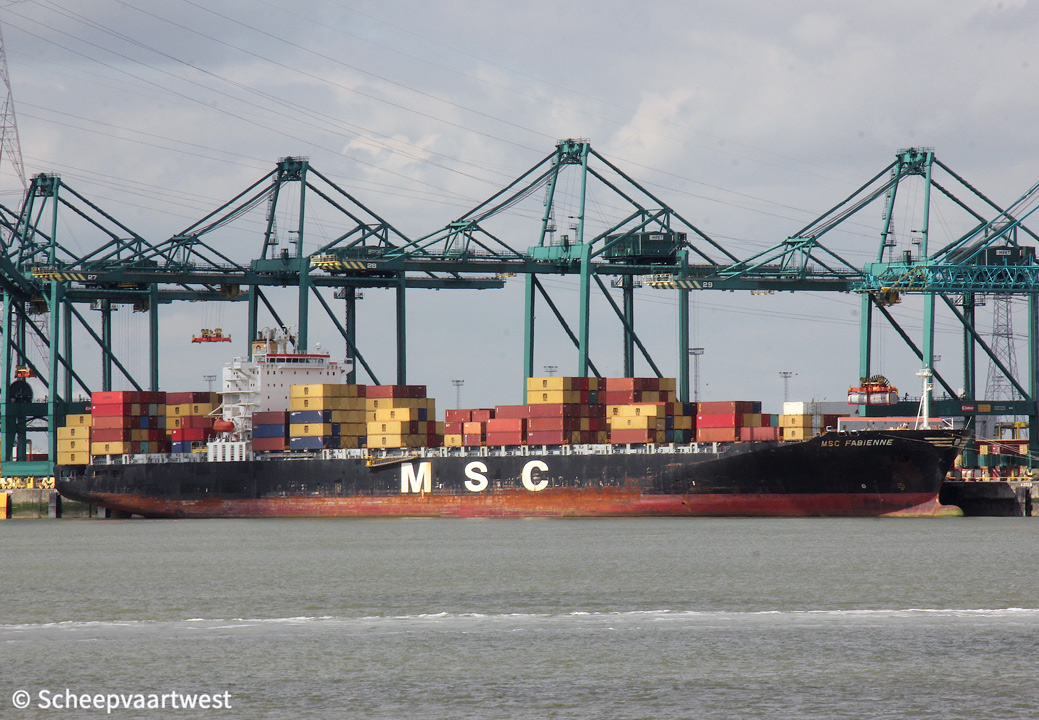

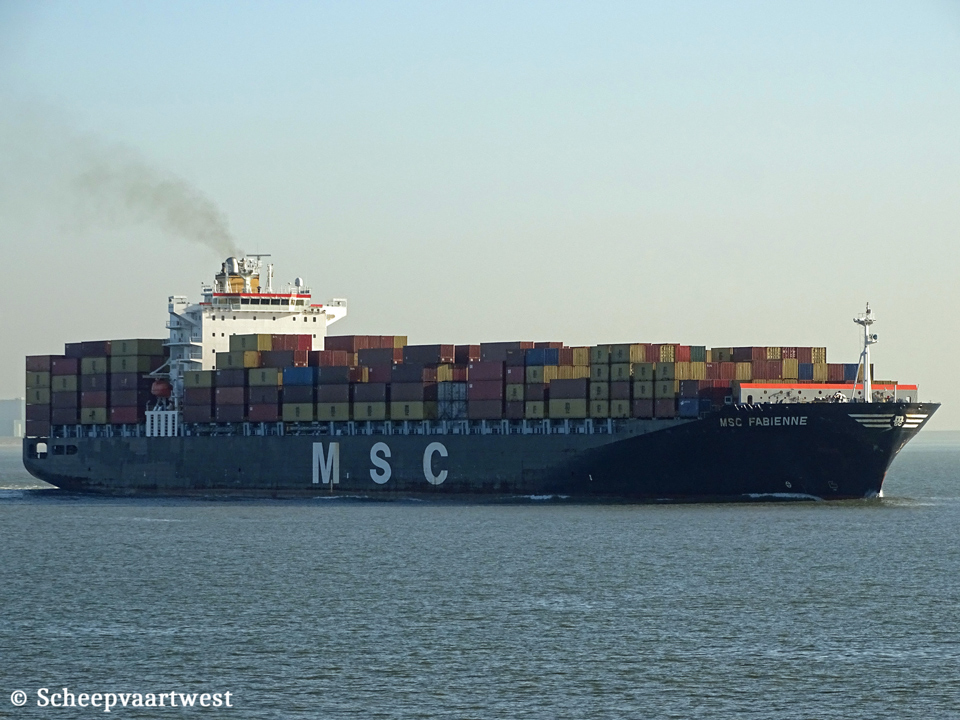

| Westerschelde 02/11/16 | Westerschelde 25/06/14 | Westerschelde 20/08/18 | Doel, Belgium 01/07/19 | Westerschelde 12/12/18 | Westerschelde 30/04/18 | |||||
|
Name |
MSC FABIENNE |
|
Type |
Cellular containership |
|
IMO-number |
9279965 |
|
Call sign |
H3SF |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
54.774 t |
|
DWT |
Summer: 66.694 t |
|
NT |
33.409 t |
|
Number of 20ft containers |
4.862 |
|
Container capacity 14t |
3.200 |
|
Reefer capacity |
350 |
|
Length |
294,16 m overall 284,29 m registered |
|
Breadth |
32,20 m registered |
|
Draught |
13,55 m |
|
Forecastle |
14,74 m |
|
Quarterdeck |
10,50 m |
|
Depth |
17,41 m moulded |
|
Speed |
24,0 knots |
|
Built |
2004 |
|
Keel laid |
24/11/2003 |
|
Launch date |
11/02/2004 |
|
Date of completion |
12/04/2004 |
|
Builder |
Samho Heavy Industries Co., Ltd. (SAMHO Shipyard) 1700, Yongdang-ri, Samho-myun Youngam-gun Cheollanam-do Republic of Korea |
|
Yard number |
S194 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
8 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W 9K90MC-C - 2 stroke 9 cylinder 900 x 2.300 mm combustion engine 41.130 kW / 55.889 hp at 104,0 rpm Year of manufacture: 2003 Manufacturer: Hyundai Heavy Industries Co., Ltd. Engine & Machinery Division 1000 Bangeojinsunhwan-doro Dong-gu Ulsan ,682-792 Republic of Korea |
|
Propellers |
1x Solid propeller (keyless) - aft at 104,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,8 bar Heating surface: 55,0 m² 1x Steam boiler, exhaust gas heated - 9,8 bar Heating surface: 830,0 m² Year of manufacture: 2003 Manufacturer: KangRim Industries Co., Ltd. (3rd Factory) 40, Wongnam-dong Changwon Republic of Korea |
|
Electric installations |
4x Plants each 450/230 V - 2.212,5 kVA 1x Plant 450 V - 625 kVA 1x Plant 24 V - 200 Ah 2x Plants each 24 V - 600 Ah |
|
Generators |
4x Main diesel generatorsets each 2.212,5 kVA |
|
Emergency generator |
1x Diesel generatorset 625 kVA |
|
Compressed air receivers |
2x Receivers each 20.000 litres - 30,0 bar 2x Receivers each 250 litres - 30,0 bar 1x Receiver 200 litres - 7,5 bar |
|
Bow thruster |
1x Transverse thruster ULSTEIN - 1.900 kW, forward |
|
Anchor equipment |
3x Anchors weight each 12.900 kg Chain length: 715,00 m Diameter: 87 mm |
|
Cargo gear |
Gearless |
|
Crew size |
32 |
|
ISM & commercial manager |
MSC Mediterranean Shipping Company S.r.l. Via Francesco Ciampa, 29 80063 Piano di Sorrento Naples Italy |
|
Operator |
MSC - Mediterranean Shipping Company |
|
Registered owner |
Fabienne Oceanway Limited |
|
Previous owner |
NSM Fabienne Shipping Company Limited |
|
Latest data adjustment |
23 May 2023 |
