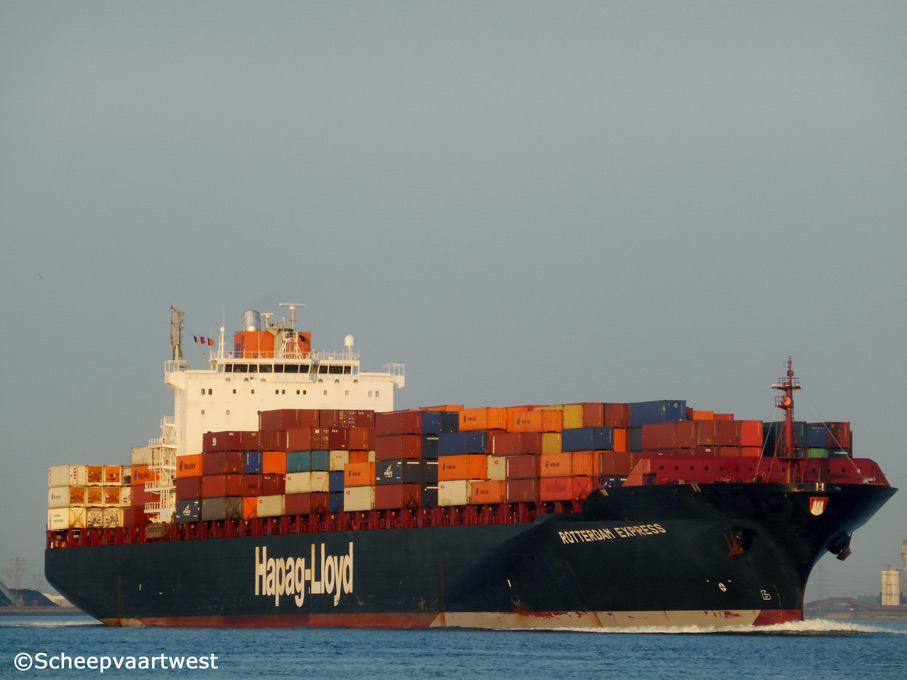

Rotterdam Express 01

Westerschelde 17 July 2014



Name

ROTTERDAM EXPRESS

Type

Cellular containership

IMO-number

9193317

Call sign

DMRX

Flag

Germany

Port of registry

Hamburg

GT

54.465 t

DWT

Summer: 66.975 t

NT

23.876 t

Number of 20ft containers

4.890

Container capacity 14t

3.370

Reefer capacity

370

Length

294,03 m overall

285,90 registered

Breadth

32,20 m registered

Draught

13,55 m

Forecastle

260,68 m

Poop

23,14 m

Depth

21,80 m moulded

Speed

24,0 knots

Built

2000

Keel laid

28.03.2000

Launch date

10.06.2000

Date of completion

18.08.2000

Builder

Hyundai Heavy Industries Co., Ltd.
1, Cheonha-dong, Dong-gu
Ulsan
Republic of Korea

Yard number

1193

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

9

Continuous decks

2

Main engine

1x Hyundai/MAN-B&W 7K98MC - 2 stroke 7 cylinder 980 x 2.660 mm diesel engine - 40.040 kW at 94,0 rpm

Year of manufacture : 2000

Manufacturer: Hyundai Engine & Machinery Co., Ltd.
Ulsan
Republic of Korea

Propellers

1x Solid propeller (keyless) - aft at 94,0 rpm

Boilers

1x Steam boiler, oil fired - 10,0 bar

Heating surface: 106,0 m²

1x Steam boiler, exhaust gas heated - 10,0 bar

Heating surface: 1.360,0 m²

Year of manufacture: 2000

Manufacturer: Thyssen Krupp Marine Systems GmbH
Werftstr. 112-114
24143 Kiel
Federal Republic of Germany

Electric installations

1x Plant 440/220 V - 2.187 kVA

2x Plants each 440/220 V - 2.875 kVA

1x Plant 440 V- 3.750 kVA

1x Plant 440 V - 375 kVA

1x Plant 12 V - 200 Ah

1x Plant 24 V - 100 Ah

1x Plant 24 V - 200 Ah

Shaft generator

1x 3.750 kVA

Generators

2x Main diesel generatorsets each 2.875 kVA

1x Main diesel generatorset 2.187 kVA

Emergency generator

1x Diesel generatorset 375 kVA

Compressed air receivers

2x Receivers each 15.000 litres - 30,0 bar

1x Receiver 250 litres - 30,0 bar

1x Receiver 350 litres - 7,7 bar

Bow thruster

1x Transverse thruster 2.100 kW, forward

Tank capacities

Fuel oil: 6.630 m³

Ballast water: 19.255 m³

Anchor equipment

3x Anchors weight each 12.900 kg

Chain length: 715,00 m

Cargo gear

Gearless

Manager

Hapag-Lloyd AG
Ballindamm 25
20095 Hamburg
Federal Republic of Germany

Operator

Hapag-Lloyd

Registered owner

Hapag-Lloyd AG
Ballindamm 25
20095 Hamburg
Federal Republic of Germany

Latest data adjustment

16 February 2015
