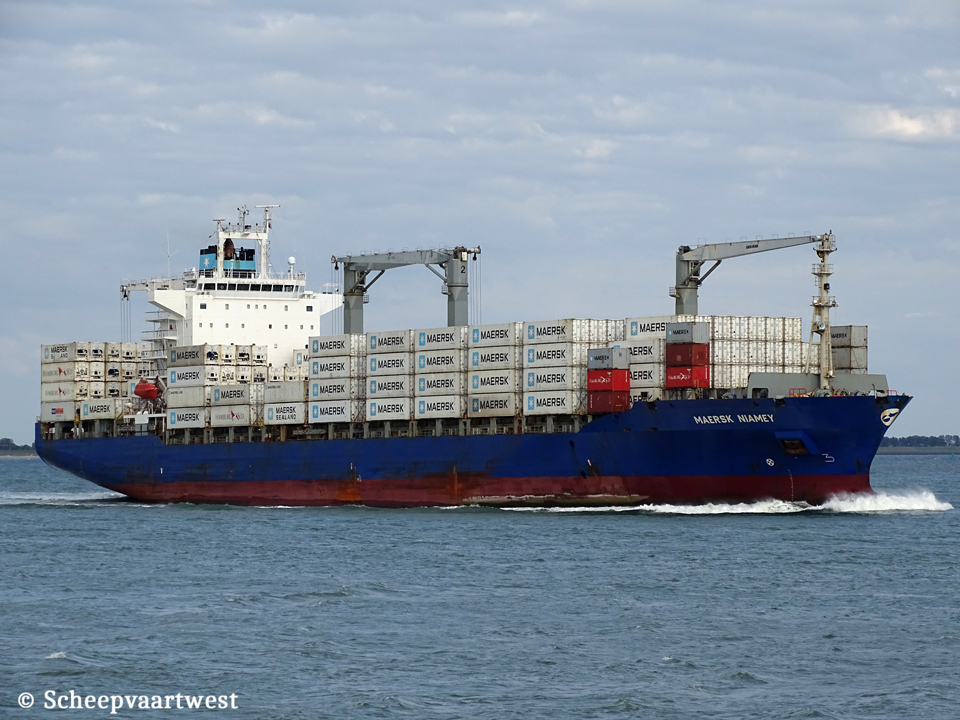

Maersk Niamey IMO 9434917 05

Westerschelde 28 July 2020

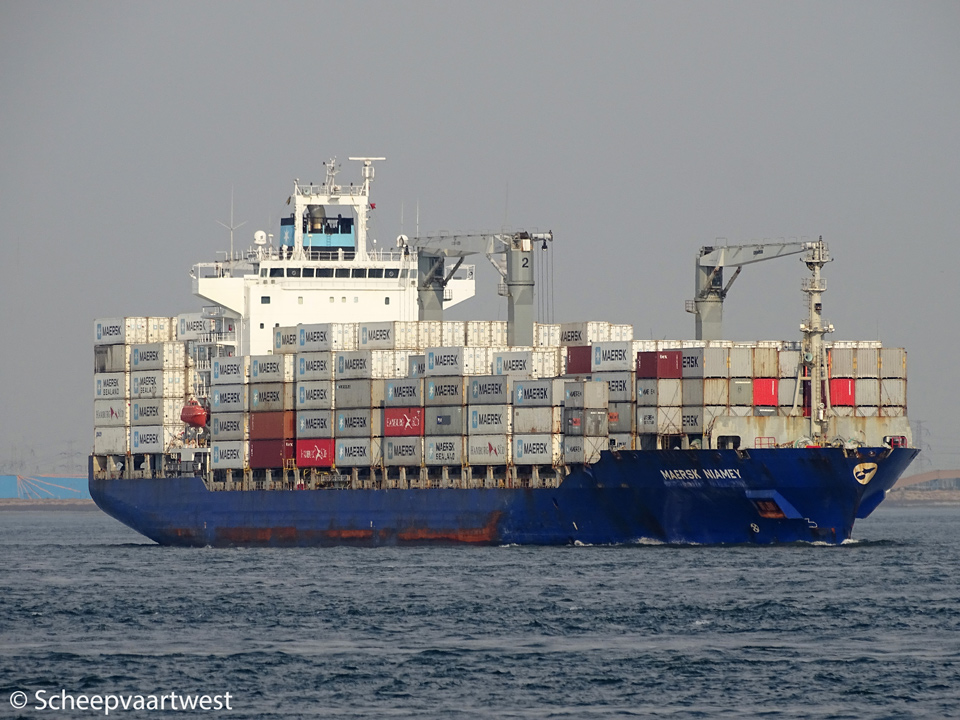

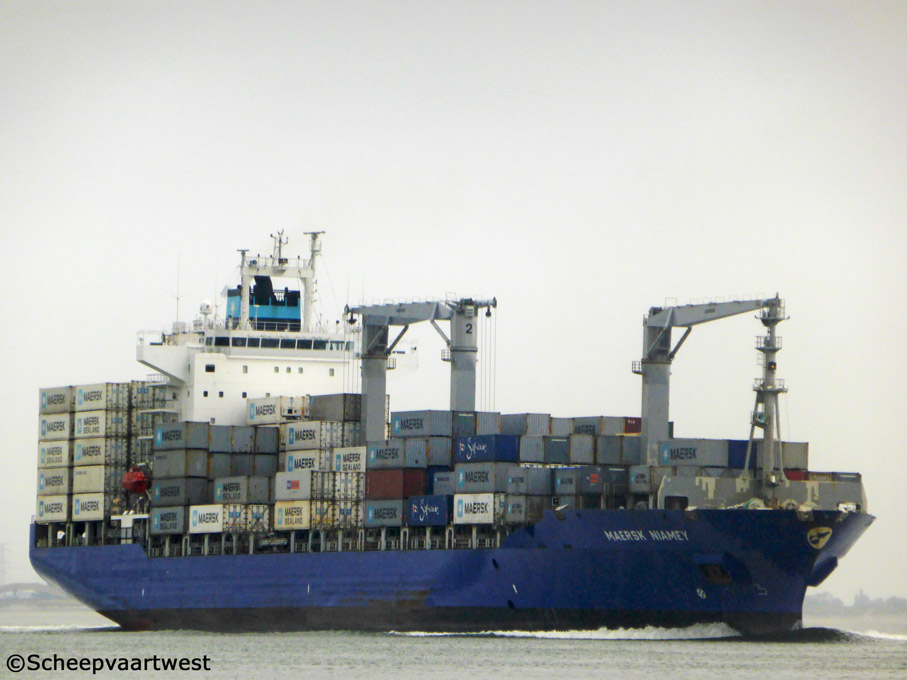

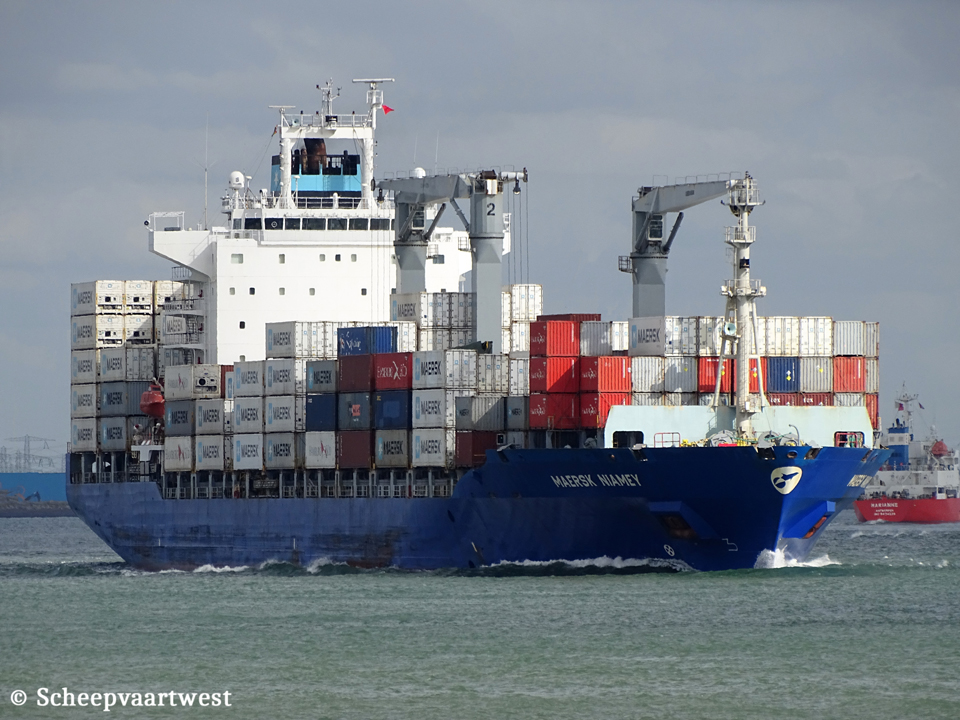

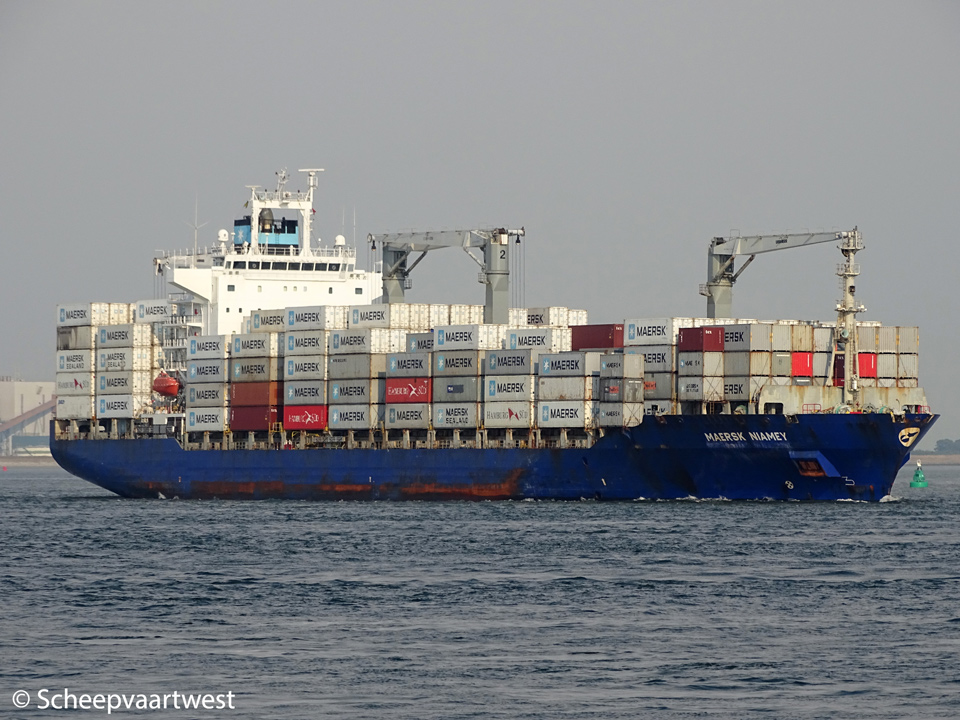

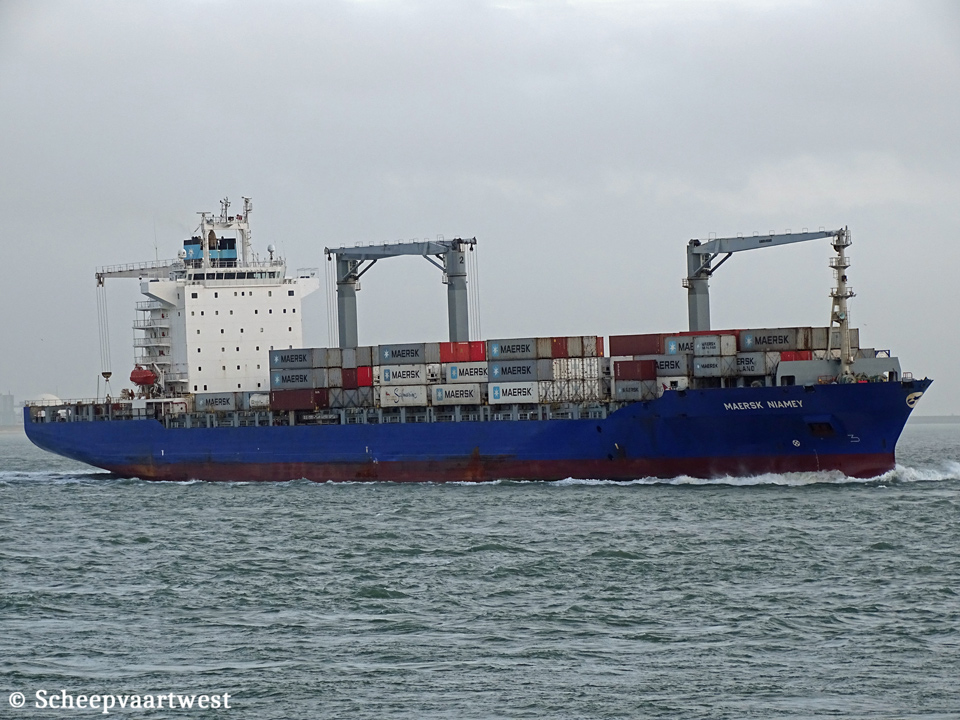

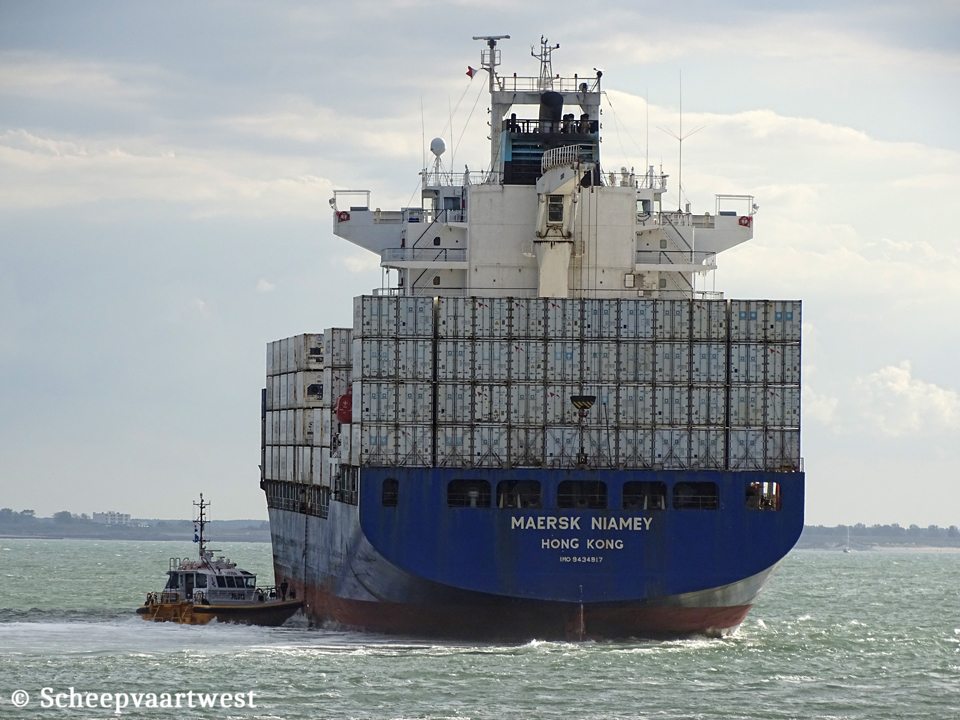

Maersk Niamey IMO 9434917 06   Maersk Niamey 02   Maersk Niamey 03   Maersk Niamey 01   Maersk Niamey IMO 9434917 04   Maersk Niamey IMO 9434917 07
Westerschelde 28/07/20 Westerschelde 06/06/18 Westerschelde 26/07/18 Westerschelde 08/07/14   Westerschelde 07/01/20   Westerschelde 17/09/19


Name

MAERSK NIAMEY

Previous names

2009 Launch as: Poseidon Hero

Type

Cellular containership

IMO-number

9434917

Call sign

VREX7

Flag

Hong Kong Special Administration Region of P.R. China

Port of registry

Hong Kong

GT

26.836 t

DWT

Summer: 33.413 t

NT

12.743 t

Number of 20ft containers

2.556

Container capacity 14t

1.850

Reefer capacity

600

Length

210,09 m overall

200,57 m registered

Breadth

30,20 m registered

Draught

11,50 m

Keel to mast end

51,98 m

Forecastle

26,47 m

Quarterdeck

38,53 m

Depth

16,70 m moulded

Speed

21,0 knots

Built

2009

Keel laid

18/09/2008

Launch date

13/12/2008

Date of completion

03/03/2009

Builder

Hyundai Heavy Industries Co., Ltd.

1, Cheonha-dong, Dong-gu

Ulsan

Republic of Korea

Yard number

2049

Hull material

Shipbuilding steel (standard)

Higher tensile steel

Hull type

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

8

Continuous decks

2

Main engine

1x Wärtsilä 7RTA72U-B - 2 stroke 7 cylinder 720 x 2.500 mm combustion engine 21.560 kW at 99,0 rpm

Year of manufacture: 2008

Manufacturer: Hyundai Engine & Machinery Co., Ltd.

Ulsan

Republic of Korea

Propellers

1x Solid propeller (keyless) - aft at 99,0 rpm

Boilers

1x Steam boiler, oil fired - 8,0 bar

Heating surface: 35,0 m²

1x Steam boiler, exhaust gas heated - 8,0 bar

Heating surface: 392,9 m²

Year of manufacture: 2008

Manufacturer: KangRim Industries Co., Ltd. (3rd Factory)

40, Wongnam-dong

Changwon

Republic of Korea

Electric installations

4x Plants each 450 V - 2.133,3 kVA

1x Plant 450 V - 250 kVA

2x Plants each 24 V - 200 Ah

2x Plants each 24 V - 200 Ah

12x Plants each 24 V - 200 Ah

12x Plants each 24 V - 300 Ah

Generators

4x MAN-B&W 6H25/33 main diesel generatorsets each 2.133,3 kVA / 1.706,6 kW

Emergency generator

1x Cummins NT-855-D-M diesel generatorset 250 kVA

Batteries

12x Batteries for UPS navigation each 300 Ah

12x Batteries for emergency lighting each 200 Ah

2x Batteries for start emergency engine each 200 Ah

2x Batteries for automation each 200 Ah

Compressed air receivers

1x Receiver 5.000 litres - 30,0 bar

1x Receiver 4.500 litres - 30,0 bar

1x Receiver 250 litres - 30,0 bar

1x Receiver 200 litres - 8,8 bar

1x Receiver 2.000 litres - 8,0 bar

Bow thruster

1x Transverse thruster 1.000 kW, forward

Tank capacities

Ballast: 9.500,8 m³

Anchor equipment

3x Anchors weight each 9.300 kg

Chain length: 660,00 m

Diameter: 76 mm

Cargo gear

4x Cranes - SWL 40,0 t each

Crew size

27

ISM & commercial manager

Anglo-Eastern (Germany) GmbH

Martinistr. 21

28195 Bremen

Federal Republic of Germany

Registered owner

Belgische Scheepvaartmaatschappij-Compagnie Maritime Belge N.V.

Latest data adjustment

03 July 2022
