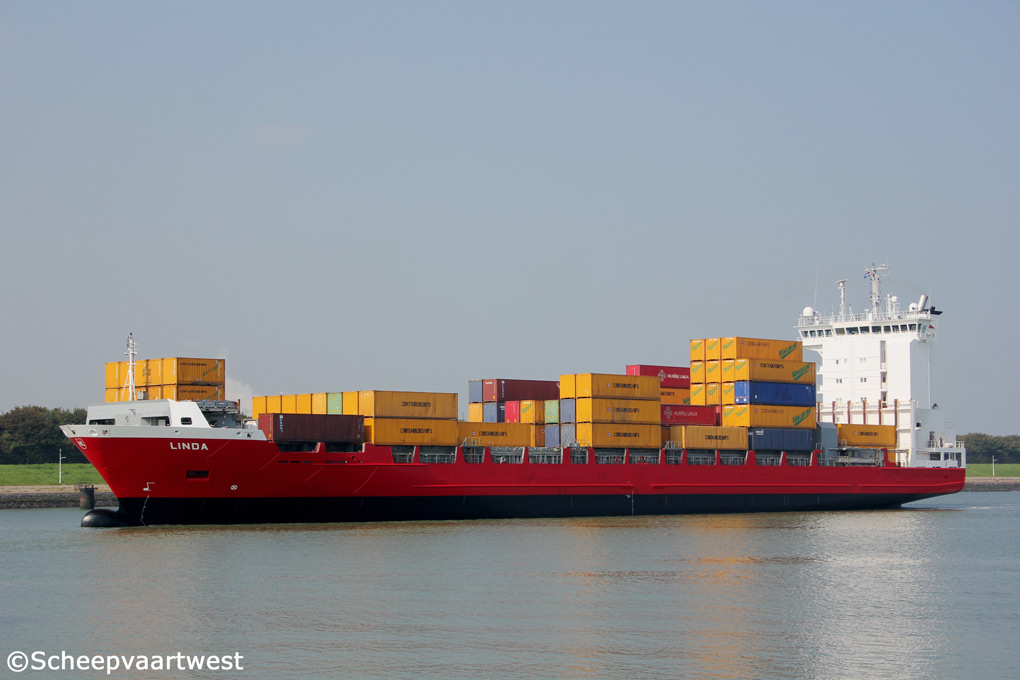

Linda 01

Terneuzen 04 September 2014



Name

LINDA

Type

Containership

IMO-number

9354325

Call sign

OJML

Flag

Finland

Port of registry

Helsinki

GT

9.131 t

DWT

Summer: 11.487 t

NT

4.205 t

Number of 20ft containers

907

Container capacity 14t

578

Reefer capacity

In hold: 100

On deck: 100

Total: 200

Length

141,20 m overall

132,26 m registered

Breadth

21,55 m overall

Draught

8,59 m

Height of mast above keel

42,00 m

Forecastle

10,81 m

Depth

12,30 m moulded

Speed

Max.: 17,7 knots

Built

2007

Keel laid

19.11.2004

Launch date

01.12.2006

Date of completion

08.02.2007

Builder

J.J. Sietas KG Schiffswerft GmbH & Co.
Neuenfelder Fährdeich 88
21129 Hamburg
Federal Republic of Germany

Yard number

1230

Hull material

Shipbuilding steel (standard)

Higher tensile steel

Hull type

Double bottom

Watertight bulkheads

4

Continuous decks

2

Main engine

1x Wärtsilä 8L46C - 4 stroke 8 cylinder 460 x 580 mm diesel engine - 8.400 kw at 500 rpm

Year of manufacture: 2006

Manufacturer: Wärtsilä Finland Oy
Staalarminkatu 45
20810 Turku
Finland

Propellers

1x Controllable pitch propeller - aft at 135 rpm

Boilers

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 52,0 m²

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 175,0 m²

Year of manufacture: 2006

Manufacturer: HTI - GESAB Hoch-Temperatur Industrieanlagen GmbH
Sauerbruchstr. 11
25479 Ellerau
Federal Republic of Germany

Electric installations

2x Plants each 400/230 V - 1.155 kVA

1x Plant 400 V - 2.150 kVA

1x Plant 400 V - 155 kVA

Shaft generator

1x 2.150 kVA / 1.720 kW

Generators

2x Main diesel generatorsets each 1.155 kVA- 924 kW

Emergency generator

1x Diesel generatorset 155 kVA

Compressed air receivers

2x Receivers each 1.000 litres - 30,0 bar

1x Receiver 10 litres - 30,0 bar

1x Receiver 500 litres - 11,0 bar

Bow thruster

1x Transverse thruster 800 kW, forward

Number of holds

4

Hold capacity

Hold 1: 1.220,93 m² / 43.117 ft³

Hold 2: 2.256,95 m² / 79.703 ft³

Hold 3: 6.651,77 m² / 234.905 ft³

Hold 4: 5.602,87 m² / 197/863 ft³

Number of hatches

4

Hatch 1: 12,57 x 13,03 m

Hatch 2: 12,72 x 18,24 m

Hatch 3: 29,41 x 18,24 m

Hatch 4: 25,85 x 18,24 m

Hatch type

Hydraulic operated folding steel hatch-cover

Max. permitted loads



Tank top: 18,0 t/m²

Weather deck hatch cover:1,75 t/m²

1st deck in front of deck house: 3,85 t/m²

Tank capacities

Water ballast: 4.430 t

Fresh water: 120 t

Fuel oil: 840 t

Gas oil: 192 t

Anchor equipment

3x Anchors weight each 5.250 kg

Chain length: 577,50 m

Cargo gear

Gearless

Manager

Langh Ship
Piikkio
Finland

Operator

Langh Shipping

Registered owner

Oy Langh Ship Ab
Alaskartano
21500 Piikkio
Finland

Latest data adjustment

27 December 2014
