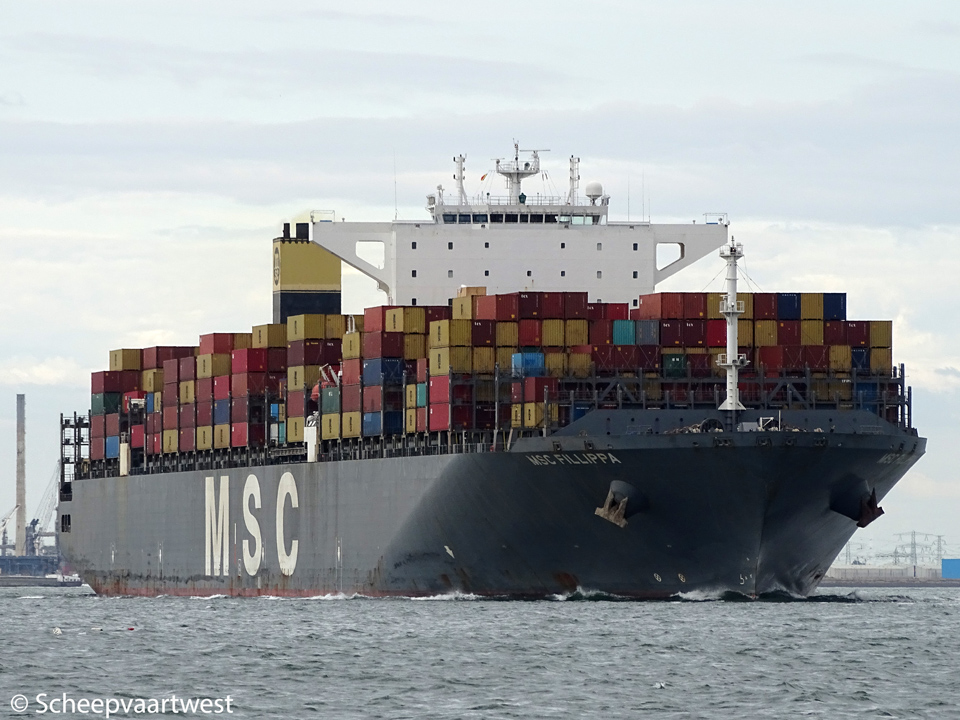

MSC Fillippa 07

Westerschelde 0 July 2018

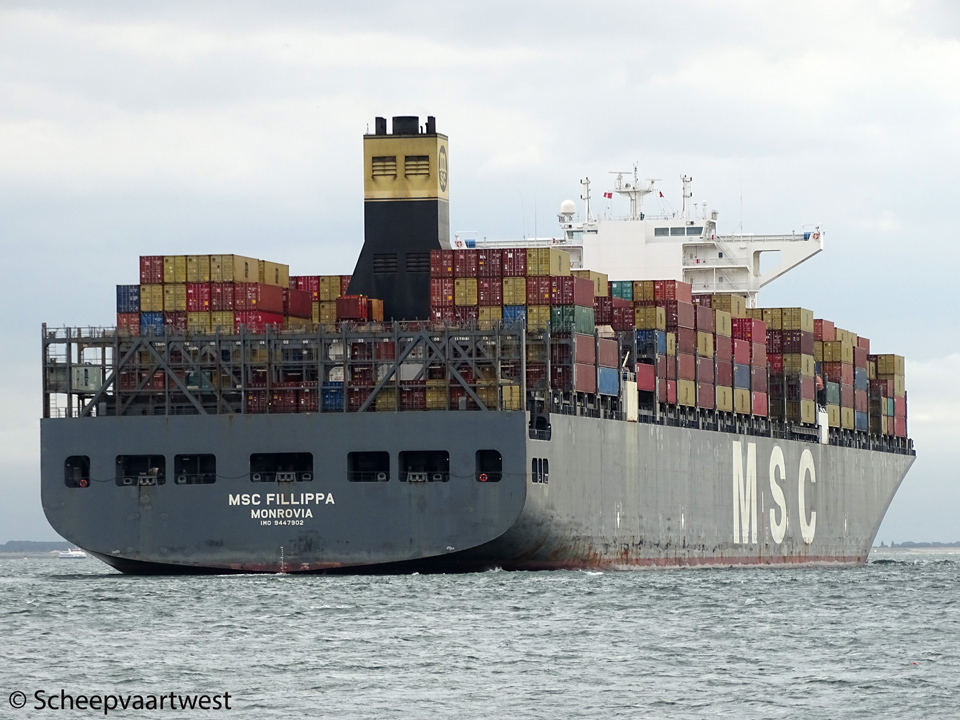

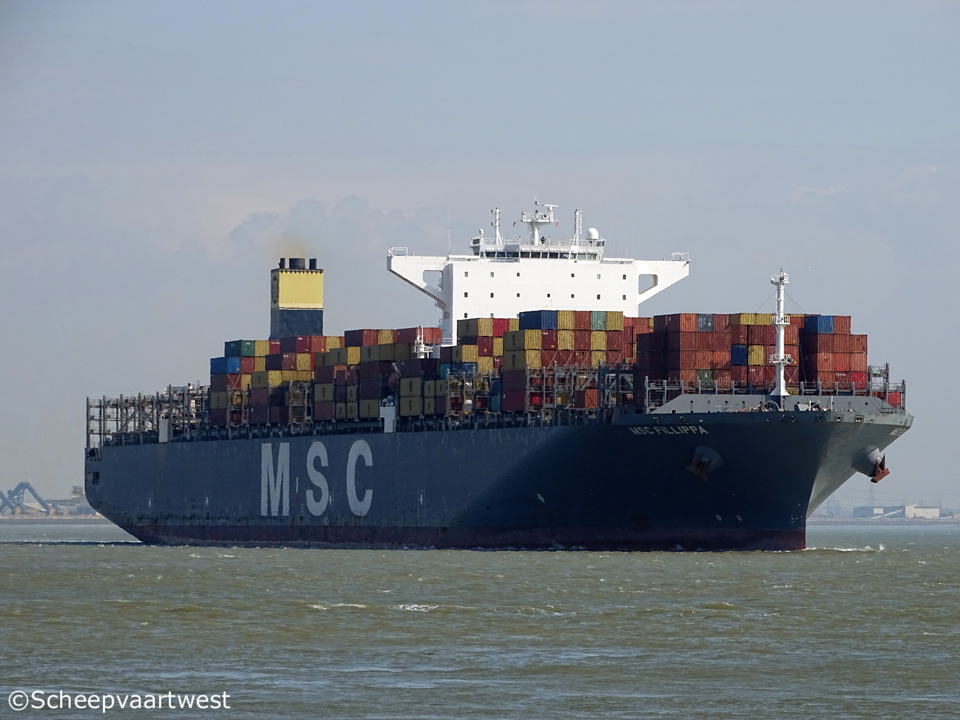

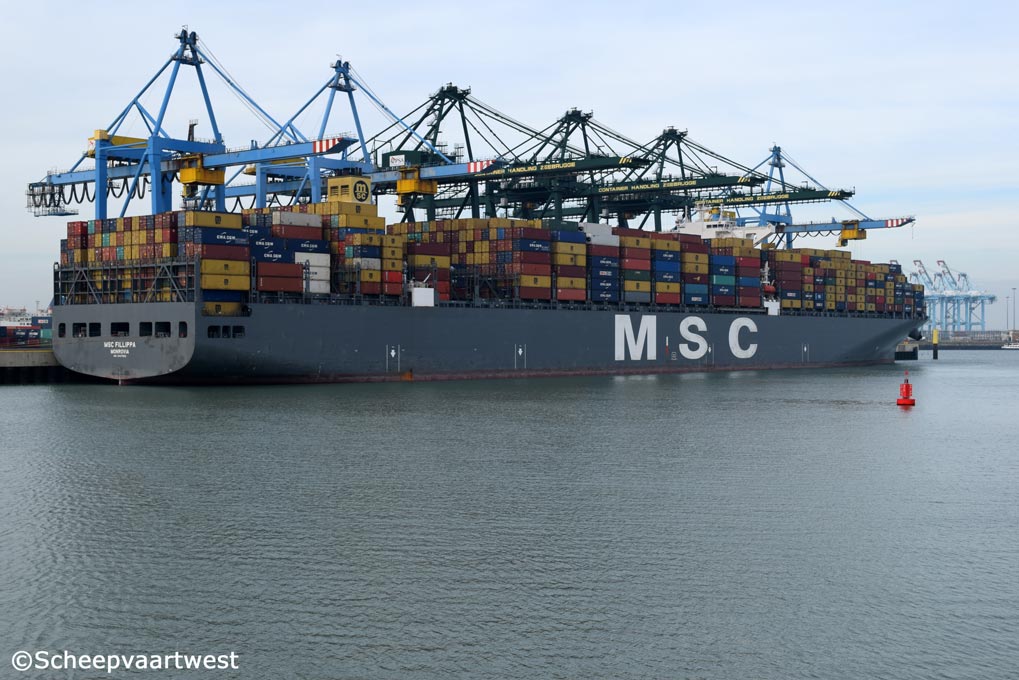

MSC Fillippa 08   MSC Fillippa 04   MSC Fillippa 03
Westerschelde 03/07/18   Westerschelde 26/03/18   Zeebrugge 28/11/14



Name

MSC FILLIPPA

Previous names

2011 Launch as: Fillippa

Type

Cellular containership

IMO-number

9447902

Call sign

A8XT7

Flag

Liberia

Port of registry

Monrovia

GT

140.259 t

DWT

146.074 t

NT

80.630 t

Number of 20ft containers

12.562

Number of 40ft containers

6.215

Container capacity 14t

9.080

Reefer capacity

1.000

Length

366,06 m overall

350,85 m registered

Breadth

48,20 m registered

Draught

Summer: 15,50 m

Depth

29,80 m moulded

Speed

25,4 knots

Built

2011

Keel laid

24.01.2011

Launch date

09.04.2011

Date of completion

20.06.2011

Builder

Samsung Heavy Industries Co., Ltd. Geoje Shipyard
530, Jangpyeong-ri, Sinhyeon-eup
Geoje, Kyongsang-namdo
Republic of Korea

Yard number

1799

Hull material

Shipbuilding steel (standard)

Higher tensile steel

Hull type

Partly double bottom (e.g. interrupted in way of machinery space)

Watertight bulkheads

10

Continuous decks

2

Main engine

1x MAN-B&W 12K98ME-C - 2 stroke 12 cylinder 980 x 2.400 mm diesel engine - 65.160 kW at 100,0 rpm

Year of manufacture: 2010

Manufacturer: Doosan Engine Co., Ltd.
18, Gongdanro21-gil, Sungsan-gu
Changwon, Kyongsang-namdo
Republic of Korea

Propellers

1x Solid propeller (keyless) - aft at 100,0 rpm

Boilers

1x Steam boiler, exhaust gas heated - 11,0 bar

Heating surface: 896,0 m²

Year of manufacture: 2010

1x Steam boiler, oil fired - 8,0 bar

Heating surface: 76,0 m²

Year of manufacture: 2011

Manufacturer: KangRim Industries Co., Ltd. (3rd Factory), Changwon - Republic of Korea
1x Steam boiler, exhaust gas heated - 8,0 bar

Heating surface: 213,2 m²

Year of manufacture: 2014

Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd.
Machinery Industry Park Qingdao Development Area
Qingdao, Shandon - People's Republic of China

Electric installations

2x Plants each 6.600 V - 3.500 kVA

2x Plants each 6.600 V - 4.750 kVA

1x Plant 450 V - 375 kVA

2x Plants each 24 V - 200 Ah

1x Plant 24 V - 400 Ah

Generators

2x Main diesel generatorsets each 4.750 kVA

2x Main diesel generatorsets each 3.500 kVA

Emergency generator

1x diesel generatorset 375 kVA

Batteries

1x Battery for start emergency engine 400 Ah

2x Batteries for other purposes each 200 Ah

Compressed air receivers

2x Receivers each 14.500 litres - 32,4 bar

1x Receiver 300 litres - 32,4 bar

Bow thruster

2x Transverse thruster each 1.700 kW, forward

Anchor equipment

3x Anchors weight each 24.500 kg

Chain length: 770,00 m

Diameter: 122 mm

Cargo gear

Gearless

Crew

24

Crew size

29

Manager

Peter Döhle Schiffahrts-KG
Elbchaussee 370
22609 Hamburg
Federal Republic of Germany

Operator

MSC - Mediterranean Shipping Company S.A.

Registered owner

MS "FILLIPPA" Schiffahrtsgesellschaft mbH & Co. KG
Elbchaussee 370
22609 Hamburg
Federal Republic of Germany

Latest data adjustment

18 March 2018
