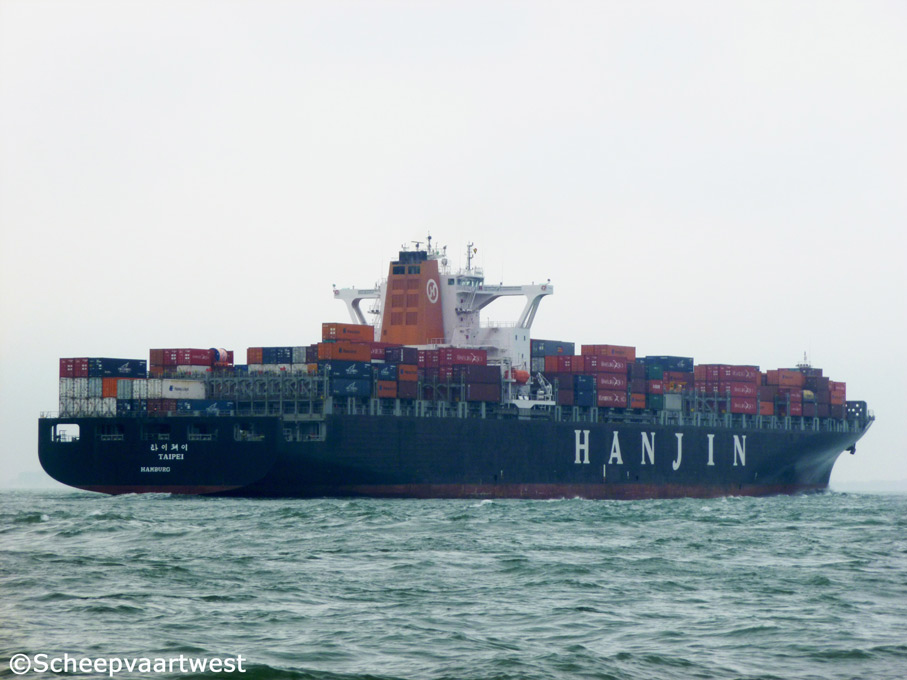

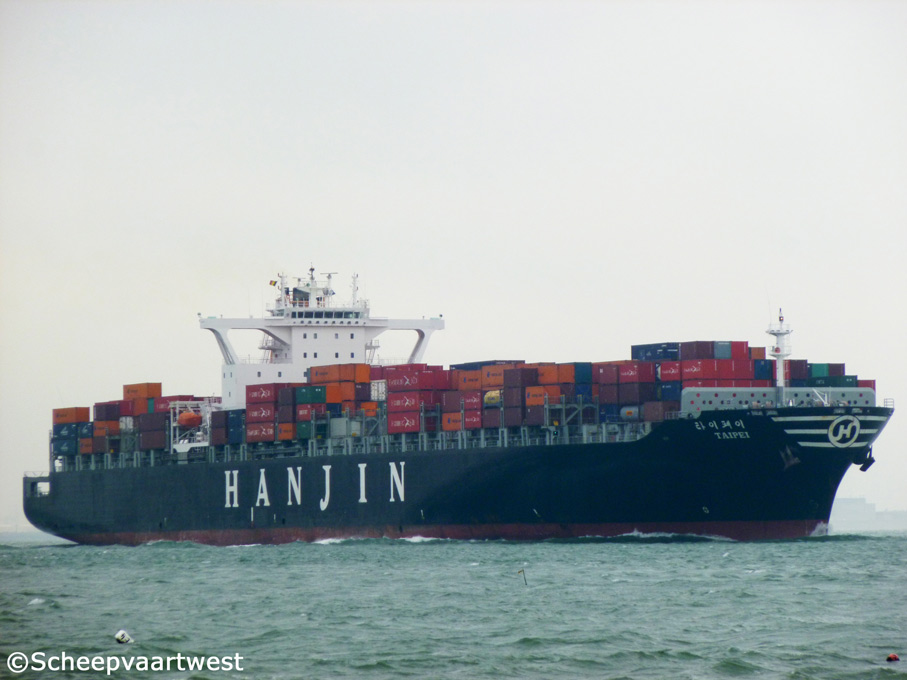

Westerschelde 14 October 2013 |
 |
| Westerschelde 14/10/13 |
|
Name |
04.2013 - 01.2014 TAIPEI |
|
Previous names |
2002 - 04.2013 Hanjin Taipei |
|
Type |
Cellular containership |
|
IMO-number |
9231755 |
|
Call sign |
DFHA |
|
Flag |
Germany |
|
Port of registry |
Hamburg |
|
GT |
65.131 t |
|
DWT |
68.054 t |
|
NT |
34.078 m |
|
Number of 20ft containers |
5.447 |
|
Container capacity 14t |
4.172 |
|
Reefer capacity |
500 on deck |
|
Length |
274,65 m overall 265,06 m registered |
|
Breadth |
40,00 m registered |
|
Draught |
14,00 m |
|
Depth |
20,16 m moulded |
|
Speed |
Max.: 25,9 knots |
|
Built |
2002 |
|
Keel laid |
19.09.2001 |
|
Launch date |
22.12.2001 |
|
Date of completion |
20.02.2002 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. |
|
Yard number |
H1382 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
8 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W 10K98MC-C - 2 stroke 10 cylinder 980 x 2.400 mm diesel engine - 57.100 kW at 104,0 rpm Year of manufacture: 2001 Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Propellers |
1x Solid propeller (keyless) aft at 104,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 8,8 bar Heating surface: 68,0 m² 1x Steam boiler, exhaust gas heated - 12,3 bar Heating surface: 710,0 m² Year of manufacture: 2001 Manufacturer: KangRim Industries Co., Ltd. (1st Factory) |
|
Electric installations |
4x Plants each 440/220 V -h 2.494 kVA 1x Plant 440 V - 250 kVA 1x Plant 12 V - 135 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 200 Ah 2x Plants each 24 V - 200 Ah |
|
Generators |
4x MAN-B&W 7L27/38 main diesel generatorset each 2.494 kVA |
|
Emergency generator |
1x diesel generatorset 250 kVA |
|
Batteries |
1x Battery for automation 200 Ah |
|
Compressed air receivers |
2x Receivers each 13.500 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 1x Receiver 2.000 litres - 7,0 bar |
|
Bow thruster |
1x Transverse thruster 2.000 kW, forward |
|
Tank capacities |
Fuel oil: 5.355 m² Ballast water: 15.815 m³ |
|
Lifting equipment |
3x Anchors weight each 15.400 kg Chain Length: 742,50 m |
|
Cargo gear |
Gearless |
|
Crew size |
32 |
|
Manager |
NSB Niederelbe Schiffahrtsgesellschaft mbH & Co. KG |
|
Operator |
Hanjin Shipping |
|
Registered owner |
Conti 2. Container Schiffahrts-GmbH & Co. KG MS "CONTI TAIPEH" |
|
Renamed |
17.01.2014 Hanjin Taipei |
|
Latest data adjustment |
01 November 2014 |
