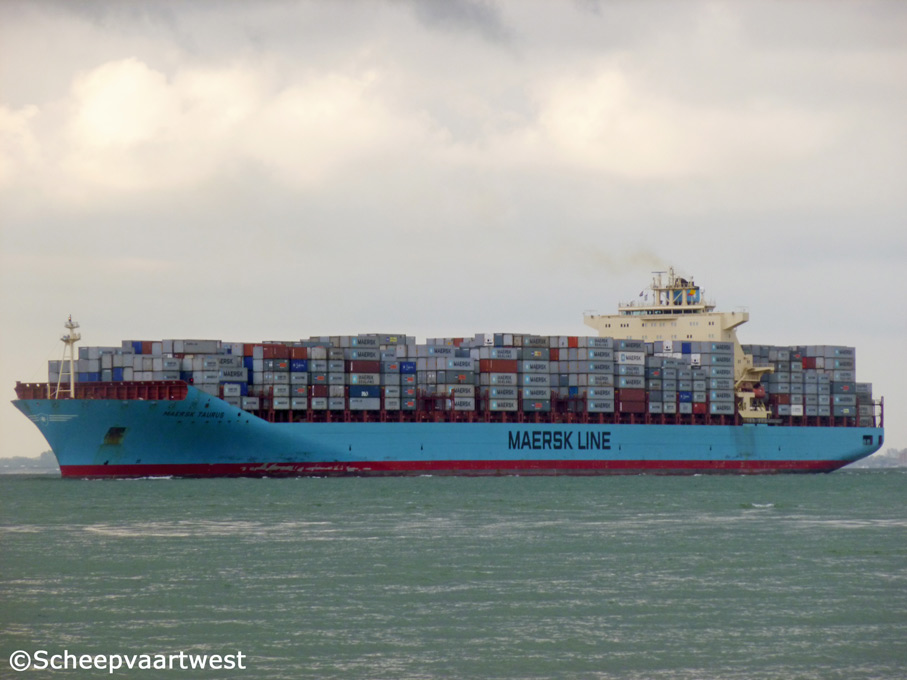

Maersk Taurus 01

Westerschelde 15 October 2013

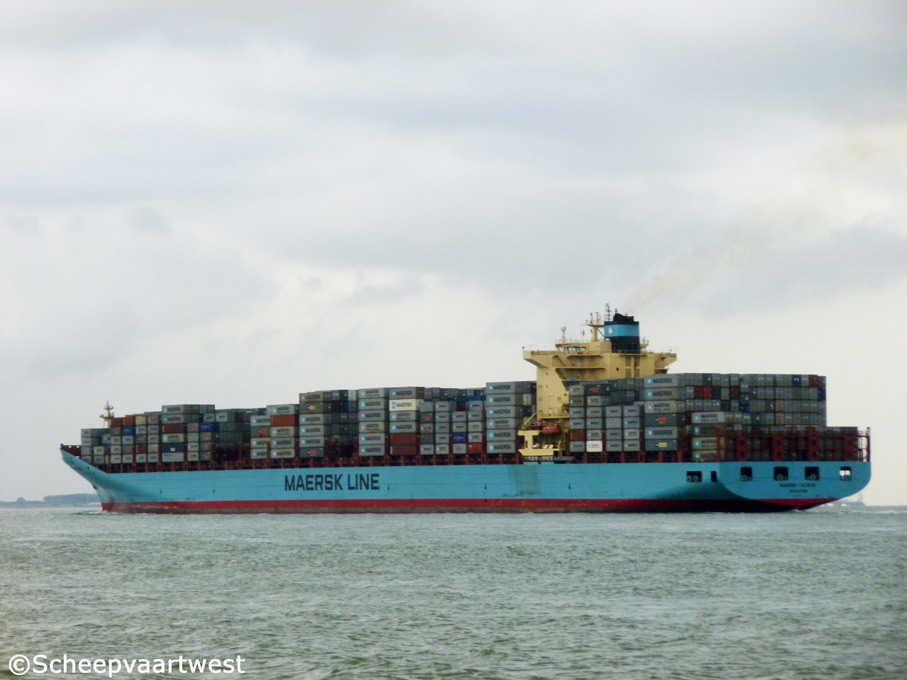

Maersk Taurus 02
15/10/13



Name

MAERSK TAURUS

Type

Cellular containership - Carriage of dangerous goods, Refrigerated cargo

IMO-number

9334674

Call sign

9VFV4

Flag

Republic of Singapore

Port of registry

Singapore City

GT

94.193 t registered

DWT

Summer: 107.042 t

NT

53.271 t registered

Number of 20ft containers

8.112

Container capacity 14t

6.670

Reefer capacity

700

Length

332,00 m overall

318,80 m between perpendiculars

Breadth

43,20 m moulded

Draught

14,50 m

Freeboard

5.743 mm

Depth

24,50 m moulded

Speed

24,8 knots

Built

2008

Keel laid

08.10.2007

Date of completion

04.03.2008

Builder

Daewoo Shipbuilding & Marine Engineering Co., Ltd.
Geoje
South Korea

Yard number

4119

Hull material

High strength steel

Watertight bulkheads

13

Main engine

1x Wärtsilä 12RT-FLEX96C - 2 stroke 12 cylinder diesel engine - 68.640 kW

Manufacturer: Doosan Engine Co., Ltd.

Propellers

1x Fixed propeller

Boilers

1x Exhaust gas boiler XS-TC7A - 11,0 bar

Builder: Alfa Laval

1x Fired exhaust gas (composite) boiler - EA30113

Builder: Kangrim

Generators

4x Hyundai HSJ7 805-10P main diesel generatorsets each 3.200 kW

Bow thruster

1x 3.000 kW

Number of holds

9

Hold capacity

184.008 m³

Number of tanks

Ballast: 30

Fuel oil: 10

Sludge: 8

Lubricating oil: 7

Waste water: 6

Fresh water: 3

Diesel oil: 2

Thermal oil: 1

Chain: 1

Ammonia waste: 1

Tank capacities

Diesel oil: 259,10 m³ / 228,00 t

Freshwater: 467,4 m³

Lube oil: 568,30 m³ / 511,47 t

Tank ballast: 39.842,60 m³ / 40.838,66 t

Lifting equipment

2x Engine room crane - SWL 10,0 t

1x Fuel oil hose davit - SWL 0,9 t

1x Fuel oil hose/Suez boat - SWL 4,0 t

1x Monorail hoist crane accommodation aft - SWL 13,0 t

Cargo gear

Gearless

Crew

28

Manager

A.P. Moller Singapore Pte. Ltd.
3 Harbourfront Place
#13-01 Harbourfront Tower Two
Republic of Singapore

Operator

Maersk Line

Registered owner

A.P. Moller Singapore Pte. Ltd.

Latest data adjustment

30 October 2014
