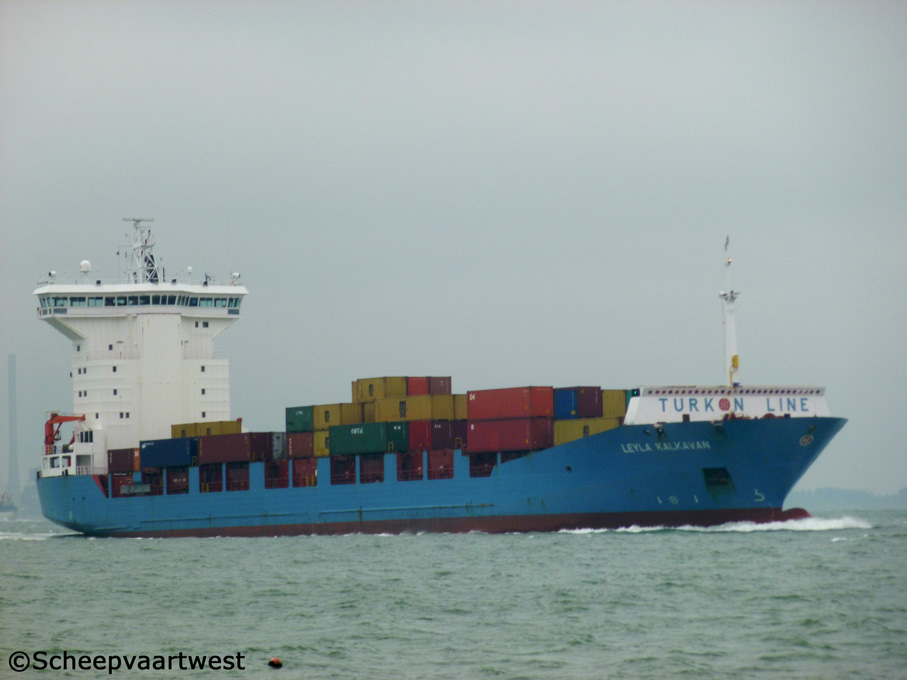

Leyla Kalkavan 01

Westerschelde 14 October 2013

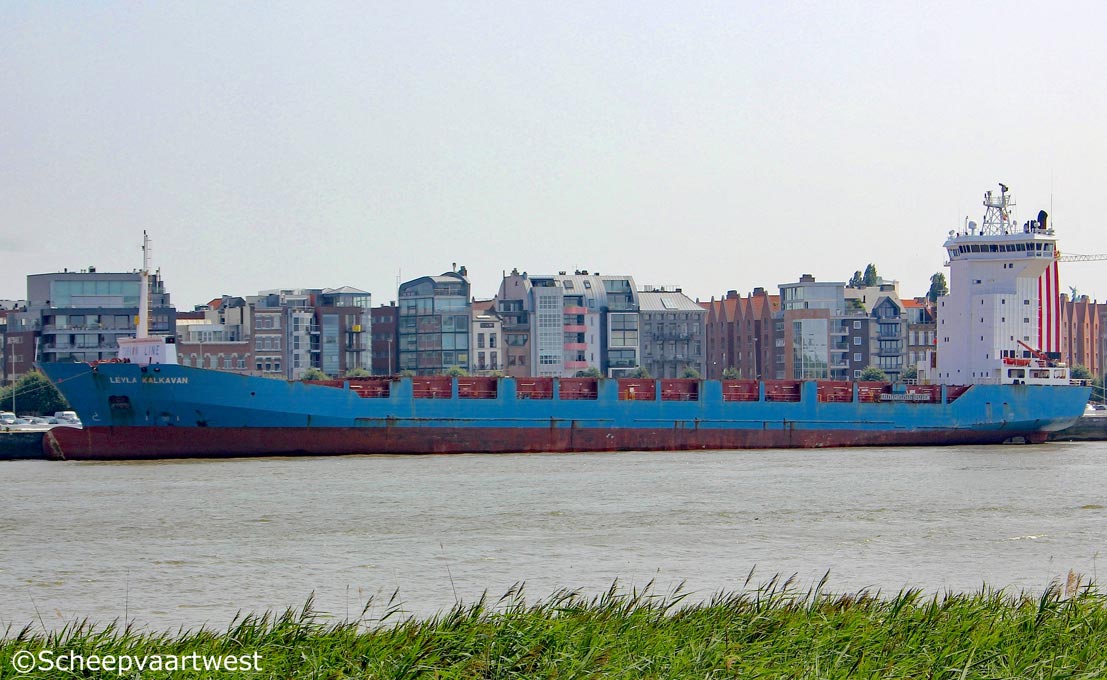

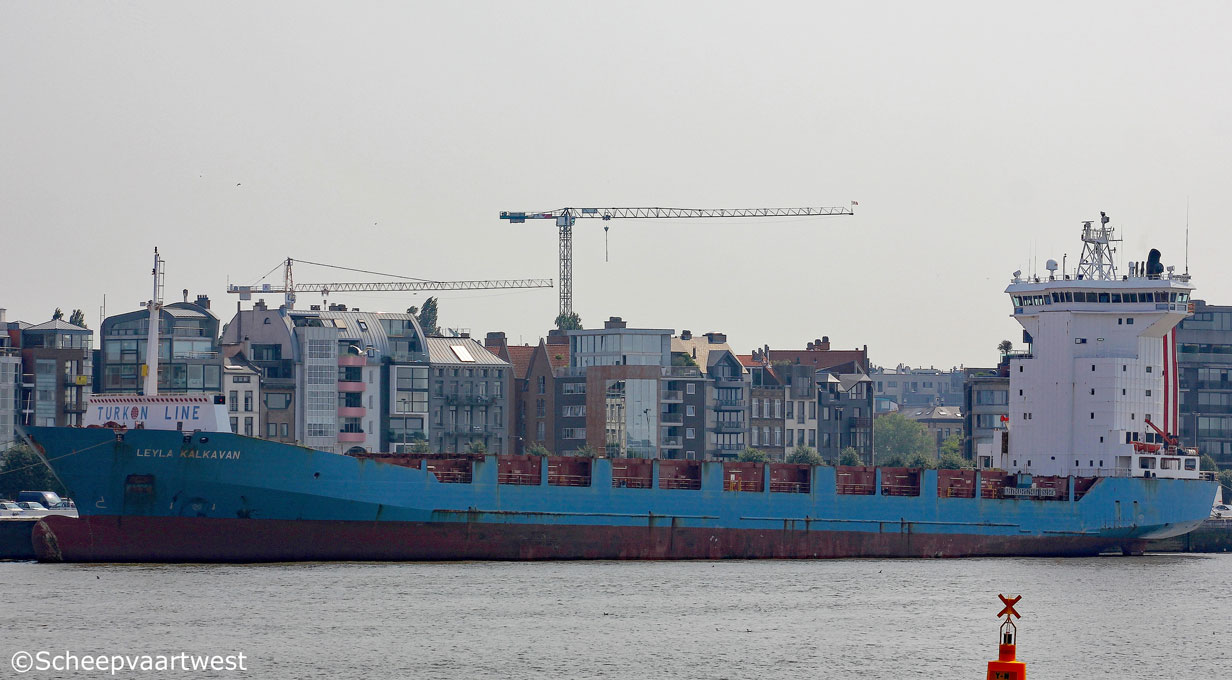

Leyla Kalkavan 02   Leyla Kalkavan 03   Leyla Kalkavan 04
Westerschelde 14/10/13 Antwerpen 13/08/15 Antwerpen 13/08/15



Name

LEYLA KALKAVAN

Type

Cellular containership - Carriage of dangerous goods

IMO-number

9236286

Call sign

V7JG9

Flag

Marshall Island

Port of registry

Majuro

Previous flags

19.11.2002 - 27.03.2003 Republic of Turkey, Istanbul

GT

10.308 t registered

DWT

Summer: 12.450 t

NT

5.070 t registered

Number of 20ft containers

1.155

Reefer capacity

232

Length

148,53 m overall

136,80 m between perpendiculars

Breadth

22,70 m moulded

Draught

7,80 m

Freeboard

3.517 mm

Depth

11,30 m moulded

Speed

Max.: 19,0 knots

Built

2002

Keel laid

11.05.2002

Launch date

02.09.2002

Date of completion

19.11.2002

Builder

Sedef Shipbuilding Industry Inc.

Tuzla
Turkey

Yard number

122

Hull material

High strength steel

Ordinary strength steel

Hull type

Single hull

Main engine

1x MAN-B&W 7S50MC-C - 7 cylinder diesel engine 11.060 kW

Propellers

1x

Manufacturer: Mecklenburger Metallguss GmbH - Germany

Shaft generator

1x AVK DSG86L1-4 - 1.800 kW

Generators

3x MAN-B&W 5L28/32H diesel engine coupled with AVK DSG74M1-6 generator each 570 kW

Bow thruster

790 kW, forward

790 kW, aft

Number of holds

5

Number of tanks

Ballast: 17

Fuel oil: 11

Lubricating oil: 7

Waste water: 5

Diesel oil: 3

Hydraulic oil: 3

Fresh water: 2

Thermal oil: 2

Sludge: 2

Chain: 1

Tank capacities

Diesel oil: 89,53 m³ / 80,57 t

Freshwater: 116,64 m³

Fuel oil: 1.248,1 m³ / 1.223,13 t

Hydraulic oil: 14,24 m³

Lube oil: 120,27 m³ / 108,24 t

Tank Ballast: 4.620,36 m³ / 4.735,86 t

Manager

Kalkavan Shipmanagement GmbH & Co. KG
Kleine Johannisstrasse 10
D-20457 Hamburg
Germany

Operator

Turkon Line

Registered owner

Lese Kalkavan Schiffseigentums GmbH & Co.KG
Kleine Johannisstrasse 10
D-20457 Hamburg
Germany

Latest data adjustment

19 December 2015
