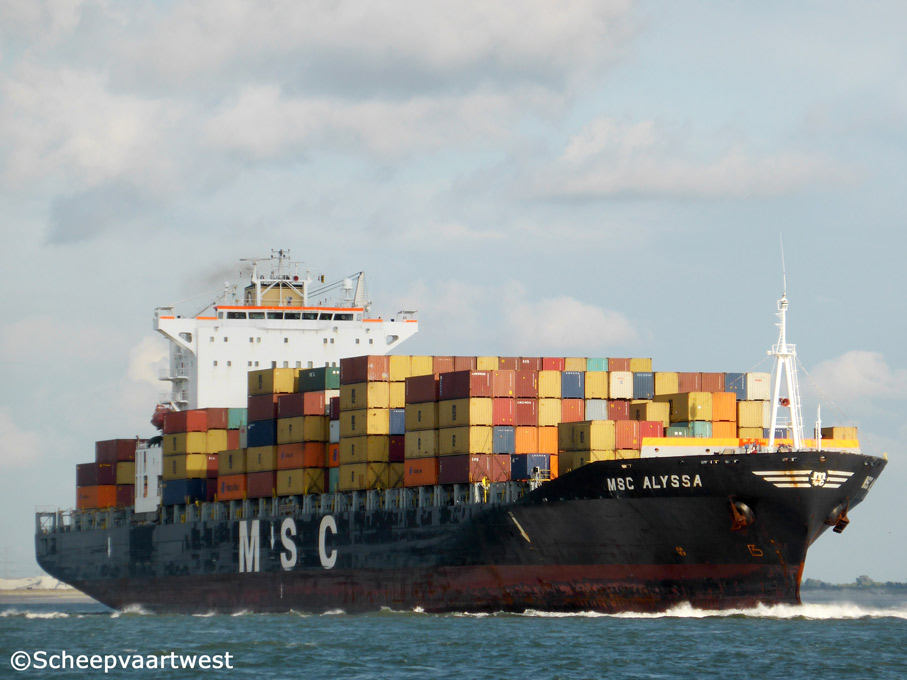

Westerschelde 22 August 2014 |
 |
 |
 |
 |
 |
 |
|||||

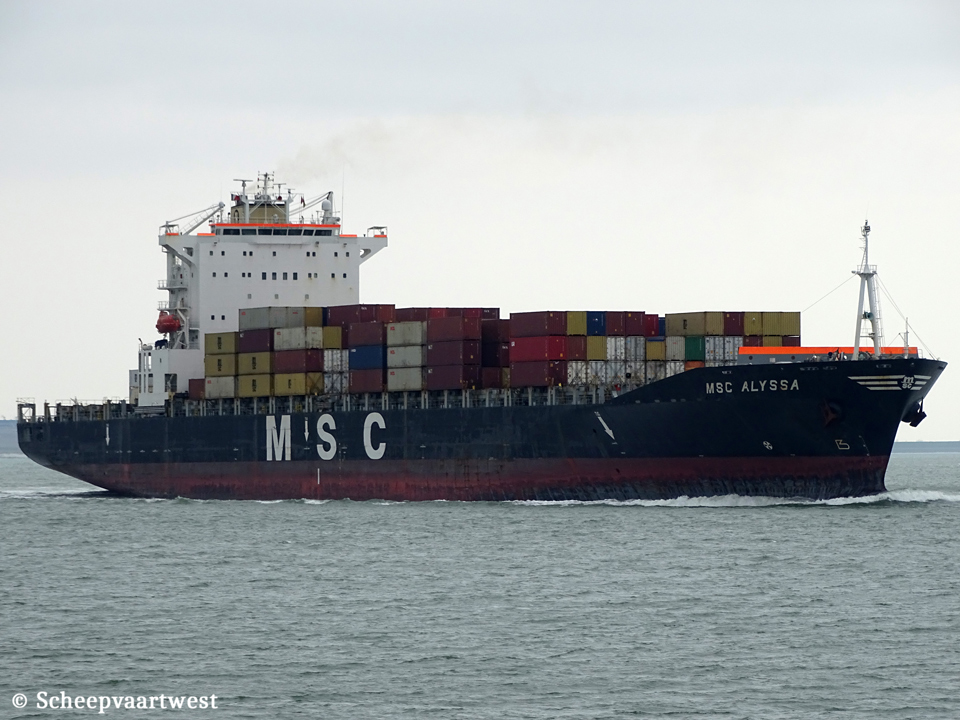

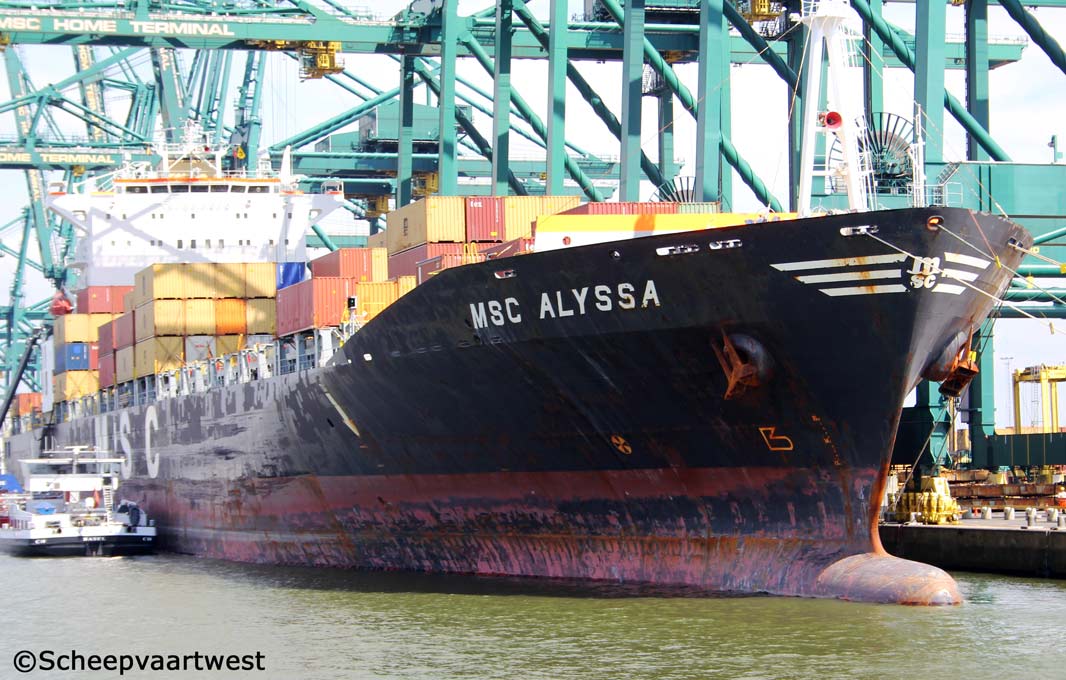

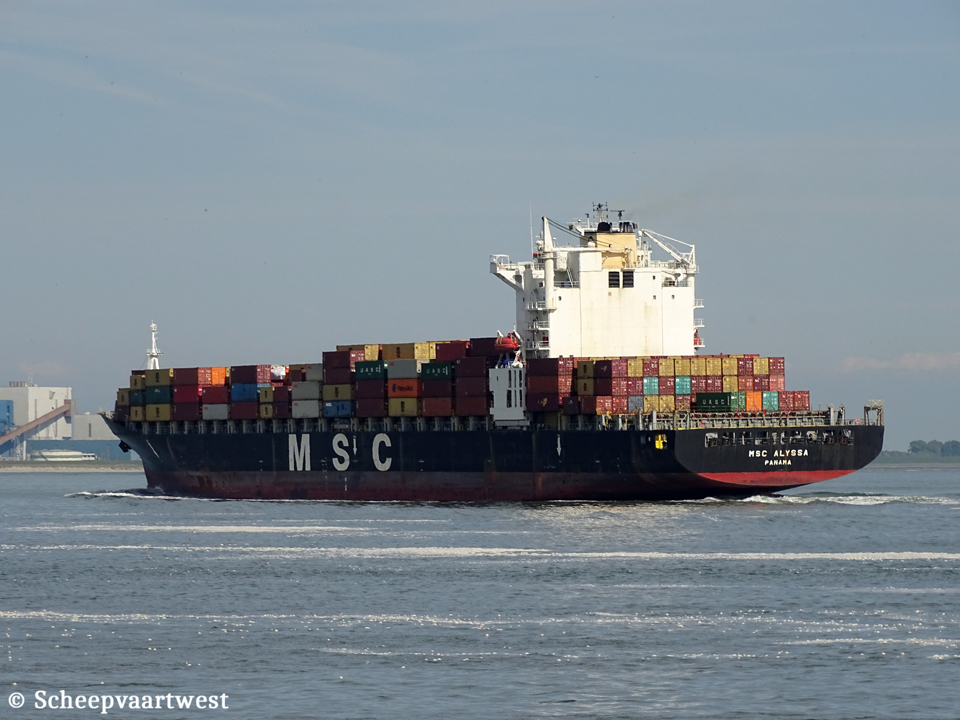

| Antwerpen 24/07/14 | Westerschelde 23/10/15 | Westerschelde 18/11/15 | Westerschelde 04/08/17 | Westerschelde 30/03/19 | Westerschelde 22/05/19 |
|
Name |
MSC ALYSSA |
|
Type |
Cellular containership |
|
IMO-number |
9235050 |
|
Call sign |
H9MW |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
43.575 t |
|
DWT |
Summer: 61.487 t |
|
NT |
25.945 t |
|
Number of 20ft containers |
4.340 |
|
Container capacity 14t |
3.100 |
|
Reefer capacity |
150 |
|
Length |
273,78 m overall 260,19 m registered |
|
Breadth |
32,20 m registered |
|
Draught |
13,00 m |
|
Keel to mast end |
52,80 m |
|
Freeboard |
3.362 mm |
|
Depth |
19,00 m moulded |
|
Speed |
23,0 knots |
|
Built |
2001 |
|
Keel laid |
10/05/2001 |
|
Launch date |
01/08/2001 |
|
Date of completion |
09/2001 |
|
Builder |
Hanjin Heavy Industries & Construction Co., Ltd. 29, 5-ga, Bongnae-dong Youngdo-gu Busan Republic of Korea |
|
Yard number |
N-095 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
9 |
|
Continuous decks |
2 |
|
Main engine |
1x Sulzer 8RTA84C - 2 stroke 8 cylinder 840 x 2.400 mm combustion engine 32.420 kW at 102,0 rpm Year of manufacture: 2001 Manufacturer: HSD Engine Co., Ltd. 69 Sinchon-dong Changwon, Kyungnam 641-370 Republic of Korea |
|
Propellers |
1x Solid propeller (Keyless) - aft |
|
Boilers |
1x Steam boiler, oil fired - 7,0 bar Heating surface : 30,0 m² 1x Steam boiler, exhaust gas heated - 7,0 bar Heating surface: 193,0 m² Year of manufacture: 2001 Manufacturer: KangRim Industries Co., Ltd. (1st Factory) 505 Shinpyung-dong, Saha-gu Busan Republic of Korea |
|
Electric installations |
4x Plants each 440/220 V - 1.325 kVA 1x Plant 440 V - 188 kVA 2x Plants each12 V - 200 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 400 Ah |
|
Generators |
4x Main diesel generatorsets each 1.325 kVA |
|
Emergency generator |
1x Diesel generatorset 188 kVA |
|
Batteries |
2x Batteries for Start emergency engine each 200 Ah |
|
Compressed air receivers |
2x Receivers each 8.000 litres - 32,4 bar 1x Receiver 250 litres - 32,4 bar 1x Receiver 200 litres - 8,8 bar 1x Receiver 800 litres - 8,6 bar 2x Receivers each 15 litres - 7,7 bar |
|
Bow thruster |
1x Variable pitch propeller KAMEWA 1.600 kW, forward |
|
Tank capacities |
Fuel oil: 6.411 m³ Water ballast: 14.723 m³ |
|
Anchor equipment |
3x Anchors weight each 12.300 kg Chain length: 687,50 m Diameter: 87 mm |
|
Cargo gear |
Gearless |
|
Crew size |
32 |
|
Commercial manager |
MSC Mediterranean Shipping Co. chemin Rieu 12-14 1208 Geneva Switzerland |
|
ISM manager |
MSC Mediterranean Shipping Company S.r.l. Via Francesco Ciampa, 29 80063 Piano di Sorrento, Naples Italy |
|
Operator |
MSC - Mediterranean Shipping Company S.A |
|
Registered owner |
Alyssa Maritime Inc. Care of MSC Mediterranean Shipping Co., SA chemin Rieu12-14 1208 Geneva Switzerland |
|
Latest data adjustment |
28 November 2021 |
