Maersk Nijmegen 01

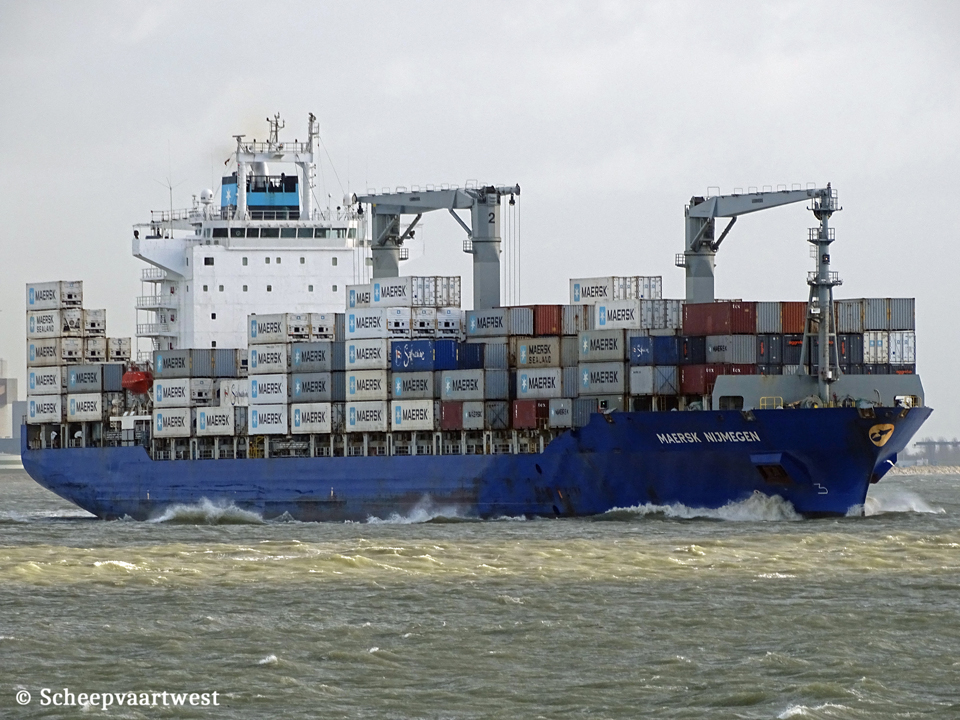

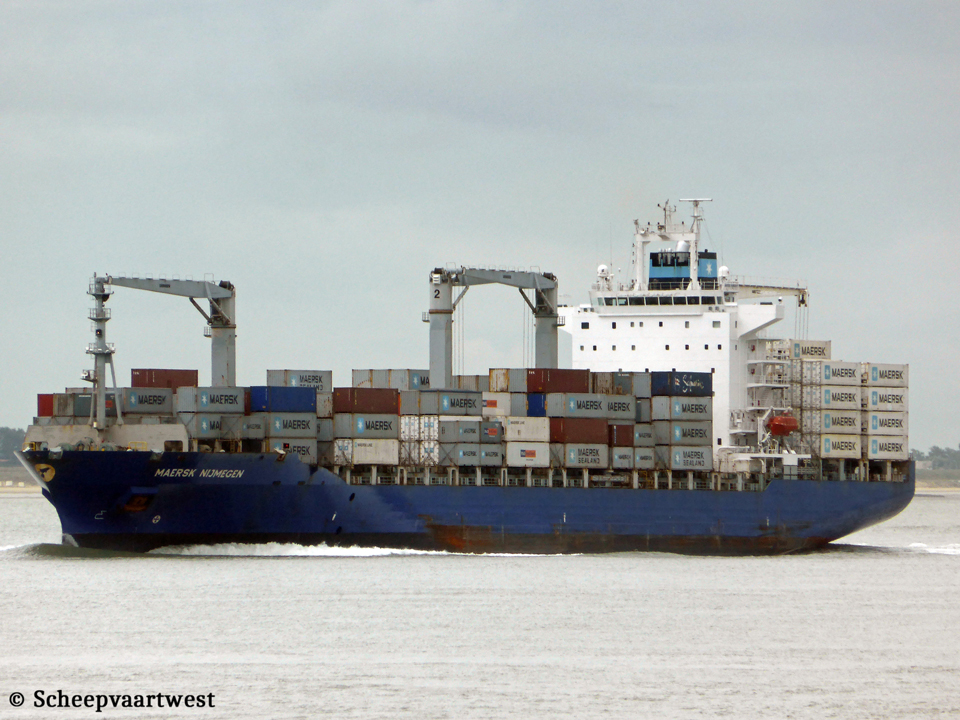

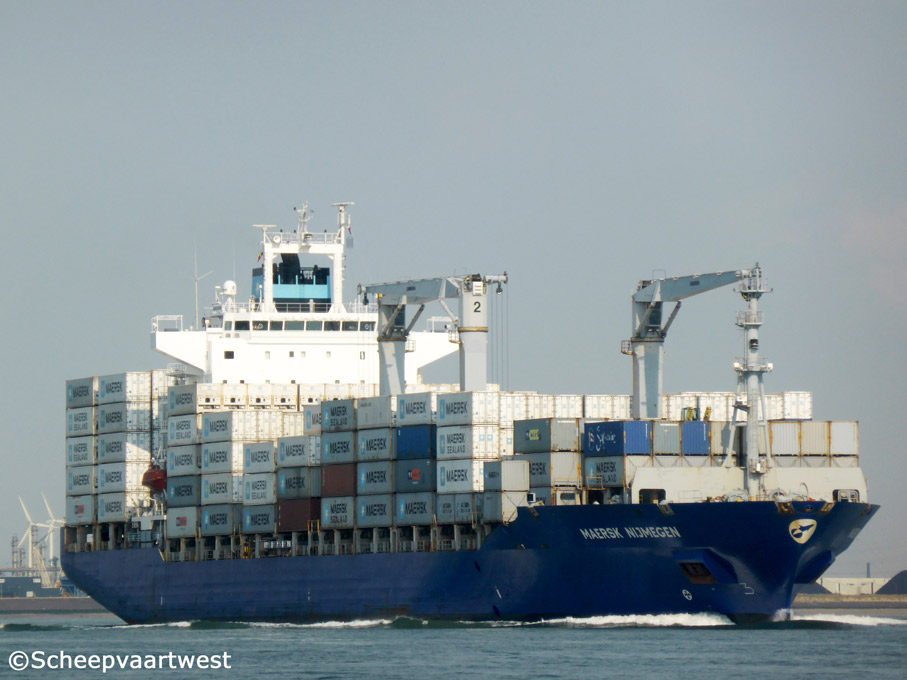

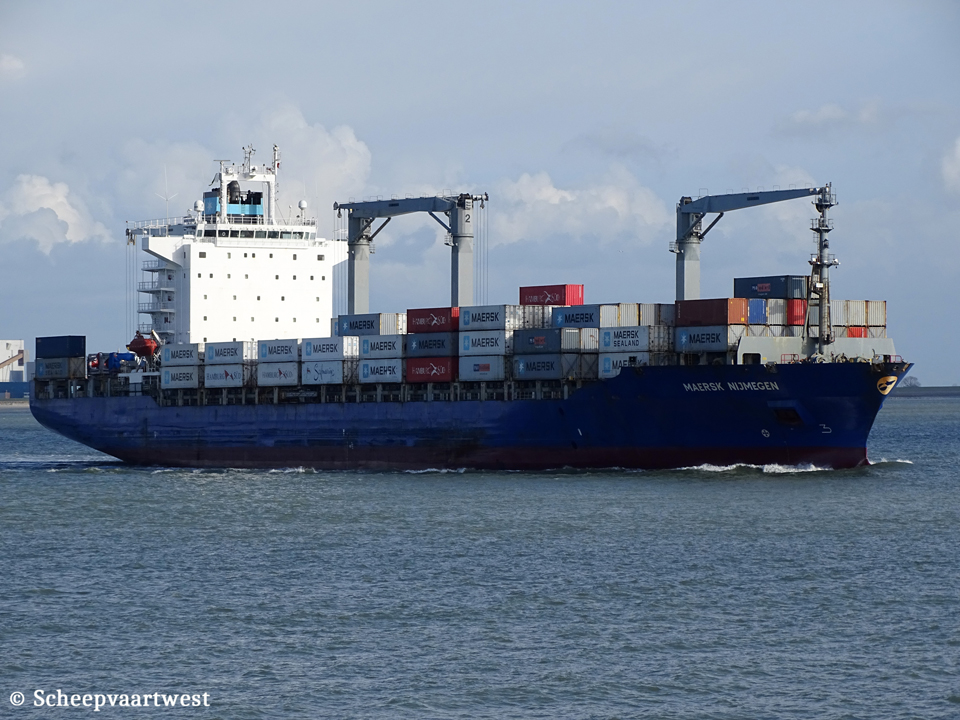

Westerschelde 05 August 2014



Name

MAERSK NIJMEGEN

Previous names

Launch as: Poseidon Glory

Type

Cellular contaiership

IMO-number

9434929

Call sign

VRFE9

Flag

Hong Kong Special Administration Region of P.R. China

Port of registry

Hong Kong

GT

26.836 t

DWT

Summer: 33.450 t

NT

12.743 t

Number of 20ft containers

2.556

Container capacity 14t

1.850

Reefer capacity

600

Length

210,10 m overall

200,57 m registered

Breadth

30,20 m registered

Draught

11,50 m

Freeboard

5.240 mm

Depth

16,70 m moulded

Speed

Service: 21,0 knots

Max.: 23,5 knots

Built

2009

Keel laid

15.12.2008

Launch date

20.03.2008

Date of completion

22.05.2009

Builder

Hyundai Heavy Industries Co., Ltd.
1, Cheonha-dong, Dong-gu
Ulsan, Kyongsang-namdo
Republic of Korea

Yard number

2050

Hull material

Shipbuilding steel (standard)

Higher tensile steel

Hull type

Double bottom

Watertight bulkheads

8

Continuous decks

2

Main engine

1x Wärtsilä-HHI 7RTA72U-B - 2 stroke 7 cylinder 720 x 2.500 mm diesel engine - 21.560 kW at 99,0 rpm

Year of manufacture: 2008

Manufacturer: Hyundai Engine & Machinery Co., Ltd., Ulsan - Republic of Korea

Propellers

1x solid propeller (keyless) - aft at 99,0 rpm

Boilers

Steam boiler, oil fired - 8,0 bar

Heating surface: 35,0 m²

Steam boiler, exhaust gas heated - 8,0 bar

Heating surface: 392,9 m²

Year of manufacture: 2009

Manufacturer: KangRim Industries Co., Ltd. (3rd Factory)
40, Wongnam-dong
Changwon
Republic of Korea

Electric installations

4x Plants each 450 V - 2.133,3 kVA

1x Plant 450 V - 230 kVA

2x Plants each 24 V - 200 Ah

2x Plants each 24 V - 200 Ah

12x Plants each 24 V - 200 Ah

12x Plants each 24 V - 300 Ah

Generators

4x MAN B&W main diesel generatorsets each 2.133,3 kVA

Emergency generator

1x diesel generatorset 230 kVA

Batteries

12x Batteries for UPS navigation each 300 Ah

12x Batteries for emergency lighting each 200 Ah

2x Batteries for start emergency engine each 200 Ah

2x Batteries for automation each 200 Ah

Compressed air receivers

2x Receivers each 5.000 litres - 30,0 bar

1x Receiver 250 litres - 30,0 bar

1x Receiver 200 litres - 8,8 bar

1x Receiver 2.000 litres - 8,0 bar

Bow thruster

1x Transverse thruster 1.000 kW, forward

Anchor equipment

3x Anchors weight each 9.300 kg

Chain length: 660,00 m

Cargo gear

4x Cranes - SWL 40,0 t each

Crew size

27

Manager

Anglo-Eastern (Germany) GmbH
Martinistr. 21
28195 Bremen
Federal Republic of Germany

Operator

Delphis NV
De GerlachekaaI 20
2000 Antwerpen
Belgium

Registered owner

Fair Hope Ltd.
Room 3206, 32nd Floor, Lippo Centre Tower Two 89, Queensway
Hong Kong
Hong Kong Special Administration Region of P.R. China

Latest data adjustment

12 September 2014
