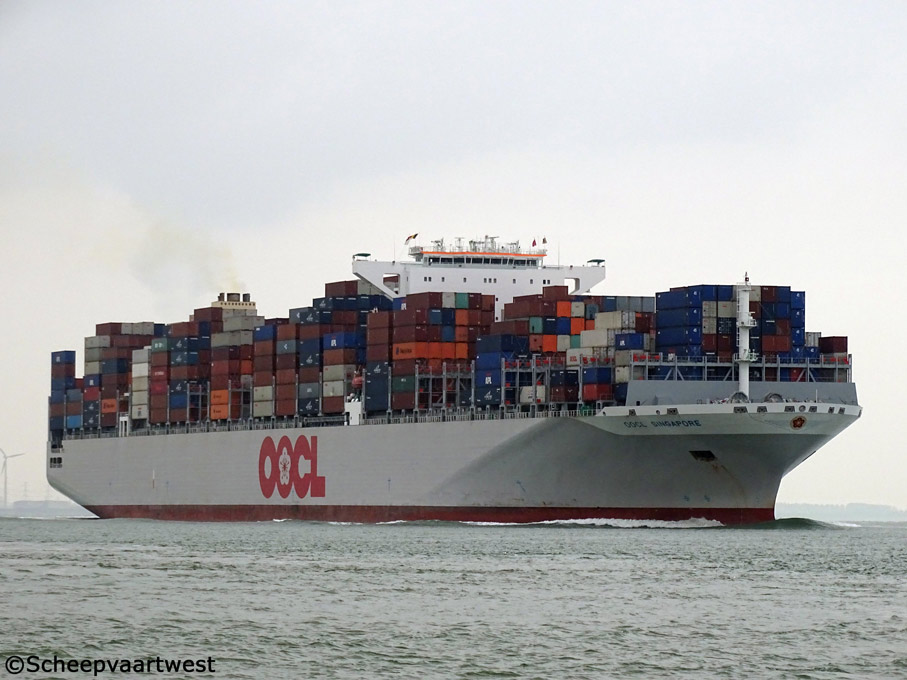

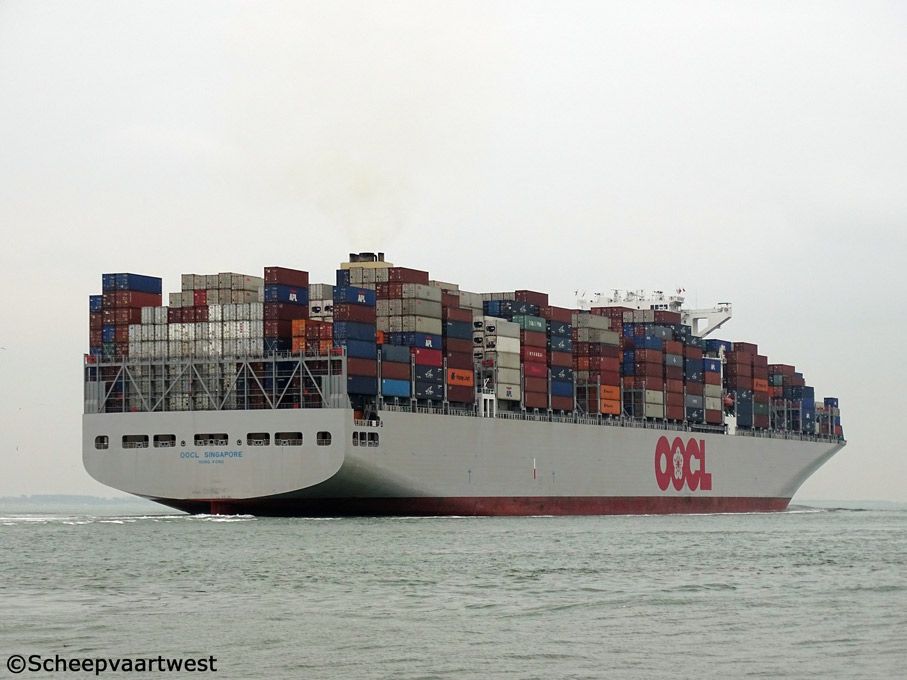

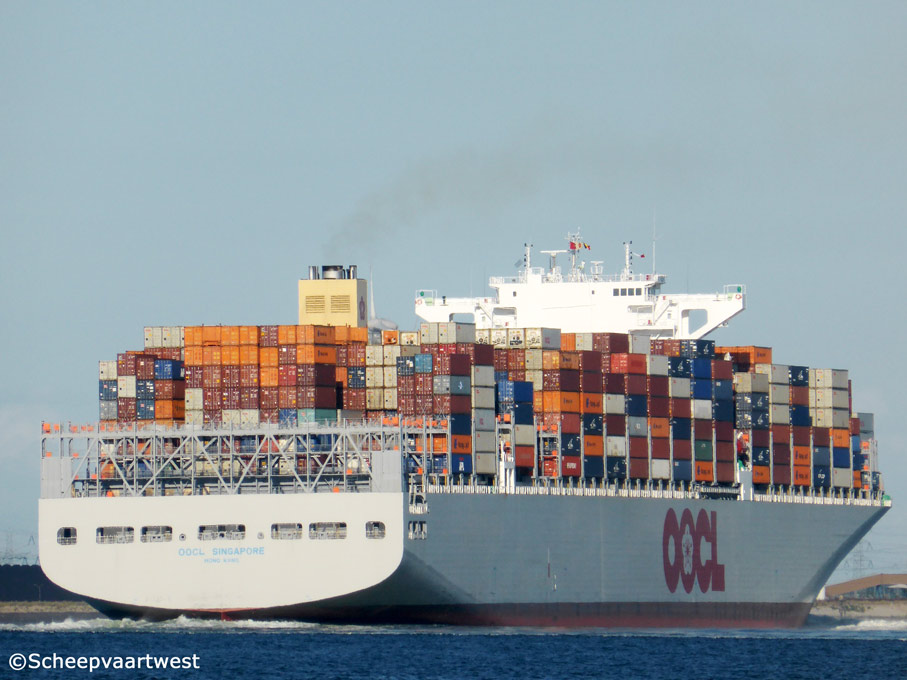

Westerschelde 17 October 2015 |
 |
 |
 |
||
| Westerschelde 17/10/15 | Westerschelde 30/06/14 | Westerschelde 30/06/14 |
|
Name |
OOCL SINGAPORE |
|
Type |
Cellular containership |
|
IMO-number |
9628001 |
|
Call sign |
VRMX7 |
|
Flag |
The Hong Kong Special Administrative Region of the People's Republic of China |
|
Port of registry |
Hong Kong |
|
GT |
141.003 t registered |
|
DWT |
144.158,5 t |
|
NT |
69.987 t registered Panama: 144.368 t |
|
Displacement |
Summer: 186.922,20 t |
|
Light weight |
42.763,70 t |
|
Number of 20ft containers |
13.208 |
|
Container capacity 14t |
9.080 |
|
Reefer capacity |
800 |
|
Length |
366,47 m overall 350,00 m between perpendiculars |
|
Breadth |
48,20 m moulded |
|
Draught |
Summer: 15,52 m |
|
Freeboard |
7.424 mm |
|
Depth |
29,80 m moulded |
|
Speed |
22,0 knots Max.: 25,2 knots |
|
Built |
2014 |
|
Keel laid |
03.12.2013 |
|
Launch date |
22.02.2014 |
|
Date of completion |
13.05.2014 |
|
Builder |
Samsung Shipbuilding & Heavy Industries |
|
Yard number |
2011 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Watertight bulkheads |
11 |
|
Main engine |
1x Hyundai MAN B&W 12S90ME-C9.2 - 12 cylinder 900 x 3.260 mm combustion engine - 54.200 kW / 73.691 hp at 77,2 rpm Manufacturer: HHI Engine & Machinery Div. |
|
Propellers |
1 Manufacturer: Nakashima Propeller Co., Ltd. |
|
Boilers |
1x Exhaust gas boiler 1x Fired boiler Manufacturer: Kangrim Heavy Industries Co., Ltd. |
|
Shaft generator |
1x 3.300 kW Builder: Nishishiba Electric Co., Ltd. |
|
Generators |
4x Main diesel generatorsets each 3.650 kW Builder: Nishishiba Electric Co., Ltd. |
|
Number of holds |
7 |
|
Number of tanks |
Ballast: 23 Lubricating oil: 16 Fuel oil: 12 Waste water: 7 Diesel oil: 6 Sludge: 5 Chain: 2 Fresh water: 2 Potable water: 2 |
|
Tank capacities |
Diesel Oil: 614,8 m³ / 541,06 t Freshwater: 870,5 m³ Fuel Oil: 10.763 m³ / 10.224,85 t Lube Oil: 599,6 m³ / 539,64 t Tank Ballast: 44.300,2 m³ / 45.407.70 t |
|
Lifting equipment |
2x Bunker davit - SWL 0,9 t Manufacturer: Jung-A Marine Co., Ltd. 1x Deck crane, monorail crane - SWL 13,0 t each 2x Engine room cranes - SWL 12,5 t each 2x Provision cranes - SWL 4,0 t each Manufacturer: Oriental Prec & Eng'g Co. |
|
Cargo gear |
None |
|
Manager |
OOCL- Orient Overseas Container Line |
|
Operator |
OOCL - Orient Overseas Container Line |
|
Owner |
FPG Shipholding Panama 7 S.A. Hong Kong |
|
Registered owner |
FPG Shipholding Panama 7 S.A. |
|
Latest data adjustment |
12 November 2015 |
