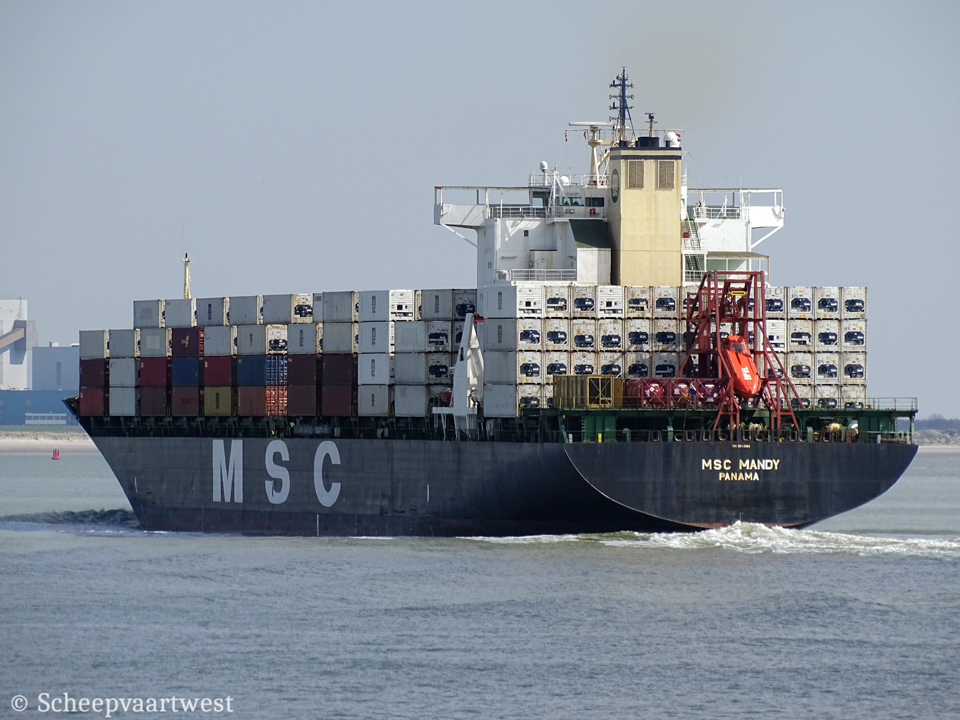

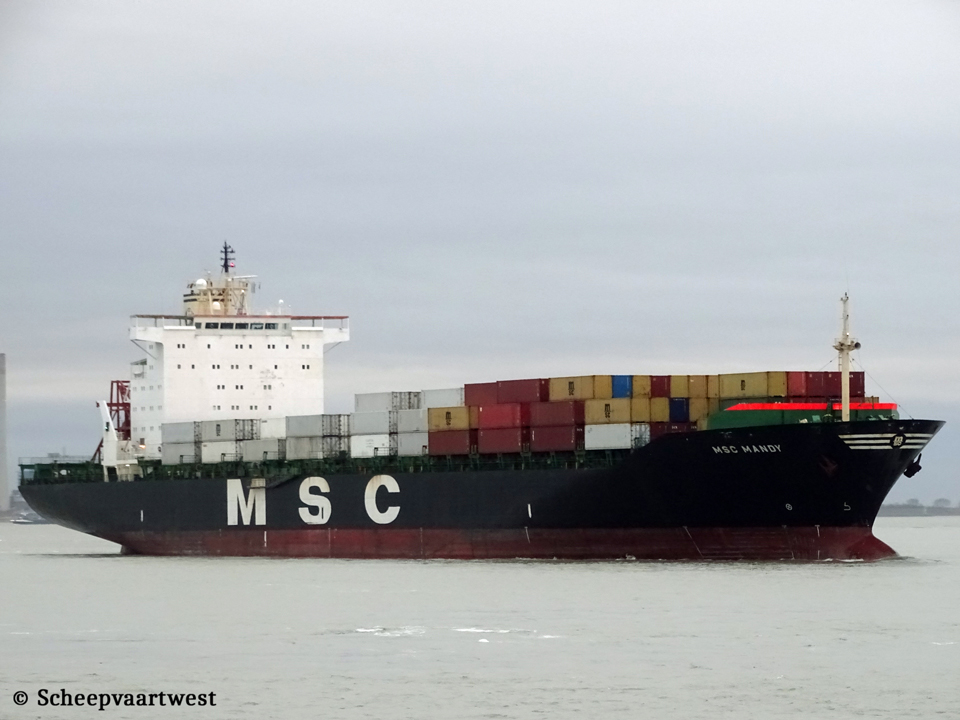

Westerschelde 04 March 2017 |
 |
 |
 |
 |
 |
 |
|||||

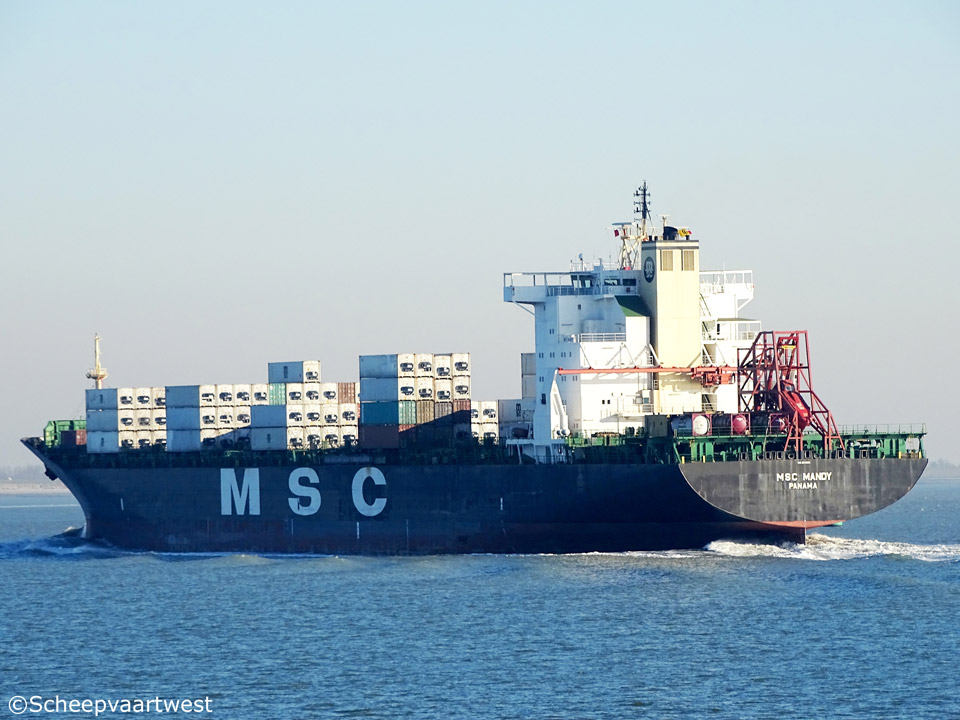

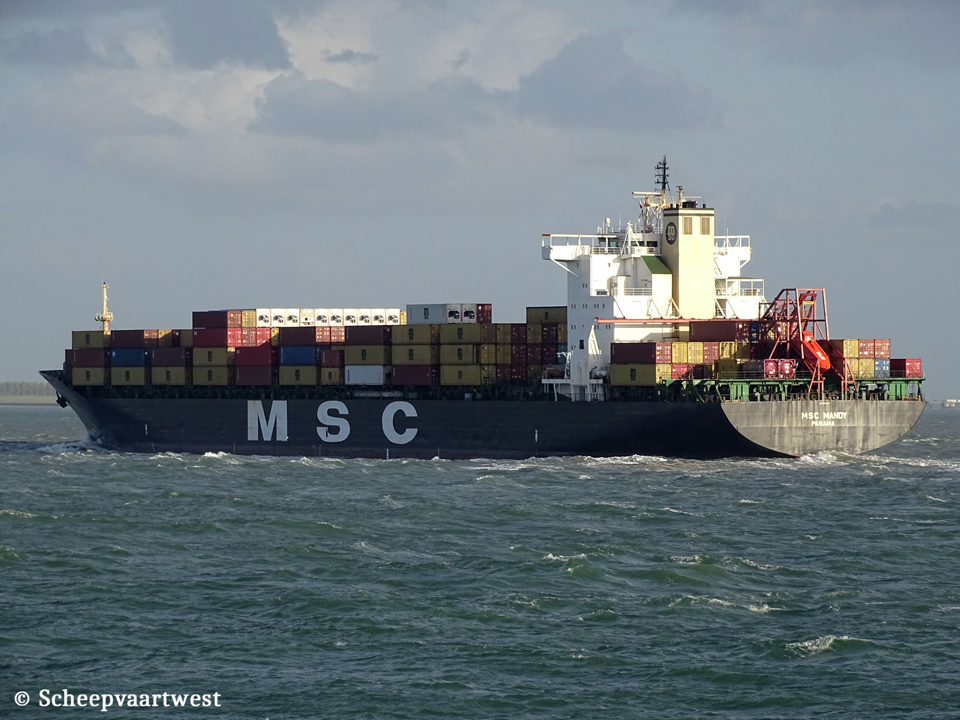

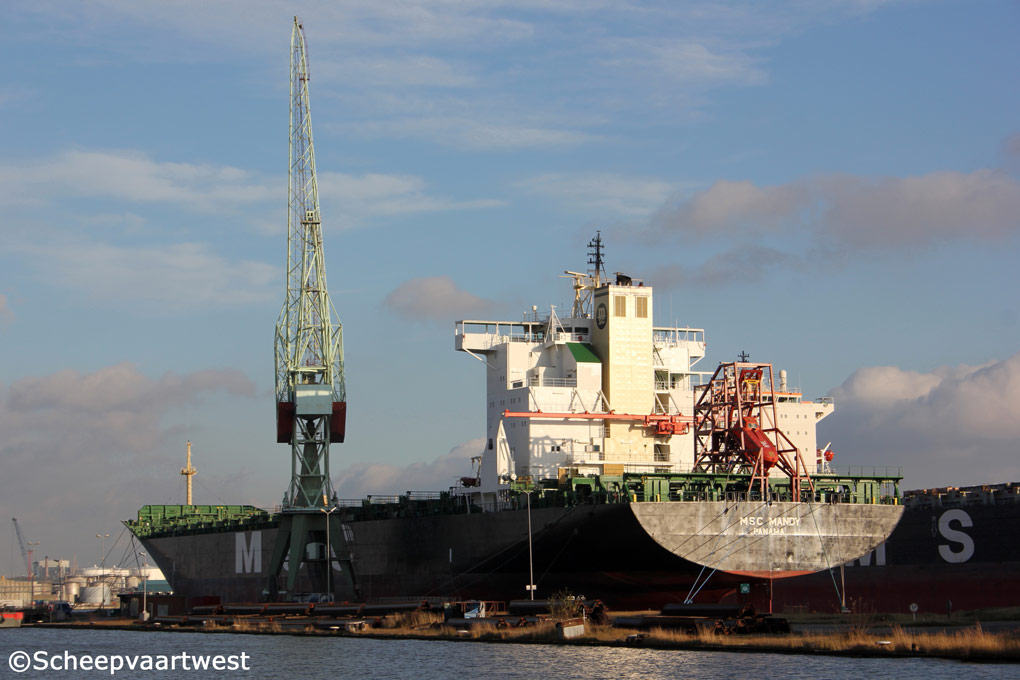

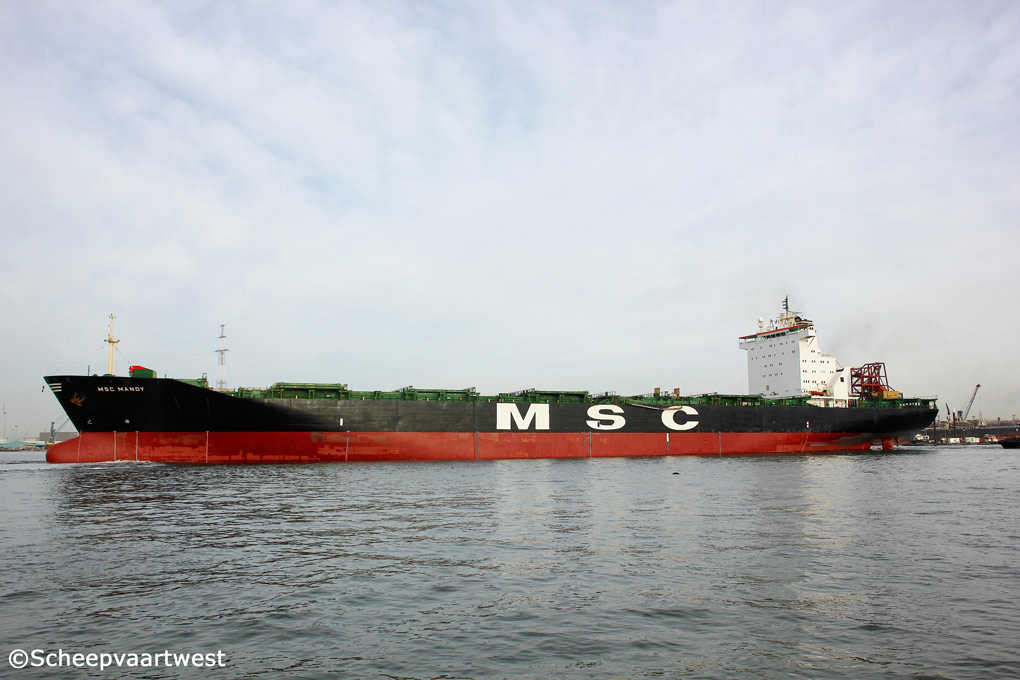

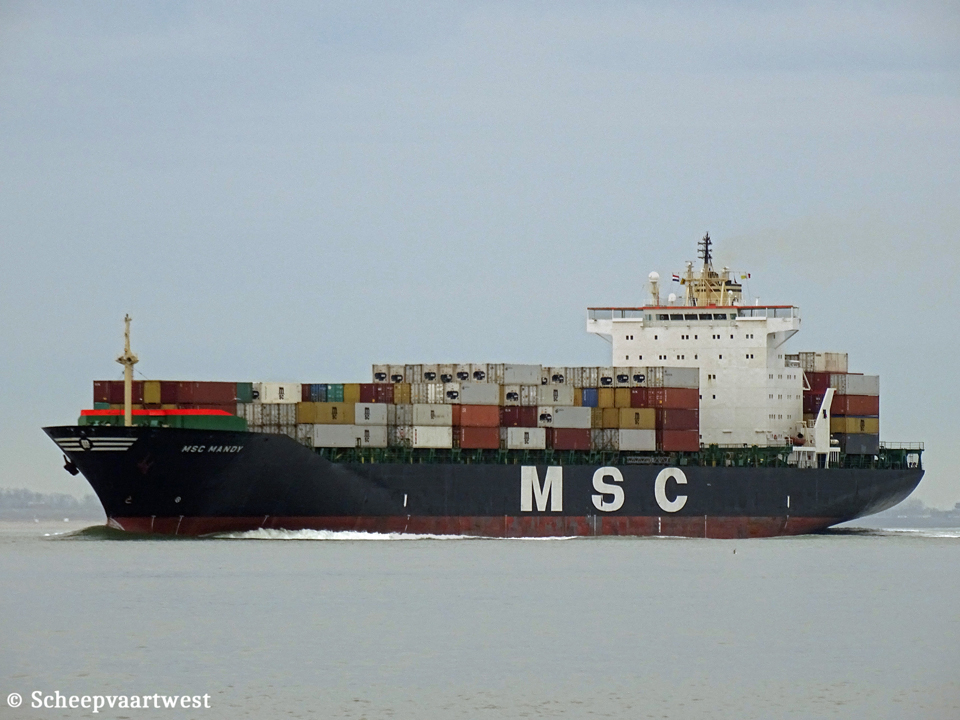

| Antwerpen 09/12/14 | Antwerpen 10/01/14 | Westerschelde 19/01/17 | Westerschelde 18/03/18 | Westerschelde 01/04/20 | Westerschelde 10/10/19 | |||||
 |
 |
|||||||||

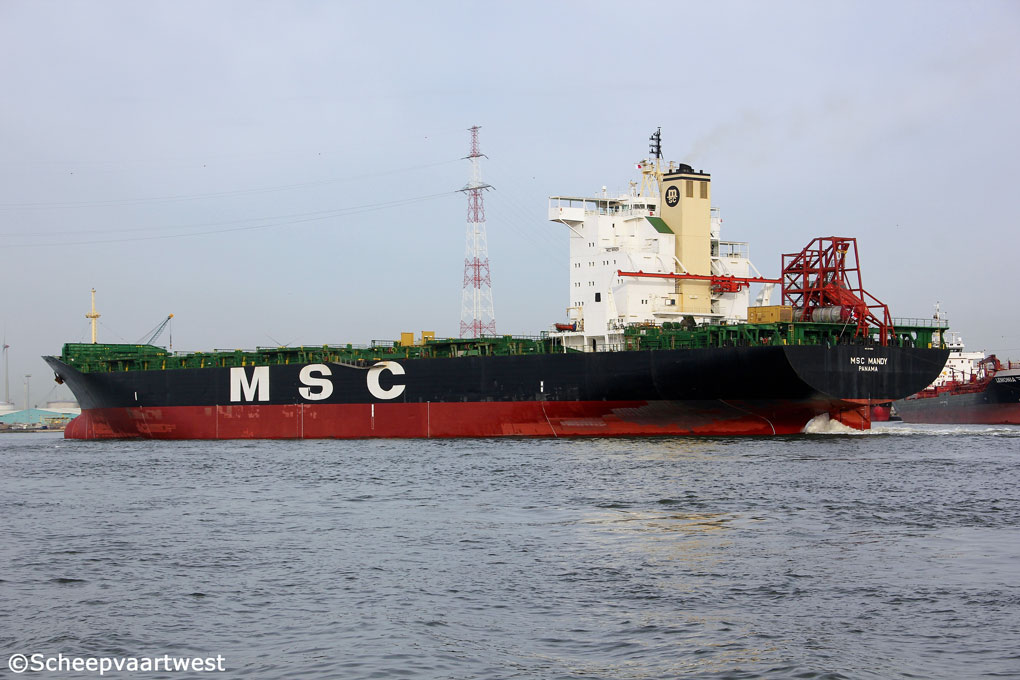

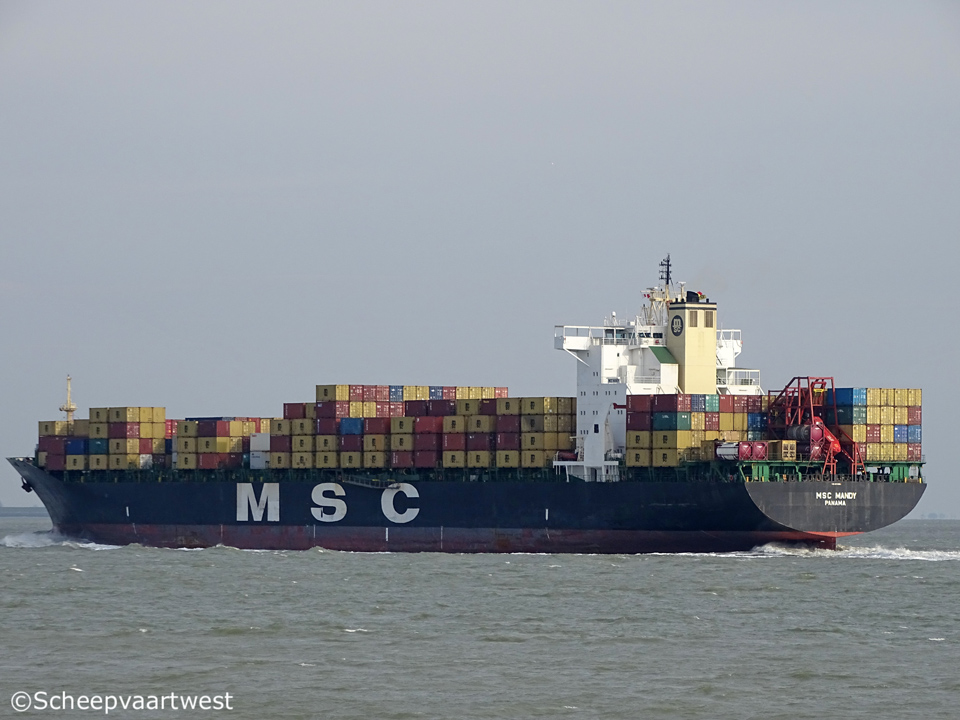

| Antwerpen 09/12/14 | Westerschelde 13/04/16 | |||||||||
|
Name |
MSC MANDY |
|
Previous names |
1993 - 03/2003 Bremen Senator 2003 - 04/2004 SCI Vaibhav |
|
Type |
Cellular containership |
|
IMO-number |
8918966 |
|
Call sign |
HPRL |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
37.071 |
|
DWT |
Summer: 46.852 t |
|
NT |
15.889 |
|
Number of 20ft containers |
2.668 |
|
Reefer capacity |
100 |
|
Length |
237,00 m overall 227,00 m registered 225,25 m between perpendiculars |
|
Breadth |
32,20 m registered |
|
Draught |
11,98 m |
|
Freeboard |
3.532 mm |
|
Depth |
18,80 m moulded |
|
Speed |
21,0 knots |
|
Built |
1993 |
|
Keel laid |
28/02/1992 |
|
Launch date |
12/12/1993 |
|
Date of completion |
02/1993 |
|
Builder |
Bremer Vulkan Verbund AG Domshof 18-20 28195 Bremen Federal Republic of Germany |
|
Yard number |
94 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
10 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W 7L80MC - 2 stroke 7 cylinder 800 x 2.592 mm combustion engine 21.700 kW / 29.520 hp at 88,0 rpm Year of manufacture: 1993 Manufacturer: Bremer Vulkan AG Schiffbau und Maschinenfabrik Lindenstr. 110 28755 Bremen Federal Republic of Germany |
|
Propellers |
1x Solid propeller (keyless) - aft |
|
Boilers |
Steam boiler, oil fired - 10,0 bar Heating surface: 60,0 m² Steam boiler, exhaust gas heated - 10,0 bar Heating surface: 320,0 m² Year of manufacture: 1992 Manufacturer: Bremer Vulkan AG Schiffbau und Maschinenfabrik Lindenstr. 110 28755 Bremen Federal Republic of Germany |
|
Electric installations |
3x Plants each 450/220 V - 1.138 kVA 1x Plant 450 V - 1.500 kVA 1x Plant 450 V - 180 kVA |
|
Shaft generator |
1x 1.500 kVA / 1.200 kW |
|
Generators |
3x MAN-B&W 6L23/30MDB main diesel generatorsets each 1.138 kVA / 910 kW |
|
Emergency generator |
1x Diesel generatorset 180 kVA |
|
Compressed air receivers |
1x Receiver 250 litres - 40,0 bar 2x Receivers each 12.000 litres - 31,0 bar 1x Receiver 40 litres - 30,0 bar |
|
Bow thruster |
1x Fixed pitch propeller LIPS - 1.300 kW, forward |
|
Number of holds |
7 |
|
Number of hatches |
34 |
|
Ballast water |
19.191 m³ |
|
Anchor equipment |
3x Anchors weight each 11.100 kg Chain length: 687,50 m Diameter: 81 mm |
|
Cargo gear |
Gearless |
|
Crew |
28 |
|
Commerical manager |
Mediterranean Shipping Shipping Co. chemin Rieu, 12-14 1208 Geneva Switzerland |
|
ISM Manager |
MSC Shipmanagement Ltd. MSC House 8, Spyrou Kyprianou Avenue 3070 Limassol Republic of Cyprus |
|
Registered owner |
Mandy Maritime Inc. Care of MSC Mediterranean Shipping Co SA chemin Rieu, 12-14 1208 Geneva Switzerland |
|
Renames |
MSC Mandy III Republic of Panama, Panama City – call sign: HPRL Owner: Mandy Maritime Inc. Manager: MSC Shipmanagement Limited |
|
Last data update |
23 April 2024 |
