| Westerschelde 06 August 2013 |
|
Name |

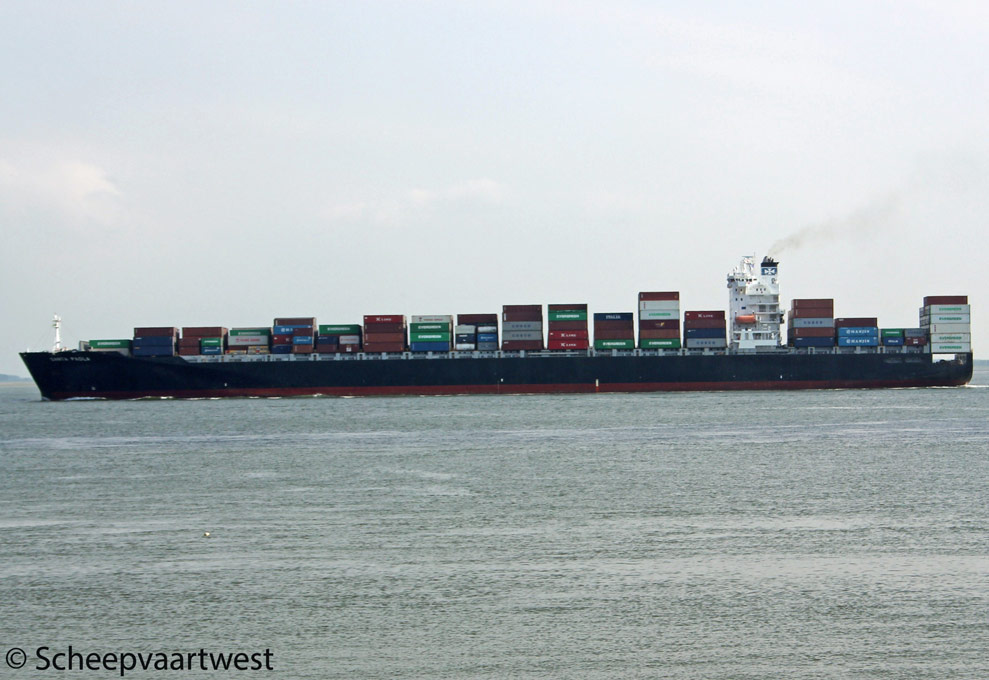

SANTA PAOLA |
|
Previous names |
2005 Launch as P&O Nedlloyd Dalian 2005 - 02.2010 Maersk Driscoll |
|
Type |
Cellular containership |
|
IMO-number |
9290402 |
|
Call sign |
A8IY3 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
54.809 t |
|
DWT |
67.310 t |
|
NT |
34.226 t |
|
Number of 20ft containers |
5.042 |
|
Container capacity 14t |
3.370 |
|
Reefer capacity |
550 |
|
Length |
294,51 m overall 284,26 m registered |
|
Breadth |
32,20 m registered |
|
Draught |
13,65 m |
|
Forecastle |
141,90 m |
|
Bridge |
125,93 m |
|
Poop |
15,97 m |
|
Freeboard |
3.780 m |
|
Depth |
22,10 m moulded |
|
Speed |
25,0 knots |
|
Built |
2005 |
|
Keel laid |
06.12.2004 |
|
Launch date |
25.02.2005 |
|
Date of completion |
12.04.2005 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. |
|
Yard number |
H1566 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
9 |
|
Continuous decks |
1 |
|
Main engine |
1x Sulzer 8 RTA 96 C-B - 2 stroke 8 cylinder 960 x 2.500 combustion engine - 45.760 kW at 102,0 rpm Year of manufacture: 2004 Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Propellers |
1x Solid propeller (keyless) - aft at 102,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 10,0 bar Heating surface: 26,8 m² 1x Steam boiler, exhaust gas heated - 10,0 bar Heating surface: 375,0 m² Year of manufacture: 2004 Manufacturer: Alfa Laval Qingdao Ltd. |
|
Electric installations |
2x Plants each 450/230 V - 2.137,5 kVA 2x Plants each 450/230 V - 2.850 kVA 1x Plant 450 V - 313 kVA 1x Plant 24 V - 15 Ah 5x Plants each 24 V - 24 Ah 1x Plant 24 V - 200 Ah 2x Plants each 24 V - 200 Ah |
|
Generators |
2x MAN-B&W 8L27/38 main diesel generatorsets each 2.850 kVA 2x MAN-B&W 6L27/38 main diesel generatorsets each 2.137,5 kVA |
|
Emergency generator |
1x Diesel generatorset 313 kVA |
|
Batteries |
2x Batteries for start auxiliary engines each 200 Ah 1x Battery for UPS radio 200 Ah 1x Battery for start emergency engine 15 Ah |
|
Compressed air receivers |
1x Receiver 60 litres - 30,0 bar 2x Receivers each 16.800 litres - 29,4 bar 1x Receiver 250 litres - 29,4 bar 1x Receiver 250 litres - 8,8 bar 1x Receiver 2.000 litres - 7,8 bar 2x Receivers each 15 litres - 7,7 bar |
|
Bow thruster |
1x Transverse thruster 2.100 kW, forward |
|
Anchor equipment |
3x Anchors weight each 12.900 kg Chain length: 715,00 m |
|
Cargo gear |
Gearless |
|
Crew size |
32 |
|
Manager |
Reederei Claus-Peter Offen GmbH & Co. KG |
|
Registered owner |
Kommanditgesellschaft MS "SANTA PAOLA" Offen Reederei GmbH & Co. |
|
Last data update |
30 December 2013 |
