| Westerschelde 23 August 2016 |
|
Name |

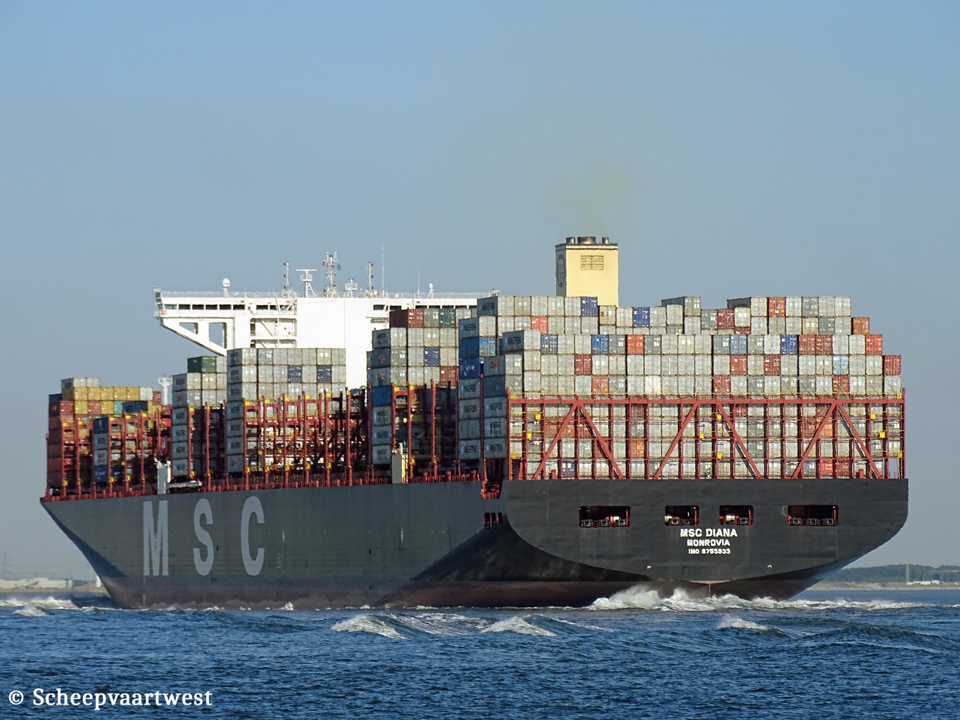

MSC DIANA |
|
Type |
Cellular containership |
|
IMO-number |
9755933 |
|
Call sign |
D5KX8 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
194.250 t |
|
DWT |
221.354 t |
|
NT |
112.017 t |
|
Number of 20ft containers |
On deck: 11.142 In hold: 8.320 Total: 19.462 |
|
Length |
399,99 m overall 382,96 m between perpendiculars |
|
Breadth |
58,84 m extreme |
|
Draught |
Summer: 16,99 m |
|
Forecastle |
375,55 m |
|
Depth |
30,16 m |
|
Speed |
Service: 19,0 knots Max: 24,0 knots |
|
Built |
2016 |
|
Keel laid |
16/11/2015 |
|
Launch date |
13/02/2016 |
|
Date of completion |
03/06/2016 |
|
Builder |
Samsung Heavy Industries Co., Ltd. Koje Shipyard South Korea |
|
Yard number |
2138 |
|
Hull material |
Steel |
|
Bulkheads |
13 |
|
Number of decks |
2x Upper deck/ 2nd deck |
|
Main engine |
1x MAN-B&W 11G95ME-C9.5 – 2 stroke 11 cylinder combustion engine 75.570 kW / 102.747 hp Build: 27/10/2015 Builder: Doosan Engine Co., Ltd. |
|
Propellers |
1x Fixed mono-block propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired (Aux. oil-fired boiler) 2x Auxiliary boiler, exhaust gas heated(G/E Economizer) 1x Auxiliary boiler, exhaust gas heated (Exhaust Gas Boiler) Builder: Kang Rim Heavy Industries Co., Ltd. |
|
Generators |
2x MAN 8L32/40CD man diesel generatorsets each 3.800 kW 2x MAN 9L32/40CD man diesel generatorsets each 4.300 kW |
|
Emergency generator |
1x MAN D2842 LE201 diesel generatorset |
|
Bow thruster |
5.000 kW |
|
Number of holds |
10 |
|
Tank capacities |
Ballast: 53.936,8 m³ |
|
Anchor equipment |
Length: 770,00 m Diameter: 137 mm |
|
Manager |
Mediterranean Shipping Company S.r.l. Via Francesco Saverio Ciampa 29, 80063 Piano di Sorrento Napels Italy |
|
Registered owner |
Tiny Box Shipping Company Limited |
|
Latest data adjustment |
12 May 2024 |
