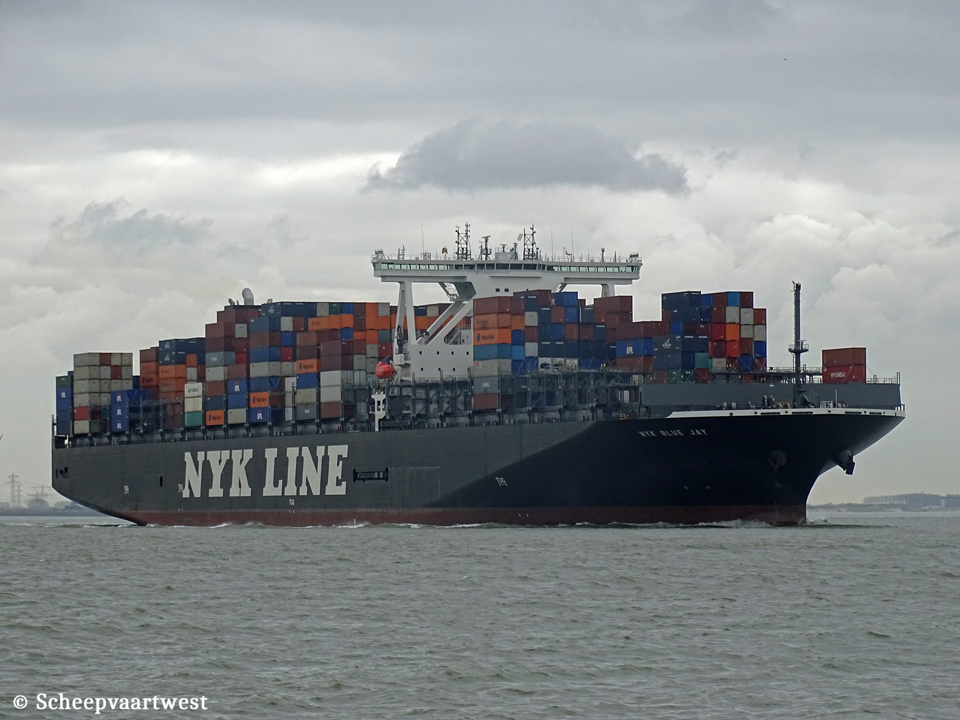

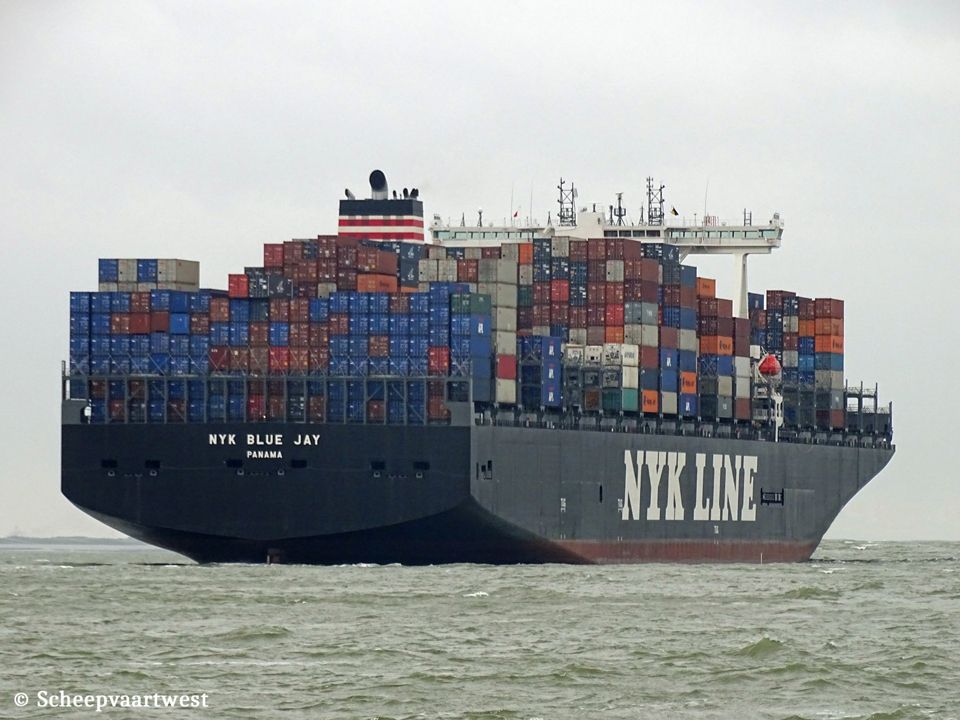

| Westerschelde 06 April 2016 |
 |
|
| Westerschelde 06/04/16 | |
|
Name |
NYK BLUE JAY |
|
Type |
Cellular containership |
|
IMO-number |
9741372 |
|
Call sign |
3ENQ8 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GRT |
145.251 t |
|
DWT |
139.335 t |
|
NRT |
84.742 t |
|
Number of 20ft containers |
14.026 18 rows and 11 tiers in the cargo holds, and 20 rows and 9 tiers on the deck |
|
Reefer capacity |
1.120 |
|
Length |
364,15 m overall |
|
Breadth |
50,60 m moulded |
|
Draught |
Summer: 15,79 m |
|
Keel to mast end |
67,90 m |
|
Moulded L x B x D |
349,20 x 50,60 x 23,04 m |
|
Registered L x B x D |
349,91 x 50,60 x 23,04 m |
|
Freeboard |
7.301 mm |
|
Depth |
23,04 m moulded |
|
Speed |
Max: 21,5 knots |
|
Built |
2016 |
|
Keel laid |
30/03/2015 |
|
Launch date |
26/09/2015 |
|
Date of completion |
22/02/2016 |
|
Builder |
Japan Marine United corporation Kure Japan |
|
Yard number |
5061 |
|
Hull material |
Steel |
|
Hull type |
Single hull - double bottom |
|
Continuous decks |
1 |
|
Main engine |
1x WinGD-Wärtsilä W9X82 - 2 stroke single acting 9 cylinder 820 x 3.375 mm combustion engine 42.180 kW / 57.349 hp at 74,6 rpm Manufacturer: Diesel United, Ltd. - Japan |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 1.020 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler- 0,7 MPa Evaporation: 5,70 t/h Manufacturer: Osaka Boiler Mfg. Co., Ltd. |
|
Shaft generator |
5x Generatorsets total 16.327 kVA |
|
Bow thruster |
2x 1.800 kW each |
|
Tank capacities |
Fuel oil: 10.515,83 m³ Fresh water: 599,34 m³ |
|
Cargo gear |
Gearless |
|
Crew size |
30 |
|
Manager |
NYK Shipmanagement Pte Ltd. |
|
Operator |
Nippon Yusen Kaisha (NYK Line) |
|
Owner |
Rindou Ship Holding SA Republic of Panama |
|
Renamed |
05/2019 One Blue Jay Japan, Tokyo - Call sign: 7KDP Owner: Aoi Ship Holding LLC - Japan, Care of Nippon Yusen KK (NYK Line) Operator: ONE - Ocean Network Express |
|
Latest data adjustment |
18 February 2024 |
