| Westerschelde 17 February 2016 |
|
Name |

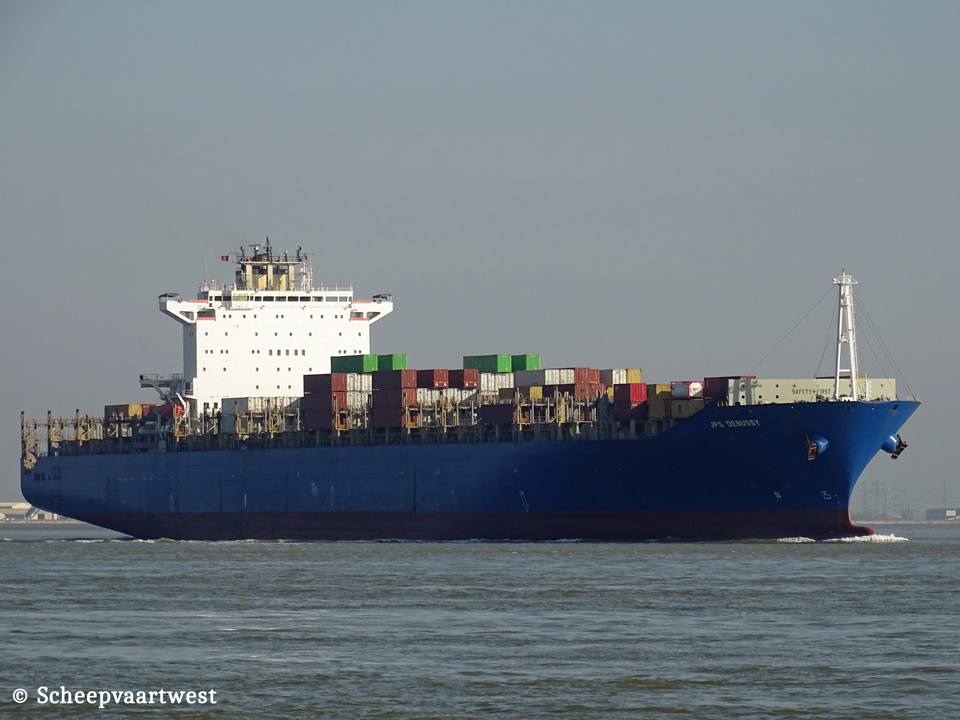

JPS DEBUSSY |
|
Previous names |
2001 - 2015 CMA CGM Debussy |
|
Type |
Cellular containership - Panamax |
|
IMO-number |
9235907 |
|
Call sign |
SVBB6 |
|
Flag |
Greece |
|
Port of registry |
Piraeus |
|
Previous flags |
|
|
GT |
73.157 t |
|
DWT |
Summer: 80.250 t |
|
NT |
41.255 t |
|
Number of 20ft containers |
6.627 |
|
Container capacity 14t |
4.555 |
|
Reefer capacity |
500 on deck up to 3RD tier |
|
Length |
300,40 m overall 282,50 m between perpendiculars |
|
Breadth |
40,30 m overall |
|
Draught |
Summer: 14,271 m |
|
Freeboard |
Summer: 5.855 mm |
|
Depth |
24,10 m |
|
Speed |
25,9 knots |
|
Built |
2001 |
|
Keel laid |
21/05/2001 |
|
Launch date |
01/10/2001 |
|
Date of completion |
03/11/2001 |
|
Builder |
Hanjin Heavy Industries & Construction Co., Ltd. Pusan South Korea |
|
Yard number |
N-089 |
|
Hull material |
Steel |
|
Hull type |
Single hull double bottom |
|
Watertight bulkheads |
22 |
|
Continuous decks |
1 |
|
Main engine |
1x Hyundai/MAN-B&W 12K-98MC-C - 2 stroke 12 cylinder 980 x 2.400 mm internal combustion engine 68.520 kW / 93.098 hp at 104,0 rpm Built: 2001 Builder: Hyundai Heavy Industries Co. Ltd. Industrial Plant & Offs, Ulsan - South Korea |
|
Propellers |
1x Screw propeller solid - aft at 104 rpm |
|
Boilers |
1x CHO Kangrim 137,00 m² - 10,0 bar 1x CHR Kangrim 645,00 m² - 10,0 bar |
|
Electric installations |
Power voltage: 450 V Lighting voltage: 220 V Frequency: 60 Hz |
|
Generators |
3x Main diesel generatorsets each 3.500 kVA - 2.800 kW - 4.022 hp |
|
Emergency generator |
1x Diesel generatorset 687 kVA - 550 kW - 826 hp |
|
Bow thruster |
1x 2.000 kW |
|
Number of holds |
8 |
|
Number of hatches |
8 |
|
Cargo hatchways |
16 13x 12,50 x 35,80 m 1x 12,50 x 15,90 m 1x 12,50 x 25,60 m 1x 12,50 x 30,60 m |
|
Tank capacities |
Ballast: 15.938,4 m³ |
|
Lifting equipment |
1x Crane - SWL 4,0 t 3x Cranes - SWL 12,5 t each |
|
Cargo gear |
Gearless |
|
Manager |
J.P. Samartzis Maritime Enterprises Co. S.A. Leof. Andrea Siggrou 128 Athens 117 45 Greece |
|
Registered owner |
Samco Shipping S.A. Athens Greece |
|
Scrapped as |
14/12/16 JPS DEBUSSY-I at Gadani - Pakistan |
|
Latest data adjustment |
13 May 2023 |
