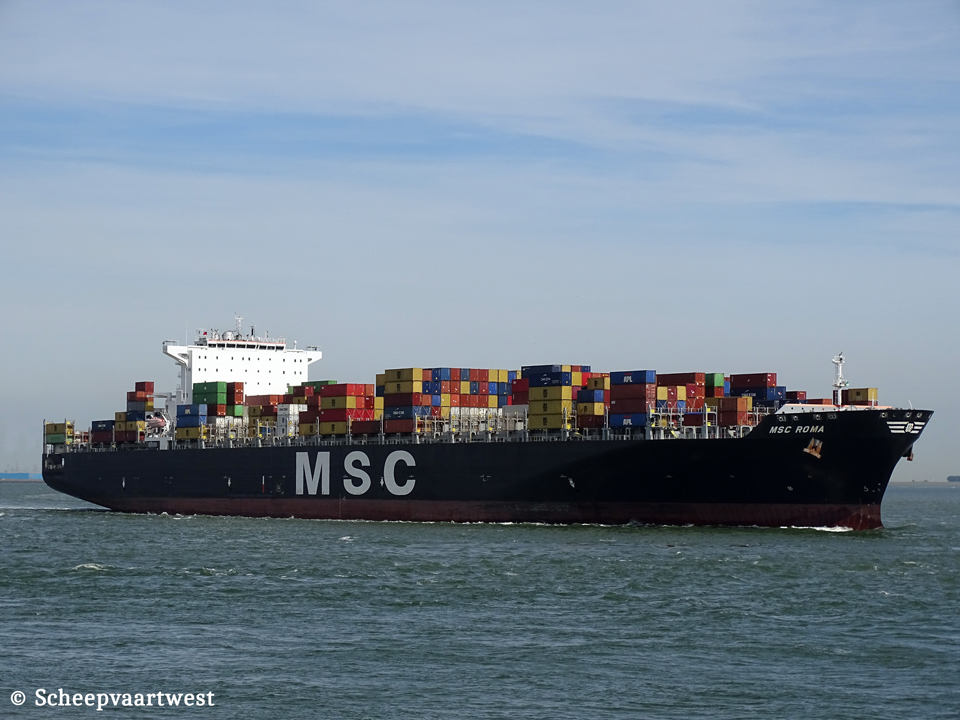

MSC Roma IMO 9304447 01
Westerschelde 02 June 2020


Name

MSC ROMA

Type

Cellular containership

IMO-number

9304447

Call sign

D5OB2

Flag

Liberia

Port of registry

Monrovia

Previous flags

Liberia, Monrovia - Call sign: A8KX4

Germany - Call sign: DDPY2

GT

107.849 t

DWT

110.633 t

NT

57.577 t

Number of 20ft containers

9.178

Container capacity 14t

6.500

Reefer capacity

700

Length

336,67 m overall

323,24 m registered

Breadth

45,60 m registered

Draught

Summer: 15,00 m

Keel to mast end

63,41 m

Forecastle

160,99 m

Bridge

150,59 m

Poop

10,39 m

Depth

27,20 m moulded

Speed

Max: 25,0 knots

Built

2006

Keel laid

07/08/2006

Launch date

25/10/2006

Date of completion

28/12/2006

Builder

Samsung Heavy Industries Co., Ltd. Geoje Shipyard

South Korea

Yard number

1548

Hull material

Shipbuilding steel (standard)

Hull structural members are partly made from higher tensile steel

Hull type

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

11

Continuous decks

2

Main engine

1x MAN-B&W 12 K98MC-C - 2 stroke 12 cylinder 980 x 2.400 mm combustion engine 68.520 kW / 93.119 hp at 104,0 rpm

Build: 2006

Manufacturer: HSD Engine Co., Ltd.

Propellers

1x Solid propeller (keyless) - aft at 104,0 rpm

Boilers

1x Steam boiler, oil fired - 10,0 bar

Heating surface: 55,0 m²

1x Steam boiler, exhaust gas heated - 100 bar

Heating surface: 1.182,0 m²

Year of manufacture: 2006

Manufacturer: Alfa Laval Qingdao Ltd.

Electric installations

1x Plant 6.600 V - 3.437,5 kVA

1x Plant 6.600 V - 3.437,5 kVA

1x Plant 6.600 V - 3.437,5 kVA

1x Plant 6.600 V - 3.437,5 kVA

1x Plant 450 V - 625 kVA

1x Plant 24 V - 92 Ah

1x Plant 24 V - 300 Ah

1x Plant 24 V - 400 Ah

2x Plants each 110 V Ah

Generators

4x Main diesel generatorsets each 3.437,5 kVA

Emergency generator

1x Diesel generatorset 625 kVA

Compressed air receivers

2x Receivers each 14.500 litres - 33,0 bar

1x Receiver 300 litres - 33,0 bar

1x Receiver 250 litres - 8,3 bar

Bow thruster

1x Transverse thruster 3.000 kW, forward

Anchor equipment

3x Anchors weight each 20.000 kg

Chain length: 770,00 m

Cargo gear

34

Commercial manager

Conchart Commercial Inc.

3-5, Menandrou Street

Kifisia, 145 61 Athens

Greece

ISM manager

Technomar Shipping Inc-Lib

3-5, Menandrou Street

Kifisia, 145 61 Athens

Greece

Operator

MSC - Mediterranean Shipping Company

Registered owner

Roma Maritime LLC

Care of ConChart Commercial Inc.

3-5, Menandrou Street

Kifisia, 145 61 Athens

Greece

Latest data adjustment

21 February 2023
