| Westerschelde 01 May 2018 |
|
Name |

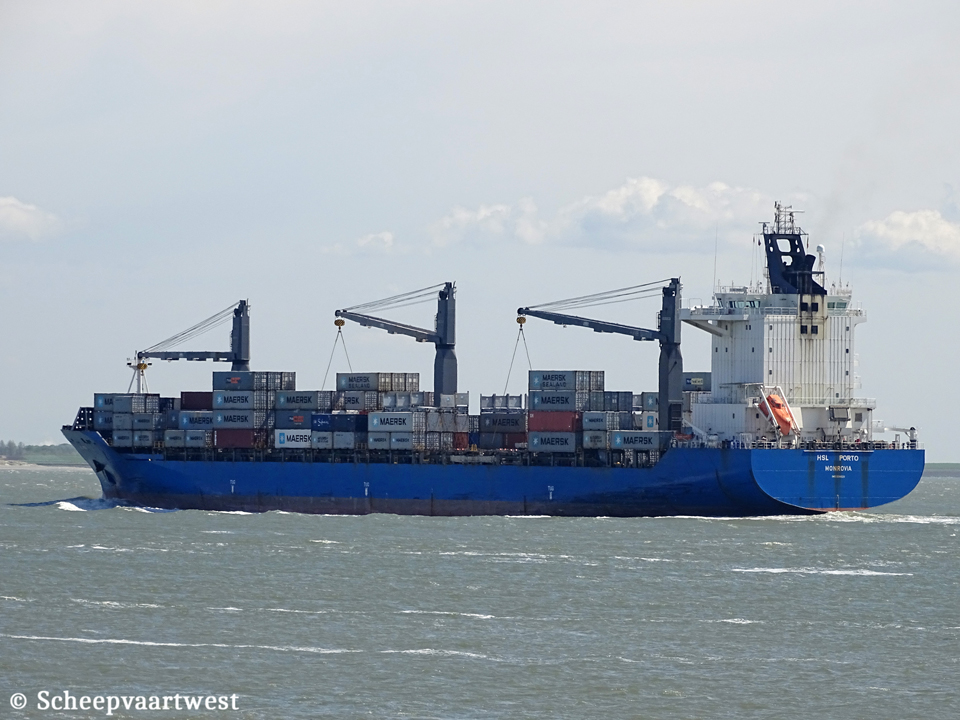

HSL PORTO |
|
Previous names |
2004 - 2006 Cabo Prior 2006 - 2008 CAP FLinders 2008 - 2009 Frisia Lissabon 2009 - 2011 CSAV Santos 2011 - 2017 Frisia Lissabon |
|
Type |
Cellular containership |
|
IMO-number |
9299020 |
|
Call sign |
A8IY9 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
25.406 t |
|
DWT |
33.828,6 t |
|
NT |
12.538 t |
|
Number of 20ft containers |
On deck: 1.486 In hold: 992 Total: 2.478 |
|
Number of 40ft containers |
On deck: 706 + 74 TEU In hold: 482 + 28 TEU Total: 1.188 + 102 TEU |
|
Container capacity 14t |
1.894 |
|
Reefer capacity |
400 |
|
Length |
207,54 m overall 195,40 m between perpendiculars |
|
Breadth |
29,86 m extreme |
|
Draught |
Summer: 11,40 m |
|
Freeboard |
5.040 mm |
|
Depth |
16,40 m |
|
Speed |
Max: 21,9 knots |
|
Built |
2004 |
|
Keel laid |
17/05/2004 |
|
Launch date |
21/08/2004 |
|
Date of completion |
30/09/2004 |
|
Builder |
Wadan Yards MTW GmbH (Aker MTW GmbH) Germany |
|
Yard number |
101 |
|
Hull material |
Steel |
|
Hull type |
Single hull, double bottom |
|
Bulkheads |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 7L70MC-C - 2 stroke 7 cylinder 700 x 2.360 mm combustion engine 21.770 kW / 29.598 hp at 108,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 19,0 m² 1x Exhaust gas heated - 9,0 bar Heating surface: 482,0 m² |
|
Electric installations |
1x Plant 450/230 V - 1.131 kVA 3x Plant 450/230 V - 1.662,5 kVA 1x Plant 450 V - 220 kVA 1x Plant 24 V - 128 Ah 1x Plant 24 V - 180 Ah |
|
Generators |
3x STX/MAN-B&W 7L21/31 main diesel generatorsets each 1.662,5 kVA / 1.330 kW at 900 rpm 1x STX/MAN-B&W 5L21/31 main diesel generator set - 1.131 kVA / 904,8 kW at 900 rpm |
|
Emergency generator |
1x Diesel generatorset 220 kVA |
|
Batteries |
1x Battery for automation 128 Ah |
|
Compressed air receivers |
2 x Receivers each 8.000 litres - 30,0 bar 1 x Receiver 1.000 litres - 30,0 bar 1 x Receiver 30 litres - 30,0 bar |
|
Bow thruster |
1x Brunvoll - 1.100 kW |
|
Number of holds |
5 |
|
Hold ventilation |
2x Air changes per hour, mechanical and natural |
|
Number of hatches |
10 Hatch 1: 12,64 x 15,36 m Hatch 2: 12,64 x 20,36 m Hatches 3 - 10: 12,64 x 25,35 m |
|
Hatch type |
Ponton type hatch covers, weathertight |
|
Tank capacities |
HFO: 2.459 m³ (98%) MDO: 171 m³ (98%) Freshwater: 200 m³ Lubricating oil: 127 m³ (98%) Water ballast: 9.310,9 m³ |
|
Anchor equipment |
3x Anchors weight each 9.300 kg Chain length: 660,00 m Diameter: 76 |
|
Cargo gear |
3x Deck cranes - SWL 45,0 t at 25.00 m outreach |
|
Crew size |
23 |
|
ISM & commercial manager |
Hartmann Dry Cargo Germany Koenigstrasse 23 26789 Leer Germany |
|
Registered owner |
HSL Porto Shipping Ltd. Care of Hartmann Dry Cargo Germany GmbH & Co KG Koenigstrasse 23 26789 Leer Germany |
|
Latest data adjustment |
29 November 2022 |
