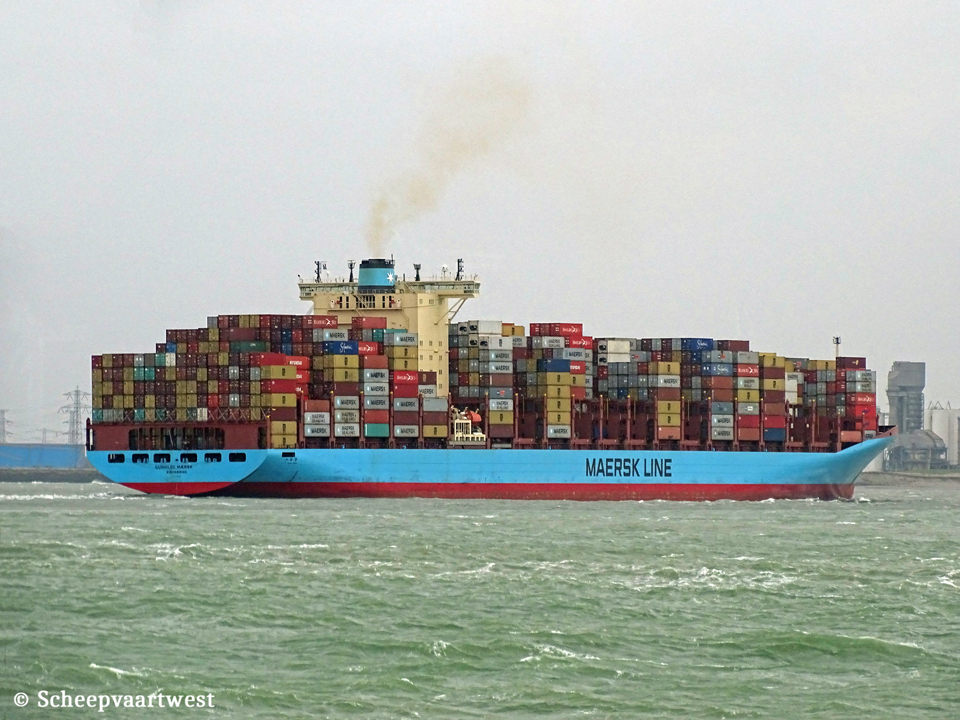

| Westerschelde 04 February 2020 |
|
Name |
GUNHILDE MAERSK |
|
Type |
Cellular containership |
|
IMO-number |
9359026 |
|
Call sign |
OUJI2 |
|
Flag |
Denmark |
|
Port of registry |
Ringkøbing |
|
GT |
98.268 t |
|
DWT |
115.993 t |
|
NT |
57.019 t |
|
Number of 20ft containers |
10.150 |
|
Container capacity 14t |
7.668 |
|
Reefer capacity |
900 |
|
Length |
366,89 m overall |
|
Breadth |
42,80 m |
|
Draught |
Summer: 15,50 m |
|
Depth |
24,10 m |
|
Speed |
Max: 25,0 knots |
|
Built |
2008 |
|
Keel laid |
10/02/2008 |
|
Launch date |
04/06/2008 |
|
Delivery date |
22/07/2008 |
|
Builder |
Odense Steel Shipyard Ltd. (Odense Staalskibsværft A/S) Lindø Denmark |
|
Yard number |
213 |
|
Hull material |
High strength steel / Ordinary strength steel |
|
Bulkheads |
Non tight: 8 Water tight: 14 Oil tight: 4 |
|
Main engine |
1x Doosan-Sulzer 12RT-FLEX96C - 12 cylinder 960 x 2.500 mm combustion engine Mcr 68.640 kW at 102,0 rpm Manufacturer: Doosan Engine Co., Ltd. |
|
Propellers |
1x Six blade solid bronze propeller Manufacturer: Mecklenburger Metallguss GmbH |
|
Boilers |
1x Vertical water tube oil fired auxiliary boiler - 9,0 bar 1x HP Exhaust gas boiler - 12,0 bar 1x LP Exhaust gas boiler - 12,0 bar Manufacturer: Aalborg Industries |
|
Shaft generator |
2.000 kW |
|
Generators |
3x MaK 8M32 main diesel generatorsets each 3.600 kW / 5.143 kVA 1x Turbo generator 6.000 KW |
|
Number of tanks |
Ballast: 38 Fuel oil: 11 Lubricating oil: 8 Sea water: 7 Fresh water: 7 Diesel oil: 5 Waste water: 5 Sludge: 4 Chain: 2 Hydraulic oil: 1 |
|
Tank capacities 100% |
Diesel oil: 412,8 m³ Freshwater: 634 m³ Fuel oil: 12.543 m³ Hydraulic oil: 4,3 m³ Lube oil: 520,10 m³ Tank Ballast: 42.222,5 m³ |
|
ISM manager |
Moller-Maersk A/S Esplanaden 50 1098 Copenhagen, K Denmark |
|
Registered owner |
Maersk A/S Esplanaden 50 1098 Copenhagen, K Denmark |
|
Latest data adjustment |
06 September 2022 |
