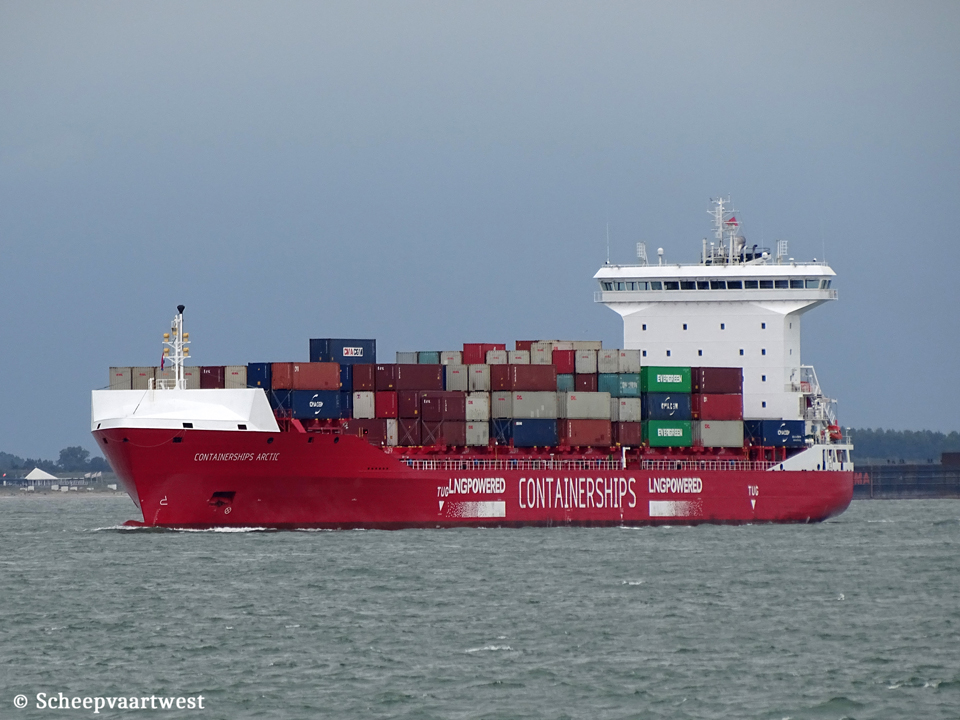

| Zeebrugge 03 October 2024 |
 |
 |
|
| Zeebrugge 03/10/24 | Westerschelde 25/07/20 | |
|
Name |
CONTAINERSHIPS ARCTIC |
|
Previous name |
Build as: 2018 - 2019 Containerships Balt |
|
Type |
Containership |
|
IMO-number |
9818400 |
|
Call sign |
5BJD5 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
GT |
17.982 t Suez: 19.806,07 t |
|
DWT |
20.254 t |
|
NT |
9.861 t Suez: 17.836,39 t Panama: 15.034 t |
|
Displacement |
29.338 t |
|
Number of 20ft containers |
1.380 |
|
Number of 14t containers |
1.110 |
|
Reefer point |
378 |
|
Length |
169,95 m overall 160,96 m between perpendiculars |
|
Breadth |
26,90 m moulded |
|
Draught |
Summer: 9,60 m |
|
Freeboard |
2.411 mm |
|
Depth |
12,00 m moulded |
|
Speed |
Max: 19,3 knots |
|
Built |
2019 |
|
Keel laid |
04/12/2015 |
|
Launch date |
25/10/2018 |
|
Date of completion |
10/12/2019 |
|
Builder |
Guangzhou Wenchong Shipyard Co., Ltd. No. 1 Wenchuan Road Hongshan Street, Huangpu Guangzhou, 510725 China |
|
Yard number |
H 5513 |
|
Hull material |
Steel |
|
Main engine |
LNG Dual-Fuel-Engine Wärtsilä/YCMP-WIN GD 7RT-flex50DF - 2 stroke single acting 7 cylinder 500 x 2.050 mm combustion engine Mcr 10.080 kW / 13.702 hp at 124,0 rpm Manufacturer: Yuchai Marine Power Co., Ltd. - China |
|
Propellers |
1x Controllable pitch propeller Manufacturer: Wärtsilä Cme Zhenjiang Propeller Co., Ltd. |
|
Boilers |
1x Saacke Composite CMB-VS - 9,0 MPa Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd. |
|
Shaft generator |
1x 1.968 kW Manufacturer: VEM Sachsenwerk GmbH |
|
Generators |
3x Leroy Somer main generatorsets each 590,4 kW Manufacturer: Leroy Somer- Moteurs Leroy Somer 1x Cummins DSG 86 M1-6W generatorsest - 1.064 kW Manufacturer: Cummins Generator Technologies Romania SA |
|
Cargo hold capacity |
32.115,72 m³ |
|
Tank capacities |
Fuel oil: 905,20 m³ Fresh water: 160,80 m³ Lube oil: 155,20 m³ Ballast: 8.661,60 m³ Diesel oil: 166,40 m³ |
|
Lifting equipment |
1x Engine room crane - SWL 2,5 t 1x LNG Bunker station davit Port - SWL 1,5 t 1x LNG Bunker station davit STBD - SWL 1,5 t 1x Provision crane Starboard - SWL 0,95 t Manufacturer: Ningbo Kairong Ship Machinery Co., Ltd. 1x Provision crane and rescue davit Port Manufacturer: CSSC Luzhou Zhenjiang Marine Auxiliary Machinery Co., Ltd. |
|
Cargo gear |
Gearless |
|
Crew |
19 |
|
Manager |
Nordic Hamburg Shipmanagement GmbH Co. KG Cremon 32 20457 Hamburg Germany |
|
Operator |
CMA CGM |
|
Registered owner |
Containerships Arctic Schifffahrtsgesellschaft Mbh & Co. KG Fischertwiete 2, Chilehaus A, D-20095 Hamburg Germany |
|
Previous owner |
Fortune Bec IV Shipping Ltd. Care of Nordic Hamburg Shipmanagement GmbH & Co KG, 20457 Hamburg - Germany |
|
Latest data adjustment |
11 October 2024 |
