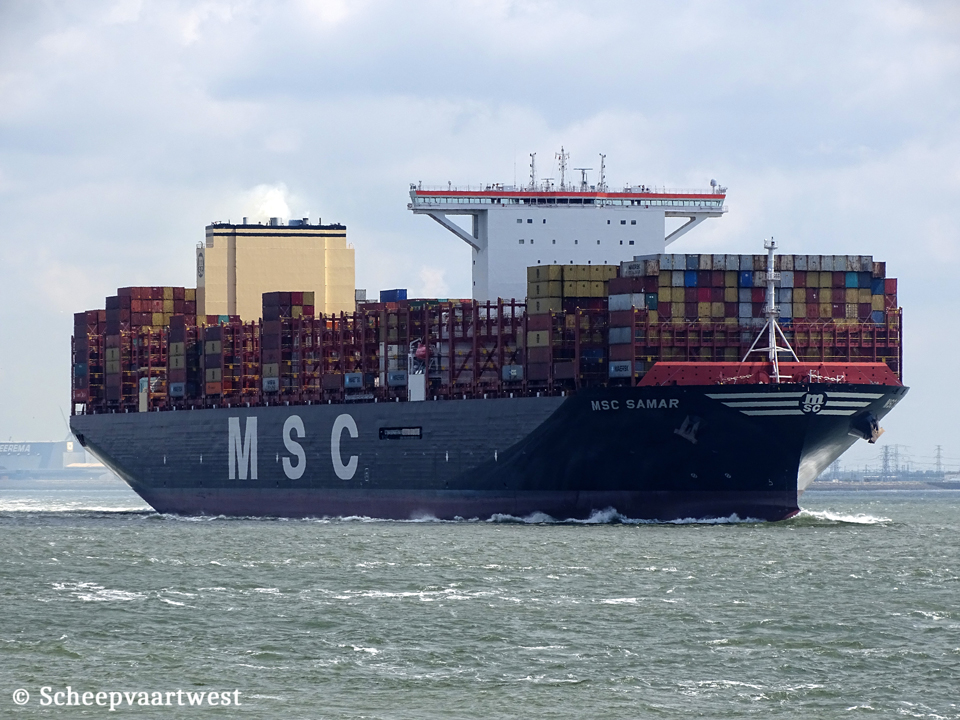

MSC Samar IMO 9839442 02
Westerschelde 02 May 2020

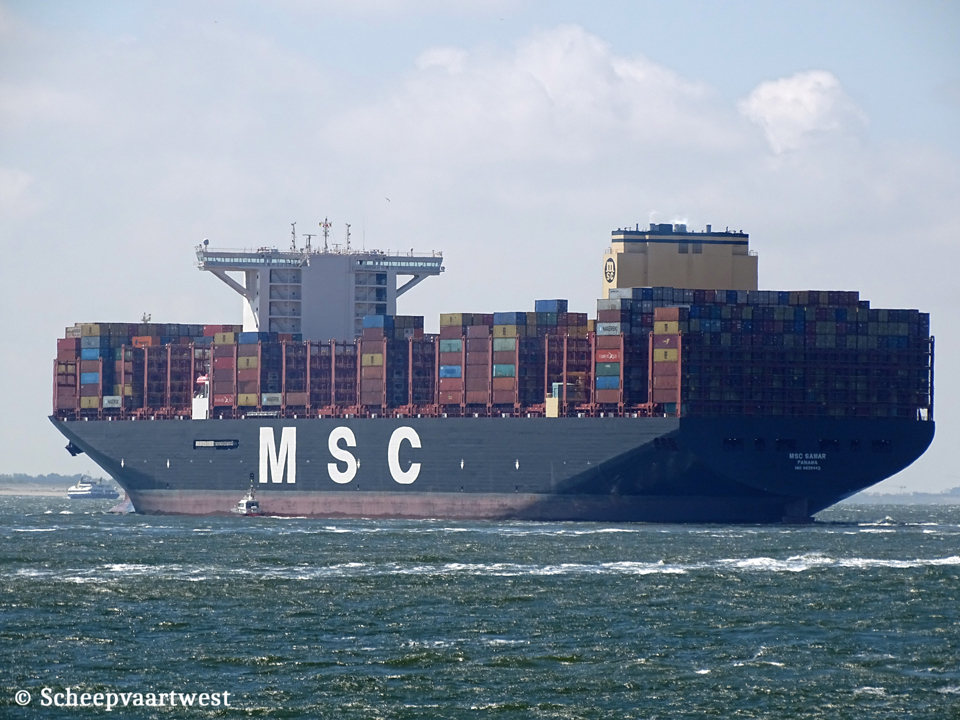

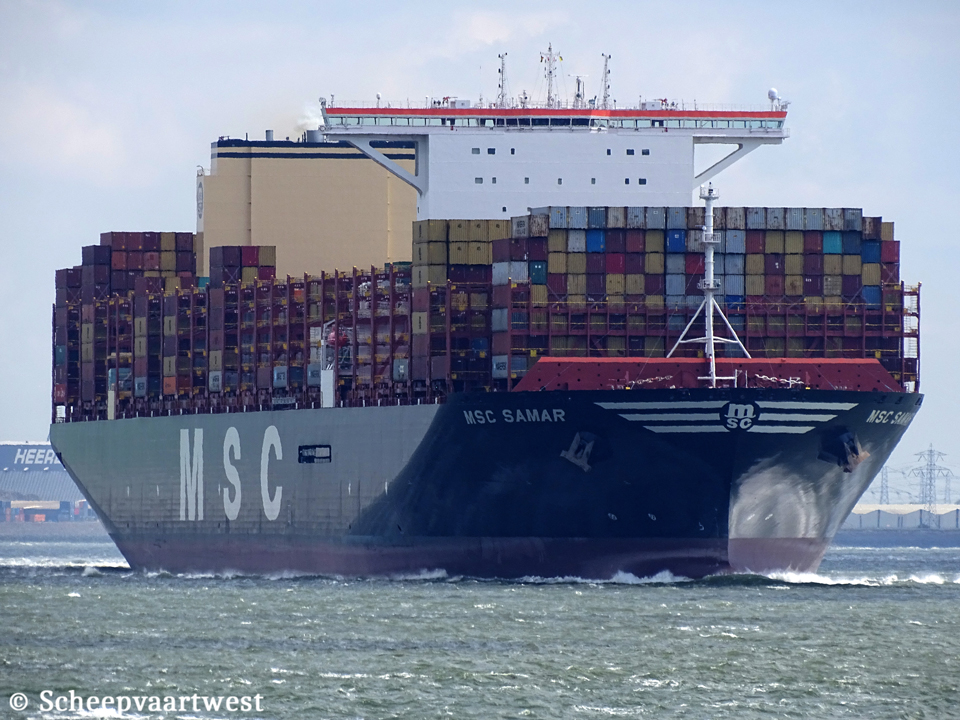

MSC Samar IMO 9839442 01   MSC Samar IMO 9839442 04
Westerschelde 02/05/20   Westerschelde 02/05/20













Name

MSC SAMAR

Type

Cellular containership

IMO-number

9839442

Classification

DNV

Call sign

3FKE9

Flag

Republic of Panama

Port of registry

Panama City

GT

232.618 t

DWT

228.149 t

NT

114.667 t

Number of 20ft containers

23.756

Container capacity 14t

13.500

Reefer capacity

2.024

Length

399,90 m overall

383,00 m between perpendiculars

Breadth

61,54 m extreme

Draught

Summer: 16,50 m

Depth

33,20 m

Speed

Max: 24,4 knots

Built

2019

Keel laid

29/12/2015

Launch date

13/04/2019

Date of completion

31/07/2019

Builder

Samsung Heavy Industries Co., Ltd. Geoje Shipyard

South Korea

Yard number

2249

Hull material

Steel

Main engine

1x MAN-B&W 11G95ME-C9 - 2 stroke 11 cylinder combustion engine 75.570 kW / 102.745 hp

Propellers

1x Fixed pitch mono-block propeller

Boilers

2x Auxiliary boiler, exhaust gas heated (G/E Economizer)

1x Auxiliary boiler, oil/gas fired

1x Auxiliary boiler, exhaust gas heated (Exhuast gas boiler)

Manufacturer: Kangrim Heavy Industries Co.,Ltd.

Generators

3x MAN 9L32/40CD main diesel generatorsets

2x Man 6L32/40CD main diesel generatorsets

Emergency generator

1x Doosan AD222TIS diesel genertorset

Tank capacities

Ballast: 61.002,9 m³

Anchor equipment

Length: 770,00 m

Diameter: 147 mm

ISM & commercial manager

Mediterranean Shipping Company S.r.l.

Via Francesco Ciampa 29

80063 Piano di Sorrento NA

Italy

Registered owner

Sea 61 Leasing Co Ltd.

Care of MSC Mediterranean Shipping Co SA

chemin Rieu, 12-14

1208 Geneva

Switzerland

Latest data adjustment

25 July 2022
