| Westerschelde 28 July 2019 |
 |
 |
 |
 |
 |
||||
| Westerschelde 28/07/19 | Westerschelde 30/11/18 | Westerschelde 11/03/20 | Westerschelde 11/03/20 | Westerschelde 28/02/18 | ||||
|
Name |

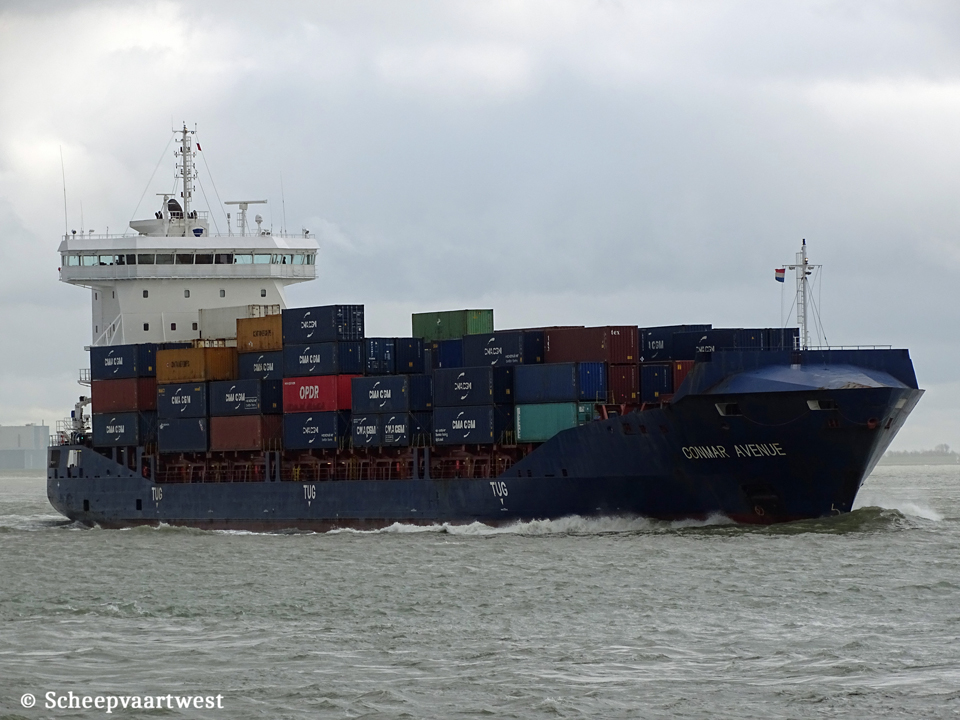

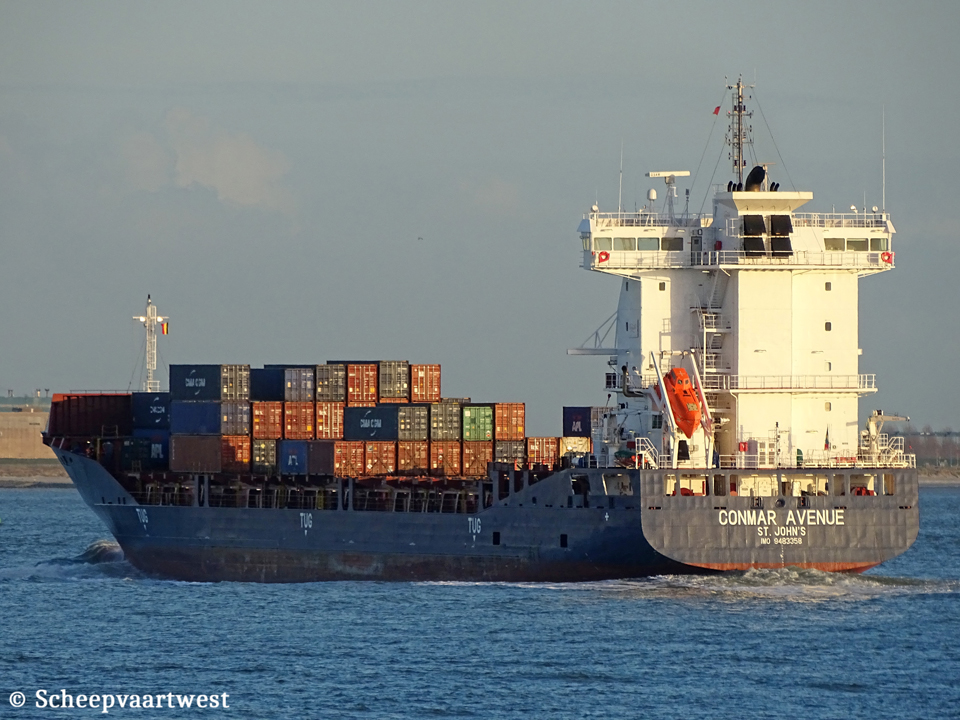

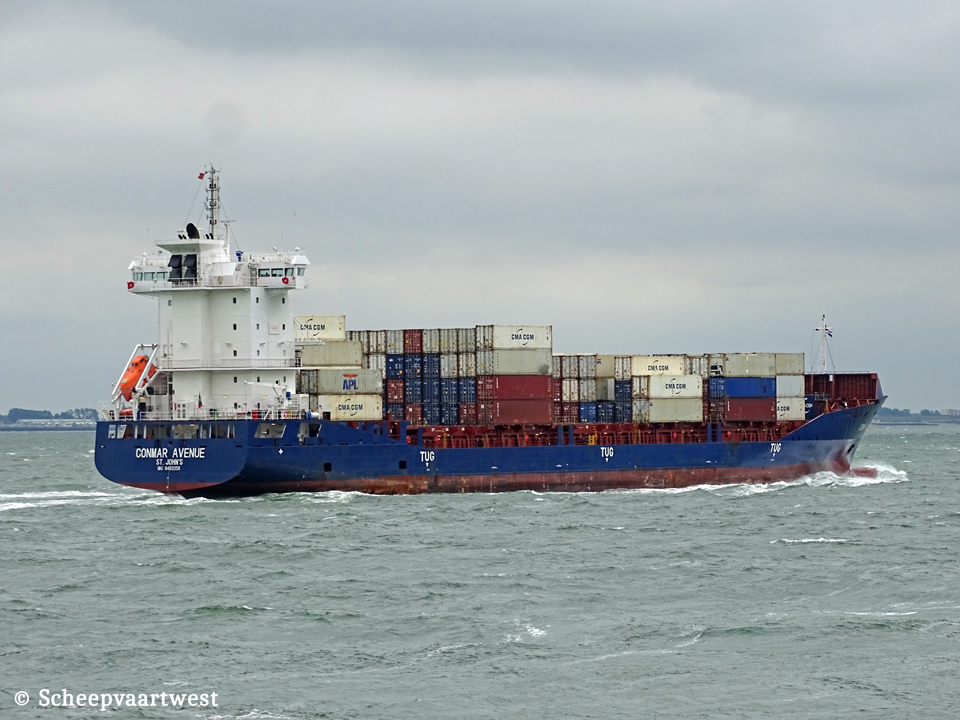

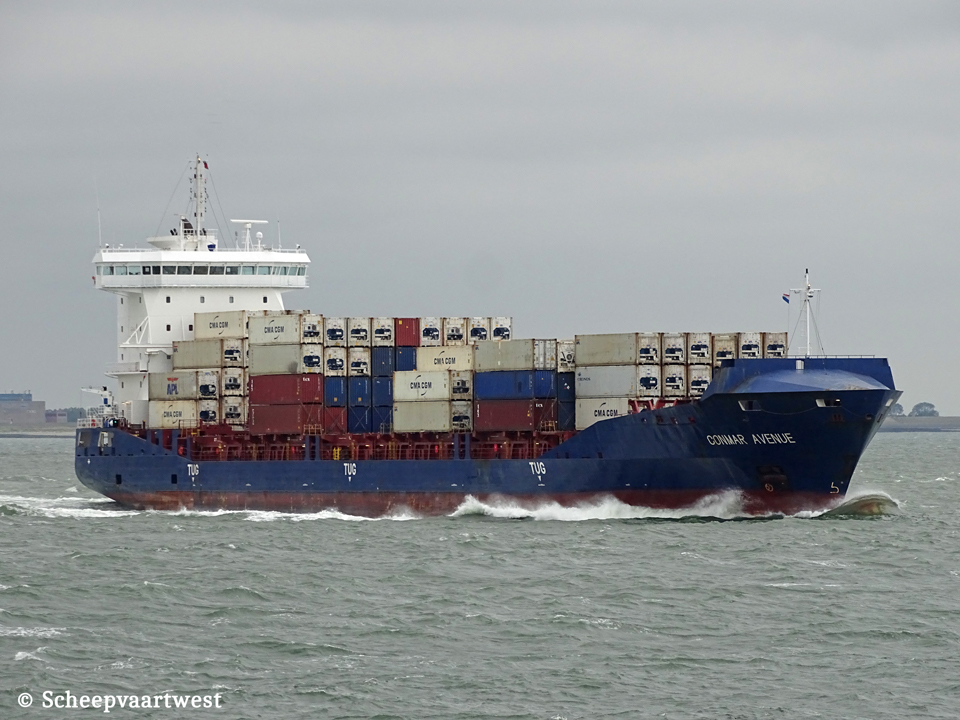

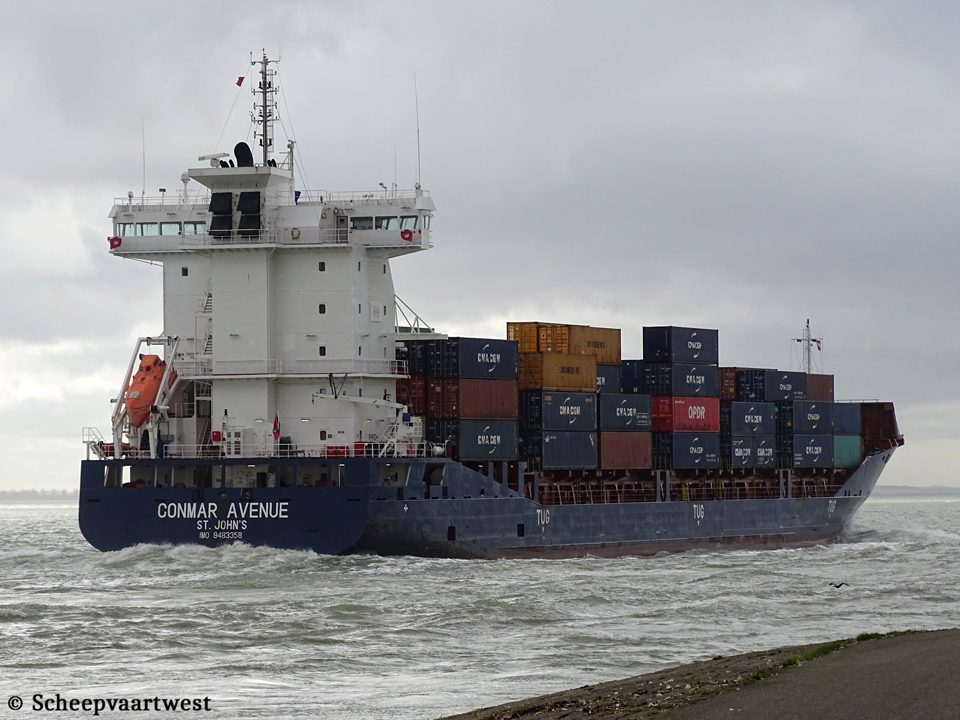

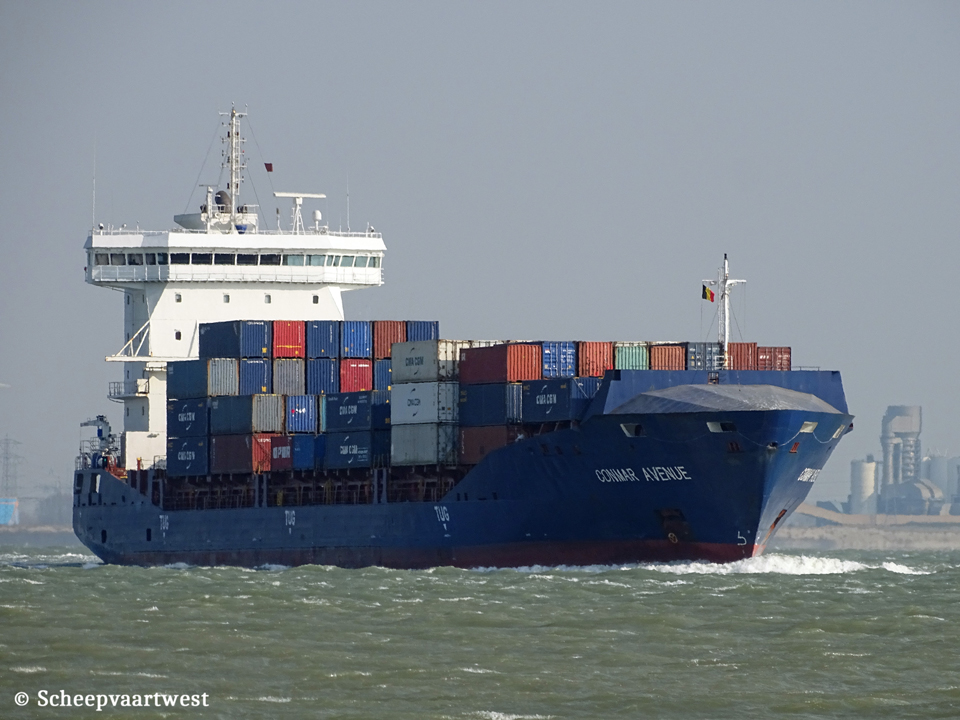

CONMAR AVENUE |
|
Type |
Cellular containership |
|
IMO-number |
9483358 |
|
Call sign |
V2GD2 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
GT |
10.585 t |
|
DWT |
12.783 t |
|
NT |
5.372 t |
|
Number of 20ft containers |
In hold: 322 On deck: 714 Total: 1.036 |
|
Container capacity 14t |
745 |
|
Reefer capacity |
250 |
|
Length |
147,80 m overall 142,37 m between perpendiculars |
|
Breadth |
23,25 m moulded |
|
Draught |
Summer: 8,50 m |
|
Keel to mast end |
43,66 m |
|
Freeboard |
1.510 mm |
|
Depth |
11,50 m |
|
Speed |
Service: 18,5 knots Max: 19,3 knots |
|
Built |
2012 |
|
Keel laid |
30/12/2008 |
|
Date of completion |
22/10/2012 |
|
Builder |
Jiangdong Shipyard Of China Changjiang Shipping Group Wuhu China |
|
Yard number |
JD1000TEU-12 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
9 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 8L48/60B - 4 stroke single acting 8 cylinder 480 x 600 mm combustion engine Mcr 9.600 kW / 13.052 hp at 500,0 rpm Builder: MAN-B&W Diesel AG , Augsburg - Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 120,0 rpm |
|
Boilers |
1x CHM Aalborg 126,00 m² - 7,0 bar |
|
Shaft generator |
1x 1.700 kW |
|
Generators |
3x Main diesel generatorsets each 713 kVA - 570 kW - 842 hp |
|
Emergency generator |
1x Diesel generatorset 394 kVA - 315 kW - 550 hp |
|
Bow thruster |
1x Tunnel thruster 800 kW / 1.088 bhp, forward |
|
Number of holds |
3 |
|
Tank capacities |
Fuel oil: 1.579,4 m³ Diesel oil: 117 m³ Ballast: 5.640 m³ |
|
Cargo gear |
Gearless |
|
Crew size |
13 |
|
ISM & commercial manager |
Conmar Shipping Gmbh & Co KG Obstmarschenweg 11A 21635 Jork Niederelbe Germany |
|
Registered owner |
Schifffahrtsgesellschaft Conmar Avenue mbH & Co., KG Care of Conmar Shipping GmbH & Co KG Obstmarschenweg 11A 21635 Jork Niederelbe Germany |
|
Renamed |
2022 Isabella B Portugal, Madeira - Call sign: CQTM Owner: Ernst Russ Schiff III GmbH; Hamburg - Germany |
|
Latest data adjustment |
22 April 2023 |
