| Westerschelde 18 April 2019 |
|
Name |

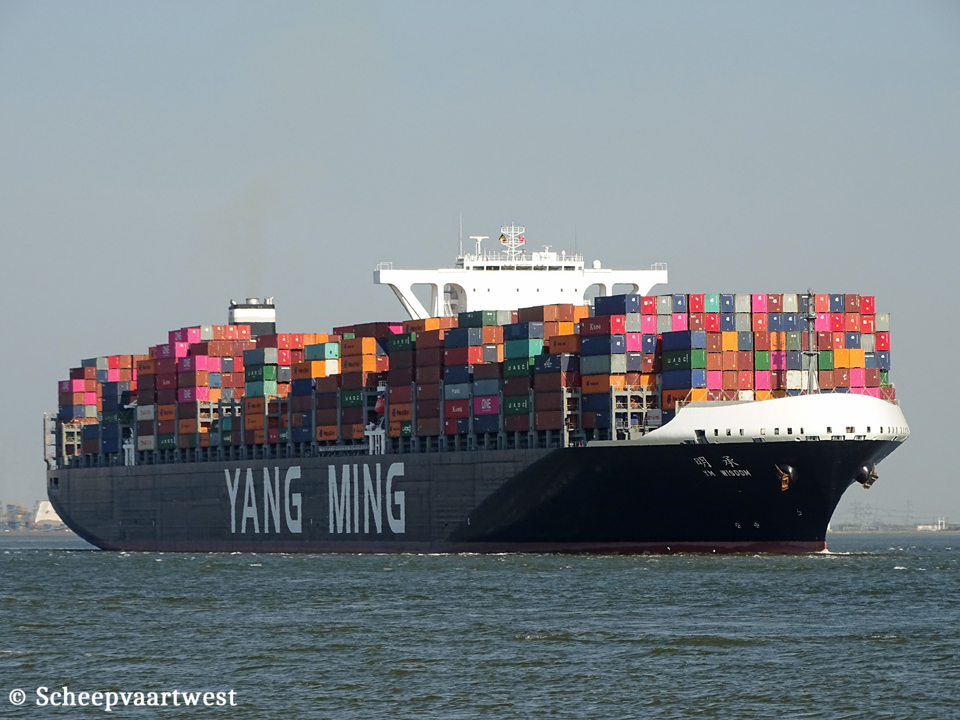

YM WISDOM |
|
Type |
Cellular containership - Carriage of dangerous goods |
|
IMO-number |
9757216 |
|
Call sign |
9V5642 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
151.451 t Suez: 155.753,93 t |
|
DWT |
146.749 t |
|
NT |
68.253 t Panama: 147.477,49 t Suez: 141.493,1 t |
|
Displacement |
195.839 t |
|
Number of 20ft containers |
14.220 |
|
Container capacity 14t |
9.500 |
|
Reefer capacity |
1.000 |
|
Length |
366,47 m overall 350,00 m between perpendiculars |
|
Breadth |
51,20 m moulded |
|
Draught |
Summer: 15,50 m |
|
Freeboard |
7.716 mm |
|
Depth |
29,90 m moulded |
|
Speed |
Max: 23,8 knots |
|
Built |
2019 |
|
Keel laid |
30/07/2015 |
|
Launch date |
06/08/2018 |
|
Delivery date |
28/02/2019 |
|
Builder |
Imabari Shipbuilding Co., Ltd. - Mihara HS (Hiroshima Shipyard) Hiroshima Shipyard 2-1-1 Noji, Saizaki-Cho Mihara City, 729-2292 Japan |
|
Yard number |
2623 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Mitsui/MAN-B&W 11S90ME-C10 - 2 stroke single acting 11 cylinder 900 x 3.260 mm combustion engine Mcr 48.900 kW / 66.484 hp at 76,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding C Ltd. - Japan |
|
Propellers |
1x Fixed pitch propeller - aft at 76,0 rpm Manufacturer: Nakashima Propeller Co., Ltd. - Japan |
|
Boilers |
1x Auxiliary boiler - 8,0 MPa 2x Exhaust Gas Economize - 11,0 MPa 1x Exhaust Gas Economize - 13,5 MPa Manufacturer: Osaka Boiler Mfg. Co., Ltd. - Japan |
|
Generators |
4x Daihatsu 8DC-32 - 4 stroke 8 cylinder 320 x 400 mm diesel engines each 3.650 kW connected with NTAKL-RCP generators each 3.500 kW / 6.600 Volt 60 Hz Manufacturer: Nishishiba Electric Co., Ltd. |
|
Bow thruster |
2x Tunnel thruster each 2.040 kW / 2.774 hp |
|
Tank capacities |
Fuel oil: 9.199 m³ Lub oil: 101,86 m³ Diesel oil: 1.606,82 m³ Ballast: 40.363,24 m³ Fresh water: 417,25 m³ |
|
Lifting equipment |
1x Monorail crane - SWL 10,5 t 1x Provision crane (Port) - SWL 4,0 t 1x Provision crane (Stbd) - SWL 4,0 t Manufacturer: Nantong Sekigahara Machinery Manufacturing Co., Ltd - Japan |
|
Cargo gear |
Gearless |
|
Crew |
30 |
|
Manager |
Yang Ming Marine Transport 271, Mingde 1st Road, Qidu District Keelung City, 20646 China, Republic of (Taiwan) |
|
Registered owner |
Grace Ocean Pte Ltd. 35-01, OUE Downtown, 6, Shenton Way Singapore city Republic of singapore |
|
Latest data adjustment |
15 March 2022 |
