| Westerschelde 23 May 2020 |
 |
| Westerschelde 23/05/20 |
|
Name |

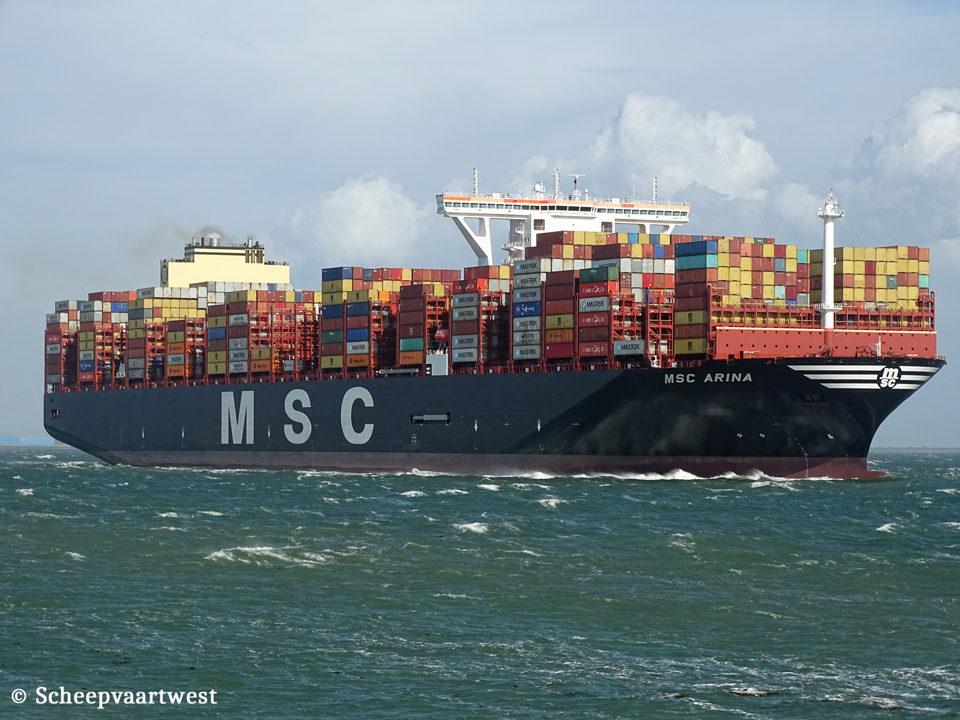

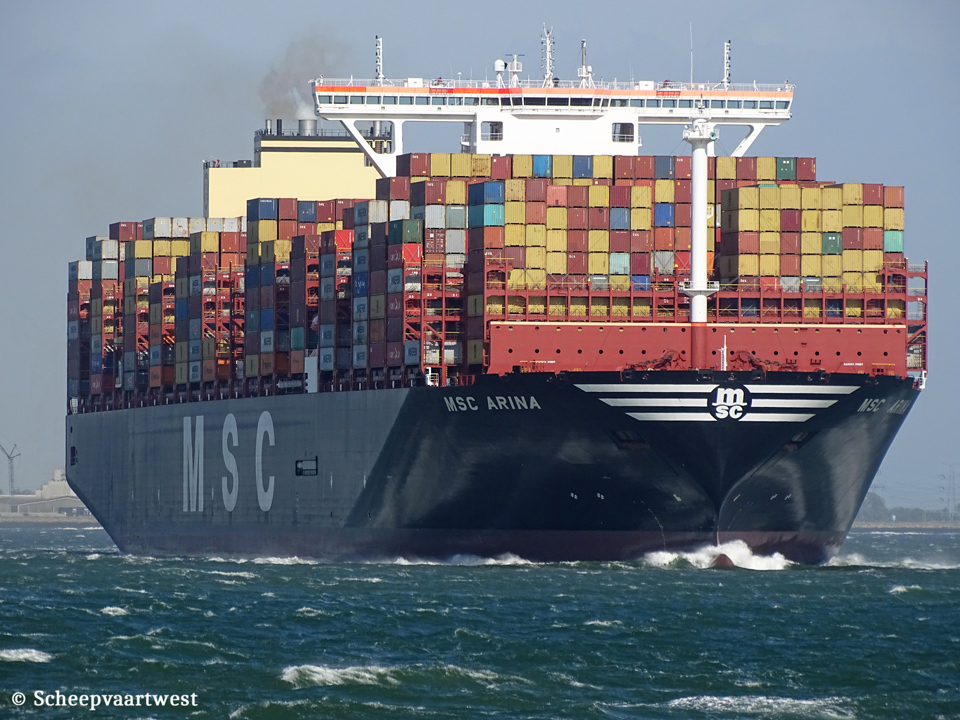

MSC ARINA |
|
Type |
Cellular containership - Scrubber fitted |
|
IMO-number |
9839284 |
|
Call sign |
H9BV |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
228.741 |
|
DWT |
224.983 t |
|
NT |
115.517 t |
|
Number of 20ft containers |
23.656 |
|
Container capacity 14t |
13.500 |
|
Reefer capacity |
2.024 |
|
Length |
399,80 m overall 383,112 m between perpendiculars |
|
Breadth |
61,04 m extreme |
|
Draught |
Summer: 16,50 m |
|
Depth |
33,20 m |
|
Speed |
Service: 18,5 knots Max: 25,0 knots |
|
Built |
2019 |
|
Keel laid |
21/12/2015 |
|
Launch date |
25/05/2019 |
|
Date of completion |
11/09/2019 |
|
Builder |
Daewoo Shipbuilding & Marine Engineering Co., Ltd. Goeje South Korea |
|
Yard number |
4315 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W 11G95ME-C9/Doosan - 11 cylinder combustion engine 75.570 kW / 102.745 hp |
|
Propellers |
1x Mono-block propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired 2x Auxiliary boiler, exhaust gas heated |
|
Generators |
3x MAN 9L32/40CD main diesel generatorsets 2x MAN 6L32/40CD main diesel generatorsets |
|
Emergency generator |
1x V/AD 222 diesel generatorset Builder: Hyundai Doosan Infracore Co., Ltd. |
|
Tank capacities |
Ballast: 61.578 m³ |
|
Anchor equipment |
Length: 770,00 m Diameter: 142 mm |
|
ISM & commercial manager |
MSC Shipmanagement Limited chemin Rieu, 12-14 1208 Geneva Switzerland |
|
Registered owner |
Mi-Das Line S.A. Care of Doun Kisen Co Ltd (Doun Kisen KK) 1307-8, Namikata, Namikata-cho, Imabari-shi, Ehime-ken, 799-2101 Japan |
|
Latest data adjustment |
09 January 2022 |
