| Westerschelde 04 November 2020 |
 |
 |
 |
 |
|||
| Westerschelde 20/04/19 | Westerschelde 07/05/20 | Westerschelde 07/05/20 | Westerschelde 07/05/20 |
|
Name |

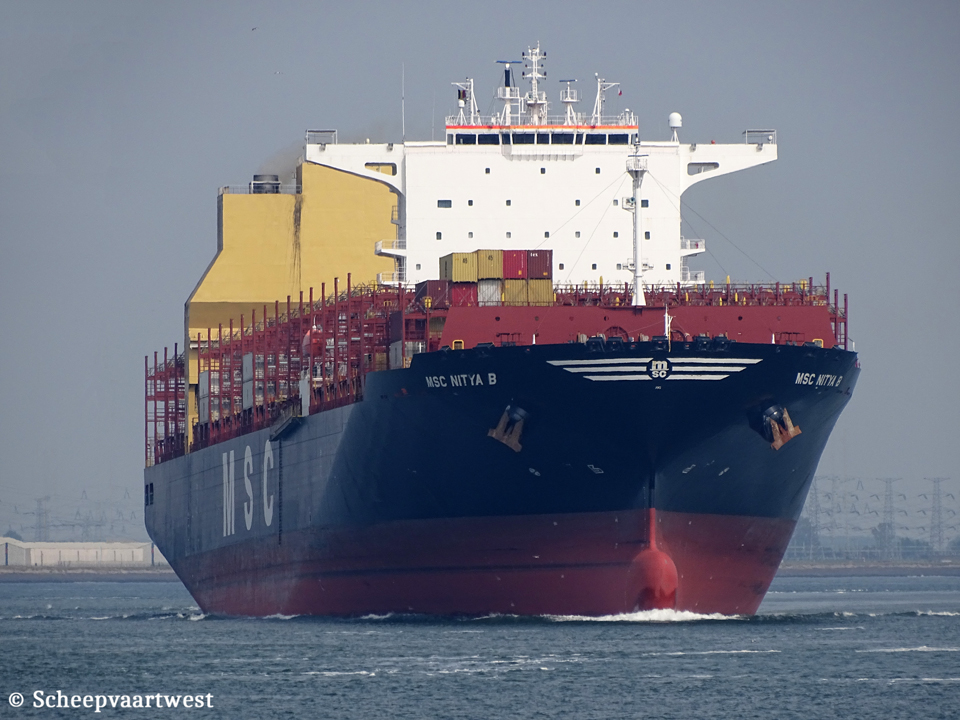

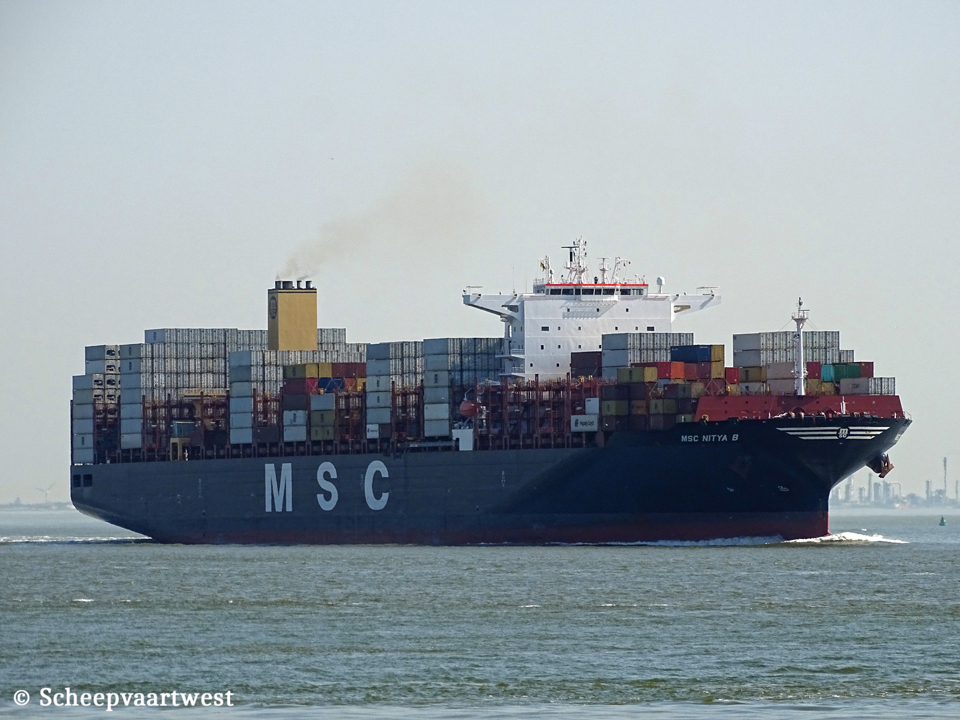

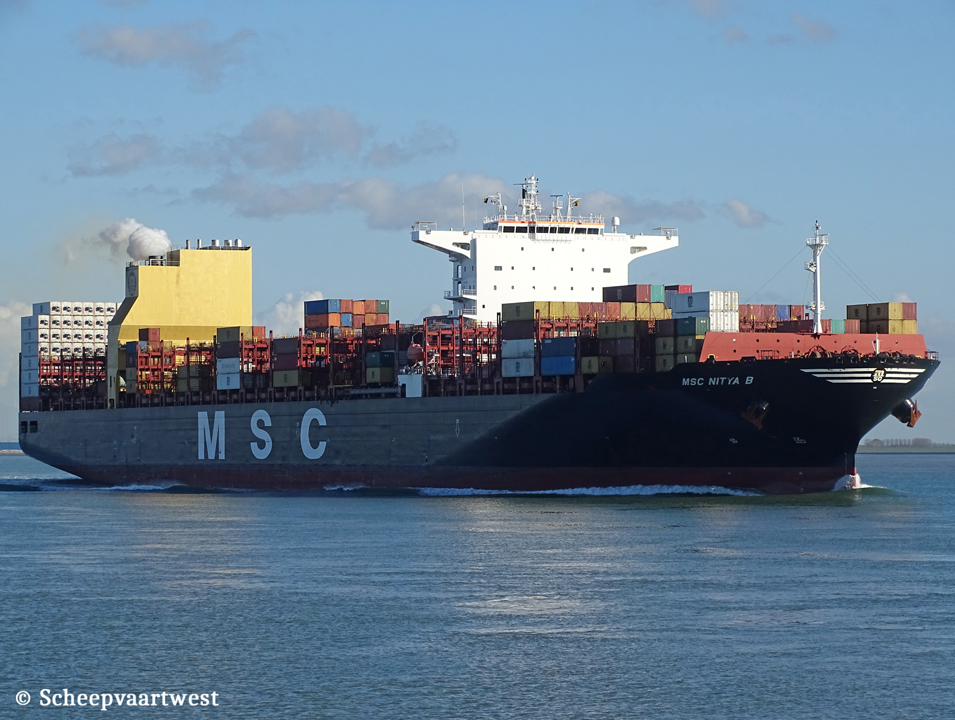

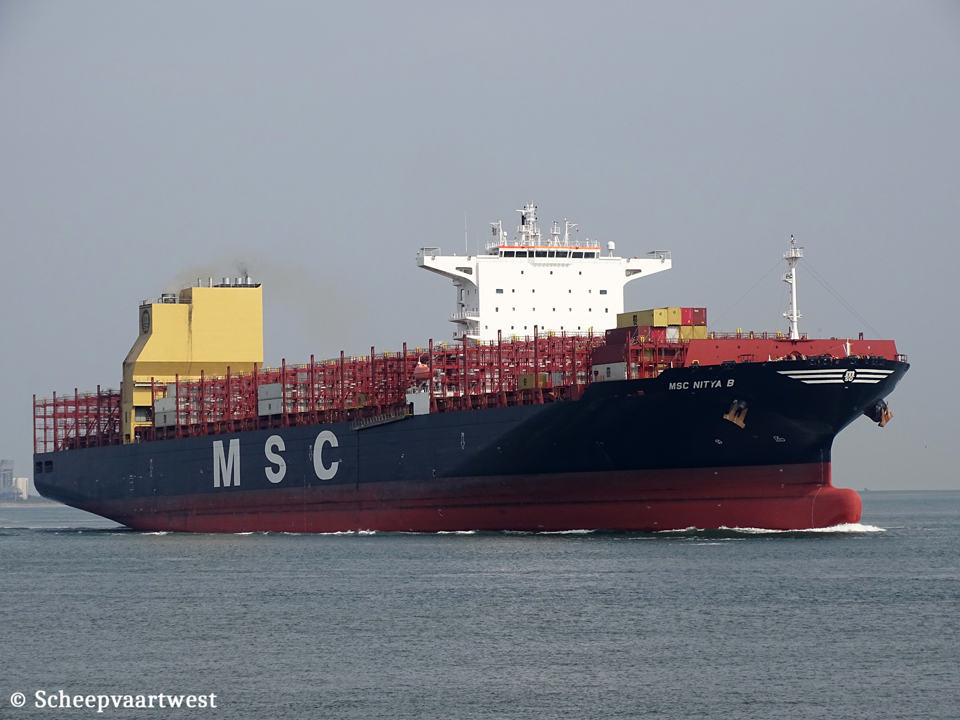

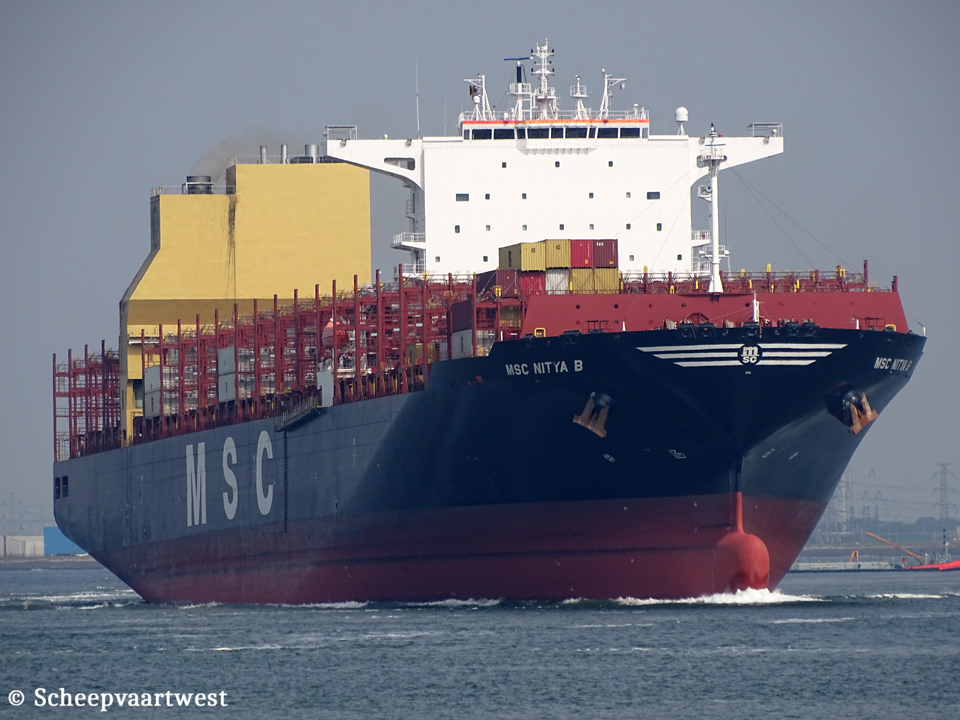

MSC NITYA B |
|
Type |
Cellular containership |
|
IMO-number |
9778117 |
|
Call sign |
CQIP4 |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
GT |
113.112 t |
|
DWT |
134.007 t |
|
NT |
62.337 t |
|
Number of 20ft containers |
11.010 |
|
Container capacity 14t |
8.270 |
|
Reefer capacity |
1.453 |
|
Length |
330,00 m overall 316,40 m between perpendiculars |
|
Breadth |
48,31 m extreme 48,20 m moulded |
|
Draught |
Summer: 16,00 m |
|
Depth |
27,20 m |
|
Speed |
Service: 22,0 knots Max: 23,3 knots |
|
Built |
2017 |
|
Keel laid |
04/12/2015 |
|
Launch date |
27/04/2017 |
|
Date of completion |
28/09/2017 |
|
Builder |
Hanjin Heavy Industries and Construction Philippines, Inc. - Subic Shipyard Olongapo City Philippines |
|
Yard number |
NCP0148 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W/HHI 8G95ME-C9 - 2 stoke single acting 8 cylinder 950 x 3.460 mm combustion engine Mcr 54.960 kW / 74.724 hp at 80,0 rpm Builder: Hyundai Heavy Industries Co Ltd - South Korea |
|
Propellers |
1x Fixed pitch mono-block propeller - aft at 80,0 rpm |
|
Boilers |
3x Auxiliary boiler, exhaust gas heated 1x Auxiliary boiler, oil/gas fired Manufacturer: KangRim Heavy Industries |
|
Generators |
2x MAN 8L32/40CD - 4 stroke 8 cylinder 320 x 400 mm main diesel engine each Mcr 4.000 kW connected with generators each 3.900 kW 2x MAN 9L32/40CD - 4 stroke 9 cylinder 320 x 400 mm main diesel engine each Mcr 4.400 kW connected with generators each 4.300 kW |
|
Bow thruster |
1x Tunnel thruster 3.000 kW / 4.079 bhp, forward Manufacturer: Kawasaki Heavy Industries, Ltd. |
|
Tank capacities |
Ballast: 28.078,79 m³ |
|
Anchor equipment |
Length: 770,00 m Diameter: 114 mm |
|
Cargo gear |
Gearless |
|
Crew size |
23 |
|
ISM manager |
MSC Shipmanagement Limited MSC House, 8, Spyrou Kyprianou Avenue Limassol Cyprus |
|
Commercial manager |
Seaspan Ship Management Ltd. Suite 2600, 200, Granville Street Vancouver BC V6C 1S4 Canada |
|
Registered owner |
Hai Kuo Shipping 2047c Ltd. Care of Seaspan Ship Management Ltd. Suite 2600, 200, Granville Street Vancouver BC V6C 1S4 Canada |
|
Latest data adjustment |
26 April 2022 |
