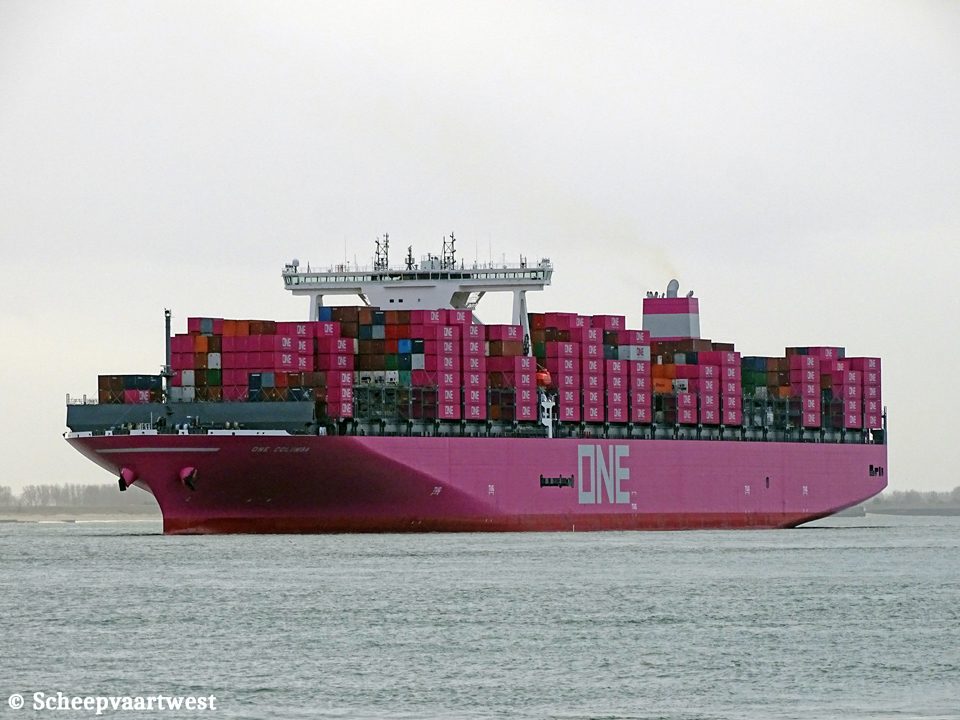

One Columbia IMO 9806055 01

Westerschelde 02 January 2019

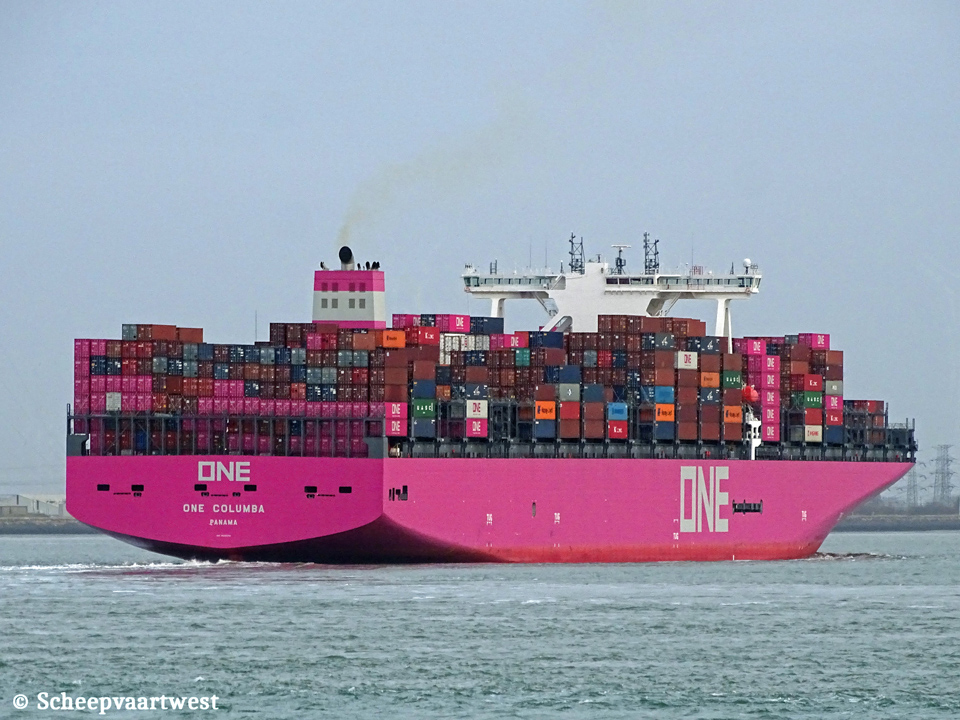

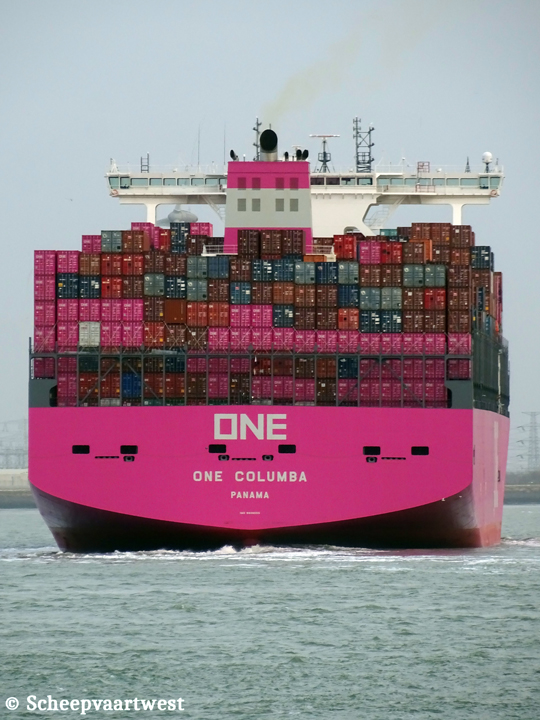

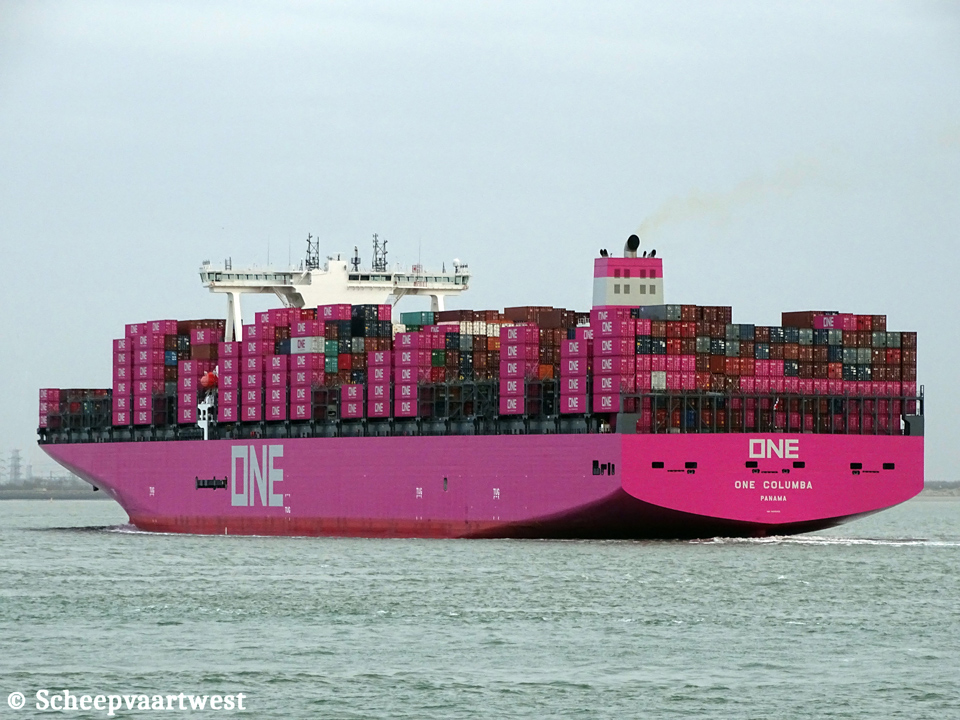

One Columbia IMO 9806055 02   One Columbia IMO 9806055 04   One Columbia IMO 9806055 03
Westerschelde 02/01/19   Westerschelde 02/01/19   WS 02/01/19













Name

ONE COLUMBIA

Type

Cellular containership

IMO-number

9806055

Call sign

3FTC3

Flag

Republic of Panama

Port of registry

Panama City

GT

145.647 t registered

DWT

138.611 t

NT

83.275 t registered

Number of 20ft containers

14.052

Container capacity 14t

9.150

Reefer capacity

1.120

Length

364,15 m overall

Breadth

50,60 m moulder

Draught

Summer: 15,79 m

Moulded L x B x D

349,20 x 50,60 x 23,04 m

Registered L x B x D

351,57 x 50,60 x 23,04 m

67,90 m

Freeboard

Summer: 7.301 mm

Depth

23,04 m moulded

Speed

22,8 knots

Built

2018

Keel laid

07/12/2015

Launch date

22/06/2018

Date of completion

16/11/2018

Builder

JMU - Japan Marine United Corporation, Kure Shipyard

Japan

Yard number

5122

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

1x Wärtsilä 9X82 - 2 stroke single acting 9 cylinder 820 x 3.375 mm combustion engine Mcr 42.180 kW / 57.348 hp at 74,6,0 rpm

Manufacturer: Diesel United, Ltd. Aioi Machinery Works - Japan

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 1.020 mm

Propellers

1x Fixed pitch propeller - aft at 74,6 rpm

Boilers

1x Auxiliary vertical boiler - 0,70 MPa

Evaporation: 2,50 t/h

Manufacturer: Osaka Boiler Mfg. Co., Ltd.

Generators

4x Main diesel generatorsets each 3.200 kW

Bow thruster

2x Tunnel thruster each 1.800 kW / 2.447 bhp; forward

Tank capacities

Fuel oil: 11.014,26 m³

Fresh water: 299,34 m³

Cargo gear

Gearless

Crew size

24

Commercial manager

NYK Line

Yusen Building, 3-2, Marunouchi 2-chome, Chiyoda-ku

Tokyo, 100-0005

Japan

ISM manager

NYK Shipmanagement Pte. Ltd.

15-01, HarbourFront Tower One

1, Harbourfront Place

Singapore 098633

Republic of Singapore

Operator

Ocean Network Express Pte. Ltd.(ONE)

Marina One East Tower, 7

Singapore City

Republic of Singapore

Registered owner

Hanna Ship Holding SA - Republic of Panama

Care of Nippon Yusen KK (NYK Line) (Nippon Yusen Kaisha)

Yusen Building, 3-2, Marunouchi 2-chome, Chiyoda-ku,

Tokyo, 100-0005

Japan

Latest data adjustment

14 November 2021
