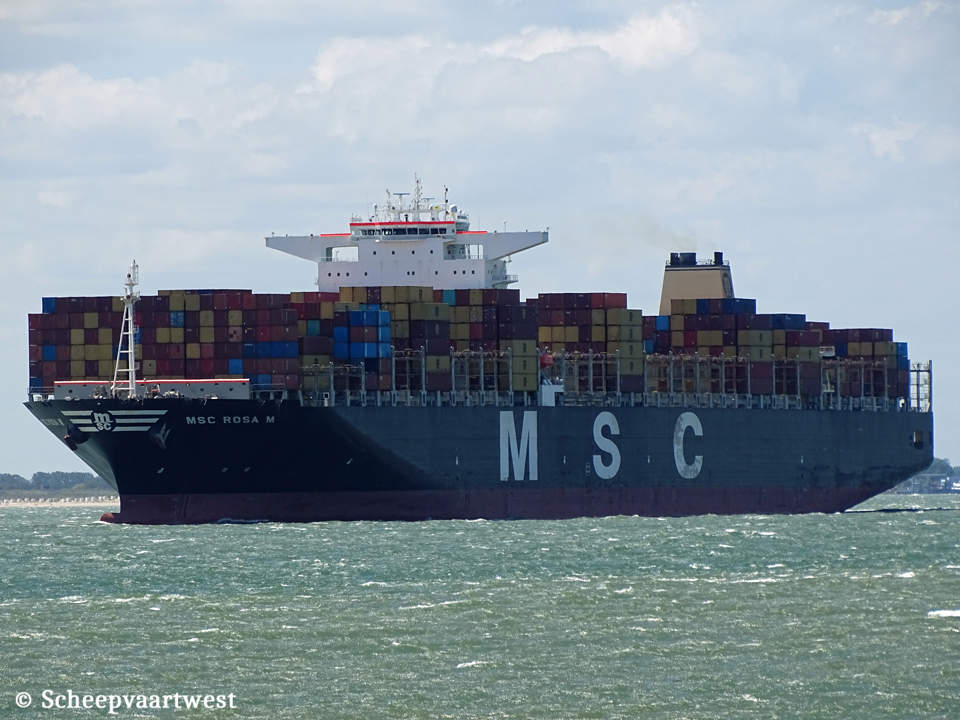

MSC Rosa M IMO 9461398 02

Westerschelde 03 July 2020

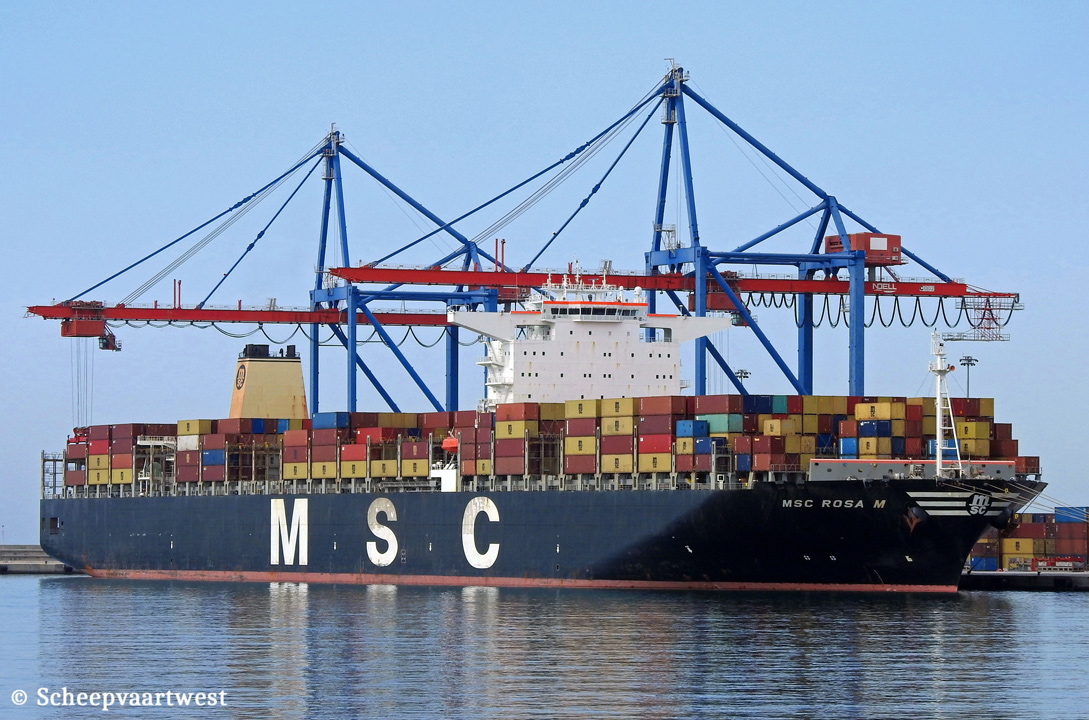

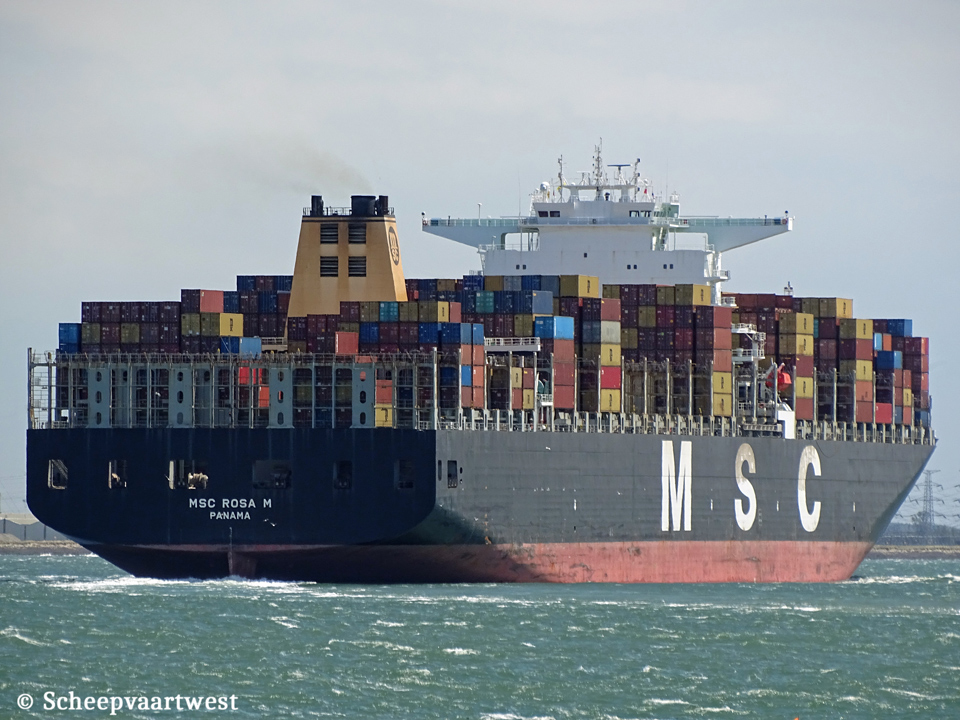

MSC Rosa M IMO 9461398 03   MSC Rosa M IMO 9461398 01
Westerschelde 03/07/20   Malaga, Spain 02/08/21













Name

MSC ROSA M

Type

Cellular containership

IMO-number

9461398

Call sign

3FDM4

Flag

Republic of Panama

Port of registry

Panama City

GT

153.115 t

DWT

Summer: 165.991,1 t

NT

89.067 t

Number of 20ft containers

14.032

Container capacity 14t

10.640

Reefer capacity

2.000

Length

365,81 m overall

349,51 m between perpendiculars

Breadth

51,28 m extreme

Draught

Summer: 16,0 knots

Depth

29,90 m

Speed

Max: 25,0 knots

Built

2010

Keel laid

02/08/2010

Launch date

20/09/2010

Date of completion

20/12/2010

Builder

Daewoo Shipbuilding & Marine Engineering Co., Ltd. Okpo Shipyard

Geoje-si

Yard number

4181

Hull material

Ship building steel (standard)

Hull type

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

9

Continuous decks

2

Main engine

1x MAN-B&W 12K98MC-C - 2 stroke 12 cylinder 980 x 2.400 mm combustion engine 72.240 kW / 98.218 hp at 104,0 rpm

Build: 2010

Builder: Doosan Engine Co., Ltd.

Propellers

1x Fixed pitch propeller- aft at 104,0 rpm

Boilers

1x Steam boiler, oil fired - 10,0 bar

Heating surface: 46,2 m²

1x Steam boiler, exhaust gas heated - 10,0 bar

Heating surface: 679,0 m²

Build: 2010

Manufacturer: Alfa Laval Aalborg A/S

Electric installations

1x Plant 6.600 V - 5.120 kVA

1x Plant 6.600 V - 5.120 kVA

1x Plant 6.600 V - 5.120 kVA

1x Plant 6.600 V - 5.120 kVA

1x Plant 450 V - 688 kVA

1x Plant 24 V - 15 Ah

1x Plant 24 V - 63 Ah

1x Plant 24 V - 92 Ah

1x Plant 24 V - 300 Ah

1x Plant 24 V - 300 Ah

2x Plants each 108 V - 40 Ah

Generators

4x MAN 8L32/40 main diesel generatorsets each 5.120 kVA

Emergency generator

1x Cummins VTA28DM diesel generatorset 688 kVA

Batteries

1x Battery for UPS navigation 300 Ah

1x Battery for UPS radio 300 Ah

1x Battery for automation 92 Ah

1x Battery for diesel control 63 Ah

2x Batteries for automation, each 40 Ah

1x Battery for diesel control 15 Ah

Compressed air receivers

2x Receivers each 16.500 litres - 30,0 bar

1x Receiver 540 litres - 30,0 bar

1x Receiver 200 litres - 30,0 bar

1x Receiver 2.000 litres - 7,0 bar

1x Receiver 350 litres - 7,0 bar

Bow thruster

2x Transverse thruster 1.800 kW, forward

Tank capacities

Ballast: 47.621,4 m³

Anchor equipment

3x Anchors weight each 26.000 kg

Length: 770,00 m

Diameter: 127 mm

Cargo gear

Gearless

Crew size

30

Commerical manager

MSC Mediterranean Shipping Co.

chemin Rieu 12-14

1208 Geneva

Switzerland

ISM manager

Mediterranean Shipping Company S.r.l.

Via Francesco Ciampa 29

80063 Piano di Sorrento NA

Italy

Registered owner

Compania Naviera Rosa SA

Care of MSC Mediterranean Shipping Co SA

chemin Rieu, 12-14

1208 Geneva

Switzerland

Latest data adjustment

19 September 2021
