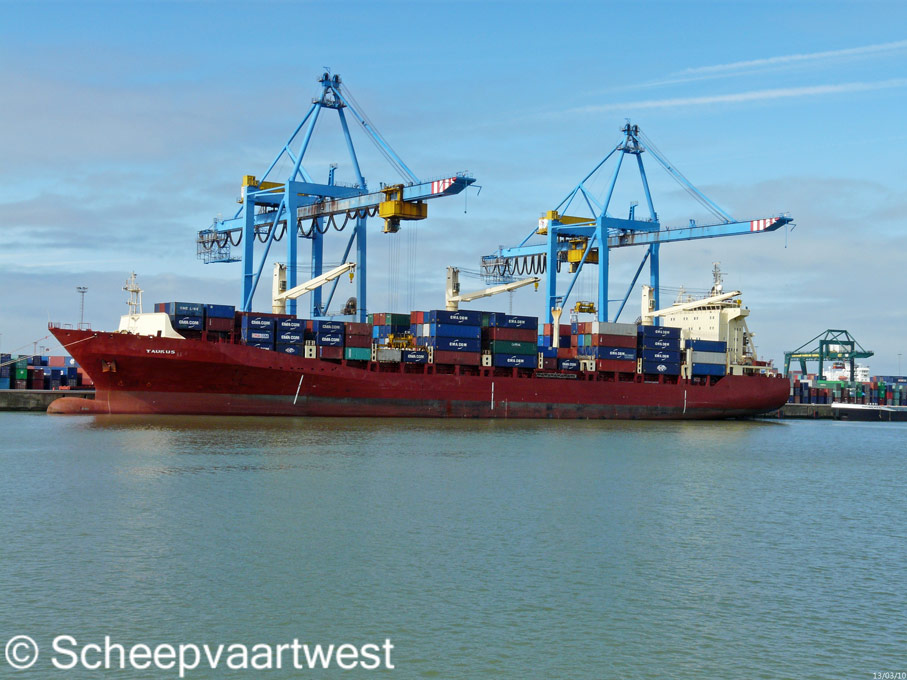

| Zeebrugge 13 March 2010 |
|
Name |
TAURUS |
|
Previous names |
Taurus CMA CGM Castilla Cap Victor Columbus Waikato Taurus Kota Perabu |
|
Type |
Cellular containership |
|
IMO-number |
9134593 |
|
Call sign |
V7LZ7 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
23.722 t Suez: 70.045,48 t |
|
DWT |
Summer: 29.260 t |
|
NT |
9.843 t Suez: 58.156,79 t |
|
Number of 20ft containers |
1.804 |
|
Container capacity 14t |
1.352 |
|
Reefer point |
325 |
|
Length |
194,00 m overall 181,76 m registered |
|
Breadth |
28,20 m |
|
Draught |
Summer: 11,52 m |
|
Forecastle |
25,27 m |
|
Poop |
19,40 m |
|
Freeboard |
5.324 mm |
|
Depth |
16,80 m moulded |
|
Speed |
Max.: 21,0 knots |
|
Built |
1998 |
|
Keel laid |
09.06.1998 |
|
Launch date |
26.09.1998 |
|
Date of completion |
12.1998 |
|
Builder |
Stocznia Gdynia S.A. |
|
Yard number |
B8138/06 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
7 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN B&W 6L70 MC - 2 stroke single acting 6 cylinder 700 x 2.674 mm diesel engine - 17.200 kW at 108,0 rpm Year of manufacture: 1998 Manufacturer: H. Cegielski-Poznan S.A. |
|
Propeller |
1x Solid propeller (keyless) - aft |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 81,0 m² 1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 475,6 m² Year of manufacture: 1998 Manufacturer: Marine Metal Sp. z o.o. |
|
Electric Installations |
1x Plant 440/220 V - 4.065 kVA 1x Plant 440 V - 250 kVA |
|
Generators |
2x Wärtsilä 8L20 main diesel generatorsets each 1. 480 kVA 1x Wärtsilä 6L20 main diesel generatorset 1.105 kVA |
|
Emergency generator |
1x Diesel generatorset 250 kVA |
|
Compressed air receivers |
2x Receivers each 10.000 litres - 33,0 bar 1x Receiver 800 litres - 33,0 bar 1x Receiver 50 litres - 9,0 bar |
|
Bow thruster |
1x Transverse thruster ZAMECH - 900 kW, forward |
|
Tank capacity |
Water ballast: 12.606 m³ |
|
Anchor equipment |
3x Anchors weight each 8.300 kg Chain length: 632,50 m |
|
Cargo gear |
3x Cranes - SWL 45,0 t each |
|
Crew |
20 |
|
Manager |
Alpha Shipmanagement GmbH & Co. KG |
|
Operator |
CMA CGM |
|
Owner |
Alpha Ship GmbH & Co. KG MS "TAURUS" |
