Name |

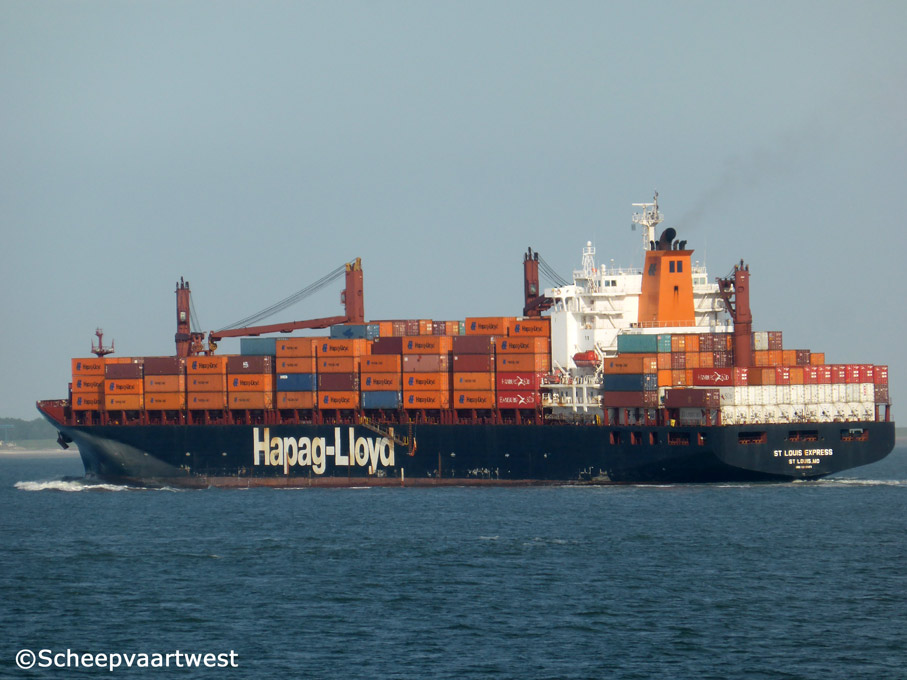

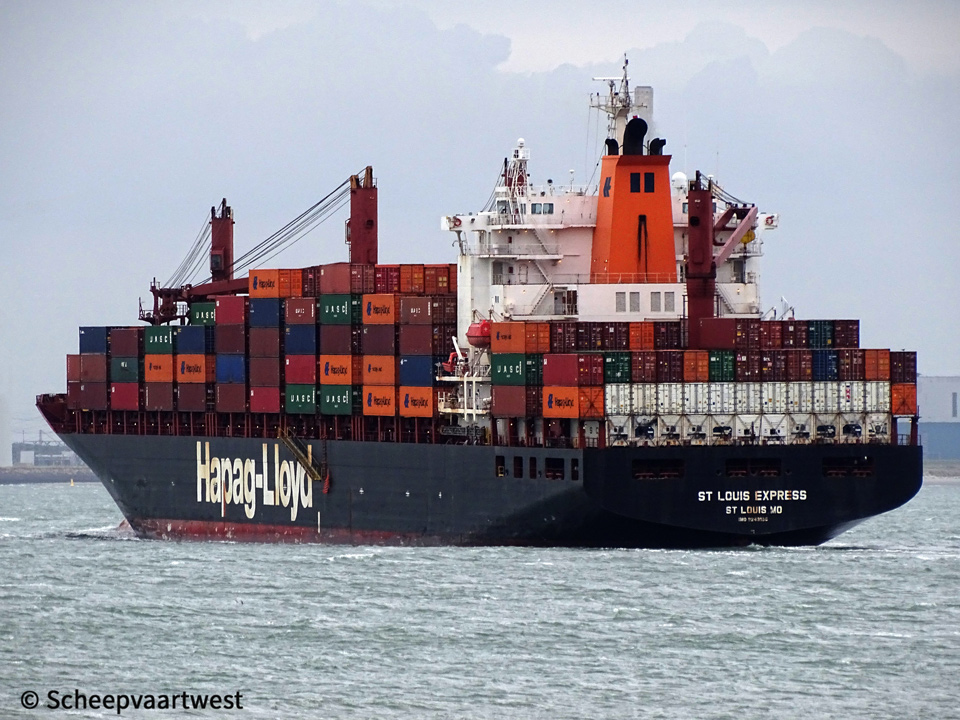

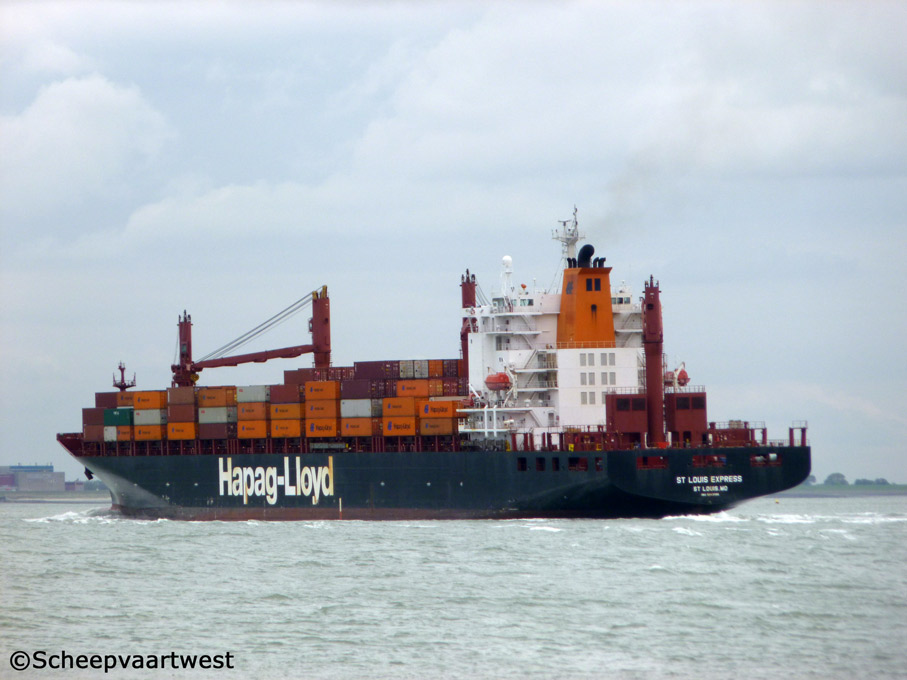

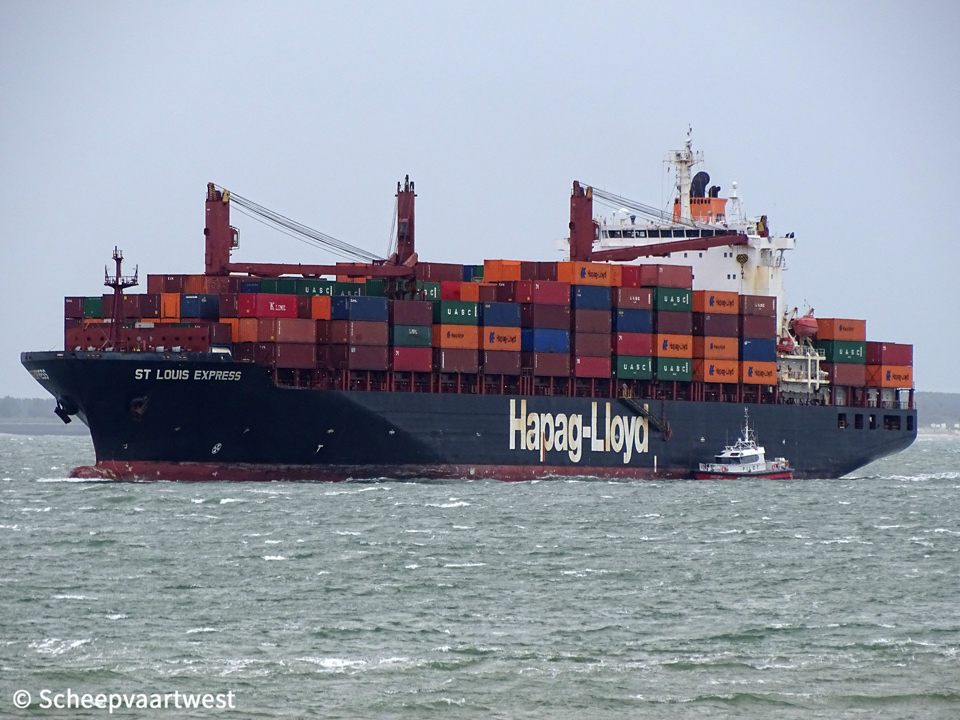

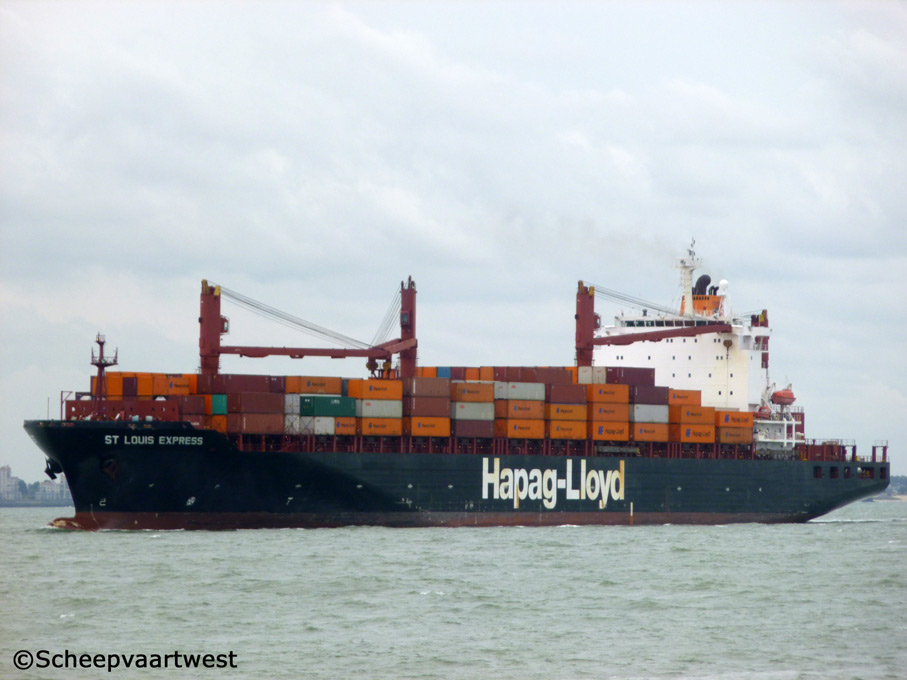

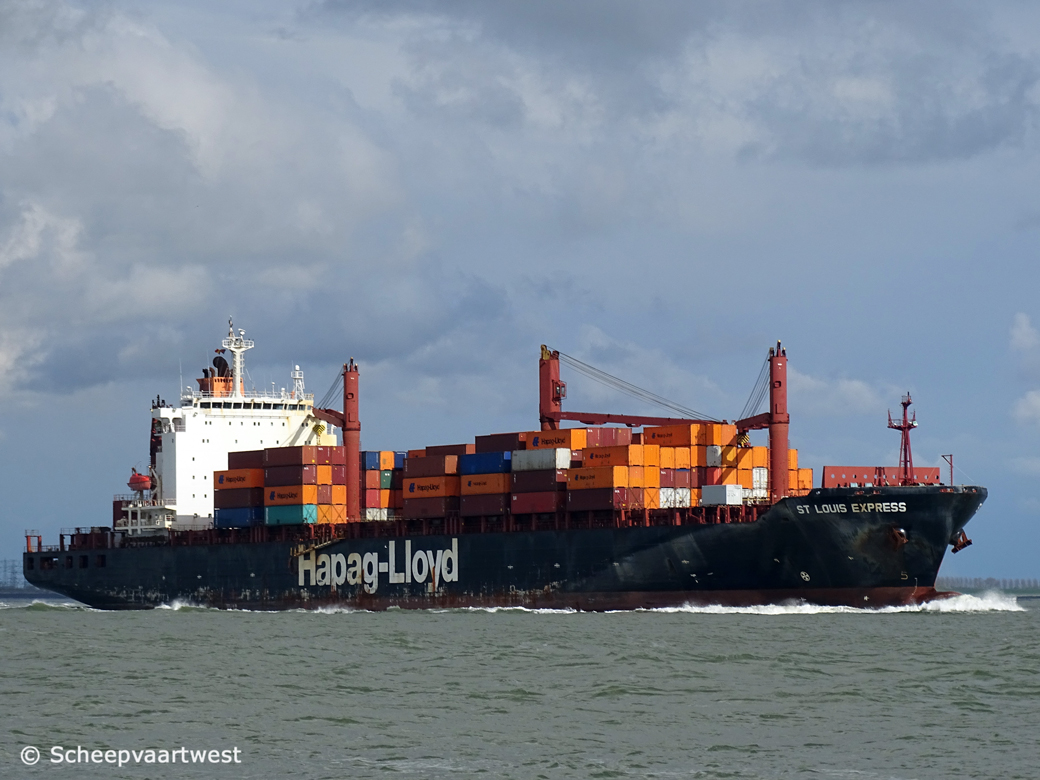

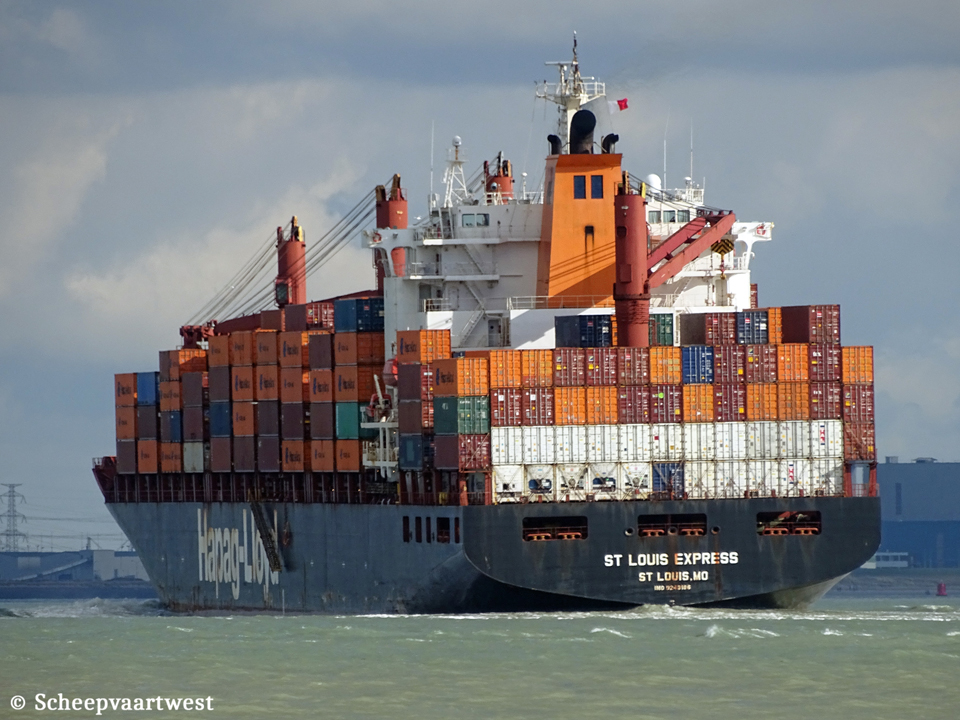

ST LOUIS EXPRESS |
|
Previous names |
2002 - 2003 TMM Guanajuato 2003 - 2006 CP Yellowstone |
|
Type |
Fully self sustained cellular container vessel - Carriage of dangerous goods |
|
IMO-number |
9243186 |
|
Call sign |
WDD3825 |
|
Flag |
United States of America |
|
Port of registry |
St. Louis, MO |
|
Previous flag |
2002 - 2006 United Kingdom |
|
Previous port of registry |
London |
|
GT |
40.146 t Suez: 41.492,55 t |
|
DWT |
Summer: 40.478 t |
|
NT |
18.096 t Panama: 34.934,33 t Suez: 35.580,14 t |
|
Displacement |
56.206 t |
|
Number of 20ft containers |
On deck: 1.420 In hold: 1.817 Total: 3.237 |
|
Number of 40ft containers |
On deck: 692 + 36 TEU In hold: 881 + 59 TEU Total: 1.573 + 95 TEU |
|
Container capacity at 14t |
2.370 |
|
Reefer capacity |
On deck: 282 In hold: 118 Total: 400 |
|
Length |
243,35 m overall 232,40 m between perpendiculars |
|
Breadth |
32,30 m overall 32,20 m moulded |
|
Draught |
Summer: 11,0 m |
|
Freeboard |
8.544 mm |
|
Depth |
19,50 m moulded |
|
Speed |
Max.: 22,5 knots |
|
Built |
2002 |
|
Keel laid |
05/02/2002 |
|
Launch date |
25/06/2002 |
|
Delivery date |
26/11/2002 |
|
Builder |
China Shipbuilding Corp. (CSBC) Kaohsiung Shipyard 3 Chung Kang Road Hsiao Kang Keelung, 813 Taiwan China |
|
Yard number |
792 |
|
Hull type |
Single hull |
|
Bulkheads |
Non tight: 5 Water tight: 41 Gas tight: 1 Oil tight: 38 |
|
Main engine |
1x MAN-B&W 8K80MC-C - 8 cylinder 800 x 2.300 mm combustion engine 29.243 kW at 104,0 rpm Manufacturer: HSD Engine Co. Ltd. |
|
Propeller |
1x Fixed propeller Manufacturer: Hyundai Heavy Ind. Co., Ltd. |
|
Boiler |
1x Auxiliary composite boiler - 7,0 bar Total heating surface: 813 m² Manufacturer: Kangrim Industries |
|
Generators |
3x MAN-B&W 8L27/38 main 8 cylinder 270 x 300 mm diesel each 2.435 kW at 720 rpm coupled with 3 generator each 2.280 kW |
|
Bow thruster |
1.700 kW |
|
Number of holds |
6 |
|
Hatch type |
Pontoon |
|
Number of tanks |
Ballast: 23 Fuel oil: 14 Lubricating oil: 8 Fresh water: 3 Diesel oil: 3 Sludge: 2 Waste water: 1 |
|
Tank capacities |
Diesel oil: 222,64 m³ Fresh water: 487,32 m³ Fuel oil: 4.205,39 m³ Lube oil: 324,86 m3 Ballast: 15.167,30 m³ |
|
Cargo gear |
4x Deck cranes - SWL 45,0 t each |
|
Lifting equipment |
1x Engine room overhead crane - SWL 7,0 t |
|
Manager |
Marine Transport Management Jacksonville FL U.S.A. |
|
Operator |
Hapag-Lloyd |
|
Owner |
Marine Transport Management Inc. 9487 Regency Square BLVD Acksonville, FL, 32225 United States |
|
Registered Owner |
Hapag-Lloyd USA LLC |
|
Renamed |
08/2021 Antibes Express Liberia, Monrovia - Call sign: 5LCA5 Owner: Antibes Marine LLC |
|
Latest data adjustment |
10 December 2022 |
