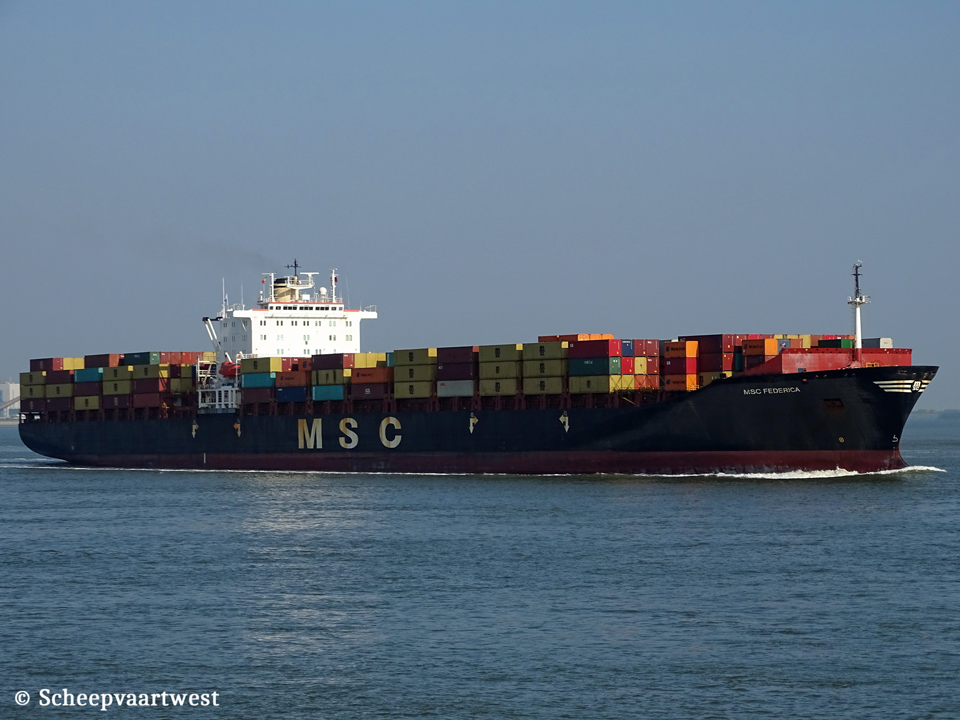

MSC Federica IMO 8715869 05

Westerschelde 15 April 2019

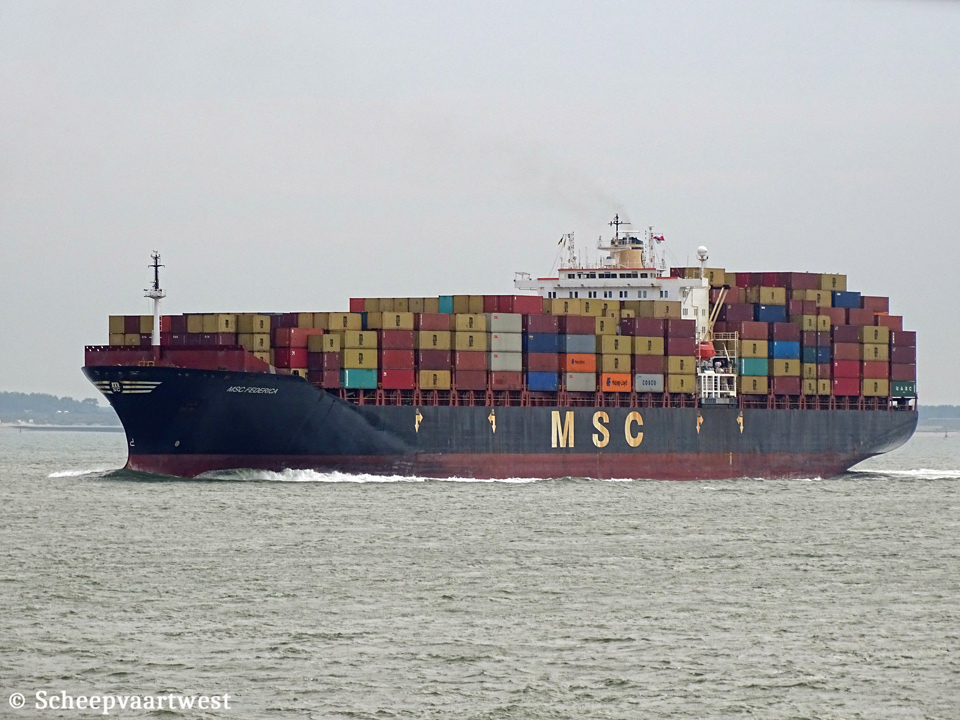

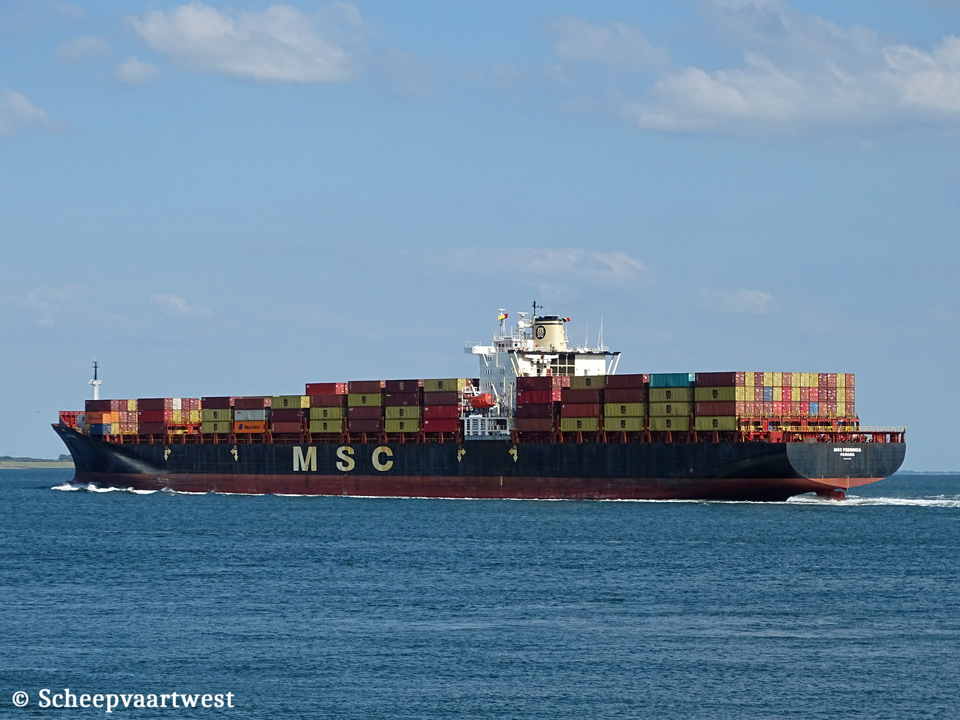

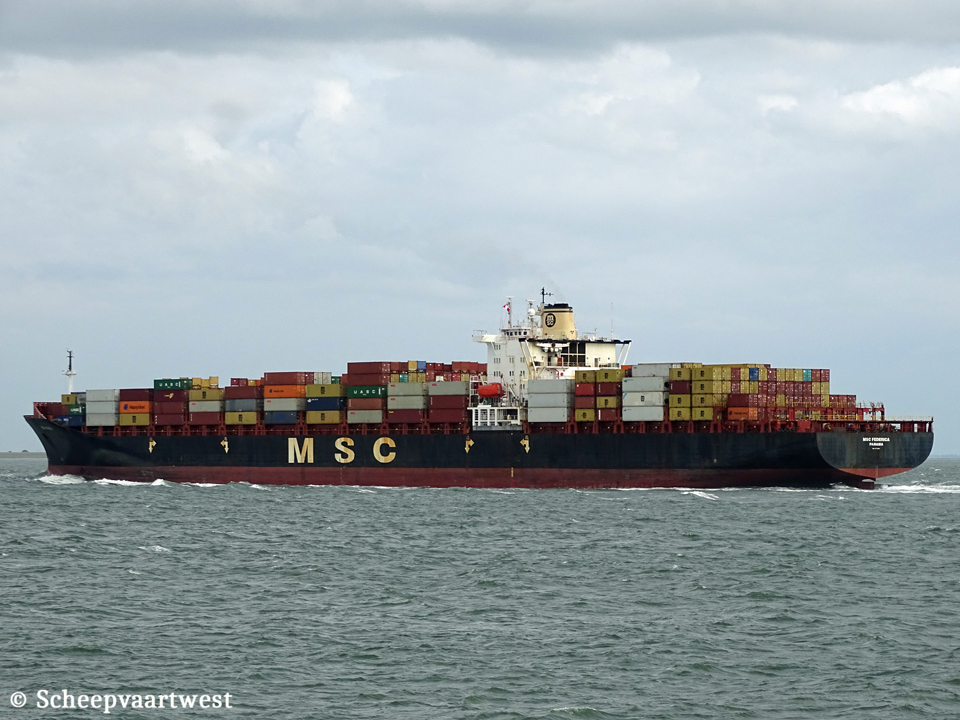

MSC Federica IMO 8715869 01   MSC Federica IMO 8715869 02   MSC Federica IMO 8715869 03   MSC Federica IMO 8715869 04
Westerschelde 28/08/19 Westerschelde 28/08/19 Westerschelde 03/07/19 Westerschelde 31/07/19









Name

MSC FEDERICA

Previous names

1990 - 02/2011 Marie Maersk

Type

Cellular containership - Panamax

IMO-number

8715869

Call sign

HPQE

Flag

Republic of Panama

Port of registry

Panama City

Previous flags

1990 - 02/2011 Denmark - Call sign: OULL2

GT

52.181 t

DWT

Summer: 67.183 t

NT

26.340 t

Number of 20ft containers

4.437

Container capacity 14t

3.212

Reefer capacity

500

Length

294,12 m overall

284,72 m between perpendiculars

Breadth

32,22 m extreme

Draught

Summer: 14,35 m

Depth

21,50 m

Speed

Max: 24,0 knots

Built

1990

Keel laid

22/01/1990

Launch date

08/06/1990

Date of completion

22/09/1990

Builder

Odense Staalskibsvaerft A/S

Odense

Denmark

Yard number

127

Hull material

Shipbuilding steel (standard)

Hull type

Double Bottom, continuous from peak to peak bulkhead

Watertight bulkheads

10

Continuous decks

1

Main engine

1x MAN-B&W 12K90MC Mk III - 2 stroke 12 cylinder 900 x 2.550 mm combustion engine 42.425 kW at 90,0 rpm

Propellers

1x Solid propeller (keyless) - aft at 90,0 rpm

Boilers

1x Auxiliary boiler, exhaust gas heated

2x Auxiliary boiler, oil/gas fired

Shaft generator

1x 4.700 kVA

Generators

3x MAN-B&W 8L8/32A main diesel generatorsets each 2.000 kVA

1x Turbo generator 3.920 kW

Emergency & harbour gen.

1x Caterpillar 3512 DITA diesel generatorset 1.337,5 kVA

Compressed air receivers

2x Receivers each 15.500 litres - 30,0 bar

1x Receiver 400 litres - 30,0 bar

1x Receiver 2.000 litres - 10,0 bar

1x Receiver 500 litres - 10,0 bar

Bow thruster

1x 1.500 kW, forward

1x 890 kW, aft

Number of holds

9

Tank capacities

Ballast: 21.586,2 m³

Anchor equipment

3x Anchors weight each 12.300 kg

Chain length: 687,50 m

Diameter: 87 mm

Commercial manager

MSC Mediterranean Shipping Co.

chemin Rieu, 12-14

1208 Geneva

Switzerland

ISM manager

MSC Shipmanagement Limited

MSC House

8, Spyrou Kyprianou Avenue

Limassol

Cyprus

Registered owner

Companiera Naviera Federica International S.A.

Care of MSC Mediterranean Shipping Co SA

chemin Rieu, 12-14

1208 Geneva

Switzerland

Latest data adjustment

18 February 2022
