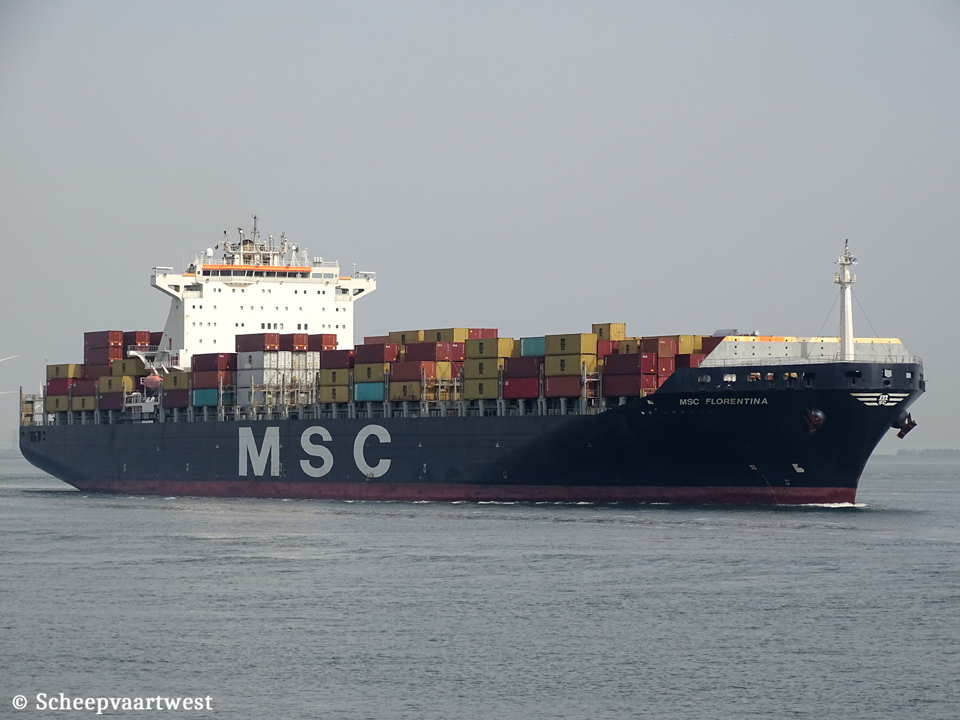

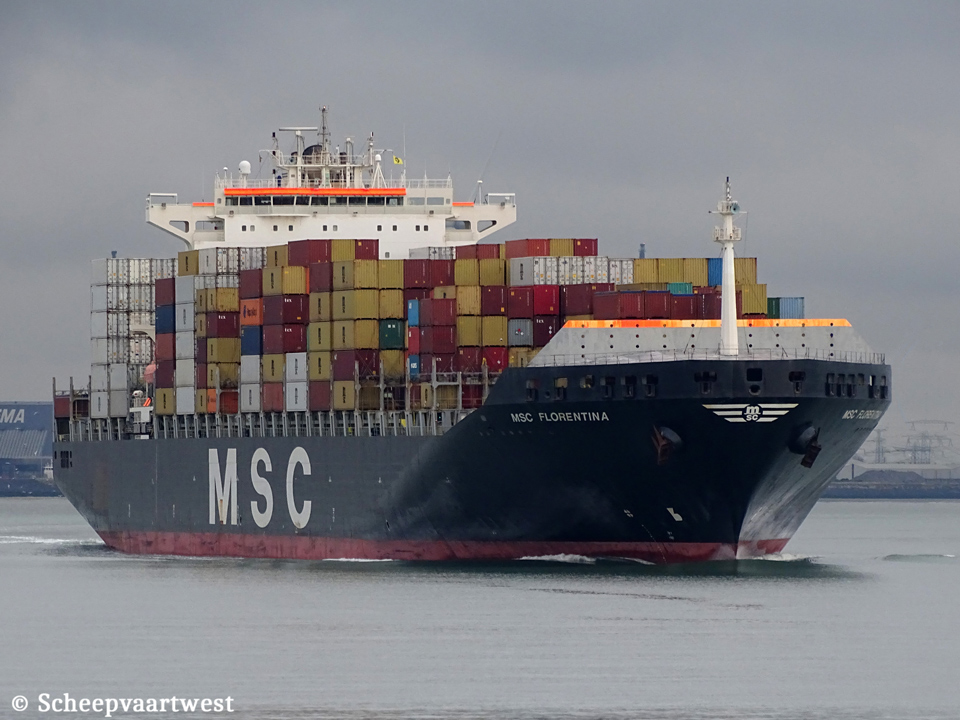

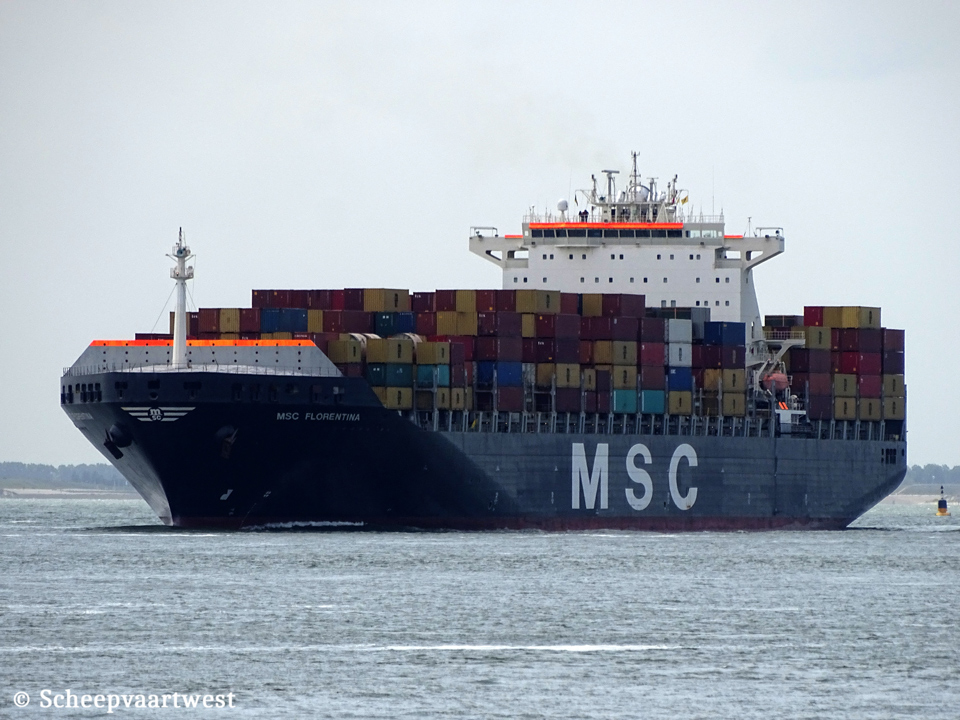

Westerschelde 03 November 2019 |
 |
 |
|
| Westerschelde 03/06/19 | Westerschelde 08/05/20 |
|
Name |
MSC FLORENTINA |
|
Type |
Cellular containership |
|
IMO-number |
9251705 |
|
Call sign |
HPFH |
|
Flag |
Republic of panama |
|
Port of registry |
Panama City |
|
GT |
75.590 t |
|
DWT |
Summer: 85.832 t |
|
NT |
42.233 t |
|
Number of 20ft containers |
6.750 |
|
Container capacity 14t |
5.150 |
|
Reefer capacity |
400 |
|
Length |
299,99 m overall 286,56 m between perpendiculars |
|
Breadth |
40,00 m extreme |
|
Draught |
Summer: 14,50 m |
|
Keel to mast end |
60,63 m |
|
Depth |
24,20 m moulded |
|
Speed |
Max: 25,6 knots |
|
Built |
2003 |
|
Keel laid |
10/02/2003 |
|
Launch date |
26/04/2003 |
|
Date of completion |
26/06/2003 |
|
Builder |
Daewoo Shipbuilding & Marine Engineering Co., Ltd. Okpo Shipyard 3370, Geoje-daero Geoje-si, Kyongsang-namdo Republic of Korea |
|
Yard number |
4087 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
9 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W 10K98MC-C - 2 stroke single acting 10 cylinder 980 x 2.400 mm diesel engine - 57.100 kW / 77.633 hp at 104, rpm Year of manufacture: 2001 Manufacturer: Doosan Engine Co., Ltd. 69 Sinchon-dong Changwon, Kyungnam 641-370 Republic of Korea |
|
Propellers |
1x Fixed pitch propeller - aft at 104,0 rpm |
|
Boilers |
Steam boiler, oil fired - 9,8 bar Heating surface: 137,8 m² Steam boiler, exhaust gas heated - 9,8 bar Heating surface: 842,7 m² Year of manufacture: 2001 Manufacturer: KangRim Heavy Industries Co., Ltd. (1st Factory) 505, Sinpyung-dong, Saha-gu Busan, Kyongsang-namdo Republic of Korea |
|
Electric installations |
4x Plants each 440/220 V - 2.625 kVA 1x Plant 440 V - 688 kVA |
|
Generators |
4x Wärtsilä 6R32LND main diesel generatorsets each 2.625 kVA / 2.100 kW |
|
Emergency generator |
1x Cummins VTA28 DM diesel generatorset 688 kVA |
|
Compressed air receivers |
2x Receivers each 22.000 litres - 30,0 bar 1x Receiver 200 litres - 30,0 bar 1x Receiver 125 litres - 30,0 bar |
|
Bow thruster |
1x 2.000 kW |
|
Number of holds |
7 |
|
Tank capacities |
Ballast: 20.694,1 m³ |
|
Anchor equipment |
3x Anchors weight each 16.900 kg Length: 752,10 m Diameter: 100 mm |
|
Cargo gear |
Gearless |
|
ISM & commercial manager |
Mediterranean Shipping Company S.r.l. Via Francesco Ciampa 29 80063 Piano di Sorrento Napoli Italy |
|
Registered owner |
Xiang L14 HK International Ship Lease Co. Limited Care of MSC Mediterranean Shipping Co SA chemin Rieu, 12-14 1208 Geneva Switzerland |
|
Latest data adjustment |
07 July 2022 |
