Pucon 02

Westerschelde 07 July 2014

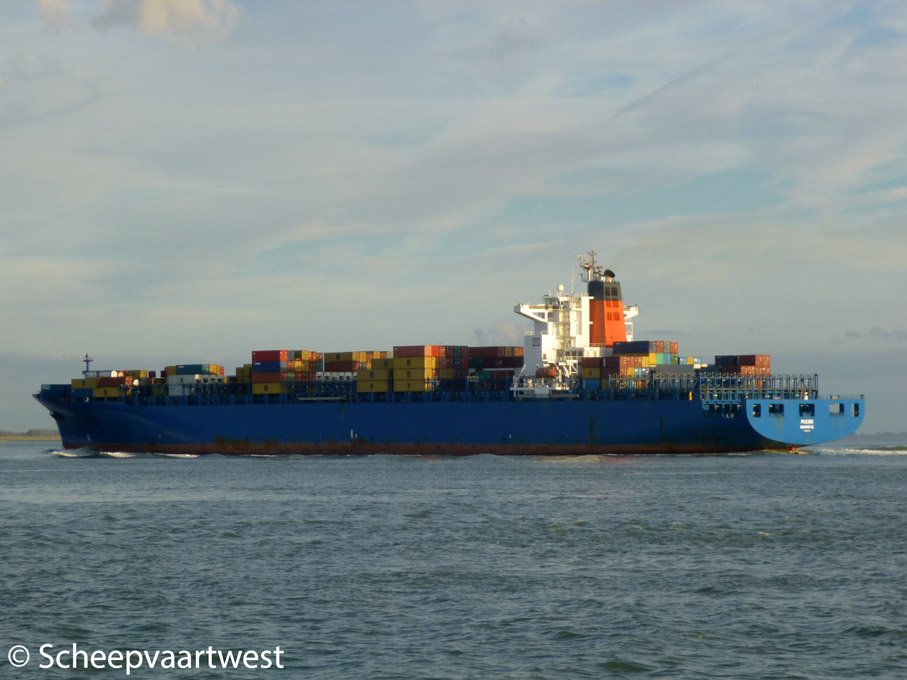

Pucon 01
06/10/12



Name

PUCON

Type

Post-Panamax cellular containership

IMO-number

9306158

Call sign

V7CB7

Flag

Marshall Island

Port of registry

Majuro

Previous flags

Liberia, Monrovia - Call sign: A8JW3

GT

73.934 t

DWT

81.099 t

NT

42.246 t

Number of 20ft containers

6.539

Container capacity 14t

4.840

Reefer capacity

600

Length

304,10 m overall

292,00 m between perpendiculars

293,47 m registered

Breadth

40,00 m registered

Draught

14,00 m

Forecastle

146,73 m

Bridge

135,54 m

Freeboard

6.159 mm

Depth

20,14 m

Speed

25,5 knots

Built

2006

Keel laid

18.04.2006

Launch date

23.06.2006

Date of completion

11.08.2006

Builder

Hyundai Heavy Ind. Co., Ltd.
1, Cheonha-dong, Dong-gu
Ulsan ,682-792 Kyongsang-namdo
Republic of Korea

Yard number

H1682

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

10

Continuous decks

2

Main engine

1x MAN-B&W 10K98ME-C - 2 stroke 10 cylinder 980 x 2.400 mm diesel engine - 60.200 kW / 81.793 hp at 104,0 rpm

Year of manufacture: 2006

Manufacturer: Hyundai Heavy Industries Co., Ltd.
1, Jeonha-dong, Dong-gu
Ulsan ,682-792 Kyongsang-namdo
Republic of Korea

Propellers

1x Solid propeller (keyless) - aft at 104,0 rpm

Boilers

1x Steam boiler, oil fired - 7,85 bar

Heating surface: 66,0 m²

1x Steam boiler, exhaust gas heated - 12,0 bar

Heating surface: 766,0 m²

Year of manufacture: 2006

Manufacturer: KangRim Industries Co., Ltd. (3rd Factory)
40, Wongnam-dong
Changwon
Republic of Korea

Electric installation

4x Plants each 450/230 V - 2.926,6 kVA

1x Plant 450 V - 313 kVA

1x Plant 24 V - 65 Ah

1x Plant 24 V - 92 Ah

1x Plant 24 V - 200 Ah

1x Plant 24 V - 215 Ah

1x Plant 24 V - 300 Ah

Generators

4x MAN-B&W 7L27/38 diesel generatorsets each 2.744 kVA - 2.195 kW - 3.139 hp

Emergency generator

1x Diesel generatorset 313 kVA - 250 kW - 345 hp

Batteries

1x Battery for start auxiliary engine 215 Ah

1x Battery for UPS radio 200 Ah

1x Battery for diesel control 92 Ah

2x Batteries for Automation each 65 Ah

Compressed air receivers

2x Receivers each 14.000 litres - 32,4 bar

1x Receiver 250 litres - 32,4 bar

1x Receiver 250 litres - 7,7 bar

1x Receiver 2.000 litres - 7,6 bar

Bow thruster

1x Transverse thruster - 2500 kW, forward

Fuel capacity

9.126,2 m³

Anchor equipment

3x Anchors weight each 16.100 kg

Chain length: 742,50 m

Handling gear

None

Manager

Unitized Ocean Transport
Pendelis 18
Palaio Faliro
Athens
Greece

Previous manager

Southern Shipmanagement (Chile) Ltda.
Blanco 937 4th Floor, Tecnopacifico Building
Valparaiso
Chile

Registered owner

Oruk Shipping Co., Inc.

Marshall Islands

Previous owner

Paine Shipping Ltd.
Trust Company Complex Ajeltake Road
96960 Majuro
Republic of the Marshall Islands

Latest data adjustment

07 January 2015
