Westerschelde 04 October 2018 |
|
Name |

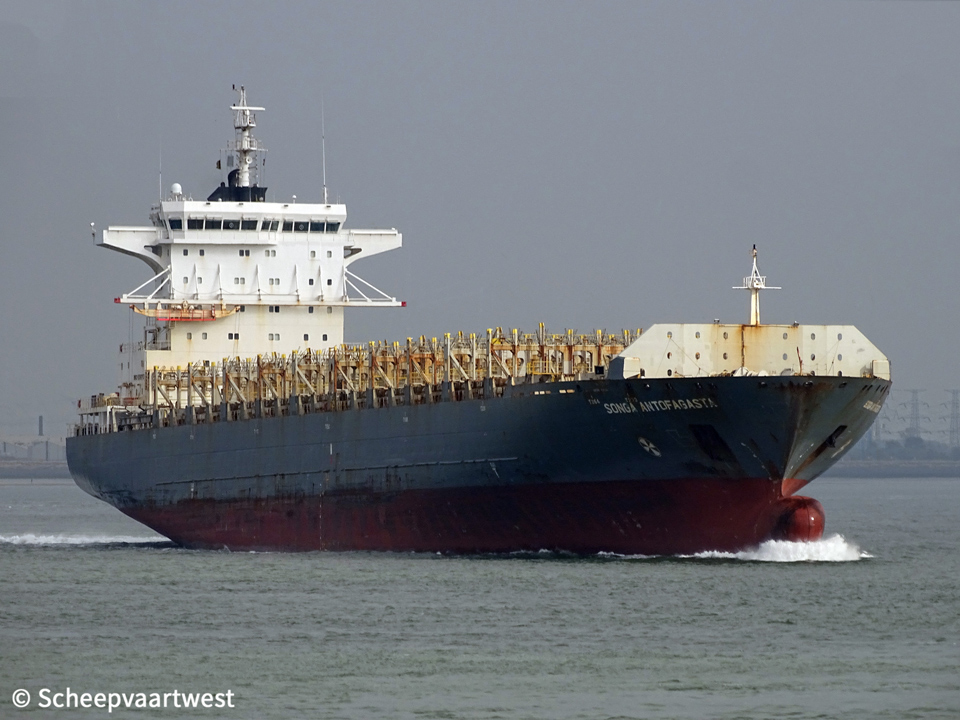

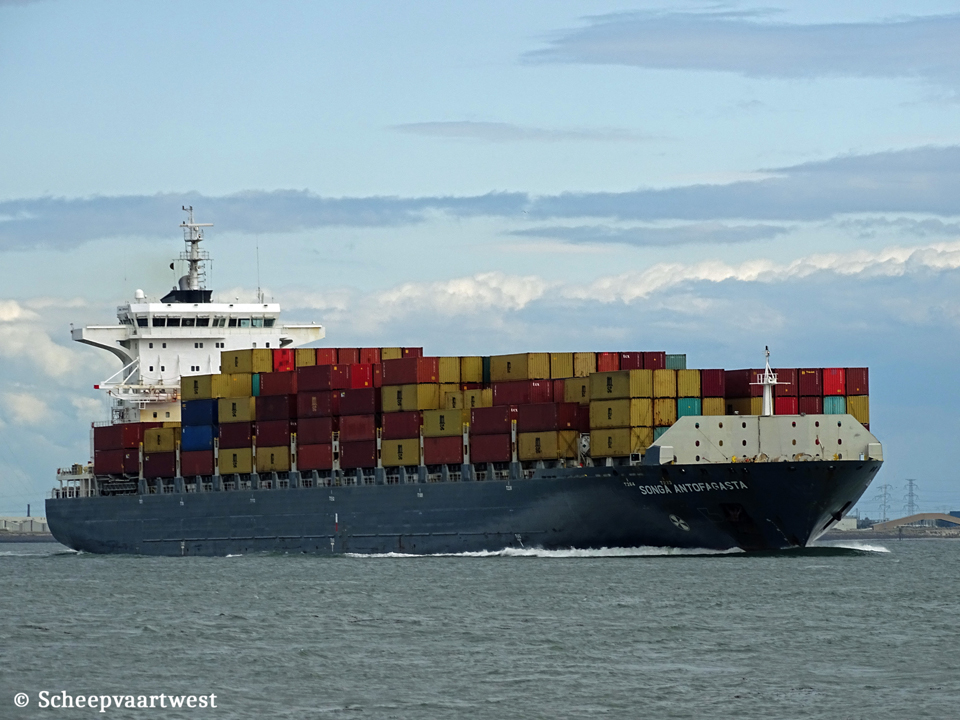

SONGA ANTOFAGASTA |
|
Previous names |
2008 Build as: Antofagasta Maersk Jennings Hammonia Antofagasta CMA CGM Pointe Marin |
|
Type |
Cellular containership |
|
IMO-number |
9399753 |
|
Call sign |
A8OU5 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
32.901 t |
|
DWT |
Summer: 35.534 t |
|
NT |
13.452 t |
|
Number of 20ft containers |
In hold: 1.301 On deck: 1.595 Total: 2.896 |
|
Container capacity 14t |
2.150 |
|
Reefer capacity |
746 |
|
Length |
222,20 m overall |
|
Breadth |
31,00 m |
|
Draught |
Summer: 12,20 m |
|
Reg. dimensions L x B x D |
216,81 x 31,00 x 19,70 m |
|
Rule dimensions L x B x D |
212,50 x 31,00 x 19,70 m |
|
Freeboard |
4.816 mm |
|
Depth |
19,70 m |
|
Speed |
Max: 22,2 knots |
|
Built |
2008 |
|
Keel laid |
12/04/2006 |
|
Launch date |
08/11/2007 |
|
Date of completion |
12/03/2008 |
|
Builder |
Yangfan Group Co., Ltd. Zhoushan China |
|
Yard number |
2049 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
8 |
|
Continuous decks |
2 |
|
Main engine |
1x Dalian/MAN-B&W 7L70MC-C - 2 stroke single acting 7 cylinder 700 x 2.360 mm combustion engine 22.890 kW at 108,0 rpm Build: 07/2007 Manufacturer: Dalian Marine Diesel Co., Ltd. |
|
Propellers |
1x Solid propeller (keyless) - aft at 108,0 rpm |
|
Boilers |
1x Steam boiler, oil fired / exhaust gas heated - 10,0 bar Heating surface :22,3 m² Heating surface: 403,0 m² Build: 04/2007 Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd. |
|
Electric installations |
1x Plant 450 V - 2140 kW 1x Plant 450 V - 2140 kW 1x Plant 450 V - 2140 kW 1x Plant 450 V - 2140 kW 1x Plant 450 V - 250 kVA |
|
Generators |
4x Yanmar 6EY26L main diesel generatorsets each 2.140 kW |
|
Emergency generator |
1x Diesel generatorset 250 kVA |
|
Compressed air receivers |
2x Receivers each 8.000 litres - 33,0 bar 1x Receiver 500 litres - 33,0 bar 1x Receiver 1500 litres - 10,0 bar |
|
Bow thruster |
1x Transverse thruster 1.300 kW, forward |
|
Number of holds |
6 |
|
Number of hatches |
11 |
|
Tank capacities |
Fuel oil: 3.065,3 m³ Fresh water: 458,9 m³ Water ballast: 15.584,2 m³ |
|
Anchor equipment |
3x Anchors weight each 9.900 kg Chain Length: 660,00 m |
|
Cargo gear |
Gearless |
|
Crew size |
23 |
|
Manager |
Hartmann Dry Cargo Germany GmbH & Co. KG Königstraße 23, 26789 Leer Germany |
|
Technical manager |
Hartmann Dry Cargo Germany GmbH & Co. KG |
|
Registered owner |
Songa Antofagasta AS |
|
Latest data adjustment |
07 October 2020 |
