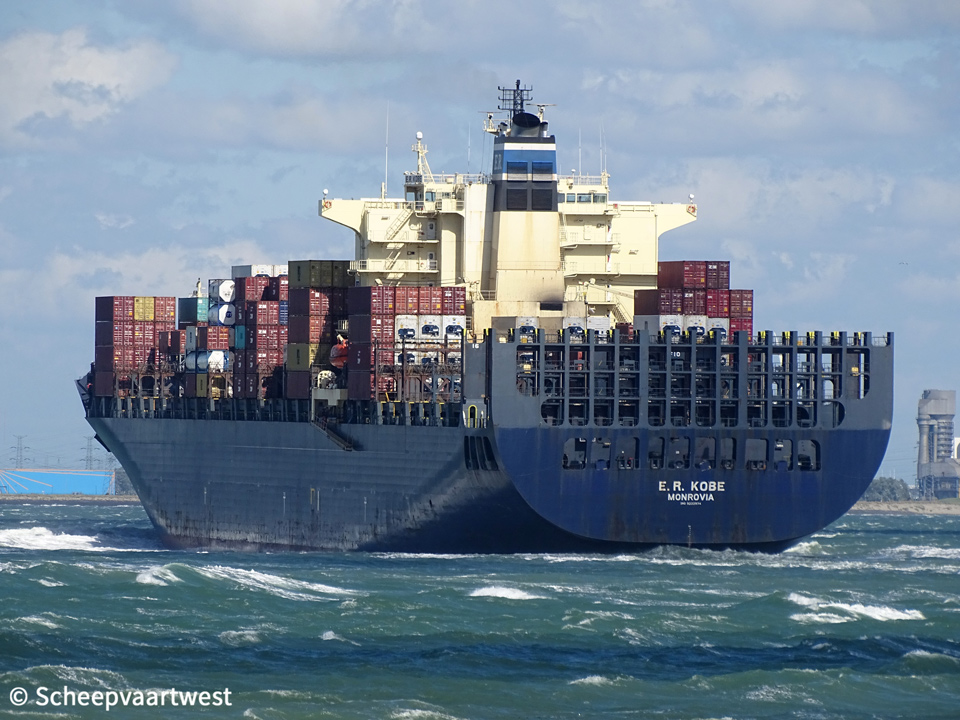

E.R. Kobe 01

Westerschelde 05 July 2020

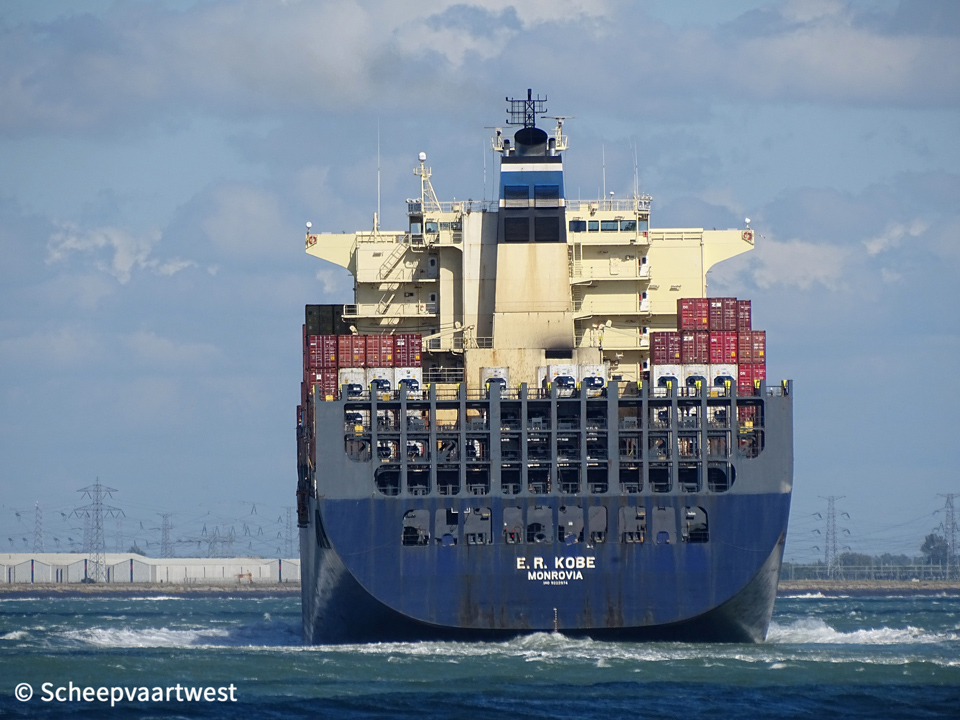

E.R. Kobe 02
Westerschelde 05/07/20













Name

E.R. KOBE

Previous names

Build as: E.R. Kobe

06/2001 - 03/2011 CSCL Kobe

03/2001 - 09/2011 E.R. Kobe

09/2011 - 2015 Saupe Express

Type

Cellular containership - Post-Panamax

IMO-number

9222974

Classification

DNV GL

Call sign

A8AW2

Flag

Liberia

Port of registry

Monrovia

GT

66.058 t

DWT

68.196 t

NT

34.043 t

Number of 20ft containers

In hold: 2.602

On deck: 3.160

Total: 5.762

Number of 40ft containers

4.185

Container capacity 14t

656

Length

277,22 m overall

263,00 m between perpendiculars

263,15 m registered

Breadth

40,00 m over all

Draught

Summer: 14,00 m

Forecastle

255,25 m

Poop

7,90 m

Freeboard

10.300 mm

Depth

20,23 m

Speed

24,9 knots

Built

2001

Keel laid

02/01/2001

Launch date

10/03/2011

Date of completion

15/06/2001

Builder

Samsung Heavy Industries Co., Ltd.

Goeje Shipyard

530, Jangpyeong-ri, Sinhyeon-eup

Geoje , Gyeongsangnam-do 656-710

Republic of Korea

Yard number

1350

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double hull

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

9

Continuous decks

2

Main engine

1x MAN-B&W 12K90 MC - 2 stroke single acting 12 cylinder 900 x 2.550 mm combustion engine 54.898 kW / 74.639 bhp at 94,0 rpm

Year of manufacture: 2001

Manufacturer: HSD Engine Pusan

69 Sinchon-dong

Changwon, Kyungnam 641-370

Republic of Korea

Propellers

1x Fixed pitch propeller - aft at 94,0 rpm

Boilers

1x Steam boiler, oil fired - 9,8 bar

Heating surface: 55,0 m²

Year of manufacture: 2000

1x Steam boiler, exhaust gas heated - 9,8 bar

Heating surface: 1.026,0 m²

Year of manufacture: 2001

Manufacturer: Boiler Manufacturer KangRim Ind. Co., Ltd. (1st Factory)

505, Sinpyung-dong, Saha-gu

Busan

Republic of Korea

Electric installations

1x 440/220 V - 11.000 kVA

1x 440 V - 188 kVA

1x 24 V - 200 Ah

Generators

4x MAN-B&W 8L27/38 main diesel generatorsets each 2.300 kW connected with generators 2.200 kW

Emergency generator

1x Cummins NT743G diesel generatorset 188 kVA

Batteries

1x Battery for UPS Radio - 200 Ah

Compressed air receivers

2x Receivers, each 16.000 litres - 27,5 bar

1x Receiver 300 litres - 27,5 bar

1x Receiver 150 litres - 27,5 bar

1x Receiver 300 litres - 7,7 bar

Bow thruster

1x Controllable pitch transverse thruster - 2.000 kW / 2.719 bhp, forward

Number of holds

8

Number of hatches

15

Tank capacities

Ballast: 15.061 m³

Fuel oil: 8.737 m³

Anchor equipment

3x Anchors weight each 15.400 kg

Chain length: 742,50 m

Diameter: 97 mm

Cargo gear

Gearless

Crew size

22

Manager

ZEABORN Ship Management GmbH & Cie. KG

Ludwig-Erhard-Strasse 22

20459 Hamburg

Germany

ISM manager

ZEABORN Ship Management GmbH & Cie. KG

Operator

ER Kobe Beteiligungs

Registered owner

Sixth Dragon Shipping, Inc

Latest data adjustment

08 September 2020
