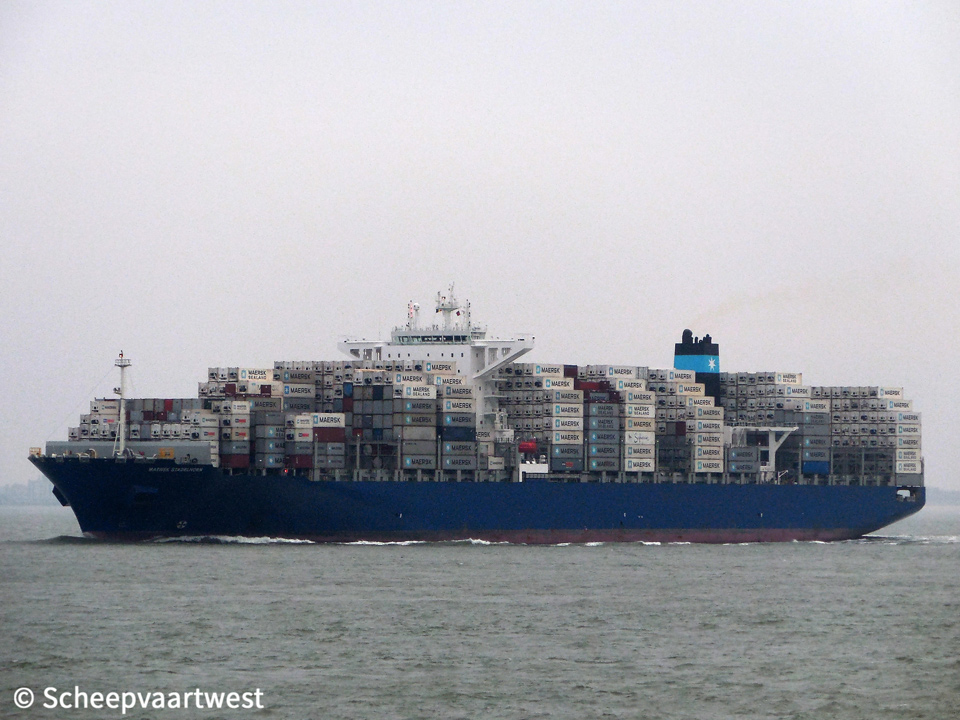

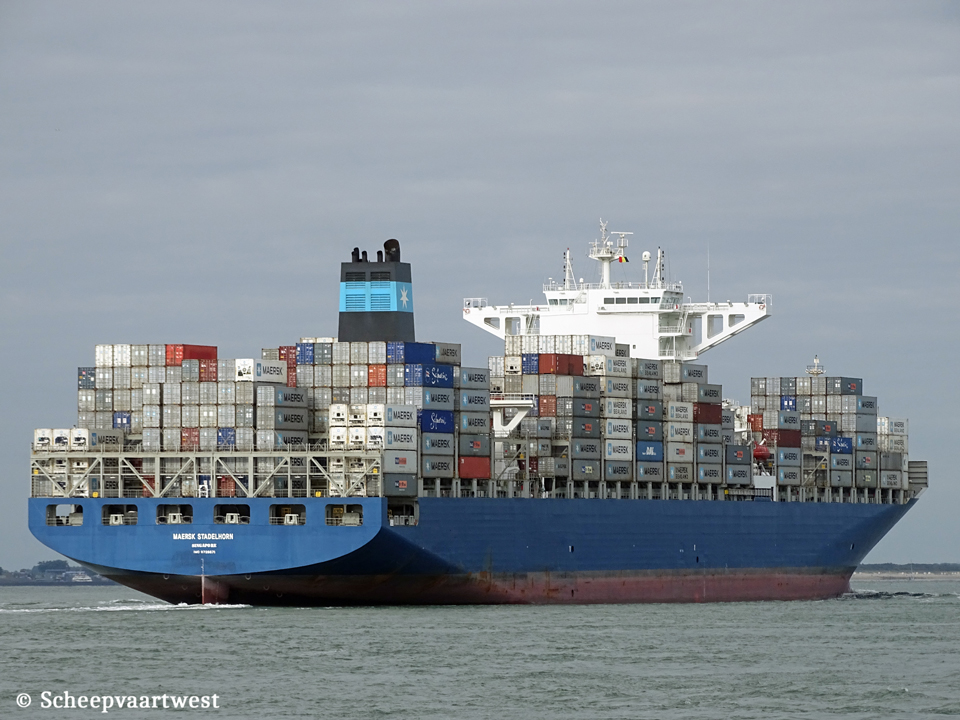

Maersk Stadelhorn 01

Westerschelde 16 November 2016



Name

MAERSK STADELHORN

Type

Cellular containership - Panamax

IMO-number

9726671

Call sign

9V5223

Flag

Republic of Singapore

Port of registry

Singapore City

Previous flags

2015 - 2016 Marshall Islands, Majuro - Call sign: V7PB9

GT

94.730 t

DWT

Summer: 111.172,4 t

NT

52.150 t

Displacement

148.984 t

Number of 20ft containers

9.962

Container capacity 14t

7.446

Reefer capacity

1.400

Length

299,92 m overall

287,00 between perpendiculars

Breadth

48,20 m moulded

Draught

Max: 14,5 knots

Freeboard

5.256 mm

Depth

24,80 m moulded

Speed

Max: 22,0 knots

Built

2015

Keel laid

04/05/2015

Launch date

27/08/2015

Selivery date

30/11/2015

Builder

Hyundai Heavy Ind. Co., Ltd.

1000 Bangeojinsunhwan-Doro

Dong-Gu

Ulsan

South Korea

Yard number

2689

Hull material

Steel

Continuous decks

1

Main engine

1x HHI/MAN-B&W 9S90ME-C 9.2 - 2 stroke single acting 9 cylinder 900 x 3.260 mm combustion engine 41.480 kW / 56.396 hp at 82,3 rpm

Manufacturer: HHI Engine & Machinery Div.- Spouth Korea

Propellers

1x Fixed pitch propeller at 82,3 rpm

Manufacturer: HHI Engine & Machinery Div.

Boilers

1x Exhaust gas boiler - 11,77 MPA

1x Fired boiler - 8,83 MPA

Manufacturer: Kangrim Heavy Industries Co., Ltd.

Generators

2x Main diesel generatorsets each 4.400 kW

2x Main diesel generatorsets each 3.840 kW

Manufacturer: HHI Electro Electric System

Bow thruster

1x Tunnel thruster, forward

Number of tanks

Ballast: 19

Fuel oil: 10

Lubricating oil: 7

Diesel oil: 6

Waste water: 5

Fresh water: 3

Chain: 2

Sludge: 1

Tank capacities

Lube oil: 286,0 m³

Diesel oil: 844,4 m³

Fuel oil: 7.500,3 m³

Fresh water: 606,6 m³

Ballast: 28.461,1 m³

Lifting equipment

1x Engine room crane aft - SWL 12,5 t

1x Engine room crane forward - SWL 12,5 t

1x Monorail crane - SWL 12,5 t

1x Provision crane port - SWL 4,0 t

1x Provision crane starboard - SWL 4,0 t

Manufacturer: Oriental Precision Machinery Co., Ltd.

Cargo gear

Gearless

Crew

28

Manager

Maersk

Copenhagen

Denmark

Operator

Maersk Line

Owner

Toda Shipping Pte Ltd.

250 North Bridge Road

#19-01Raffles City Tower

Singapore (179101)

Republic of Singapore

Latest data adjustment

14 August 2020
