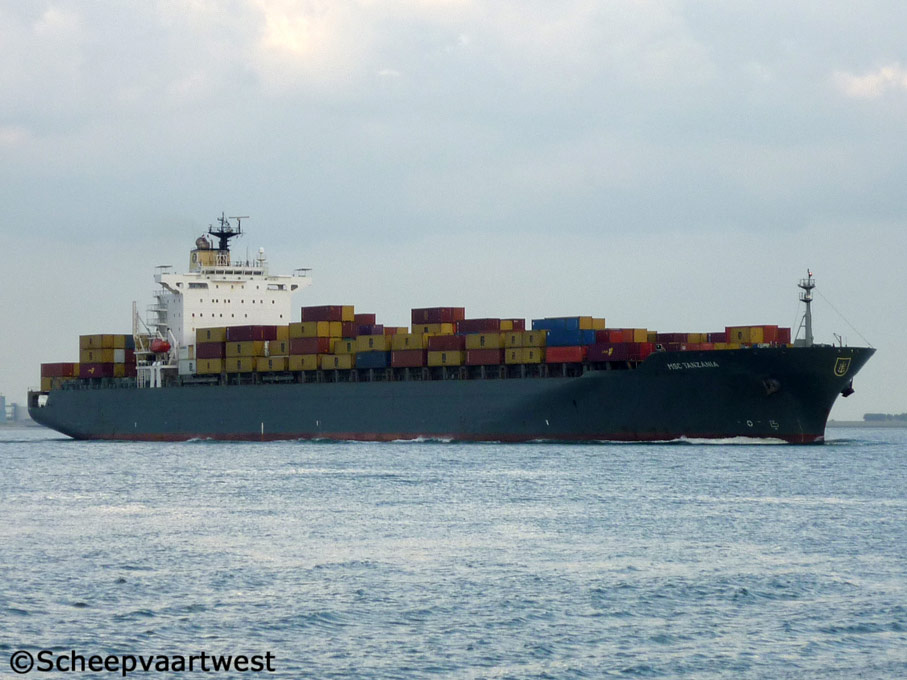

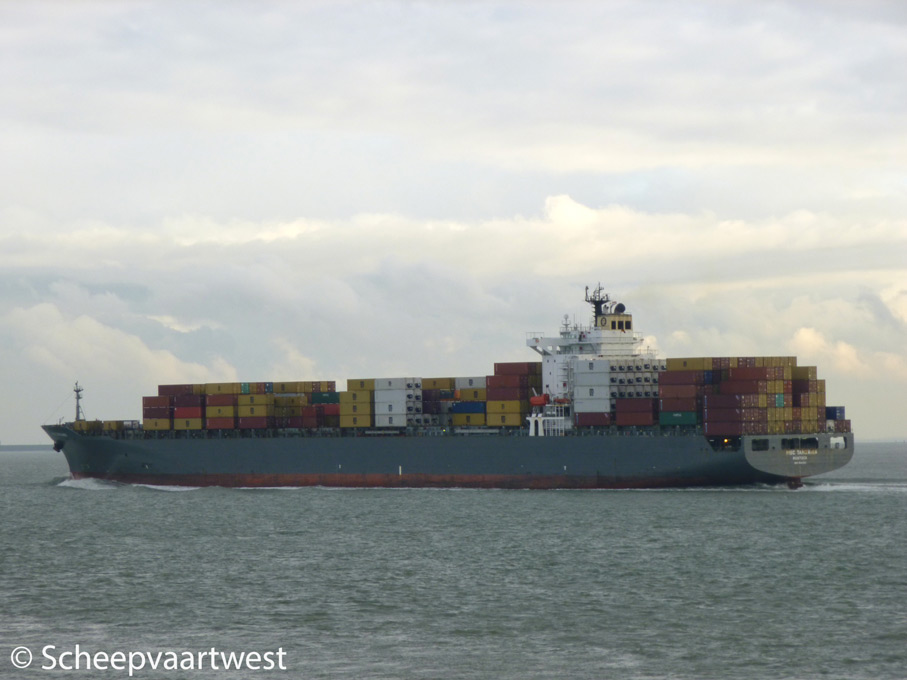

MSC Tanzania - IMO 9141261

Name

MSC TANZANIA

Previous names

1997-2007 Pudong Senator

Type

Cellular containership

IMO-number

9141261

Call sign

DQVI

Flag

Germany

Port of registry

Rostock

GT

53.324 t

DWT

63.551 t

NT

30.816 t

Number of 20ft containers

4.844

Container capacity 14t

3.361

Reefer capacity

350

Length

294,09 m overall

284,20 m registered

Breadth

32,20 m registered

Draught

13,00 m

Forecastle

13,40 m

Freeboard

4.385 mm

Depth

21,80 m moulded

Speed

23,0 knots

Built

1997

Keel laid

26.12.1996

Launch date

12.04.1997

Date of completion

06.1997

Builder

Hyundai Heavy Ind. Co., Ltd.
1, Cheonha-dong, Dong-gu
Ulsan ,682-792 Kyongsang-namdo
Republic of Korea

Yard number

1006

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

8

Continuous decks

2

Main engine

1x MAN-B&W 9K90MC-C - 2 stroke 9 cylinder diesel 900 x 2.300 mm engine - 41.040 kW at 104,0 rpm

Year of manufacture: 1997

Manufacturer: Hyundai Heavy Industries Co., Ltd.
1, Jeonha-dong, Dong-gu
Ulsan ,682-792 Kyongsang-namdo
Republic of Korea

Propellers

1x Solid propeller (keyless) - aft at 104 rpm

Boilers

1x Steam boiler, oil fired - 10,0 bar

Heating surface: 62,0 m²

1x Steam boiler, exhaustgas heated - 10,0 bar

Heating surface: 530,0 m²

Year of manufacture: 1996

Manufacturer: Howaldtswerke-Deutsche Werft GmbH
Werftstr. 112-114
24143 Kiel
Federal Republic of Germany

Electric installation

1x Plant 440/220 V - 1.725 kVA

2x Plants each 440/220 V - 1.937,5 kVA

1x Plant 440 V - 375 kVA

Generators

2x Main diesel generatorsets each 1.937,5 kVA

1x Generator 1.725 kVA

Emergency generator

1x Diesel generatorset 375 kVA

Compressed air receivers

2x Receivers each 15.000 litres - 32,3 bar

1x Receiver 250 litres - 32,3 bar

1x Receiver 350 litres - 7,7 bar

Bow thruster

1x Fixed pitch propeller KAMEWA - 1.800 kW, forward

Tank capacities

Fuel: 6.170 m³

Ballast water: 18.125 m³

Anchor equipment

3x Anchors weight each 12.900 kg

Chain length: 715,00 m

Cargo gear

Gearless

Manager

Reederei F. Laeisz GmbH Nautisch-Technische Abteilung
Lange Str. 1a
18055 Rostock
Federal Republic of Germany

Operator

MSC - Mediterranean Shipping Company S.A.

Registered owner

Beteiligungs-KG MS "PUDONG SENATOR" Schiffahrtsges. mbH & Co.
Lange Str. 1a
18055 Rostock
Federal Republic of Germany

Last update

22 May 2013
