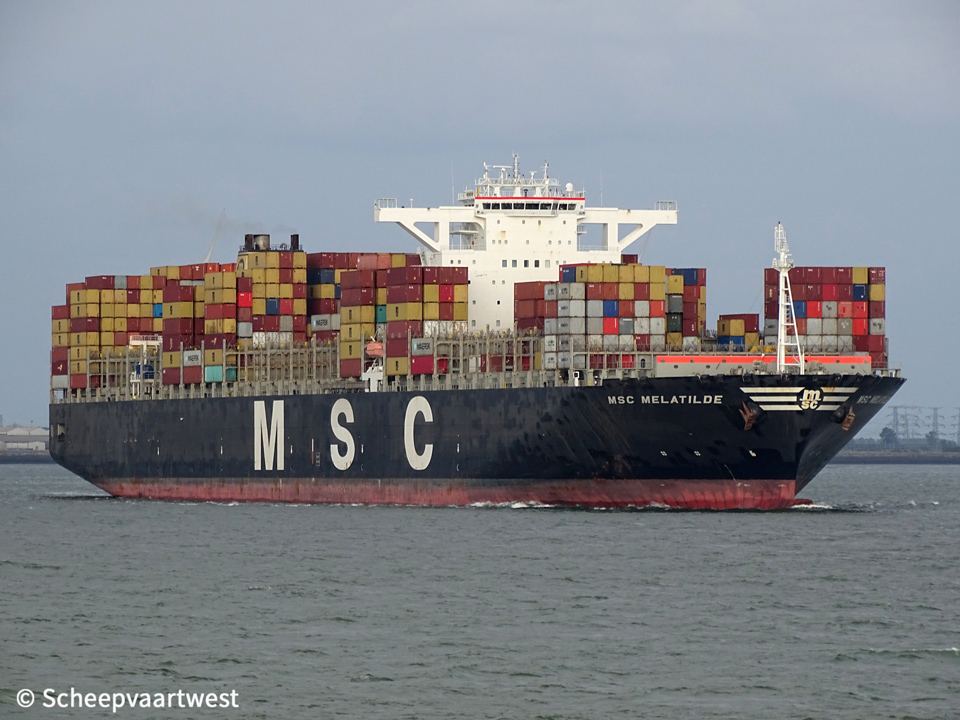

MSC Melatilde 02

Westerschelde 11 August 2019

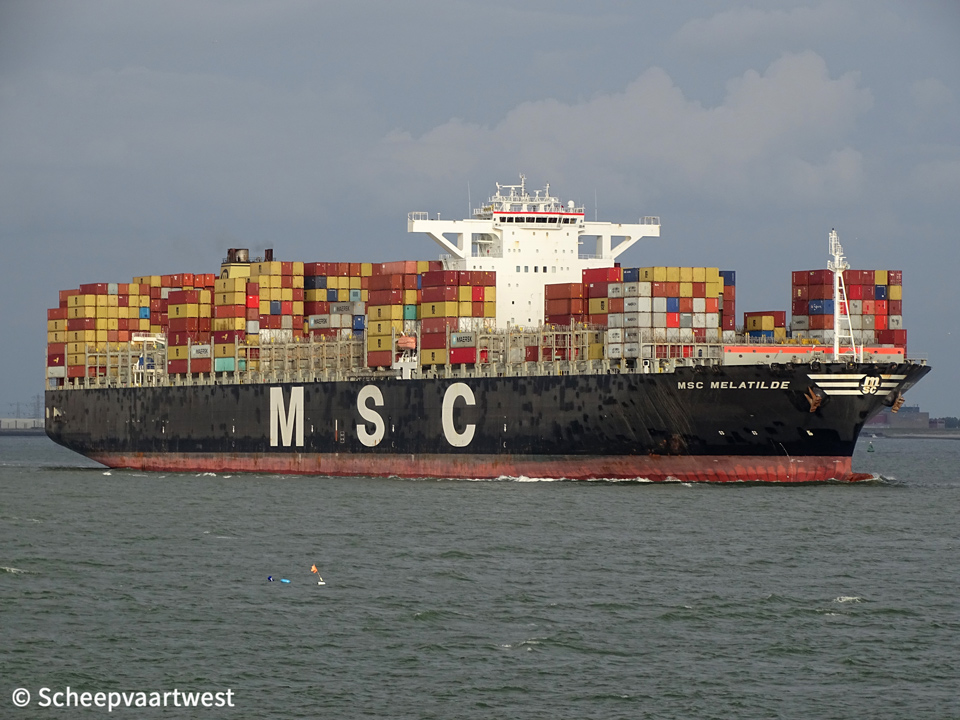

MSC Melatilde 03
Westerschelde 11/08/19













Name

MSC MELATILDE

Type

Cellular containership

IMO-number

9404675

Call sign

3FYE4

Flag

Republic od Panama

Port of registry

Panama City

GT

153.092 t

DWT

Summer: 165.477,6 t

NT

90.033 t

Number of 20ft containers

In hold: 6.428

on deck: 7.608

Total: 14.036

Container capacity 14t

10.640

Reefer capacity

1.000

Length

365,58 m overall

349,49 m between perpendiculars

Breadth

51,28 m extreme

Draught

Max: 16,00 m

Depth

29,90 m

Speed

25,4 knots

Built

2010

Keel laid

12/01/2010

Launch date

27/02/2010

Date of completion

23/06/2010

Builder

Daewoo Shipbuilding & Marine Engineering Co., Ltd. Okpo Shipyard

South Korea

Yard number

4138

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

1x MAN-B&W 12K98MC-C - 2 stroke single acting 12 cylinder 980 x 2.400 mm combustion engine 72.240 kW / 98.218 hp at 104,0 rpm

Propellers

1x Fixed pitch propeller - aft at 104,0 rpm

Boilers

1xAuxiliary boiler, oil/gas fired

1x Auxiliary boiler, exhaust gas heated

Generators

4x MAN-B&W/Doosan 8L32/40 - 8 cylinder combustion engine each 4.096 kW connected with generators each 3.800 kW - 6.600/450 Volt

Emergency generator

1x VTA 28-D-M diesel generatorset 588 kVA

Bow thruster

2x Tunnel thruster 2.070 kW / 2.814 bhp, forward

Tank capacities

Ballast: 47.578,7 m³

Anchor equipment

Length: 782,24 m

Diameter: 127 mm

Cargo gear

Gearless

Crew size

22

Manager

Mediterranean Shipping Company S.r.l.

Chemin Rieu 12-14

1208 Geneva

Switzerland

Registered owner

HIDM NO 2 SA

Latest data adjustment

19 July 2020
