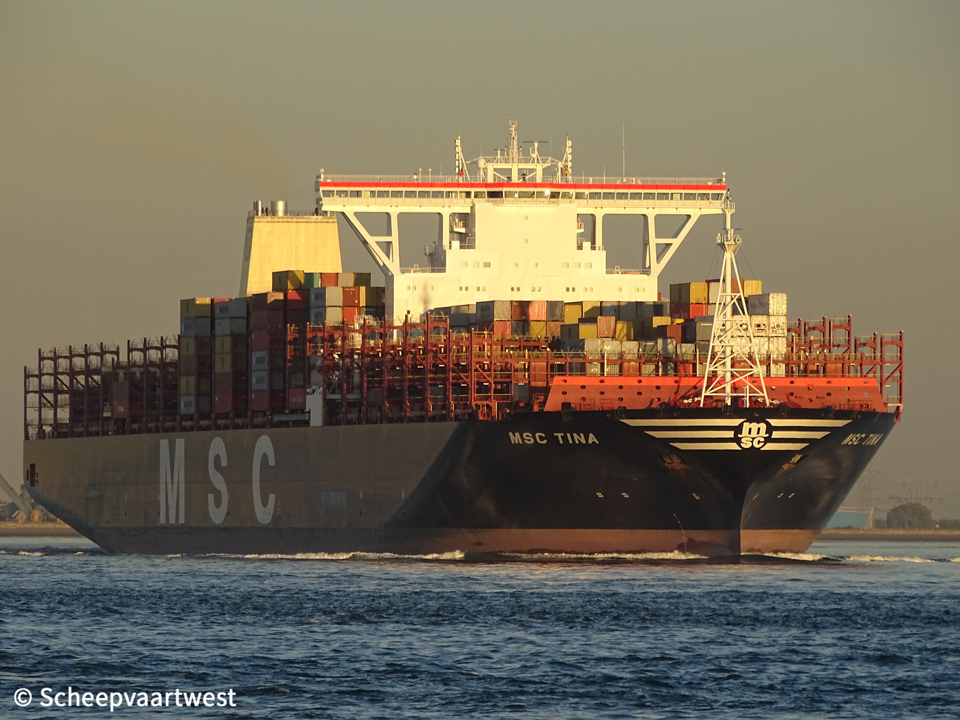

MSC Tina 01

Westerschelde 09 October 2018

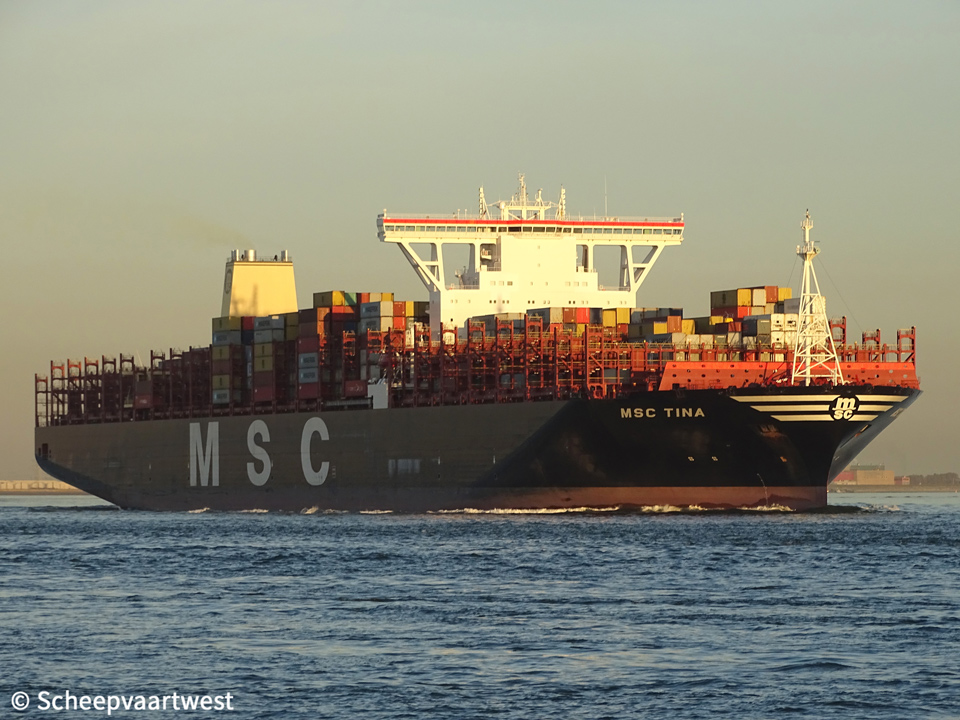

MSC Tina 04
Westerschelde 09/10/18













Name

MSC TINA

Type

Cellular containership

Classification

9762340

Call sign

D5NB7

Flag

Liberia

Port of registry

Monrovia

GT

194.308 t

DWT

200.148 t

NT

112.221 t

Number of 20ft containers

In hold: 11.258

On deck: 7.966

Total: 19.224

Number of 40ft containers

In hold: 5.629

On deck: 3.983

Total: 9.612

Container capacity 14t

17.200

Reefer capacity

1.800

Length

398,45 m overall

382,40 m between perpendiculars

Breadth

59,08 m extreme

Draught

Max: 16,00 m

Deckhouse

6,40 m

Bridge

372,00 m

Freeboard

6.579 mm

Depth

30,30 m moulded

Speed

Service: 22,6 knots

Max: 24,0 knots

Built

2017

Keel laid

30/12/2015

Launch date

12/11/2016

Date of completion

15/02/2017

Builder

Daewoo Shipbuilding & Marine Engineering Co., Ltd.

Okpo

South Korea

Yard number

4301

Hull material

Steel

Bulkheads

13

Continuous decks

2

Main engine

1x MAN B&W 11G95ME-C9.5 - 2 stroke single acting 11 cylinder 950 x 3.460 mm combustion engine:

MCR: 75.570 kW / 102.745 hp at 80,0 rpm

CSR: 64.234 kW / 87.333 hp

Built: 16/11/2015

Manufacturer: Doosan Engine Co., Ltd., Changwon - South Korea

Propellers

1x Fixed pitch propeller- aft at 80,0 rpm

Boilers

1x Auxiliary boiler, oil/gas fired - EGB NO.3GE-8L3240

1x Auxiliary boiler, exhaust gas heated - EGB NO.4GE-9L3240

1x Auxiliary boiler, oil/gas fired - PA0401P01

1x Auxiliary boiler, oil/gas fired - EGB (ME) type EA45013

Built: 24/09/2015
Manufacturer: KangRim Heavy Industries Co., Ltd.

Generators

2x MAN 9L32/40CD - 4 stroke 9 cylinder 320 x 400 mm diesel engines each 4.500 kW connected with generators each

2x MAN 8L32/40CD - 4 stroke 8 cylinder 320 x 400 mm diesel engines each 4.000 kW connected with generators each 3.900 kW

Emergency generator

1x D2842 LE201 diesel generatorset

Bow thruster

2x 2.500 kW / 3.399 bhp each

Number of holds

11

Tank capacities

Ballast: 62.388 m³

Anchor equipment

Length: 770,00 m

Diameter: 162 mm

Manager

Mediterranean Shipping Company S.r.l.

Chemin Rieu, 12-14

1208 Geneva

Switzerland

Operator

MSC - Mediterranean Shipping Company

Owner

Sea 45 Leasing Co Ltd.

Latest data adjustment

09 July 2020
