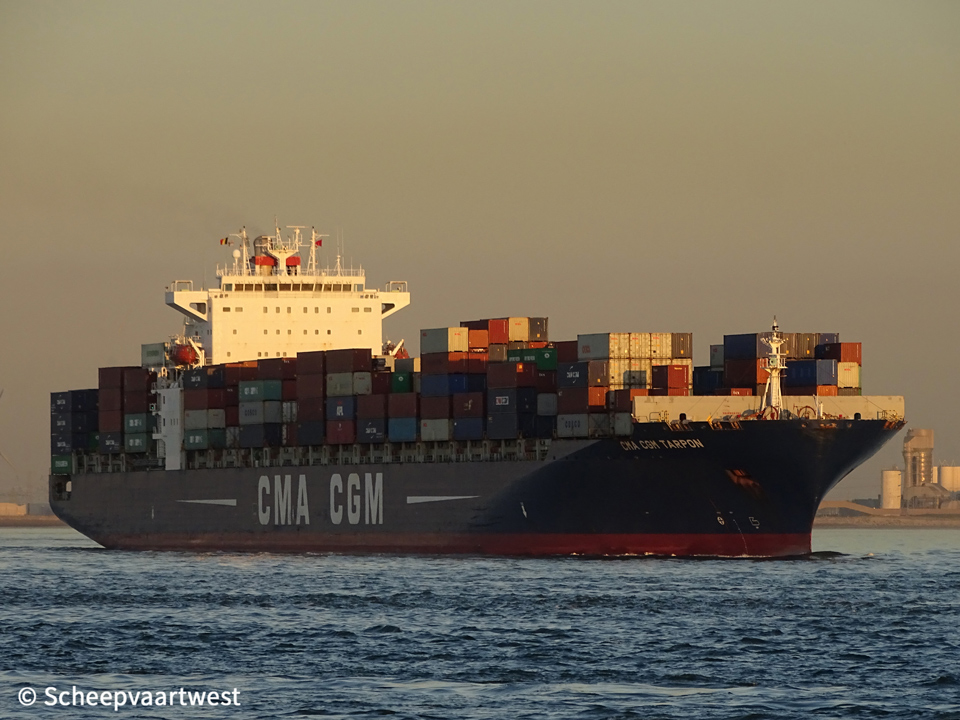

CMA CGM Tarpon 02

Westerschelde 09 October 2018

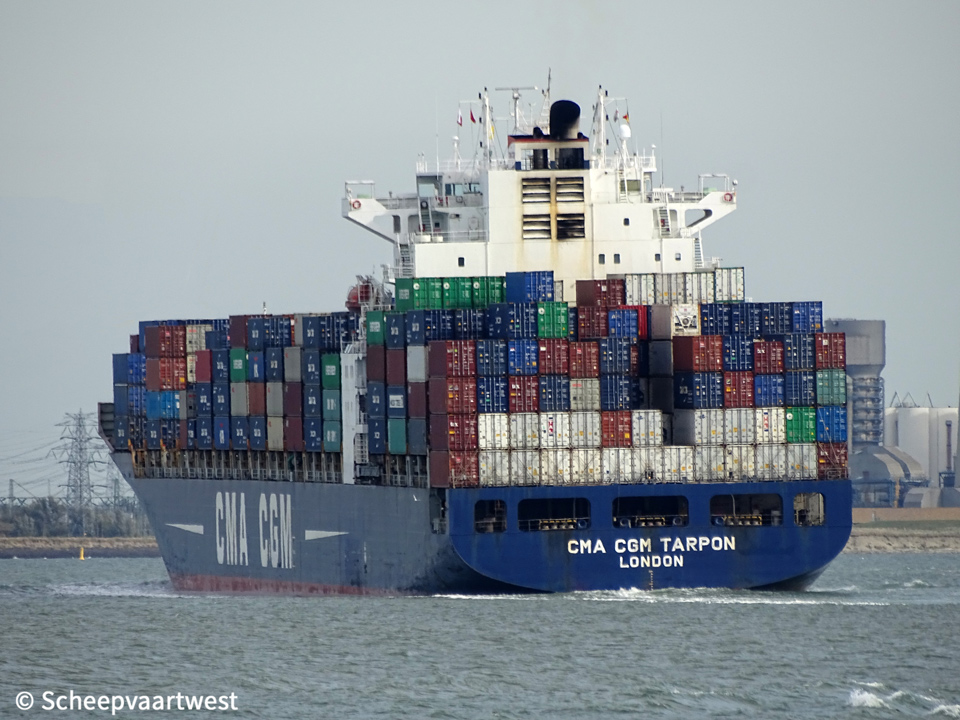

CMA CGM Tarpon 01
Westerschelde 08/10/18













Name

CMA CGM TARPON

Type

Cellular containership - Panamax

IMO-number

9331012

Call sign

9HA5004

Flag

Malta

Port of registry

Valletta

Previous flags

2007 - 2019 United Kingdom, London - Call sign: 2AGI6

GT

54.309 t

Suez: 55.817

DWT

Summer: 65.903 t

NT

34.011 t

Suez: 48.768 t

Number of 20ft containers

In hold: 2.203

On deck: 2.892

Total: 5.095

Container capacity 14t

3.306

Reefer capacity

330

Length

294,12 m overall

283,81 m between perpendiculars

Breadth

32,20 m

Draught

Max: 13,52 m

Freeboard

3.867 t

Depth

21,80 m

Speed

Max: 26,1 knots

Service: 23,5 knits

Built

2007

Date of completion

16/11/2007

Builder

Hyundai Heavy Industries Co., Ltd.

South Korea

Yard number

1771

Hull material

Steel

Watertight compartments

9

Number of decks

1

Main engine

1x MAN-B&W 10K 98MC-C - 2 stroke single acting 10 cylinder 980 x 2.400 mm combustion engine 57.100 kW / 77.582 hp at 104,0 rpm

Built: 2007

Builder: Hyundai Heavy Ind. Co., Ltd. - Engine & Mach. Div., Ulsan - South Korea

Propellers

1x Fixed pitch propeller - aft at 104,0 rpm

Boilers

1x CHR Aalborg 392,00 m² - 10,0 bar

1x CHO Aalborg 40,14 m² - 10,0 bar

Generators

3x Main diesel generatorsets each 3.000 kVA - 2.400 kW - 3.465 hp

450 / 220 Volt 60 Hz

Emergency generator

1x Diesel generatorset 250 kVA - 200 kW - 345 hp

Bow thruster

1x Tunnel thruster1.800 kW / 2.447 bhp, forward

Tank capacities

Fuel: 8.881,5 m³

Cargo gear

Gearless

Crew size

19

Manager

CMA CGM SA The French Line

4, quai d Arenc

13002 Marseille

France

Operator

CMA CGM

Registered owner

Xinjiang International Ship Lease Co., Ltd.

Latest data adjustment

09 July 2020
